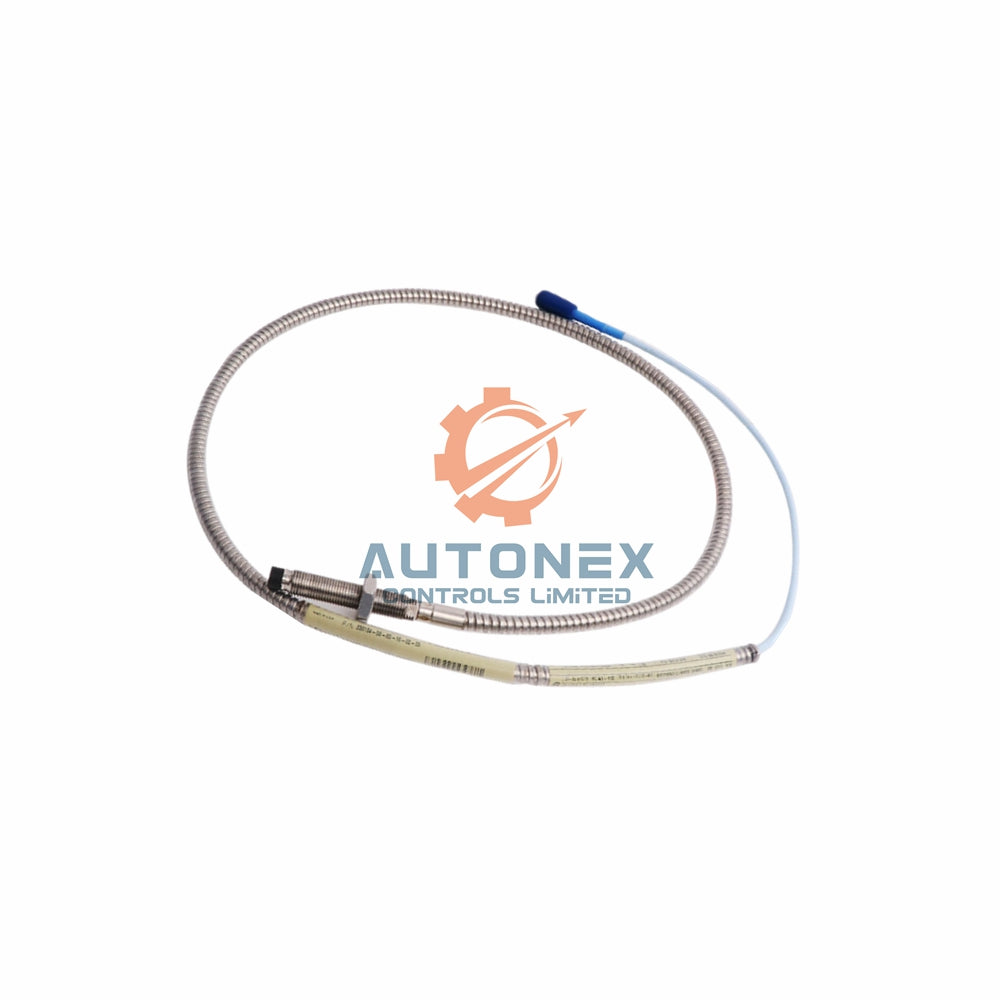

330102-00-35-05-02-05 New Bently Nevada 3300 XL 8mm Probe

330102-00-35-05-02-05 Bently Nevada 3300 XL 8 mm Proximity Probe – Complete Technical Data

• Manufacturer: Bently Nevada. Product model: 330102-00-35-05-02-05. Type: 3300 XL 8 mm Proximity Probe.
• Thread specification: 3/8-24 UNF thread with armor. Maximum thread engagement length equals 0.563 inches.
• Unthreaded length option: 00 = 0.0 inches. Overall case length option: 35 = 3.5 inches.
• Total length option: 05 = 0.5 meter (1.6 feet). Connector type: Miniature coaxial ClickLoc with standard cable.
• Agency approval option: 05 = CSA, ATEX, IECEx approvals. Probe weight: 323 g/m (11.4 oz).

Measurement & Electrical Specifications

• Linear range: 2 mm (80 mils) starting from 0.25 mm (10 mils) off target up to 2.3 mm (90 mils). Output voltage spans approximately –1 to –17 Vdc.
• Recommended gap setting for radial vibration: -9 Vdc, corresponding to roughly 1.27 mm (50 mils).
• Nominal probe DC resistance (RPROBE) for 0.5m length: 7.45 ± 0.50 Ω between center conductor and outer conductor.
• Field wiring requirements: 0.2 to 1.5 mm² (16 to 24 AWG). We recommend a 3-conductor shielded triad cable with tinned wiring.
• Maximum field wiring length: 305 meters (1000 feet) between the 3300 XL Proximitor Sensor and monitor. For high frequencies, check frequency response rolloff in Figures 10 and 12.

Temperature Ratings & Environmental Durability

• Standard probe operating and storage temperature: -52°C to +177°C (-62°F to +350°F).
• Extended temperature range probe: Tip works from -52°C to +218°C (-62°F to +425°F). Cable and connector work from -51°C to +260°C (-60°F to +500°F).
• Critical warning: Exposing the probe below –34°C (-30°F) may cause premature failure of the pressure seal.
• Relative humidity performance: Less than a 3% change in Average Scale Factor (ASF) when tested at 93% humidity for up to 56 days per IEC 68 2 3.
• Pressure sealing design: Bently Nevada does not pressure test 3300 XL 8 mm probes before shipment. Contact their custom design department if you need a pressure seal test.

Frequently Asked Questions (FAQ)

• Q: Is this probe brand new and original?
  A: Yes. We supply a brand new and original 330102-00-35-05-02-05 probe from authorized Bently Nevada channels.
• Q: Do you have this model in stock?
  A: Yes. We currently hold 3300 XL 8 mm probes in stock, including this exact configuration.
• Q: What is your typical shipping time?
  A: We dispatch all orders within 5 business days after order confirmation.
• Q: Which carriers do you use for delivery?
  A: We ship via FedEx, UPS, or DHL depending on your location and preference.
• Q: Can I return this product?
  A: Yes. We support a 30-day return policy from the delivery date for eligible items.
• Q: What happens if I expose the probe below -34°C?
  A: Temperatures below -34°C (-30°F) may cause premature failure of the internal pressure seal. Please avoid such conditions.
• Q: Do you test the pressure seal before shipping?
  A: Bently Nevada does not pressure test these probes prior to shipment. Please contact their custom design department if needed.
• Q: What approvals does option 05 include?
  A: Option 05 provides CSA, ATEX, and IECEx certifications for hazardous area installations.
• Q: What is the DC resistance for the 0.5m cable version?
  A: The nominal RPROBE for 0.5 meter length is 7.45 ± 0.50 Ω.
