330101-00-66-20-02-CN Bently Nevada 3300 XL Probe | 6.6in Case

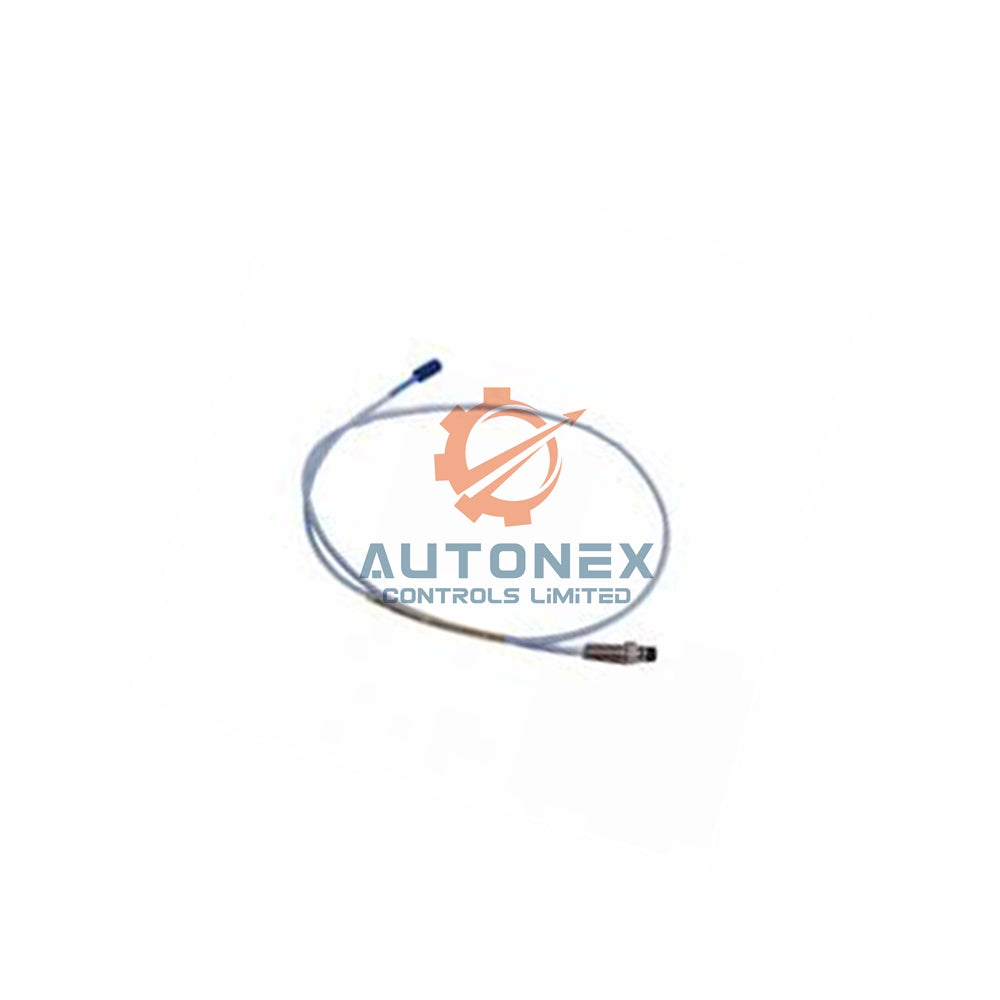

330101-00-66-20-02-CN – Bently Nevada 3300 XL 8 mm Probe

Key Technical Specifications

• Manufacturer & Model: Bently Nevada 330101-00-66-20-02-CN – 3300 XL 8 mm probe.
• Thread type: 3/8-24 UNF thread, without armor, standard forward mount.
• Unthreaded length option: 00 = 0.0 inch.
• Overall case length: 66 = 6.6 inches.
• Total length option: 20 = 2.0 meters (6.6 feet) probe cable.
• Connector type: 02 = miniature coaxial ClickLoc connector, standard cable.
• Country specific suffix: CN = Country Specific version.
• Nominal probe DC resistance (RPROBE): 7.88 ± 0.50 Ω (center to outer conductor).
• Extension cable capacitance: 69.9 pF/m (21.3 pF/ft) typical.
• Linear range: 2 mm (80 mils) from 0.25 mm to 2.3 mm (10 to 90 mils). Output voltage range approx. –1 to –17 Vdc.
• Recommended gap for radial vibration: -9 Vdc (~1.27 mm / 50 mils).
• Incremental scale factor (ISF): 7.87 V/mm (200 mV/mil) ±5% for 1/5 meter system (0°C to +45°C).
• Deviation from best fit straight line (DSL): < ±0.025 mm (±1 mil) for standard 1/5 m system.
• Probe tip material: Polyphenylene sulfide (PPS).
• Probe case material: AISI 303 or 304 stainless steel (SST).
• Weight: 323 g/m (11.4 oz).
• Standard operating temperature (probe): -52°C to +177°C (-62°F to +350°F).
• Extended temperature range (ETR) probe tip: Up to +218°C (+425°F).
• Relative humidity: <3% change in ASF after 56 days at 93% humidity (IEC 68-2-3).
• Maximum thread engagement: 0.563 inch for 3/8-24 thread.
• Recommended probe case torque (standard forward mount): 11.2 N•m (100 in•lbf).
• Pull strength (CableLoc): 330 N (75 lbf).
• Field wiring recommendation: 0.2 to 1.5 mm² (16 to 24 AWG), shielded triad cable, max length 305 meters (1000 ft) to monitor.

Frequently Asked Questions (FAQ)

• Q: Is the 330101-00-66-20-02-CN probe brand new and original?
  A: Yes, we supply only 100% new, original Bently Nevada probes. No refurbished or counterfeit parts.
• Q: What is the linear measurement range for this 3300 XL 8 mm probe?
  A: The linear range is 2 mm (80 mils) from 0.25 mm to 2.3 mm (10 to 90 mils) with -1 to -17 Vdc output.
• Q: Does this probe support extended temperature operation?
  A: Standard version works from -52°C to +177°C. For higher temperatures up to +218°C at tip, order ETR version.
• Q: What is the incremental scale factor (sensitivity)?
  A: Scale factor equals 7.87 V/mm (200 mV/mil) ±5% over 0°C to +45°C range, includes interchangeability error.
• Q: How long does shipping take and which carriers do you use?
  A: We dispatch within 5 days and ship via FedEx, UPS, or DHL. Express delivery typically takes 3-7 business days.
• Q: Do you have this probe (330101-00-66-20-02-CN) in stock?
  A: Yes, we keep consistent stock. Please contact us for quantity discounts and immediate availability.
• Q: Can I return the probe if it doesn't fit my application?
  A: Absolutely. We support 30-day returns for undamaged, unused products. Buyer pays return shipping unless defective.
• Q: What is the recommended gap setting for radial vibration measurements?
  A: Set the gap voltage to -9 Vdc, which equals approximately 1.27 mm (50 mils) from target.
• Q: Does the probe cable include armor?
  A: No, this specific model 330101-00-66-20-02-CN comes without armor. For armored version choose different option suffix.
• Q: What is the probe DC resistance for the 2.0 meter length?
  A: The nominal RPROBE is 7.88 ± 0.50 Ω from center conductor to outer conductor.
