330101-00-31-15-02-05 3300 XL Probe In Stock Bently Nevada

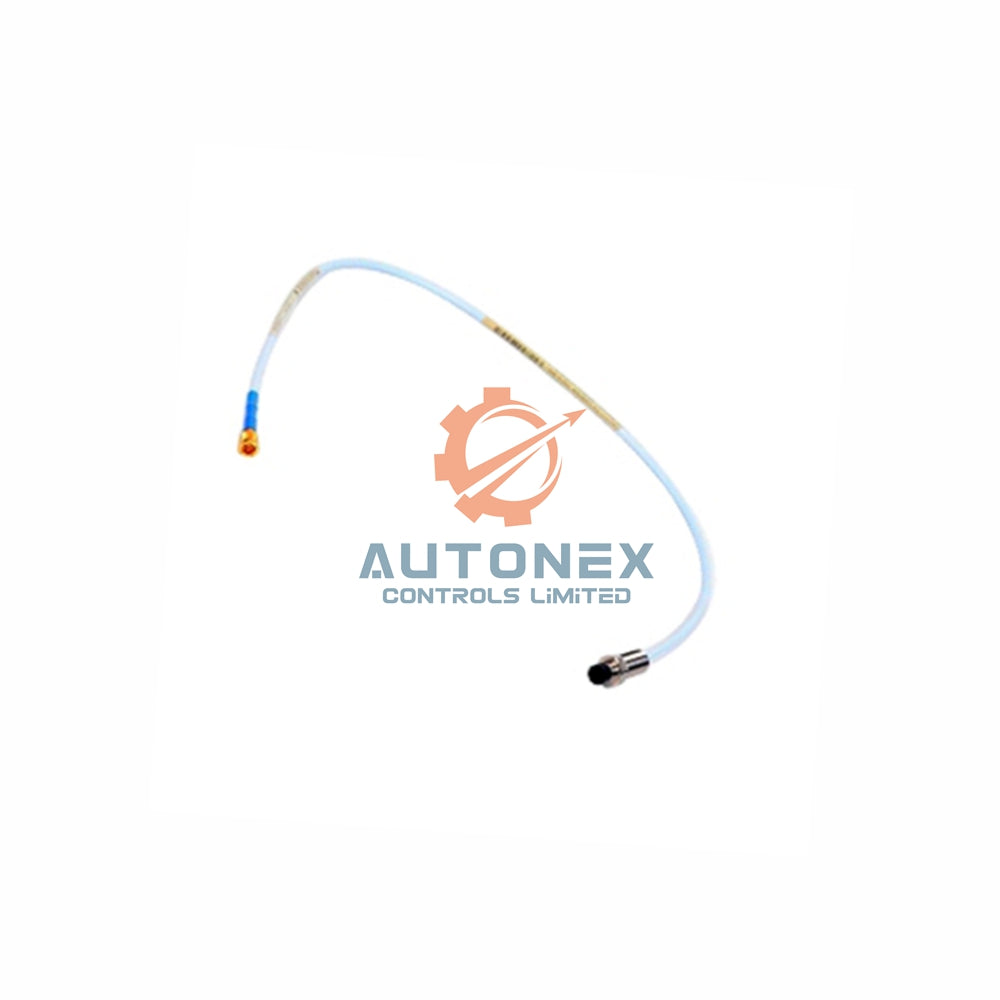

Bently Nevada 330101-00-31-15-02-05 3300 XL 8 mm Probe Overview

Technical Specifications - 330101-00-31-15-02-05 and System Parameters

• Manufacturer: Bently Nevada; Model: 330101-00-31-15-02-05, Series: 3300 XL 8 mm Probe.
• Thread type: 3/8-24 UNF without armor; unthreaded length: 0.0 inches.
• Overall case length: 3.1 inches; total length option: 1.5 meters (4.9 feet).
• Connector: Miniature coaxial ClickLoc with standard cable; approvals: CSA, ATEX, IECEx.
• Nominal probe DC resistance (RPROBE): 7.73 ± 0.50 Ω for 1.5m length.
• Extension cable capacitance: 69.9 pF/m (21.3 pF/ft) typical value.
• Field wiring: 0.2 to 1.5 mm² (16 to 24 AWG), use 3-conductor shielded triad, max length 305 meters (1000 feet) to 3300 XL Proximitor Sensor.
• Linear range: 2 mm (80 mils) from 0.25 mm to 2.3 mm (10 to 90 mils).
• Output voltage range: Approximately -1 to -17 Vdc across linear span.
• Recommended gap for radial vibration: -9 Vdc = approx. 1.27 mm (50 mils).
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5% for 1 or 5 meter systems (0°C to +45°C).
• Standard 9 meter system ISF: 7.87 V/mm (200 mV/mil) ±6.5% under same conditions.
• Extended Temperature Range (ETR) ISF: 7.87 V/mm ±6.5% for 5 and 9 meter systems.
• Deviation from best fit straight line (DSL) - 1 or 5m: less than ±0.025 mm (±1 mil) at 0°C to +45°C.
• DSL - 9m system: less than ±0.038 mm (±1.5 mil) at 0°C to +45°C.
• Probe tip material: Polyphenylene sulfide (PPS). Probe case: AISI 303 or 304 stainless steel (SST).
• Nominal weight: 323 g/m (11.4 oz).
• Standard probe temperature range (operating/storage): -52°C to +177°C (-62°F to +350°F).
• ETR probe tip range: -52°C to +218°C (-62°F to +425°F); cable/connector: -51°C to +260°C (-60°F to +500°F).
• Pressure sealing: Viton® O-ring design, differential pressure between tip and case.
• Humidity tolerance: less than 3% ASF change after 56 days at 93% RH (IEC 68-2-3).
• Thread engagement limit: maximum 0.563 inches for 3/8-24 case thread.
• Maximum rated torque (forward mounted probes): 33.9 N•m (300 in•lbf); recommended 11.2 N•m (100 in•lbf).
• First three threads torque max: 22.6 N•m (200 in•lbf); recommended 7.5 N•m (66 in•lbf).

Frequently Asked Questions (FAQ)

• Q: Is the 330101-00-31-15-02-05 probe brand new and original?
  A: Yes, we supply only 100% new original Bently Nevada 3300 XL 8 mm probes. No counterfeit or refurbished items.
• Q: What is the linear range for this 3300 XL probe?
  A: The linear range measures 2 mm (80 mils) from 0.25 mm to 2.3 mm (10 to 90 mils) target gap.
• Q: What is the incremental scale factor?
  A: Standard scale factor is 7.87 V/mm (200 mV/mil) with ±5% interchangeability error between 0°C to +45°C.
• Q: Can I use this probe with extension cables?
  A: Yes, the 3300 XL system supports extension cables; total length 1.5m already includes cable but longer systems available.
• Q: Do you have stock for this model?
  A: Absolutely, we maintain regular stock of 330101-00-31-15-02-05. Delivery happens within 5 days.
• Q: What shipping carriers do you use?
  A: We ship via FedEx, UPS, or DHL depending on your region and fastest route.
• Q: What if I need to return the probe?
  A: We support 30-day returns from delivery date, provided the probe remains unused and in original packaging.
• Q: What approvals does this probe carry?
  A: The -05 option adds CSA, ATEX, and IECEx hazardous area approvals for safe use.
• Q: What is the recommended gap voltage for radial vibration?
  A: Set the air gap to achieve -9 Vdc, equivalent to approximately 1.27 mm (50 mils) from target.
• Q: Are there any temperature restrictions for probe cable?
  A: For standard probe, the cable operates from -52°C to +177°C; ETR option extends cable up to +260°C.
