3300 NSv Probe | Bently Nevada 330905-00-10-05-12-05

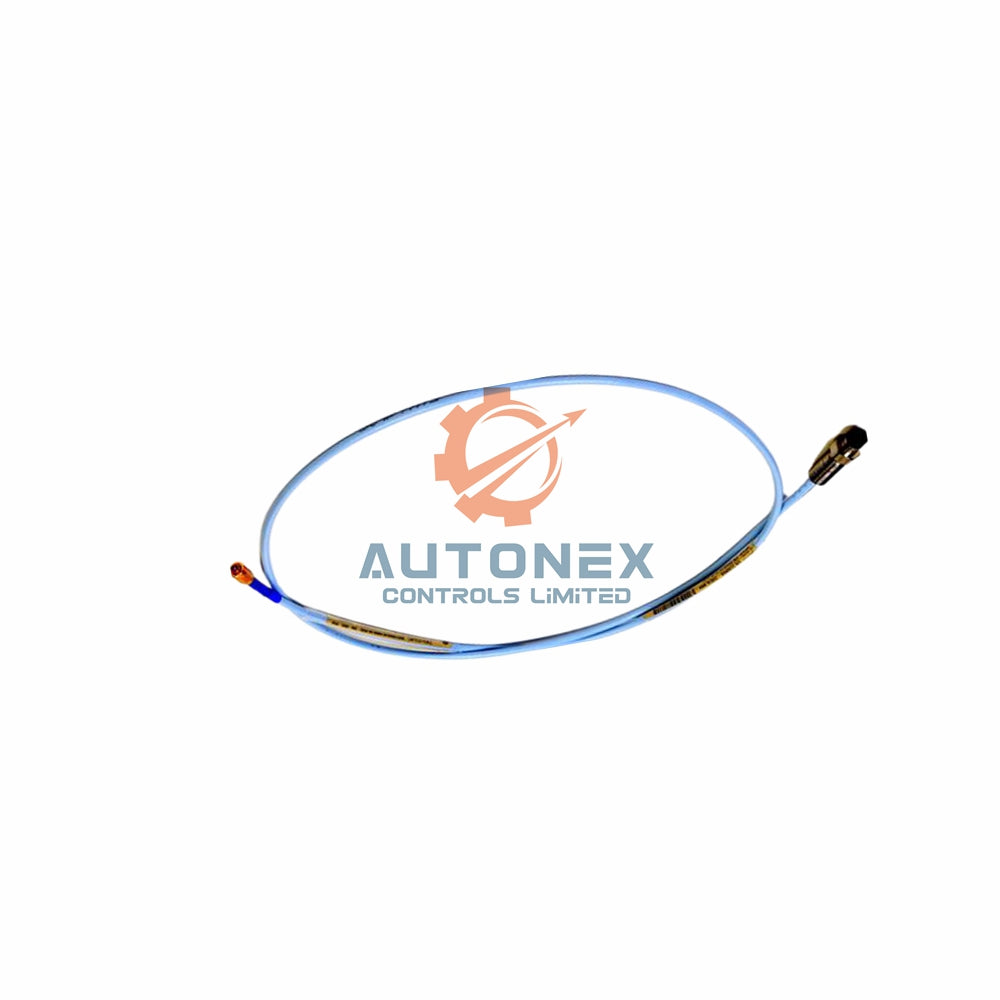

Bently Nevada 3300 NSv Proximity Probe - Approved Industrial Sensor

Product Model & Configuration

• Manufacturer & Series: Bently Nevada, 3300 XL NSv Proximity Transducer System.
• Full Model Number: 330905-00-10-05-12-05.
• Configuration Details: -00- (0mm unthreaded section), -10- (100mm housing length), -05- (0.5 meter cable), -12- (FluidLoc connector), -05 (multiple agency approvals).

Core Technical Specifications

• Measurement Range: Provides a linear measurement range of up to 1.5mm.
• System Sensitivity: Delivers a standard output of 7.87 Volts per millimeter.
• Operating Temperature: Functions reliably from -52°C to +177°C.
• Linearity & Accuracy: Maintains high accuracy within ±0.06mm.
• Electrical Resistance: Features a 4.0 Ω cable conductor resistance.
• Frequency Response: Designed for vibration monitoring from 0 to 10,000 Hz.
• Target Size: Requires a minimum target diameter of 13mm for optimal performance.

Installation & Setup Guide

• Establish an initial air gap of approximately 1.0mm between the probe tip and target.
• Install the sensor by hand-tightening only to avoid damaging the threads.
• Ensure the target surface is conductive, clean, and meets the minimum size requirement.
• Route the integrated FluidLoc cable properly and avoid sharp bends or kinks.
• Connect the probe to a compatible Bently Nevada monitoring system for verification.

System Compatibility & Agency Approvals

• This probe offers direct compatibility with existing 3300 RAM system installations.
• It represents a performance improvement over legacy 190 series probes.
• The -05 suffix confirms the sensor carries multiple international agency certifications.
• These approvals are essential for use in regulated and hazardous location applications.

Frequently Asked Questions (FAQ)

• Q: Is this Bently Nevada probe a genuine new part?
  A: Yes, the 330905-00-10-05-12-05 is 100% new and authentic.
• Q: How quickly will my order ship?
  A: We process and ship available stock within 5 business days.
• Q: What are my shipping options?
  A: We offer reliable services with DHL, FedEx, and UPS.
• Q: Can I return the product if needed?
  A: Yes, we provide a straightforward 30-day return policy.
• Q: What does the "-05" suffix mean?
  A: It indicates the probe has multiple agency safety approvals for certified use.
• Q: What is the standard installation gap setting?
  A: The typical gap for calibration is 1.0mm (40 mils).

Access the complete engineering datasheet for detailed performance curves, mechanical drawings, and approval lists.

Download the Official 3300 XL NSv Proximity Transducer System Datasheet (PDF)

For help with approvals, system integration, or to place an order, please contact our expert team.
