2711P-T10C4A2 Allen-Bradley PanelView Plus 1000 Touch HMI

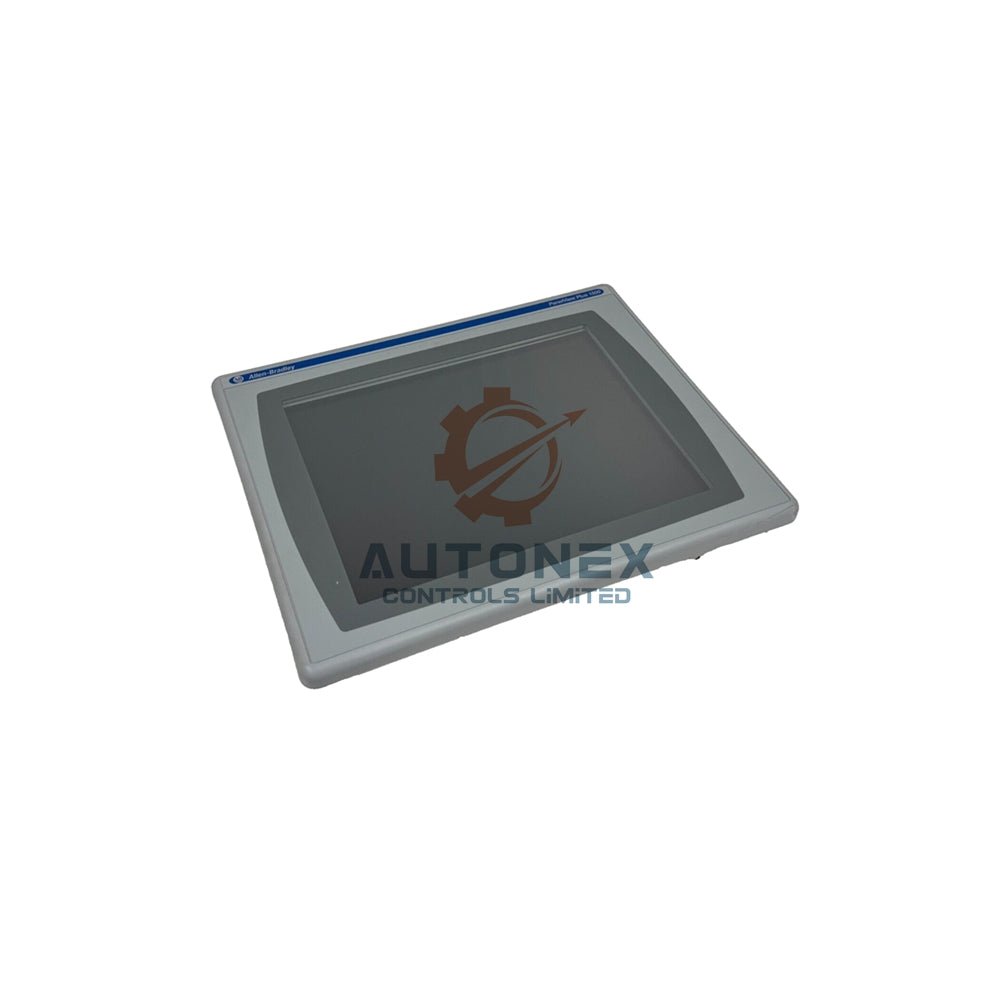

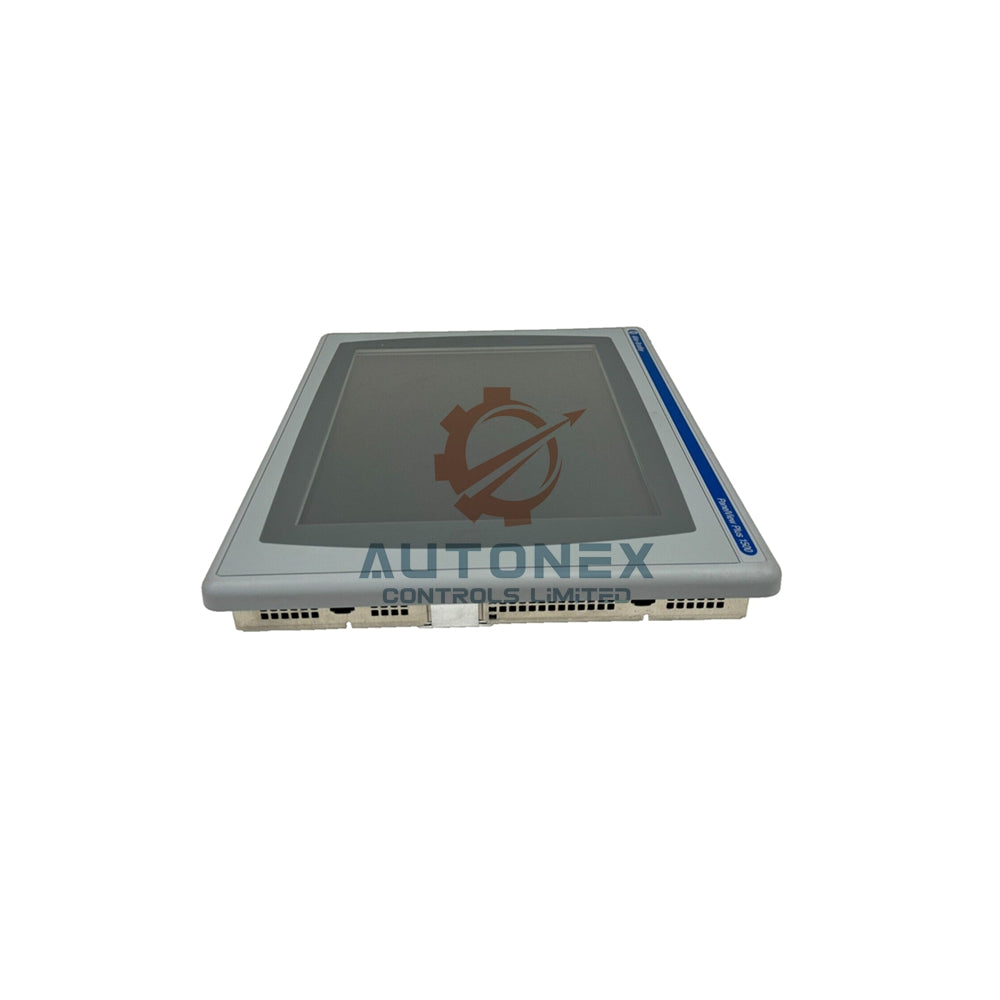

2711P-T10C4A2 PanelView Plus 1000 Touch Terminal

• Display & Resolution: 10.4-inch color active-matrix TFT screen with 640 x 480 pixel resolution. The viewing area measures 211 x 158 mm (8.3 x 6.2 in.).
• Backlight & Lifespan: CCFL backlight with a minimum 50,000-hour life at 25 °C (77 °F). The backlight is field-replaceable for extended service.
• Touchscreen Durability: Analog resistive touch technology supports 1 million actuations. Operating force ranges from 10 to 110 grams.
• Internal Memory & Storage: 128 MB RAM and 25 MB of non-volatile Flash memory. This logic module stores your application and system files.
• Power Requirements: Operates on 85-264 VAC input voltage, 47-63 Hz. Maximum power consumption is 160 VA, with typical usage at 65 VA.

Communication & Connectivity Options

• Integrated Ports: One Ethernet port supports EtherNet/IP for real-time I/O and messaging. One RS-232 port (9-pin D-sub) handles DH-485 and DF1 protocols.
• USB Host Port: Connect a USB mouse, keyboard, or flash drive for flexible data transfer and operation. This simplifies application updates and data logging.
• Network Compatibility: The Ethernet port also enables application transfers and printing. Use it with a controller on your EtherNet/IP network.

Physical & Environmental Specifications

• Shipping Weight & Dimensions: Approximately 9 lbs. (4.1 kg). Box dimensions are 16 x 11 x 8 inches (406 x 279 x 203 mm).
• Product Series: Available in Series A, B, C, D, and F. This terminal belongs to the PanelView Plus 1000 product line.

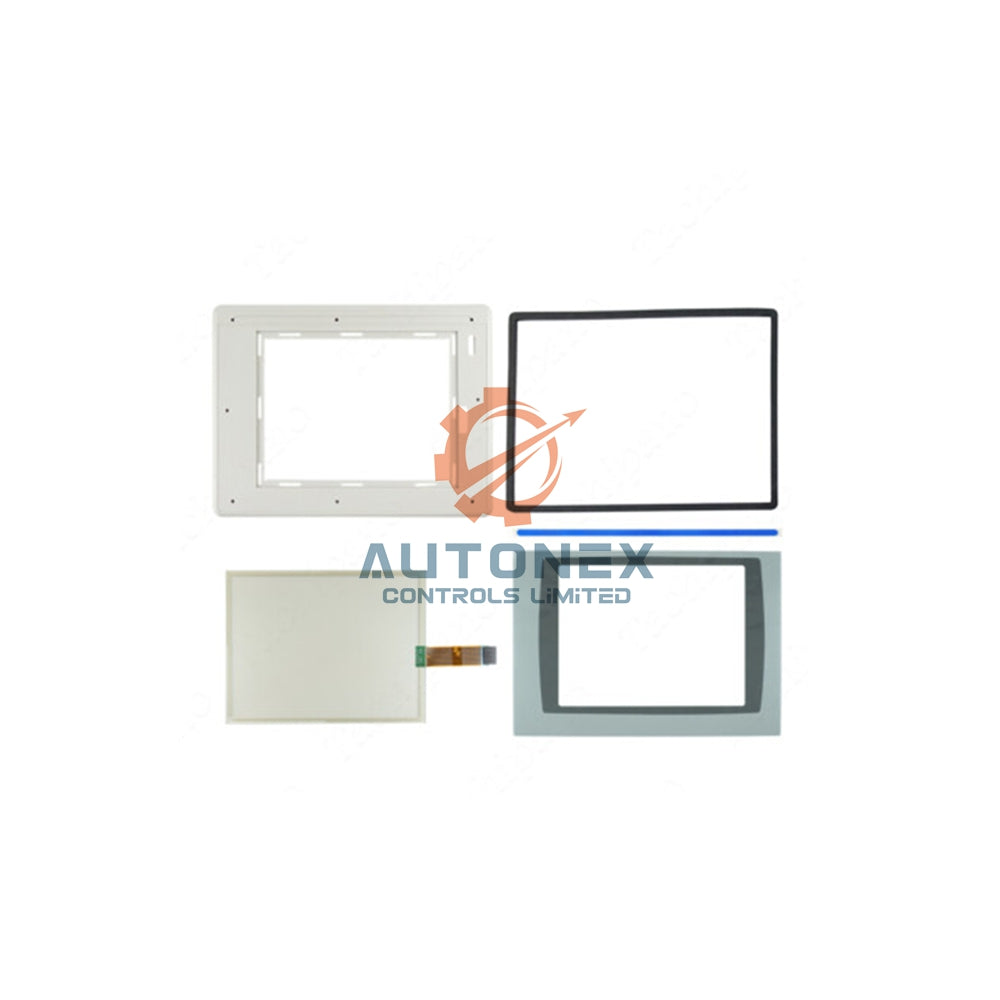

• Input Protection: Use a protective screen overlay to shield against industrial contaminants. This maintains touch sensitivity and clarity.

Installation & Package Contents

• Installation Guide: Mount the 2711P-T10C4A2 in a panel or enclosure. Ensure proper ventilation and follow the provided cutout dimensions.
• What’s in the Box: You will receive the Allen-Bradley 2711P-T10C4A2 terminal, mounting clips, and a quick-start guide. The unit does not include a communication cable.
• Recommended Cable: Use the 1761-NET-ENI for specific RS-232 connections. This cable supports DF1 and DH-485 protocols.

Frequently Asked Questions (FAQ)

• Is this terminal new or refurbished? We supply 2711P-T10C4A2 units as brand new, factory-sealed products. All units are genuine Allen-Bradley inventory.
• Do you have this model in stock? Yes, we maintain stock of the Allen-Bradley 2711P-T10C4A2. We can ship most orders within 5 business days.
• What shipping carriers do you use? We ship via FedEx, UPS, and DHL. Choose your preferred option at checkout for reliable delivery.
• Can I return this product if it doesn’t fit my application? Yes, we support returns within 30 days of receipt. The unit must remain in original, unopened packaging.
• Does this terminal support DF1 protocol? Yes, the RS-232 port supports both DF1 and DH-485. This gives you flexible connectivity with legacy and modern controllers.
• Is the backlight replaceable in the field? Yes, the CCFL backlight is field-replaceable. This extends the service life of your 2711P-T10C4A2 terminal.
