2711P-K6M5A8 Allen-Bradley PanelView 6 Plus HMI Terminal

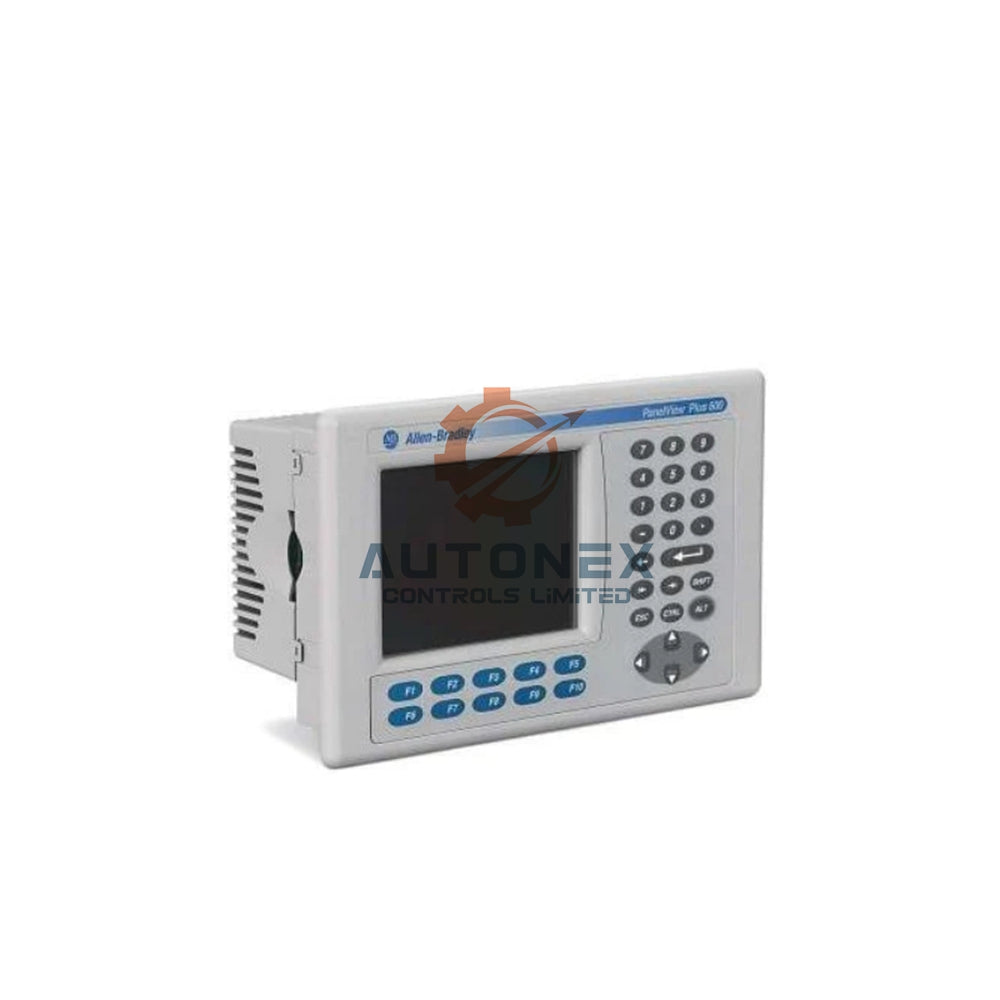

2711P-K6M5A8 PanelView Plus 6 Terminal – Monochrome Keypad HMI

• Display & Input: 5.7‑inch monochrome screen with a durable keypad for manual data entry and navigation. The non‑replaceable backlight ensures consistent visibility over the product’s lifespan.
• Memory & Performance: Equipped with 256 MB RAM, the 2711P-K6M5A8 handles application transfers and local data processing efficiently.
• Communication Port: The RS‑232 serial port (9‑pin, male) supports DF1 full‑duplex, DH‑485, and third‑party point‑to‑point protocols. It also facilitates uploads/downloads with a computer via direct connection (cable length up to 15.24 m).
• Power & Environment: Accepts 100–240 VAC, 50–60 Hz input. The terminal withstands typical industrial temperature ranges and offers reliable noise immunity for stable operation.
• Physical Dimensions: Shipping weight of 6 lbs. and dimensions of 14 x 11 x 8 inches. Series A and Series B versions are available.

Installation & Connection Guide

• Mount the 2711P-K6M5A8 on a flat panel using the provided hardware; ensure adequate clearance for ventilation.
• Connect AC power (100‑240 VAC) to the terminal’s power input block, observing local electrical codes.
• Use the 2711‑NC13 communication cable (sold separately) for RS‑232 serial connections to controllers or PCs.
• Configure the RS‑232 port for DF1, DH‑485, or point‑to‑point protocols via the terminal’s configuration menu.
• Perform application uploads/downloads through the serial port using compatible Rockwell software.

Package Contents

• 2711P-K6M5A8 operator interface terminal (monochrome, keypad).
• Panel mounting clips and gasket.
• Power connector plug (removable).
• Quick start guide (printed).
• No additional cables, software, or memory cards included.

Shipping & Logistics

• We ship via FedEx, UPS, or DHL – tracking number provided upon dispatch.
• Orders process within 5 business days; expedited options available on request.
• All units are brand new, original stock, sealed in factory packaging.
• 30‑day return policy applies for unused, unopened items.

Frequently Asked Questions

• Is the 2711P-K6M5A8 new or refurbished?
  All units are brand new, original Allen‑Bradley stock, never refurbished.
• What is the backlight replacement part number?
  The backlight is non‑replaceable; the entire unit must be exchanged if backlight fails.
• Can I use this terminal with DH‑485 networks?
  Yes, the RS‑232 port supports DH‑485 communication via a serial connection (with appropriate cabling).
• What is the maximum cable length for RS‑232?
  The recommended maximum cable length is 15.24 meters for reliable data transfer.
• Do you have stock available?
  Yes, we keep stock on hand for immediate shipment; lead time is 5 days or less.
• What is the warranty and return policy?
  We offer a 30‑day return window for unused items in original condition.
