2711P-K6M5A Allen-Bradley Operator Interface Terminal

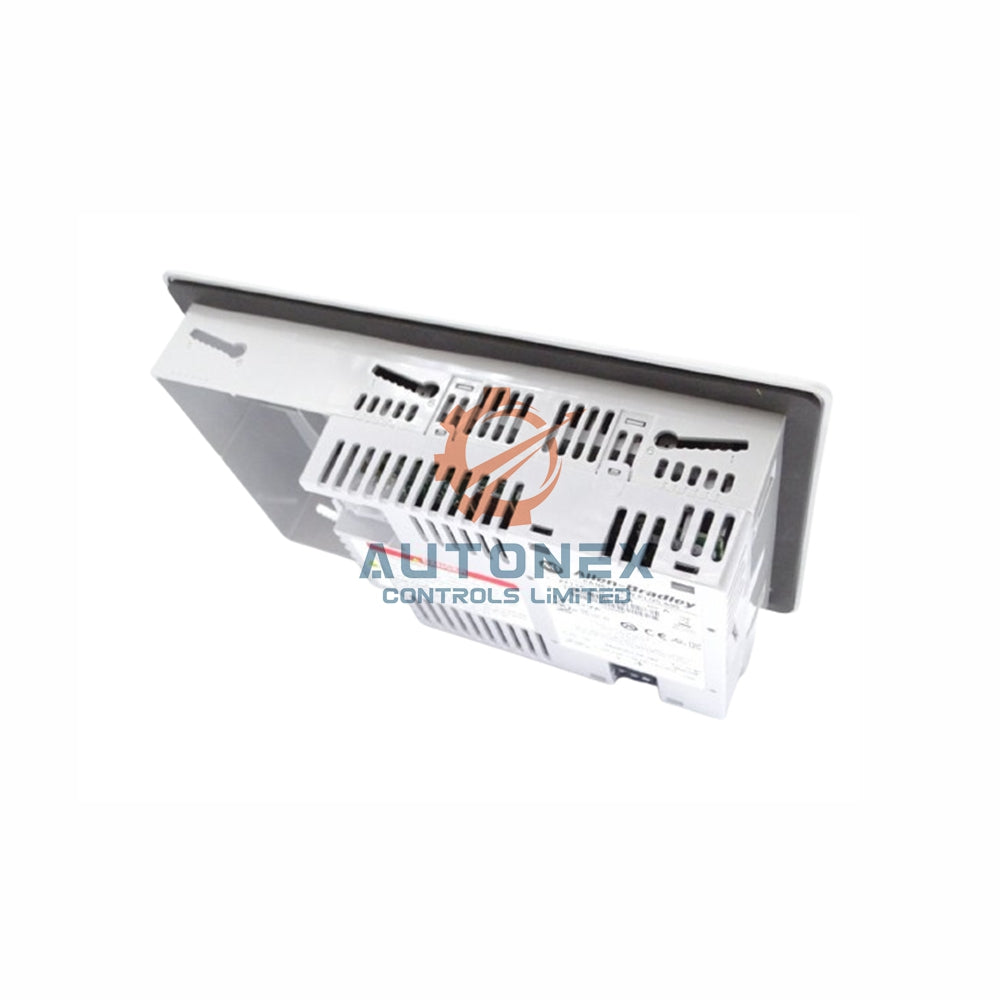

Allen‑Bradley 2711P‑K6M5A PanelView Plus 600 HMI Terminal

• Display & Resolution: 5.7‑inch grayscale TFT LCD monochrome screen. It offers 320 x 240 pixel resolution with 16‑level grayscale. Display area measures 4.5 x 3.4 inches for clear visual feedback.
• Keypad & Input: Includes numeric keys, navigational keys, and customizable function keys. Users can configure function keys for frequently used application commands.
• Memory & Storage: Non‑volatile flash memory provides 256 MB. The unit contains 512 MB of RAM for smooth application processing. External storage is available via Secure Digital (SD) card.
• Communication Ports: Features an RS‑232 serial port and a USB port. These ports enable connection to peripheral devices and programming tools.
• Power Supply: Supports 100‑240V AC input (120V AC rated). Maximum AC power consumption is 35 VA, with typical usage at 20 VA. DC input range is 18‑30V DC with 15 W max consumption.
• Backlight & Lifespan: White LED backlight provides clear visibility. Estimated lifespan reaches 25,000 hours at 77 °F (25 °C) for long‑term reliability.
• Environmental Ratings: Operating temperature ranges from 32 to 131 °F (0‑55 °C). Storage temperature spans ‑13 to 158 °F (‑25‑70 °C). Enclosure meets NEMA Type 12, 13, 4X, and IEC IP66 standards.
• Shock & Humidity: Operating shock rating is 15 g at 11 ms. Non‑operating shock withstands 30 g at 11 ms. Relative humidity tolerance is 5‑95 % non‑condensing.
• Clock & Physical: Battery‑backed clock maintains accuracy within ±2 minutes per month. Unit dimensions are 10.47 x 3.86 x 6.58 inches (266 x 98 x 167 mm).

Installation Guidelines

• Mount the 2711P‑K6M5A on a flat panel using the provided hardware. Ensure the cutout matches the specified dimensions.
• Connect the AC or DC power supply to the appropriate input terminals. Verify voltage matches the rated range.
• Use shielded cables for RS‑232 and USB connections. This minimizes electrical noise and ensures stable communication.
• Install the terminal in a location with adequate airflow. Keep ambient temperature within 32‑131 °F range.
• Ground the unit properly to prevent static discharge and ensure operator safety.
• Secure all cables with strain relief to avoid accidental disconnection during operation.

Package Contents

• Allen‑Bradley 2711P‑K6M5A operator interface terminal
• Installation guide and user manual
• Mounting clips and screws for panel installation
• Power connector plug (female, 3‑pin for AC)
• Communication port protective covers

Frequently Asked Questions

• Is the 2711P‑K6M5A a brand new original unit? Yes, we supply only factory‑sealed, genuine Allen‑Bradley terminals.
• Do you have stock available? Yes, we maintain ready inventory for immediate shipment.
• How fast do you ship? We dispatch all orders within 5 business days after order confirmation.
• Which shipping carriers do you use? We offer DHL, FedEx, and UPS – you can choose your preferred carrier.
• What is your return policy? We accept returns within 30 days of delivery for any reason.
• Does the terminal support SD card storage? Yes, it supports external Secure Digital (SD) cards for expanded storage.
• What is the backlight lifespan? The white LED backlight has an estimated lifespan of 25,000 hours at 77 °F.
