2711P-B6C20D | Allen-Bradley - PanelView Plus 6 600 HMI

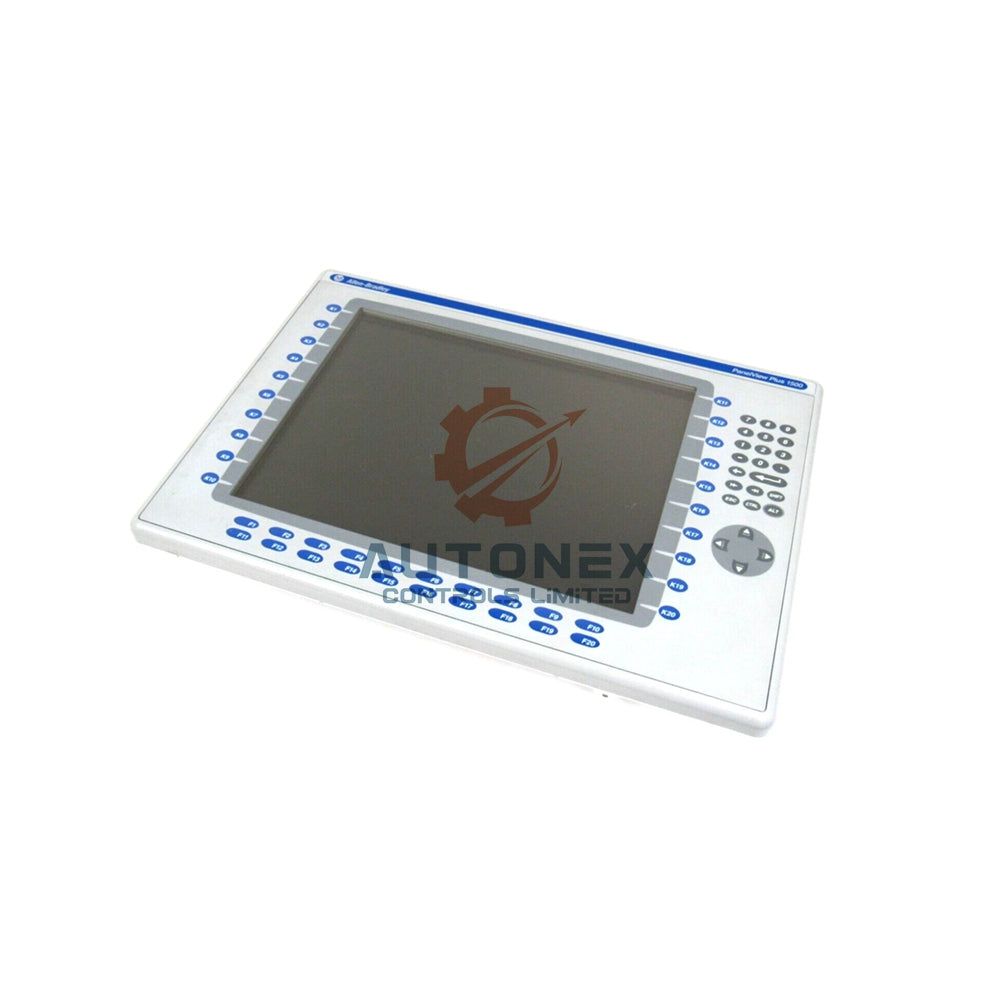

2711P-B6C20D | Allen-Bradley PanelView Plus 6 600 Color Terminal

Key Technical Specifications

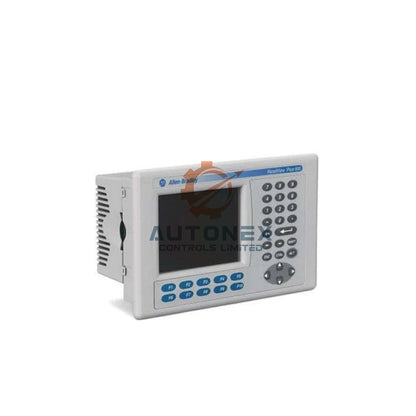

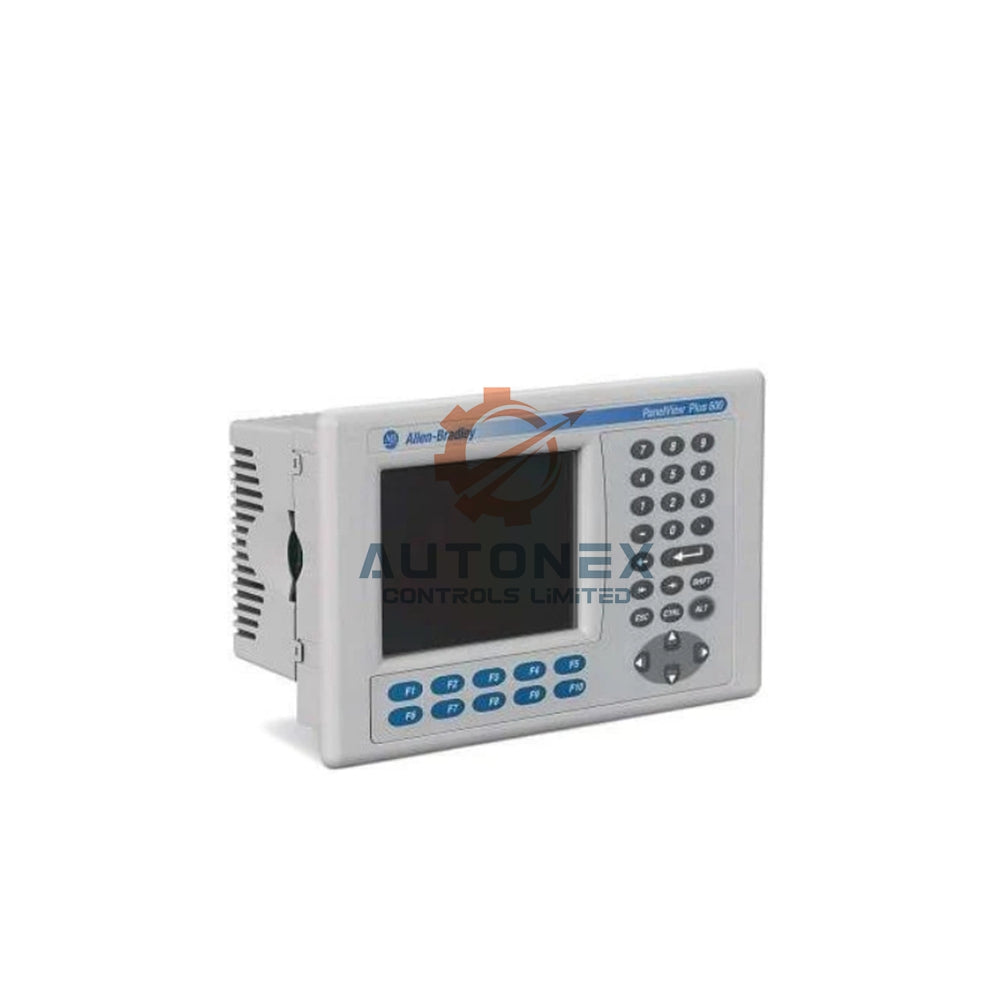

• Brand & Model: Allen-Bradley 2711P-B6C20D. Part of the PanelView Plus 6 Graphic Terminals family.
• Display Size & Type: 5.7-inch color active matrix TFT LCD. Display area measures 111 x 84 mm (4.37 x 3.30 inches).
• Display Resolution: 320 x 240 pixels with 18-bit color graphics. Brightness rating of 440 cd/m² (Nits).
• Backlight Type: Non-replaceable backlight. Operational lifespan of 25,000 hours minimum at 25°C (77°F).
• Operator Inputs: Dual input with keypad and analog resistive 4-wire touchscreen.
• Keypad Components: F1 to F10 function keys, 0-9 numeric keys, decimal point, minus sign, backspace, enter, left/right tab keys, and shift keys.
• Keypad Lifespan: Stainless-steel membrane with 1 million presses at 340g actuation force.
• Touchscreen Lifespan: 1 million presses at 10-110g actuation force.
• System Memory: 256 MB RAM and 512 MB nonvolatile memory (approximately 73 MB free user memory).

Power Requirements

• Input Voltage Range: 18 to 30 VDC. Nominal operating voltage is 24 VDC.
• Maximum Power Consumption: 15 W max (0.6 A at 24V DC).
• Typical Power Consumption: 9 W typical (0.375 A at 24V DC).
• Power Rating: 25 Watts maximum.

Communication Ports and Protocols

• Ethernet Port: One (1) port supporting EtherNet/IP and Common Industrial Protocol (CIP).
• RS-232 Port: One (1) port supporting DF1 and other point-to-point protocols.
• USB Ports: Two (2) USB ports for external peripherals. Connect mouse, keyboard, printer, PC, or removable storage devices.
• Communication Protocols: Ethernet/IP for network communications. DF1 for serial peer-to-peer connections.

Environmental and Physical Specifications

• Operating Temperature Range: 0 to 55°C (32 to 131°F).
• Enclosure Ratings: NEMA Type 12, 13, 4X, IP54, and IP65. Suitable for harsh industrial environments.
• Maximum Altitude: 2000 meters (6561 feet) without derating.

Frequently Asked Questions (FAQ)

• Is the 2711P-B6C20D new and original?
  Yes, we supply only brand-new, original Allen-Bradley units. No refurbished or counterfeit products.
• Do you have this model in stock?
  Yes, we keep the 2711P-B6C20D in stock for immediate orders.
• What is the lead time for shipping?
  We dispatch all orders within 5 business days after payment confirmation.
• Which carriers do you use?
  We ship via FedEx, UPS, and DHL. You can choose your preferred option at checkout.
• Can I return this item?
  Yes, we support returns within 30 days of delivery. Items must remain unopened and in original condition.
• What is the backlight lifespan of this terminal?
  The non-replaceable backlight lasts 25,000 hours minimum at 25°C (77°F). Plan for eventual terminal replacement when brightness degrades.
• Can I replace the backlight myself?
  No, the 2711P-B6C20D has a non-replaceable backlight. You must replace the entire terminal when the backlight fails.
• What communication protocols does this terminal support?
  It supports EtherNet/IP and CIP over Ethernet and DF1 over RS-232.
• How much free user memory does this unit have?
  The 2711P-B6C20D offers approximately 73 MB of free nonvolatile user memory.
• What enclosure ratings does this terminal meet?
  It meets NEMA Type 12, 13, 4X, IP54, and IP65 ratings. Suitable for washdown and dusty environments.
• Can I use a USB mouse or keyboard with this HMI?
  Yes, the two USB ports accept standard USB mice, keyboards, and removable storage devices.
• What is the typical power consumption?
  Typical consumption is 9 Watts (0.375 A at 24V DC). Maximum is 15 Watts.
