2711P-B15C4A8 Allen-Bradley PanelView Plus 6 1500 HMI Terminal

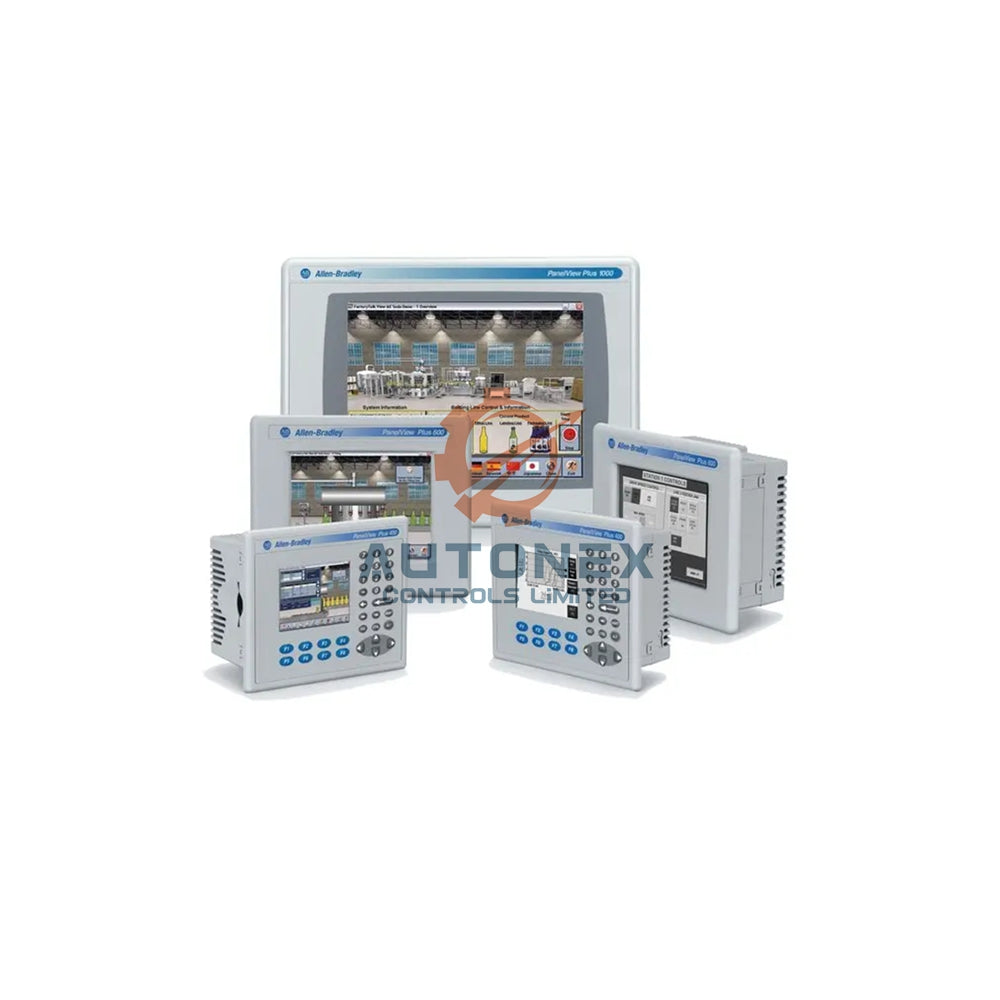

2711P-B15C4A8 Allen‑Bradley PanelView Plus 6 Series

Core Technical Specifications

• Brand: Allen‑Bradley — model 2711P-B15C4A8 belongs to the PanelView Plus 6 product line.
• Product Type: Human‑Machine Interface (HMI) terminal for monitoring and managing application status.
• Display: 15‑inch color TFT display with keypad and touchscreen input combination.
• Memory: 512 MB RAM internal memory for application storage and data processing.
• Communication Ports: Built‑in Ethernet (EtherNet/IP protocol) and RS‑232 serial interface.
• Power Supply: AC input range from 100 to 240 Volts AC, supporting global industrial power environments.
• Backlight Replacement: Part number 2711P-RL15C for internal backlight maintenance.
• Communication Cable: Part number 2711-NC14 for serial connectivity.
• Series: Available in Series A and Series B configurations.
• Shipping Weight & Dimensions: Approximately 13 pounds, with dimensions of 20 x 14 x 8 inches.

EtherNet/IP Communication Features

• The Ethernet port supports EtherNet/IP (Ethernet Industrial Protocol) for real‑time I/O messaging and data exchange.
• This port connects directly to controllers on an EtherNet/IP network using standard Ethernet connections.
• Users can modify EtherNet/IP communication settings through the terminal’s configuration screens.
• The Ethernet port uses an RJ45, 10/100Base-T connector with MDI/MDI-X auto‑detection support.
• For applications requiring an additional Ethernet port, the 2711P-RN20 communication module is available for 700 to 1500 terminals.
• The 2711P-RN20 module has its own unique IP address and provides extra network connectivity.
• Communication parameters download with the application, simplifying setup and deployment.

Frequently Asked Questions (FAQ)

• Q: Is the 2711P-B15C4A8 new and original?
  A: Yes, absolutely. We provide only brand new, 100% original Allen‑Bradley units with full factory specifications.
• Q: Do you have this model in stock?
  A: Yes, the 2711P-B15C4A8 is currently in stock and available for immediate order.
• Q: What is the typical shipping time and carrier?
  A: We dispatch within 5 business days using FedEx, UPS, or DHL. Express options are available upon request.
• Q: What is the return policy for this terminal?
  A: We support a 30‑day return window from delivery date for unused items in original packaging.
• Q: What communication protocols does the 2711P-B15C4A8 support?
  A: It supports EtherNet/IP via the Ethernet port and standard serial communication through RS‑232.
• Q: Can I add a second Ethernet port to this terminal?
  A: Yes, the 2711P-RN20 Ethernet communication module is available for PanelView Plus 6 terminals sized 700 to 1500.
• Q: What is the backlight replacement part number?
  A: The internal backlight replacement part number is 2711P-RL15C.
• Q: Does this model support touchscreen operation with gloves?
  A: Yes, the resistive touchscreen allows operation with standard work gloves, a stylus, or bare fingers.
