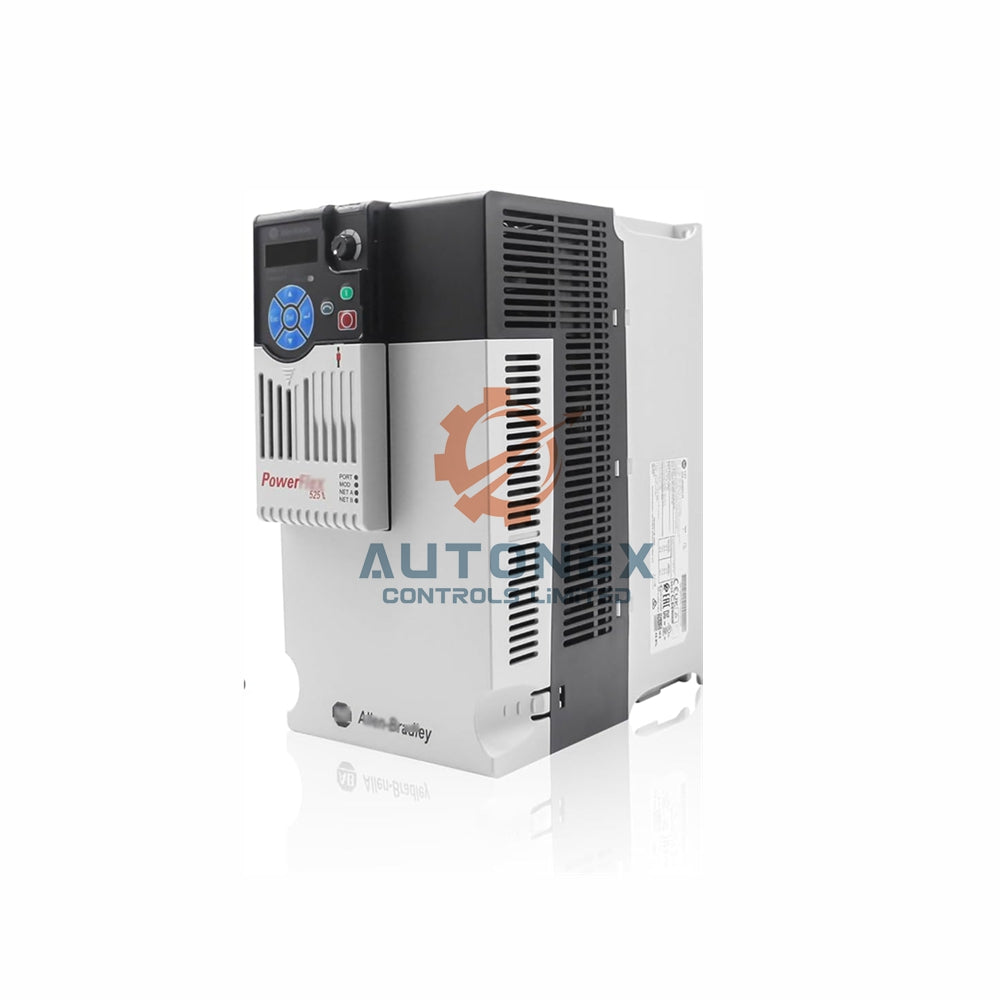

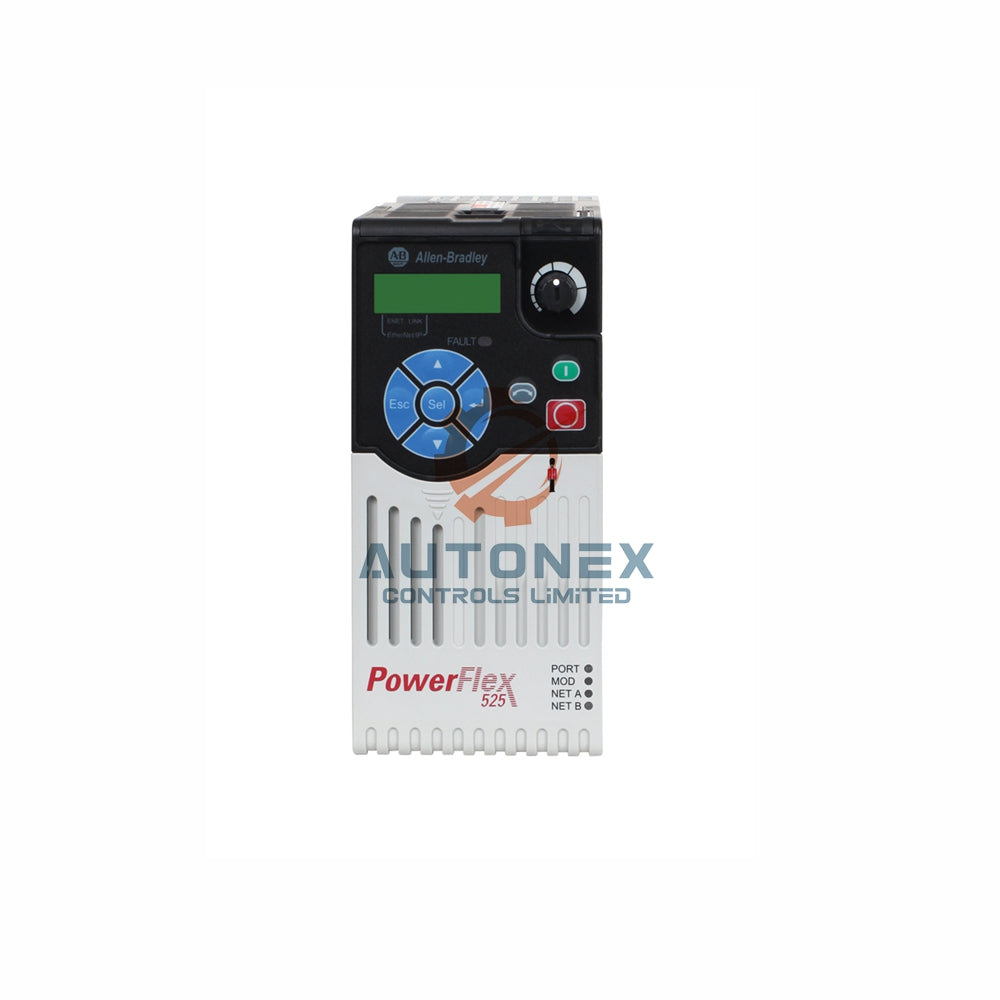

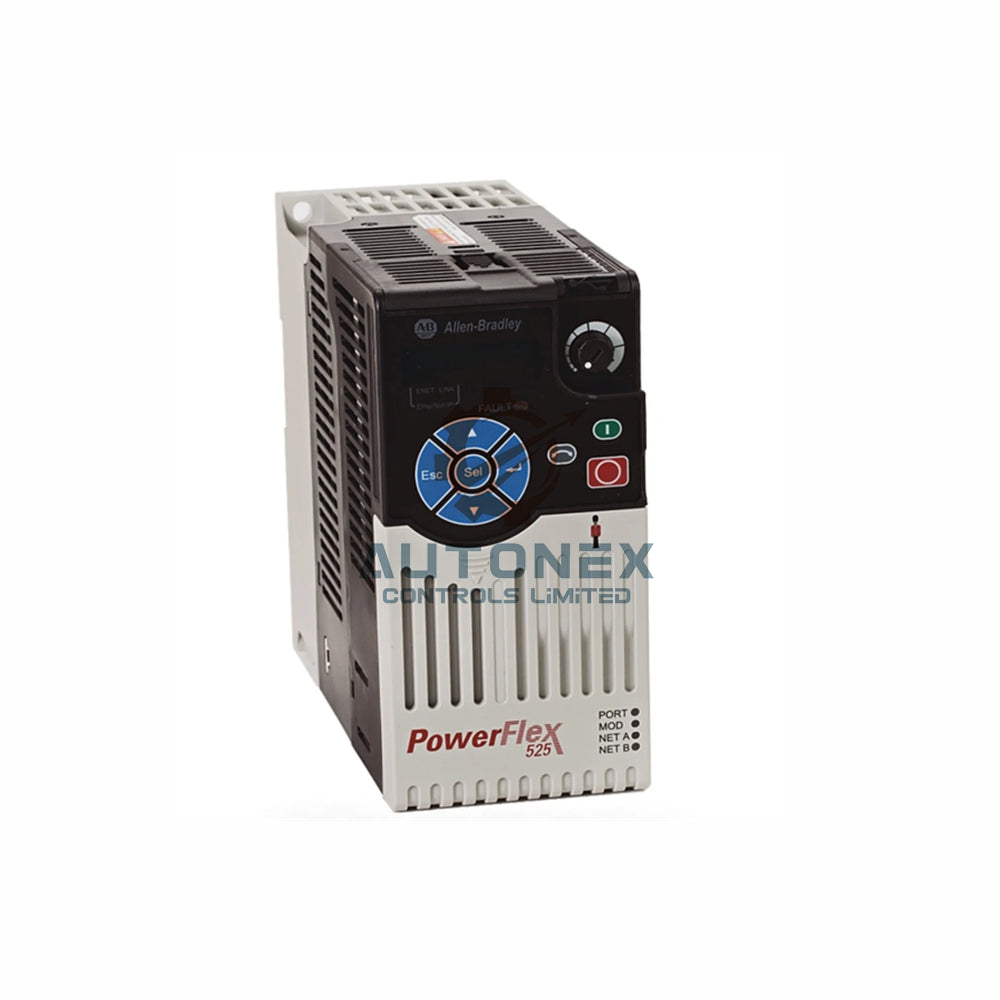

25B-E6P6N104 Allen-Bradley PowerFlex 525 Drive

Allen-Bradley PowerFlex 525 Variable Frequency Drive 25B-E6P6N104

Electrical Specifications

• Nominal Voltage Class: 525-600 VAC three-phase input
• Input Supply Range: 446-660 VAC operating voltage
• Output Voltage Capacity: 0-575 VAC variable output
• Output Current Rating: 6.6 Amps maximum output
• Power Rating: 5.0 HP (3.7 kW) motor capacity
• Frame Size: Frame B compact design
• Enclosure Rating: IP20 / NEMA Open type
• Mounting Style: Panel mount installation

Motor Control Capabilities

• Volts/Hz control mode for basic applications
• Sensorless vector control for improved performance
• Closed-loop velocity vector control mode
• Permanent magnet motor control capability
• Programmable output frequency: 0-500 Hz range
• Multiple preset speed configurations available

Protection Features

• Bus overvoltage trip at 1005 V DC detection
• Bus undervoltage trip at 87 V DC protection
• Motor overload: Class 10 with 150% for 60 seconds
• Overload capacity: 200% for 3 seconds maximum
• Overcurrent protection: 200% hardware limit
• Instantaneous overcurrent: 300% trip level
• Safe-Torque Off (STO) safety function included

Frequently Asked Questions

What is the horsepower rating of this drive?

The 25B-E6P6N104 provides 5.0 HP (3.7 kW) motor control capacity.

Is this drive model currently in stock?

Yes, we maintain ready inventory of this Allen-Bradley drive for immediate shipment.

What safety features does this drive include?

This drive features integrated Safe-Torque Off (STO) for personnel protection.

What communication ports are built into the drive?

The drive includes built-in Ethernet and RS485 communication ports standard.

How quickly can you process and ship orders?

We process most orders within five business days and ship via express carriers.

Which shipping methods do you offer?

We ship worldwide using FedEx, UPS, and DHL services for reliable delivery.

What is your return policy for this product?

We offer a 30-day return policy for unused products in original condition.

Is this a genuine Allen-Bradley product?

We supply only authentic, factory-new Allen-Bradley products with full warranty.

Download the complete technical datasheet for detailed specifications: PowerFlex 520-series AC Drive
