22D PowerFlex 40P Allen-Bradley | 22D-E3P0N104

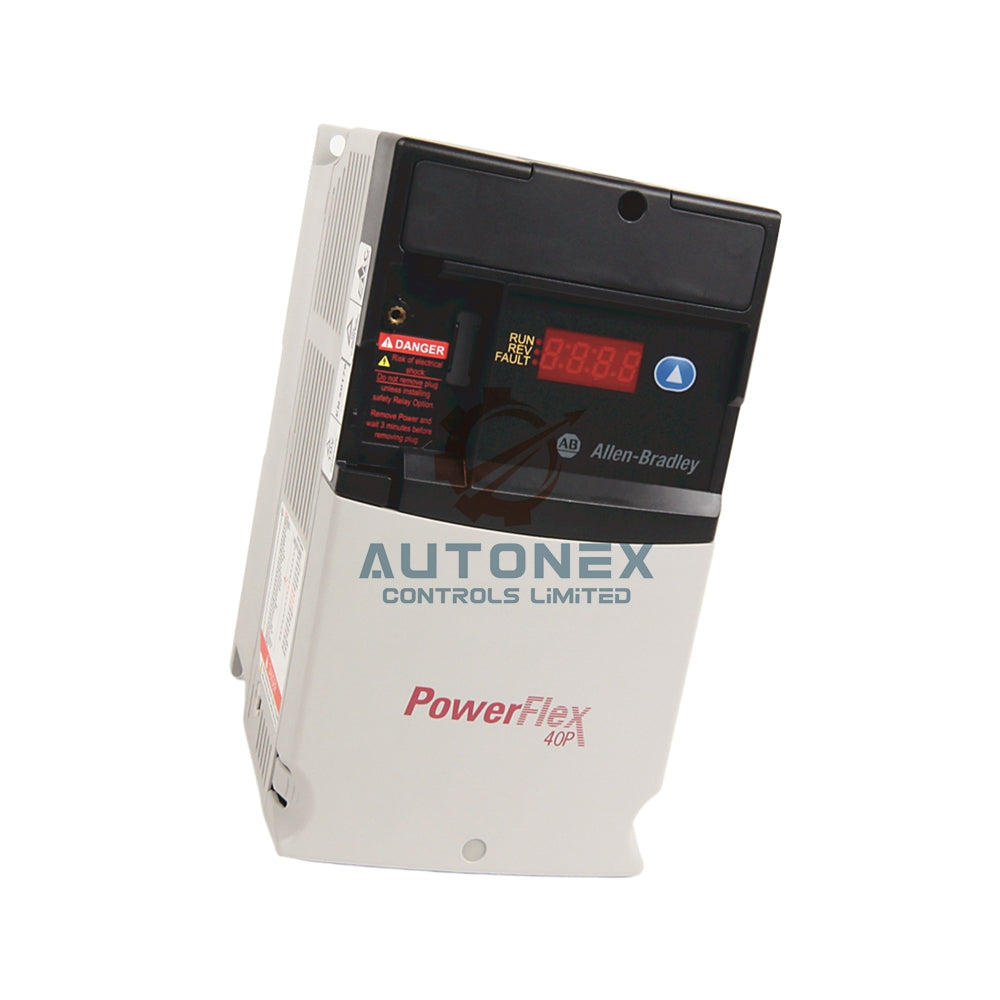

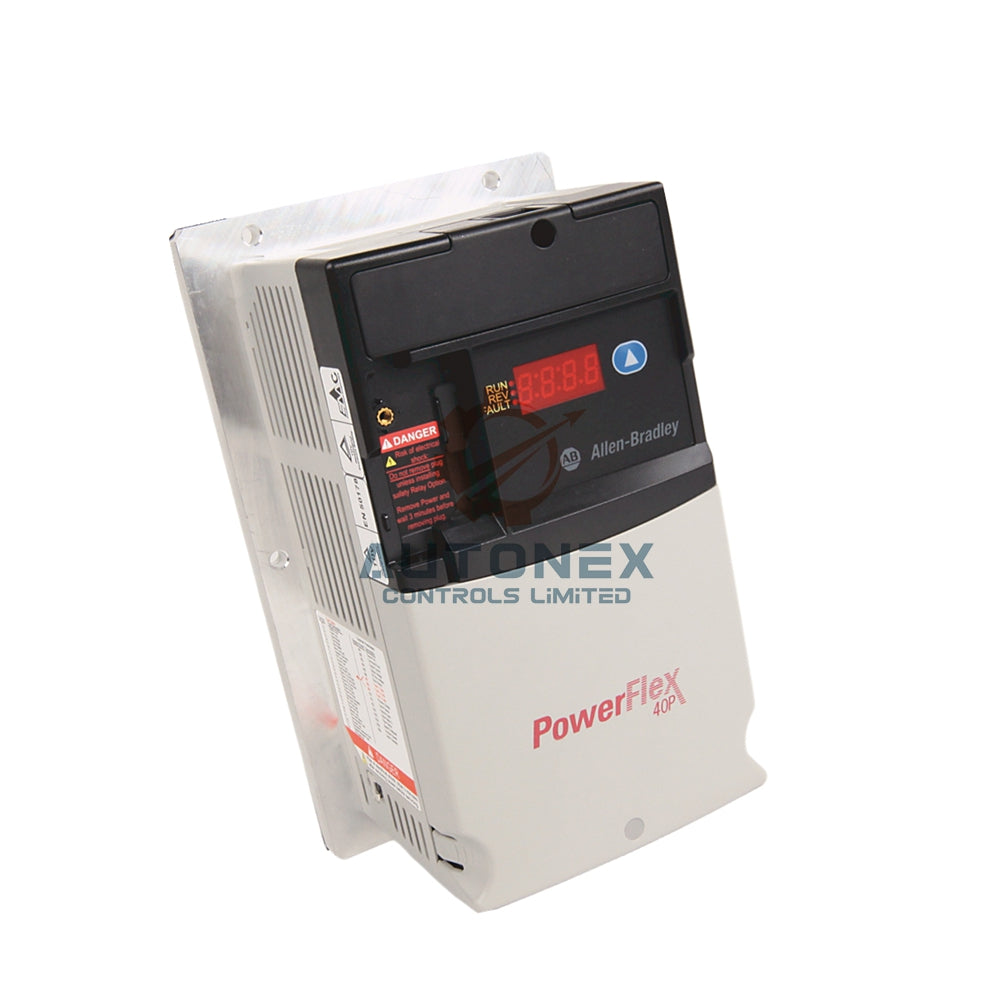

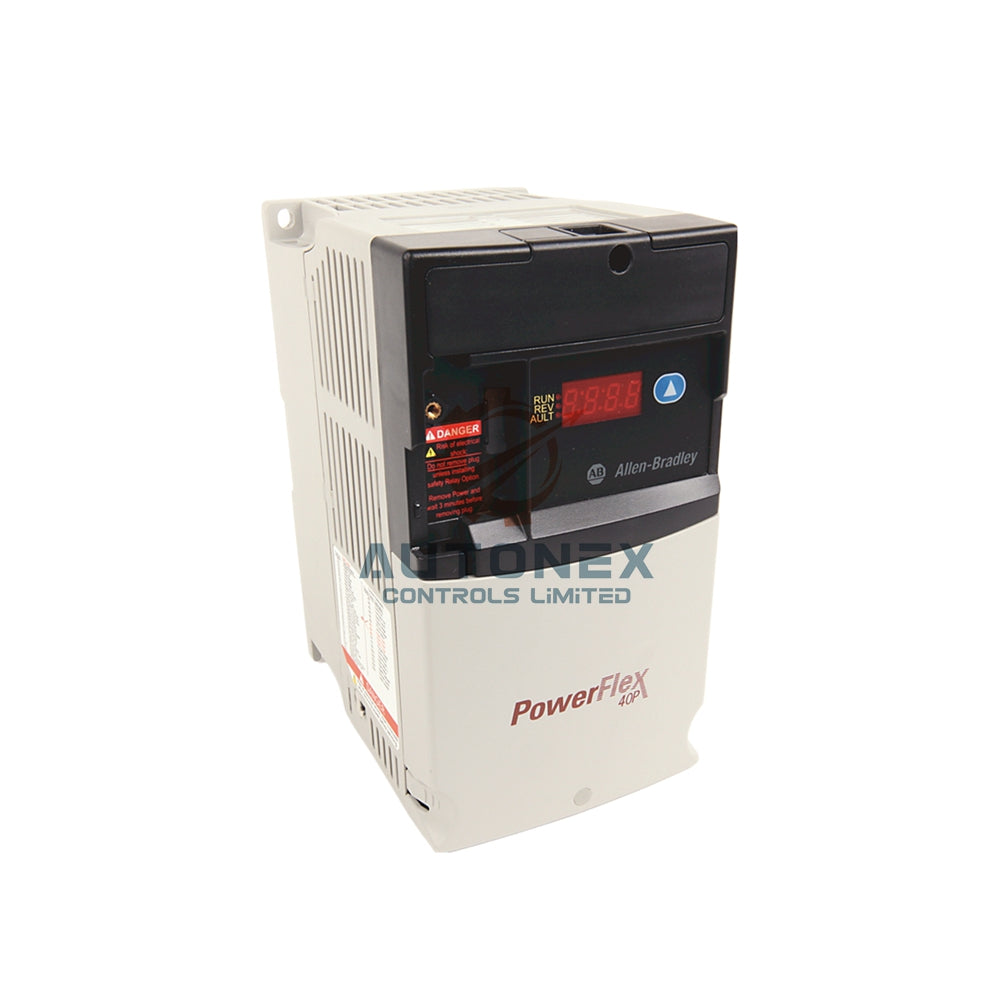

Allen-Bradley 22D-E3P0N104 PowerFlex 40P Drive

Core Product Specifications

• Brand: Allen-Bradley
• Series: PowerFlex 40P | Model: 22D-E3P0N104
• Input Power: 600 Volts AC, Three-Phase, 50-60 Hz
• Output Current: 3.0 Amps maximum capacity
• Motor Power: 2 HP (1.5 kW) rating
• Enclosure: Panel Mount, Open Type (IP20)
• Frame Size: Compact B Frame design
• Compliance: No CE filter included with standard unit

User Interface & Display Features

• Human Interface Module: Integrated HIM with reset button
• Display System: Clear 4-digit display for parameter viewing
• Status Indicators: 10 LED lights for operational status
• Control Interface: Keypad input for easy parameter adjustment
• Intuitive design simplifies setup and monitoring
• Quick fault reset capability minimizes downtime

Input/Output Configuration

• Digital Inputs: 7 total inputs (5 fully programmable)
• Input Flexibility: 2 semi-programmable digital inputs
• Analog Input: 1 configurable analog input channel
• Analog Output: 1 programmable analog output
• Digital Outputs: 2 opto-isolated outputs
• Relay Output: 1 Form C relay contact
• Comprehensive I/O supports complex control schemes

Shipping & Package Details

• Product Condition: New, factory-sealed Allen-Bradley product
• Package Contents: Complete drive unit with documentation
• Inventory Status: In stock and ready for immediate shipment
• Processing Time: Ships within 5 business days
• Carrier Options: FedEx, UPS, DHL express services
• Return Policy: 30-day satisfaction guarantee

Frequently Asked Questions

What is the horsepower rating of this drive?

• The 22D-E3P0N104 handles 2 HP (1.5 kW) motors.

What input voltage does it require?

• It operates on 600V AC three-phase power systems.

How many digital inputs are available?

• It provides 7 digital inputs with flexible programming options.

What type of user interface is included?

• It features a Human Interface Module with 4-digit display and keypad.

Is this model currently available?

• Yes, we have the 22D-E3P0N104 in stock for immediate shipment.

Download complete technical documentation: PowerFlex 4 and 40 AC Drives Manual
