22D PowerFlex 40P Allen-Bradley | 22D-D6P0N104

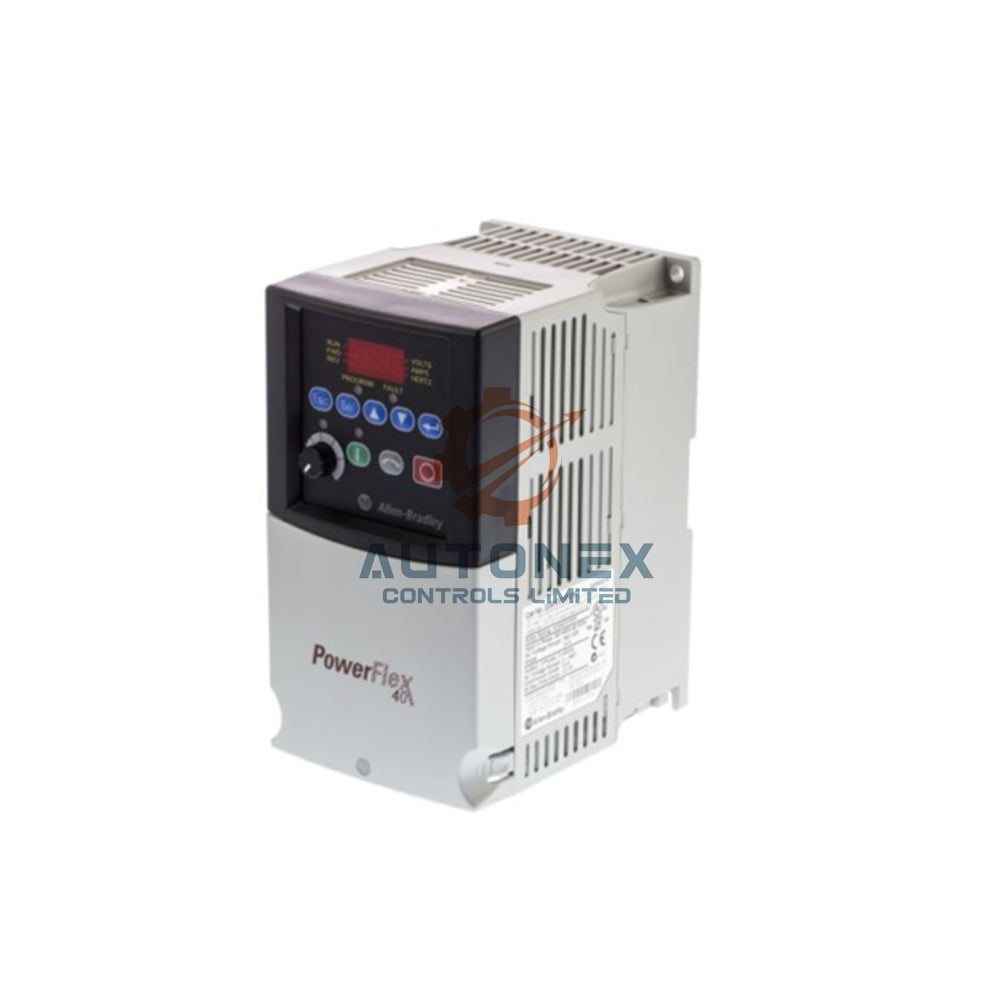

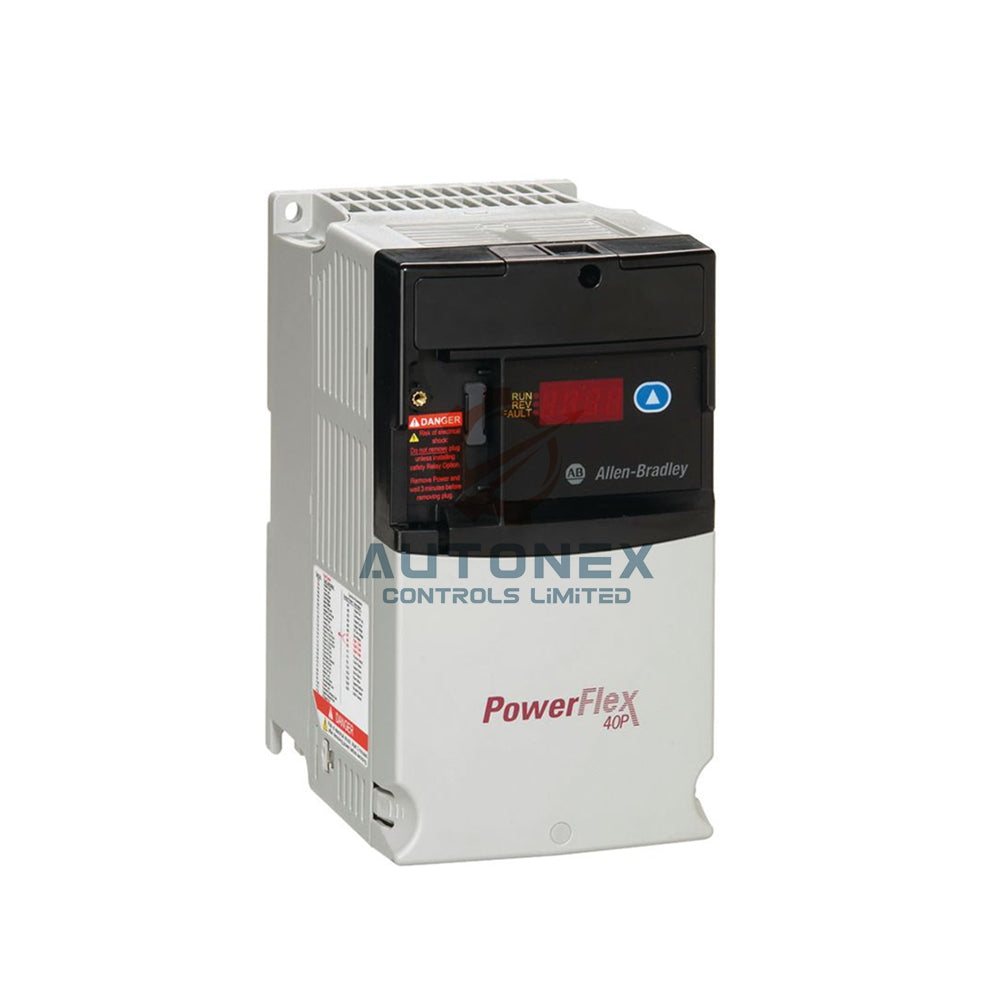

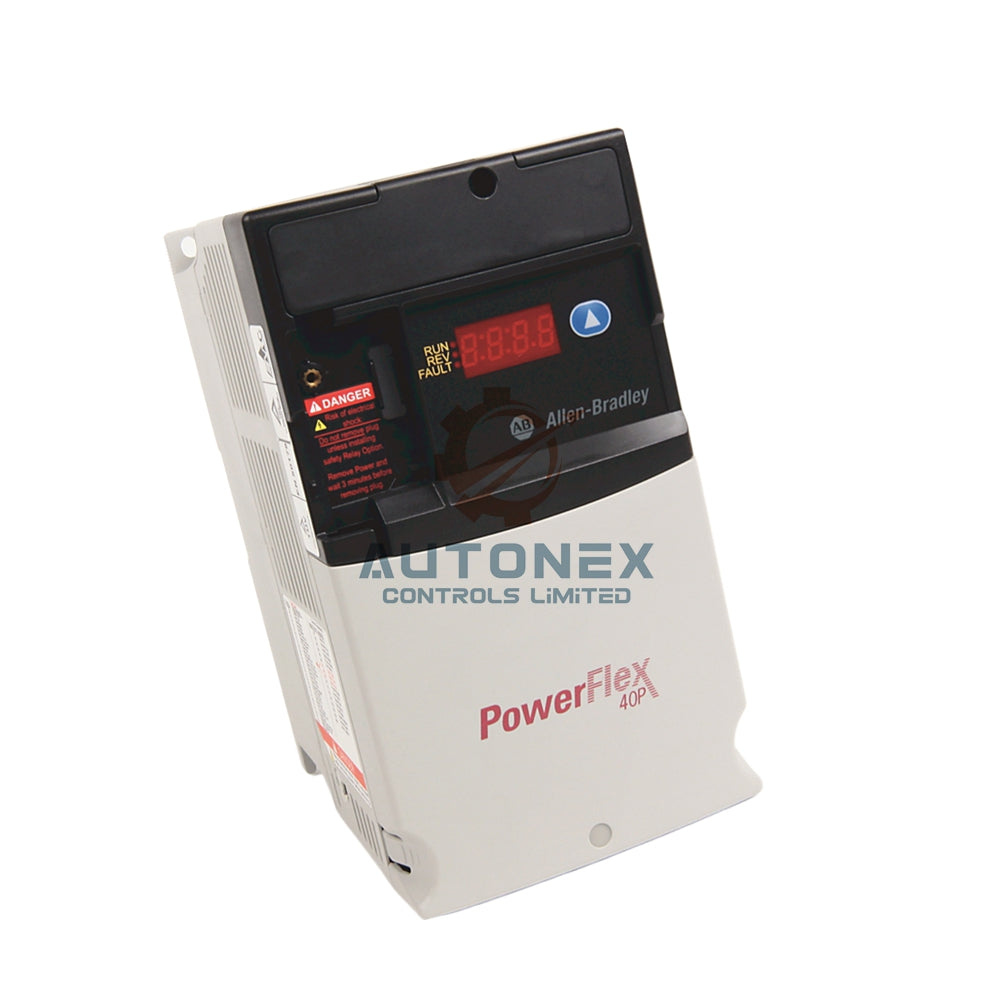

Allen-Bradley 22D-D6P0N104 PowerFlex 40P Drive

Electrical Specifications

• Brand: Allen-Bradley | Series: PowerFlex 40P
• Model: 22D-D6P0N104
• Input Voltage: 380-480 VAC, 3-phase
• Output Voltage: 0-460 VAC, 3-phase
• Rated Current: 6.0 Amps
• Output Power: 2.2 kW (3.0 HP)

Control & Operation Modes

• Sinusoidal PWM for smooth motor operation
• Volts/Hertz (V/Hz) control mode available
• Sensorless Vector Control for precise regulation
• Multiple control methods suit various application needs
• Optimized performance for fan and pump applications

Input/Output & Communication

• Discrete Inputs: 7 sink/source programmable inputs
• Discrete Outputs: 2 opto-isolated + 1 Form C relay
• Analog I/O: 1 input and 1 output (0-10V/0-20mA)
• Built-in Communication: Standard RS-485 port
• Optional Networks: DeviceNet, ControlNet, ProfiBus
• Additional Options: Ethernet, LonWorks, BacNet available

Physical & Environmental Details

• Enclosure Type: Panel mount, IP20 rated
• Frame Size: Compact B frame design
• EMC Filter: CE compliant filter included
• Shelf Life: 1 year from manufacturing date
• Ideal for industrial ventilation and pumping systems

Shipping & Package Information

• Product Condition: New, original Allen-Bradley product
• Package Includes: Drive unit, documentation, manuals
• Stock Status: Available for immediate shipment
• Processing Time: Ships within 5 business days
• Shipping Methods: FedEx, UPS, DHL express available
• Return Policy: 30-day return window guaranteed

Frequently Asked Questions

What applications is this drive best for?

• The 22D-D6P0N104 is optimized for fan and pump applications.

Does this model include a CE filter?

• Yes, it comes with a built-in CE compliant EMC filter.

What communication options are available?

• It has built-in RS-485 and supports multiple optional network cards.

How many discrete inputs does it have?

• It provides 7 discrete inputs for flexible control wiring.

Is this drive suitable for international use?

• Yes, with its CE filter and wide voltage range, it meets international standards.

Download the complete technical manual: PowerFlex 4 and 40 AC Drives PDF

Contact our sales team for pricing and application support.
