22D PowerFlex 40P Allen-Bradley | 22D-D4P0N104

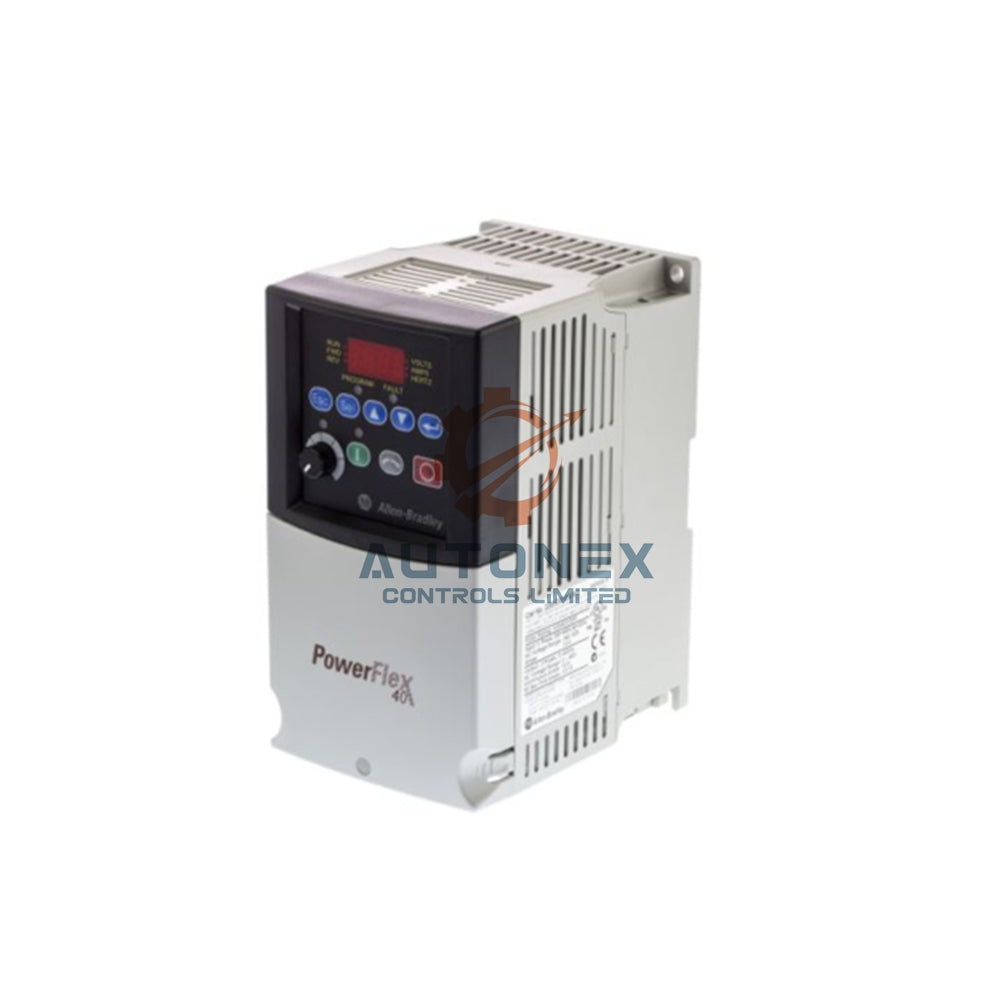

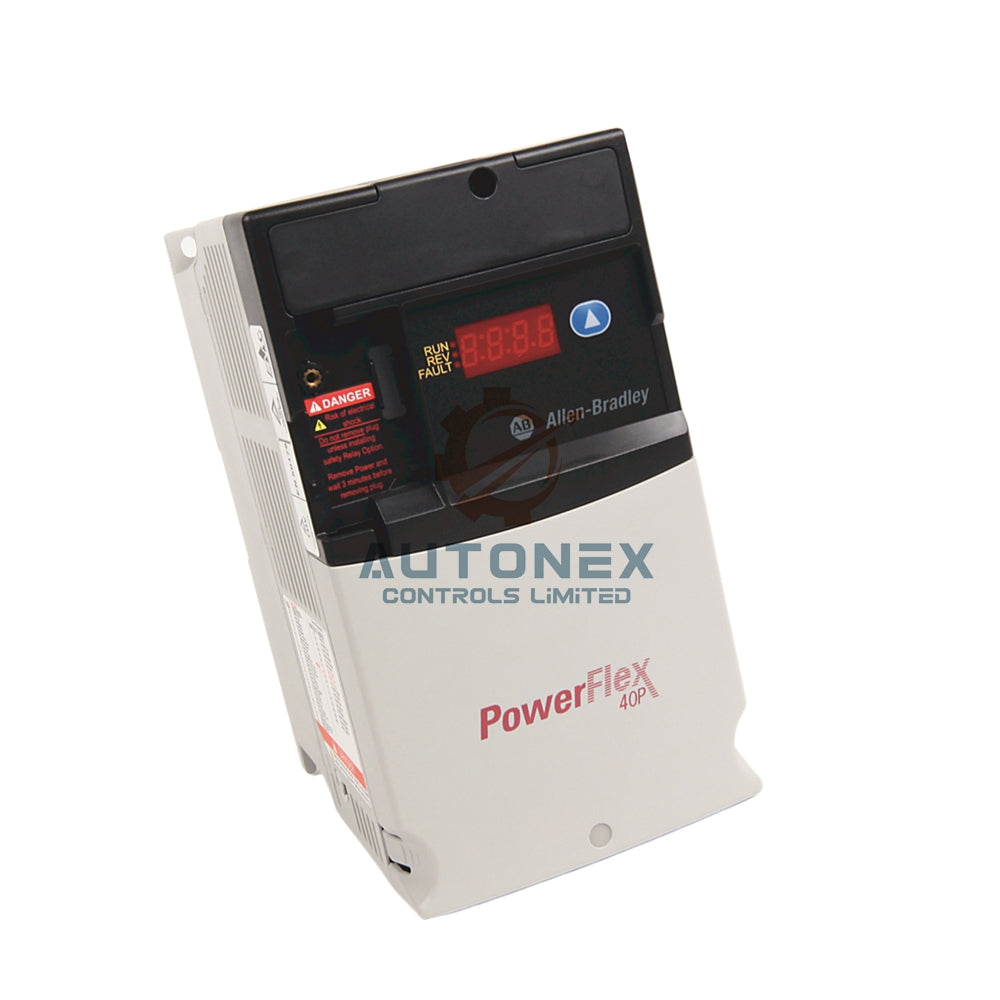

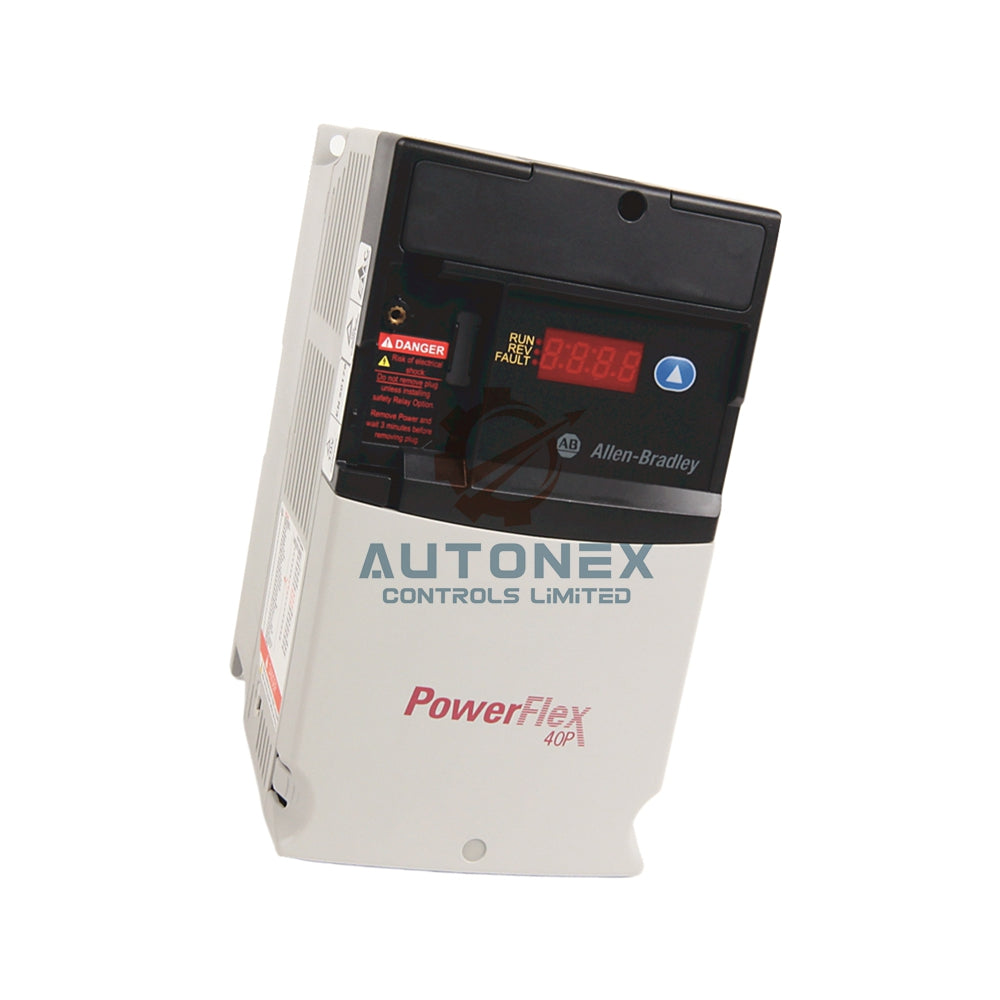

Allen-Bradley 22D-D4P0N104 PowerFlex 40P Drive

Power & Electrical Characteristics

• Output Performance: 1.5 kW (2 HP) motor power capacity
• Input Flexibility: 342–528 VAC, 3-phase wide voltage range
• Current Handling: 5.7 Amps input current rating
• Output Range: 0–460 VAC variable output voltage
• Frequency Control: 0–500 Hz adjustable output frequency
• Thermal Operation: –10°C to 50°C ambient temperature range

Control & Communication Features

• Control Methods: V/Hz and sensorless vector control modes
• Built-in Communication: Standard RS-485 interface
• Network Options: DeviceNet, Ethernet/IP, ProfiBus available
• Digital Inputs: 7 programmable digital input channels
• Relay Outputs: 2 Form-C relay outputs for control signals
• Analog Interface: 1 analog input/output for process control
• Opto Output: 1 opto-isolated output for status indication

Frequently Asked Questions

What is the power rating of this drive model?

• The 22D-D4P0N104 delivers 1.5 kW (2 HP) output power

What communication options are available?

• Built-in RS-485 plus optional DeviceNet, Ethernet/IP, and ProfiBus

How many digital inputs does the drive have?

• It provides 7 digital inputs for flexible control applications

What is the operating temperature range?

• The drive operates from –10°C to 50°C ambient temperature

Can I upgrade the enclosure rating?

• Yes, an IP30 kit is available for enhanced protection

What is your shipping timeline?

• We process and ship all orders within 5 business days

Download the complete technical manual: PowerFlex 4 and 40 AC Drives Documentation
