22D PowerFlex 40P Allen-Bradley | 22D-D2P3N104

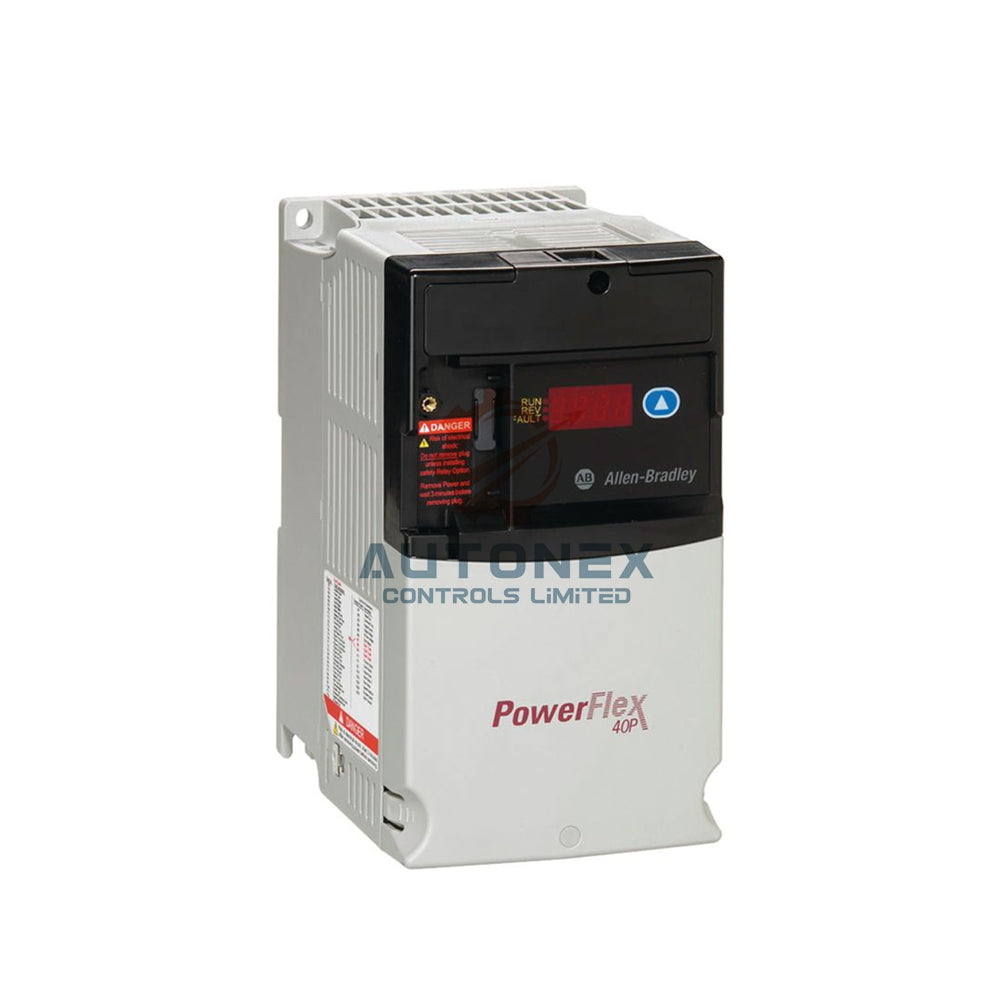

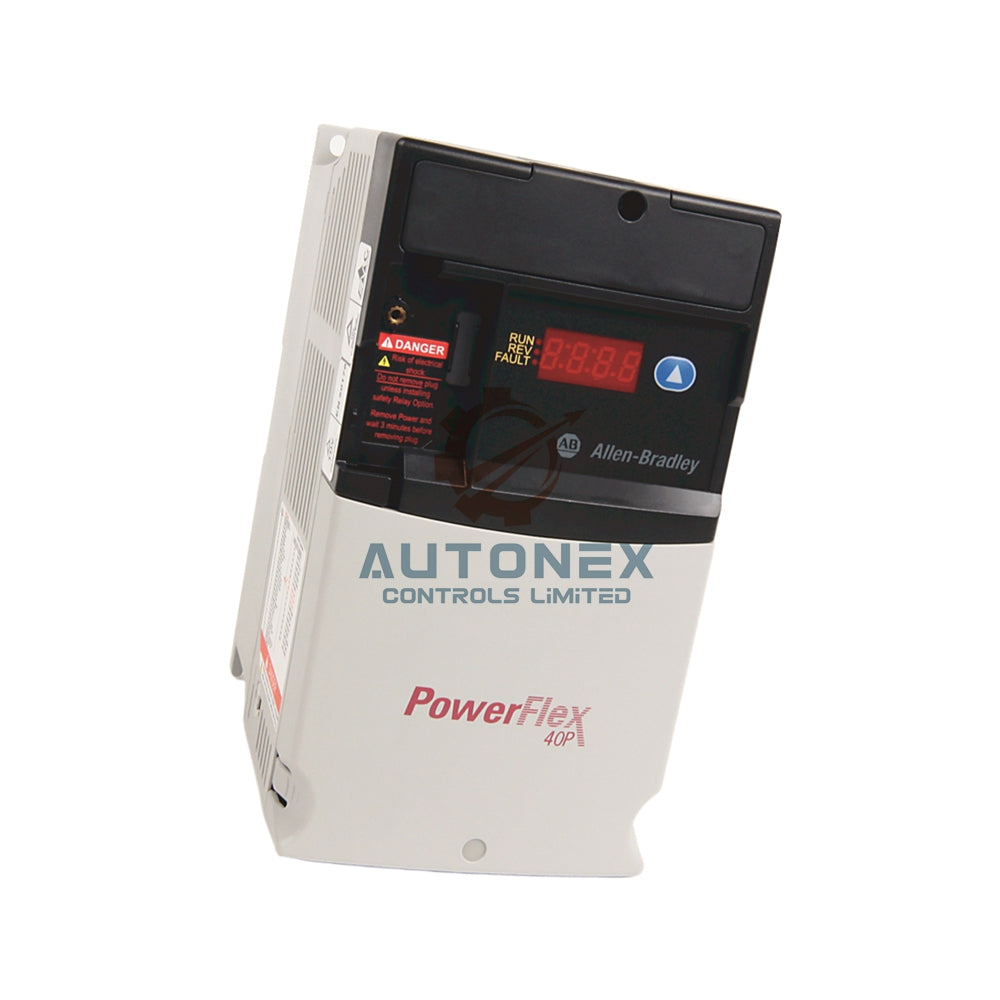

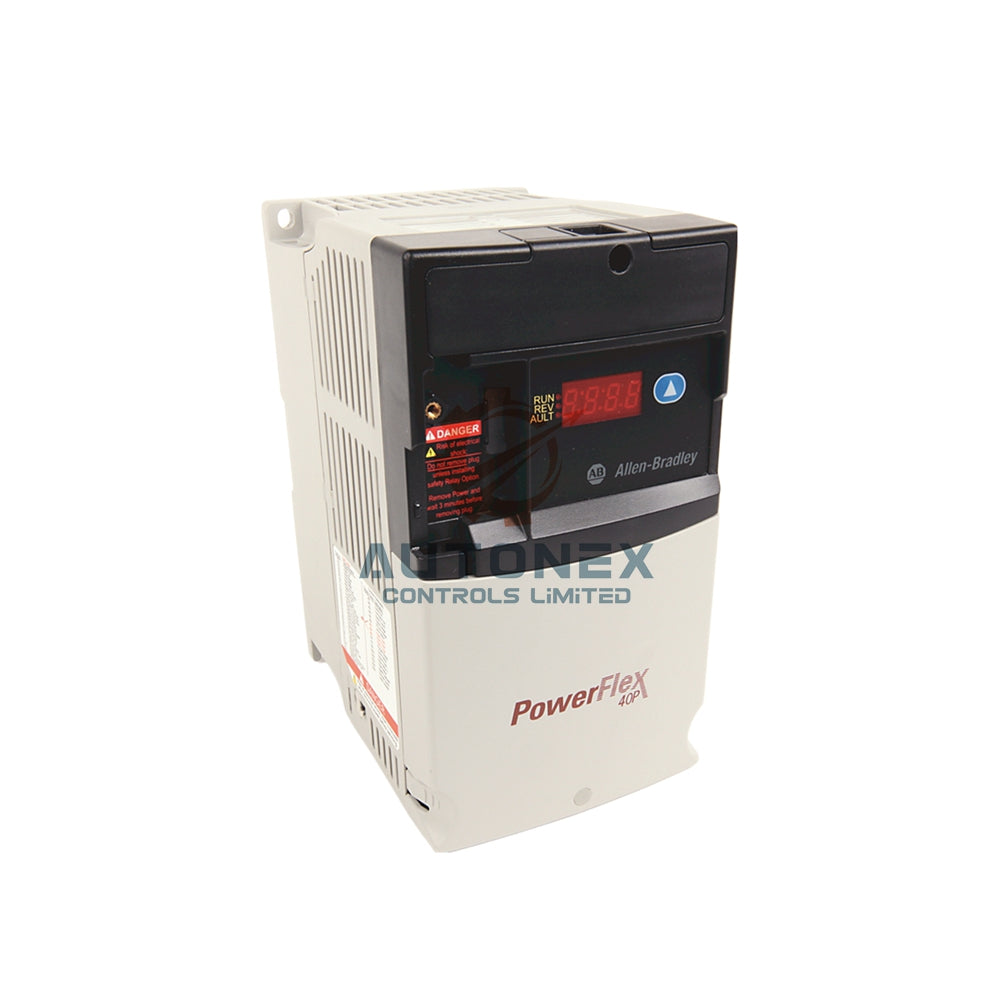

Allen-Bradley PowerFlex 40P Adjustable Frequency AC Drive

Core Electrical Specifications

• Brand & Manufacturer: Allen-Bradley
• Product Model: 22D-D2P3N104
• Series Name: PowerFlex 40P
• Input Voltage: 380-480 Volts AC, 3-Phase
• Input Current: 3.2 Amps
• Output Power: 0.75 kW
• Output Voltage: 0 to 460 Volts AC

Control and Communication Features

• The drive includes 7 Digital Inputs (DI) for flexible control.
• It provides 2 opto-isolated and 1 relay Digital Outputs (DO).
• You get 1 Analog Input and 1 Analog Output (0-10V / 4-20mA).
• It features a built-in RS-485 communication port.
• Optional network cards are available for DeviceNet and Ethernet/IP.

Performance and Physical Specifications

• The drive uses both V/Hz and advanced sensorless vector control.
• It supports PID control and basic positioning operation modes.
• You can configure adjustable ramp times for start and stop sequences.
• The motor overload protection is 150% for 60 seconds.
• Mounting Type: Panel Mount with an IP20 enclosure rating.
• Operating Temperature: -10°C to 50°C without derating.

Frequently Asked Questions (FAQ)

What is the output power of this drive?

• This model has an output power of 0.75 kW.

What communication ports are available?

• It has a built-in RS-485 port and supports optional cards for DeviceNet and Ethernet/IP.

How many digital inputs does it have?

• The 22D-D2P3N104 provides 7 digital inputs for control signals.

What is the operating temperature range?

• It operates reliably in temperatures from -10°C to 50°C.

Is this drive in stock and ready to ship?

• Yes, we have this specific model in our inventory. It is ready for immediate shipment.

For further technical details, please download the manual here: PowerFlex 4 and 40 AC Drives.

For pricing and orders, please contact our sales team.
