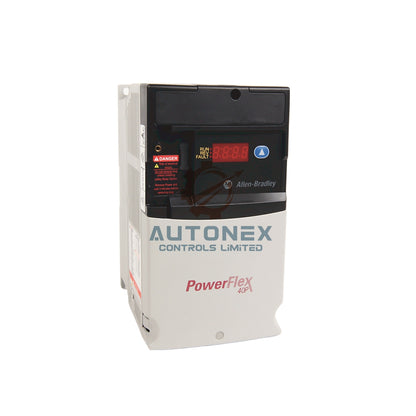

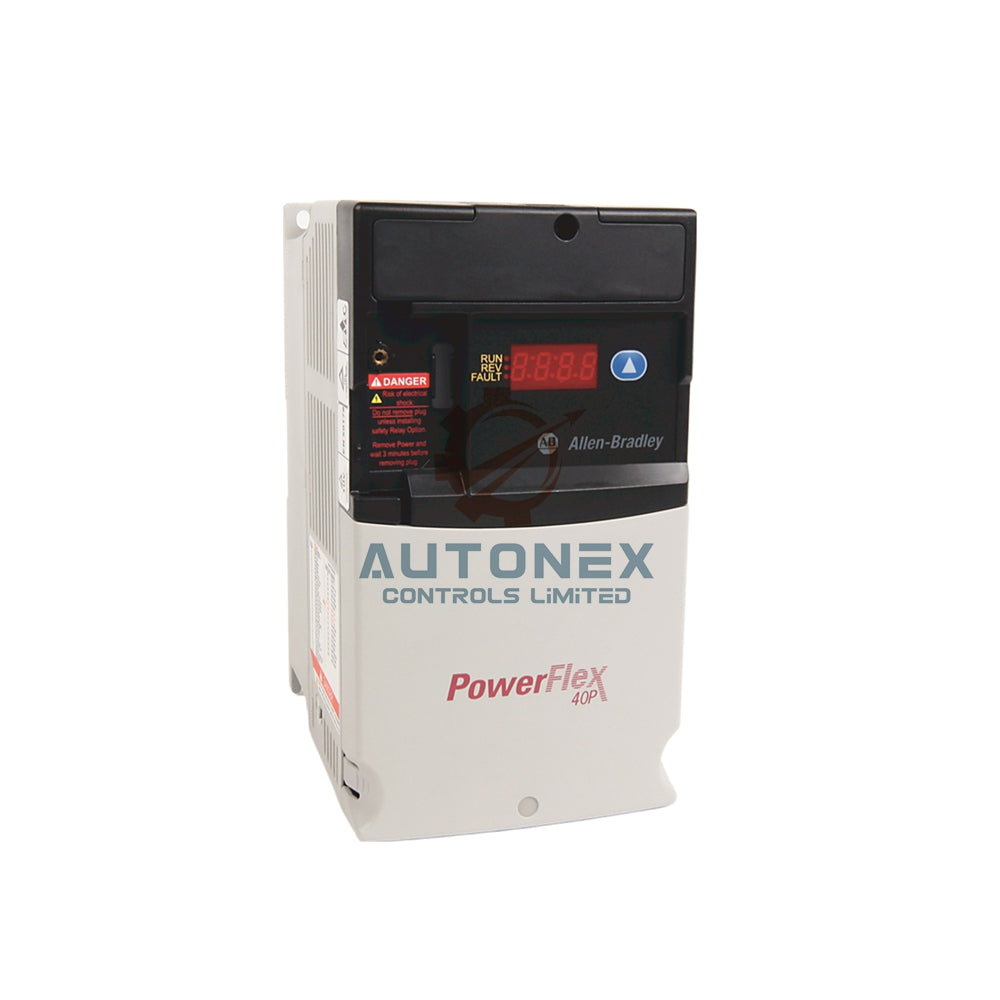

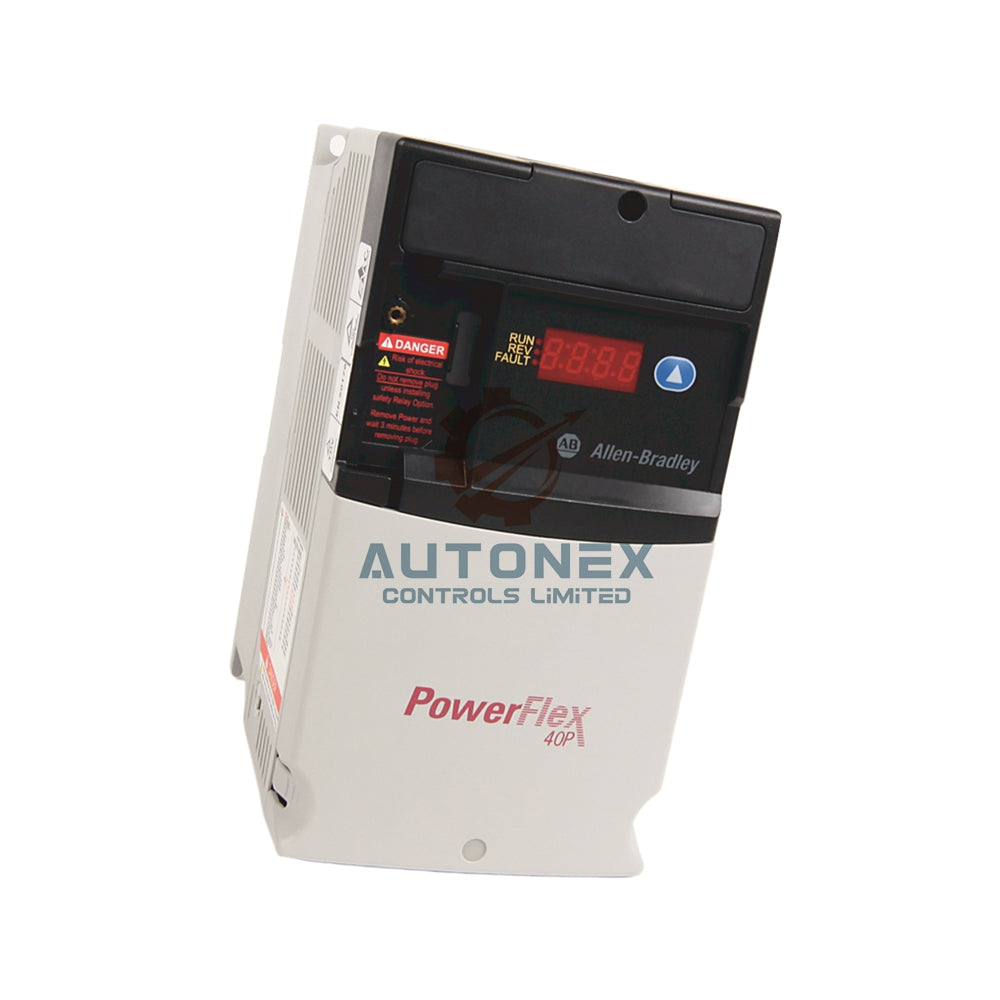

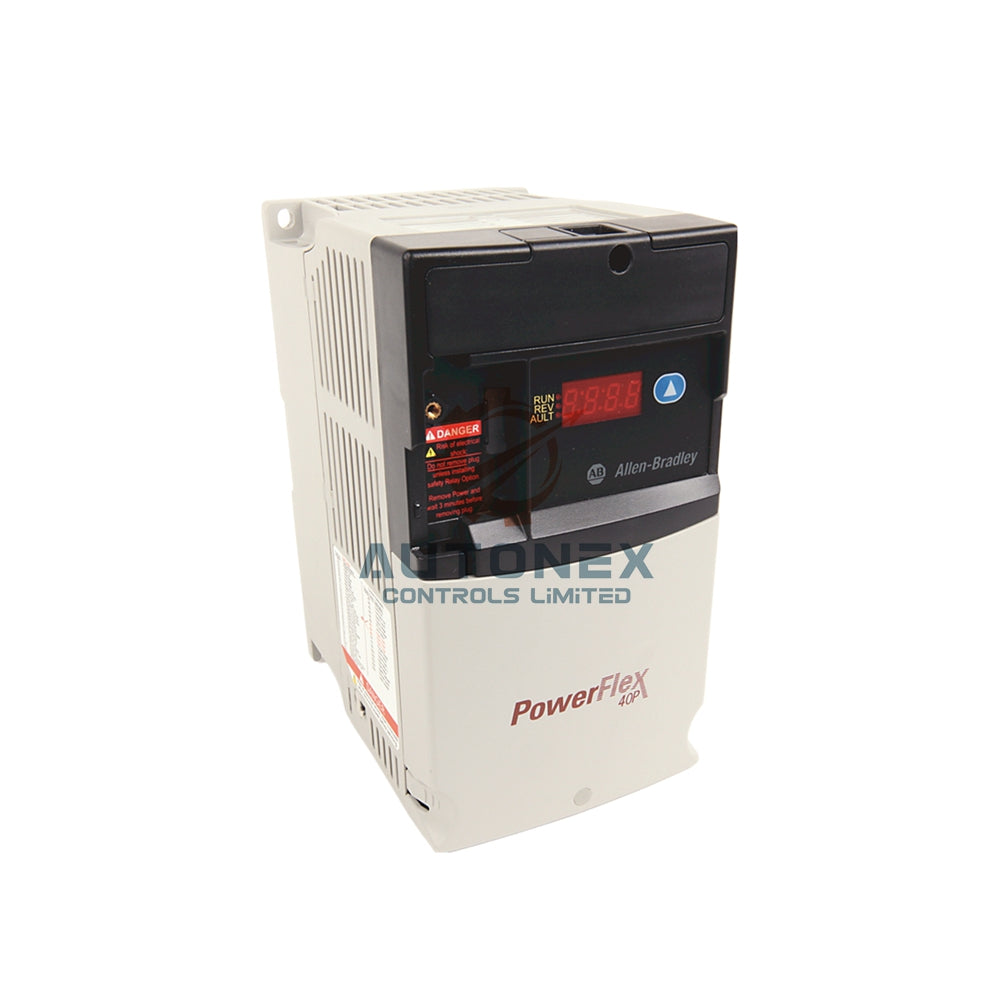

Allen-Bradley 22D-D1P4N104 PowerFlex 40P VFD Overview

Core Electrical Specifications

• Brand: Allen-Bradley
• Series: PowerFlex 40P
• Catalog Number: 22D-D1P4N104
• Input Voltage: 342–528 VAC, 3-Phase
• Nominal Voltage: 380–480 VAC
• Input Frequency: 48–63 Hz
• Input Current: 1.8 Amps
• Output Power: 0.4 kW (0.5 HP)
• Output Current: 1.4 Amps
• Output Voltage: 0–460 VAC
• Output Frequency: 0–500 Hz

Physical Design & Mounting

• Frame Size: B
• Enclosure Type: Open Type (IP20)
• Mounting Style: Vertical Panel Mount
• Required Hardware: M4 (#8-32) screws
• Installation Torque: 14–17 lb-in
• The drive offers a space-efficient design for control panels.
• You must install the unit vertically for optimal performance.
• Ensure the environment is clean and well-ventilated.

Frequently Asked Questions (FAQ)

What is the condition of the 22D-D1P4N104 drive?

• Every unit is new and original, directly from Allen-Bradley.

What is the horsepower rating for this VFD?

• This drive has an output power of 0.5 HP (0.4 kW).

What input voltage does the PowerFlex 40P accept?

• It operates with a wide input range from 342 to 528 VAC.

How is the drive mounted?

• You must use a vertical panel mount with M4 screws.

What is your shipping policy?

• We ship all orders within 5 days via DHL, FedEx, or UPS.

Do you accept returns?

• Yes, we offer a 30-day return policy for a full refund.

For complete technical data, please download the manual: PowerFlex 4 and 40 AC Drives.
