22D PowerFlex 40P Allen-Bradley 22D-D010N104

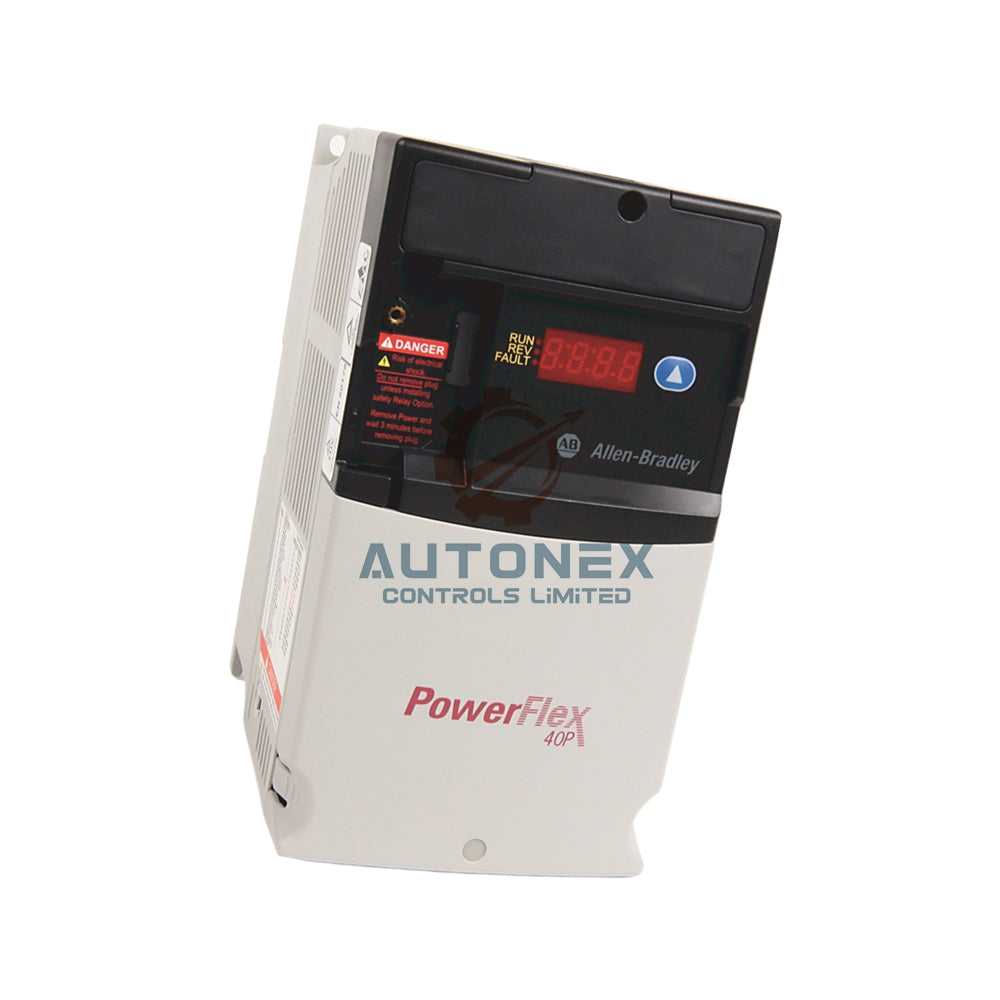

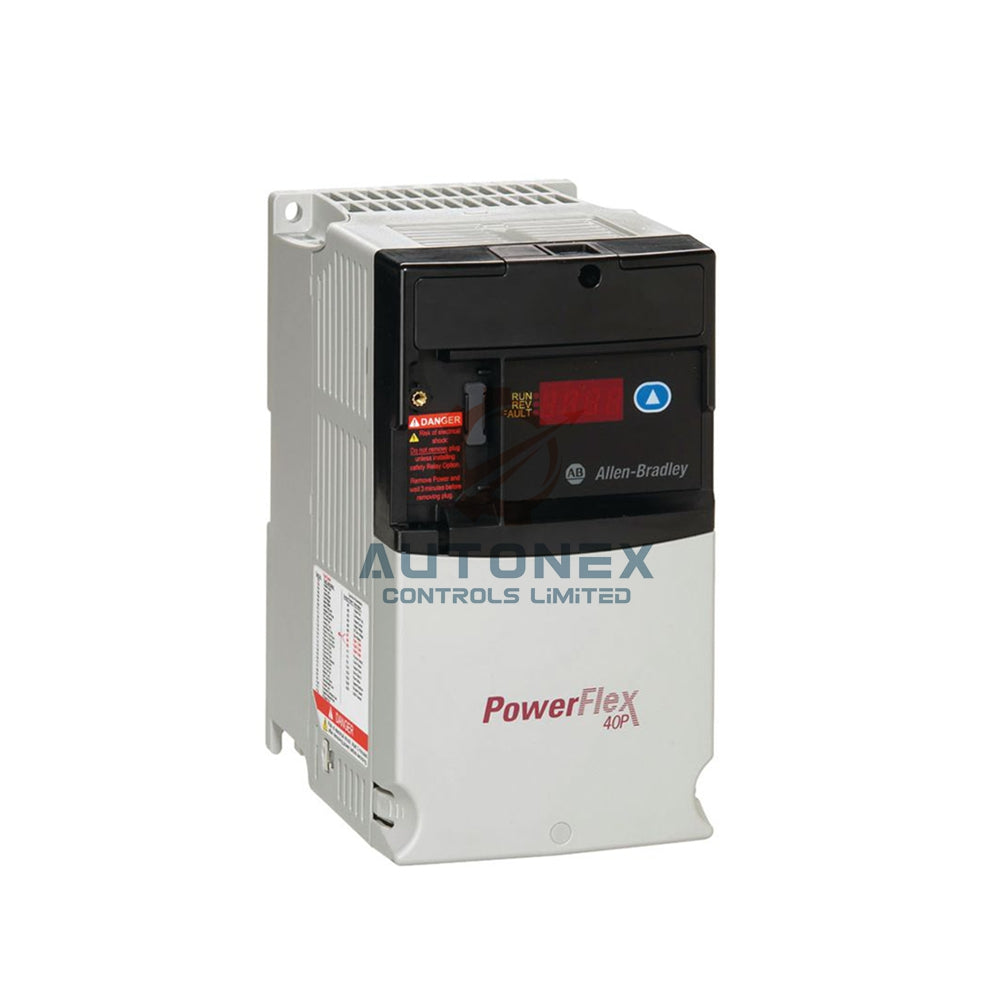

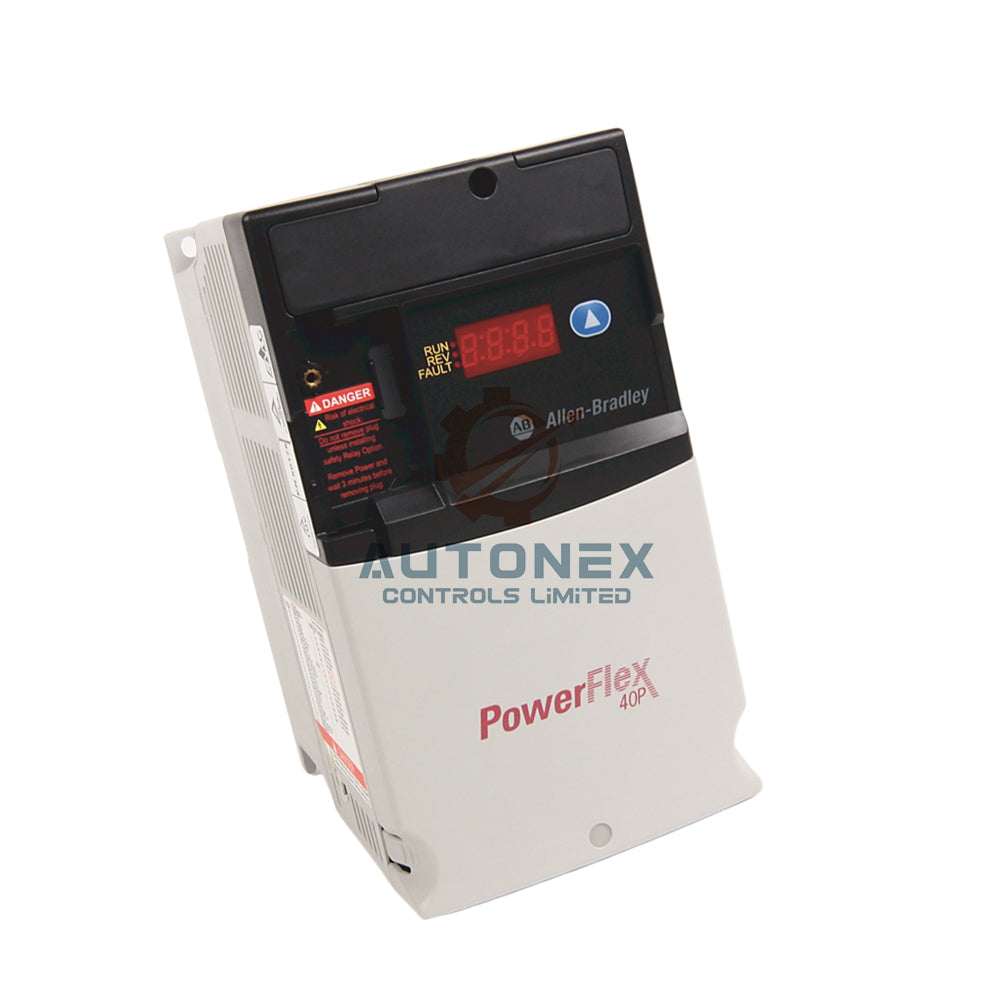

Allen-Bradley PowerFlex 40P Drive: Precision Motor Control

Key Features & Benefits

• High Power Density: 4.0 kW (5 HP) in compact Frame B design
• Wide Voltage Range: Operates on 380-480 VAC input power
• Flexible Control: 7 digital inputs and 3 digital outputs
• Multiple Interfaces: Built-in RS-485 with optional network modules
• Precision Regulation: 0-500 Hz speed control range

Technical Specifications

• Manufacturer: Allen-Bradley
• Model Number: 22D-D010N104
• Electrical Ratings: Input 13A / Output 10.5A @ 0-460V
• Switching: Fixed 2 kHz frequency
• Analog Signals: 0-10V or 0-20mA input/output
• Communication: RS-485 plus DeviceNet, ControlNet, Ethernet options
• Environmental: Operates from -10°C to 50°C

Common Questions

• What networks does it support?
  RS-485 standard with DeviceNet, ControlNet, Ethernet options
• What's the power capacity?
  5 horsepower (4.0 kW) with 10.5A output current
• How many control points?
  7 digital inputs, 3 digital outputs plus analog I/O
• Operating environment?
  -10°C to 50°C with IP20 protection
• Shipping time?
  Most orders ship within 5 business days

Documentation & Resources

Complete technical manual: PowerFlex 4 and 40 AC Drives PDF
