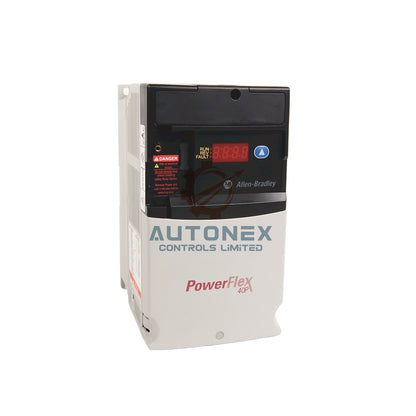

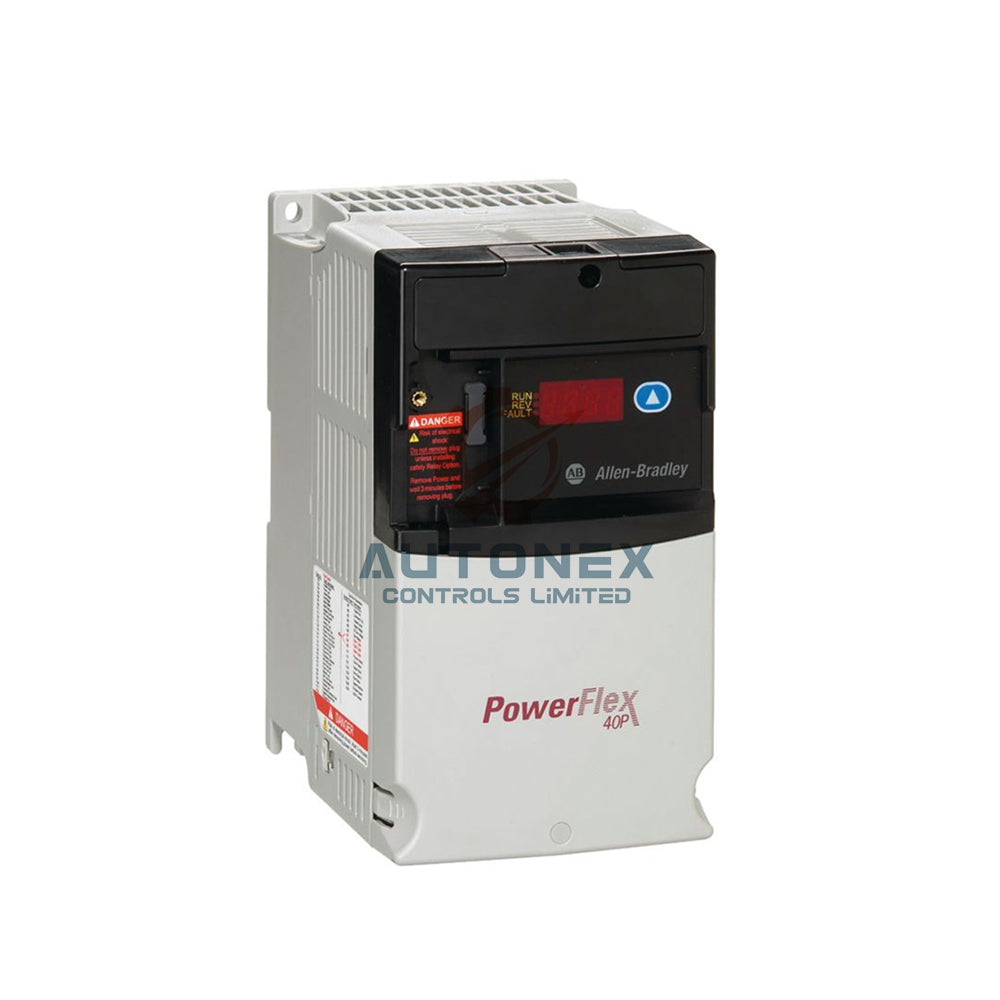

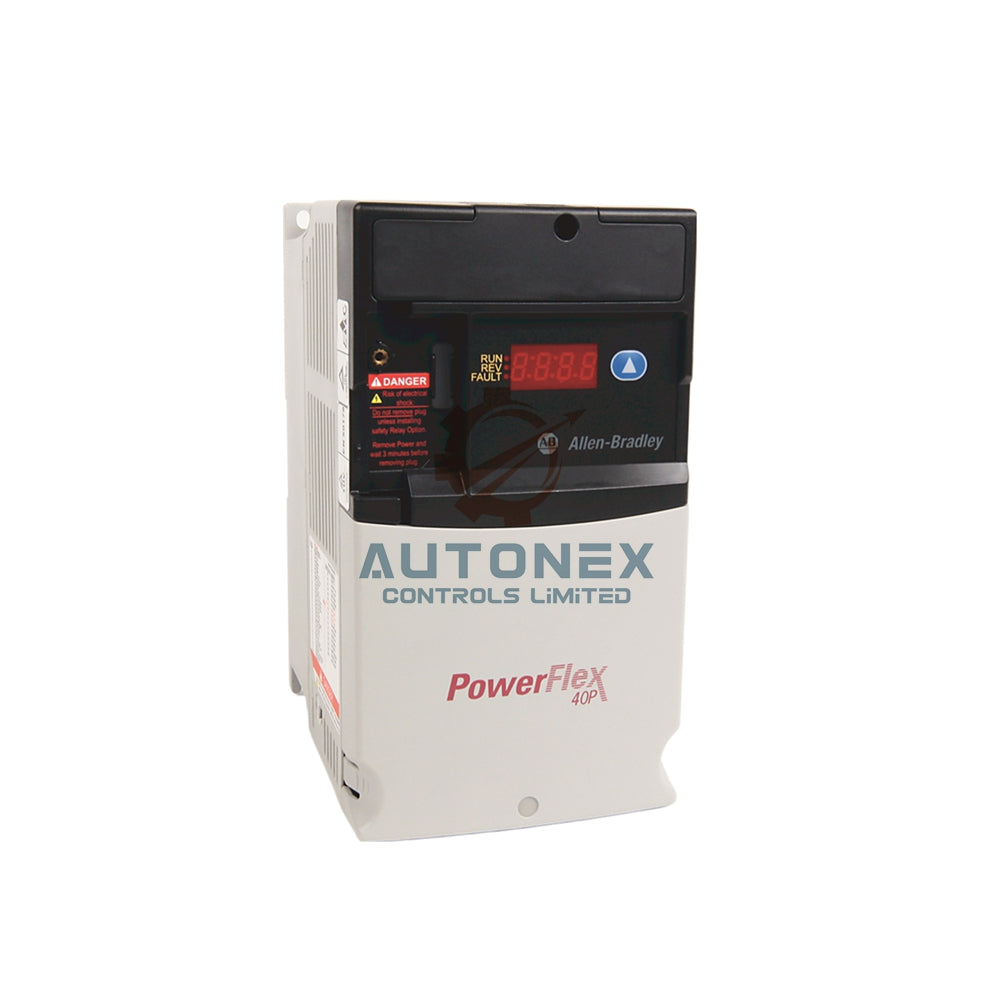

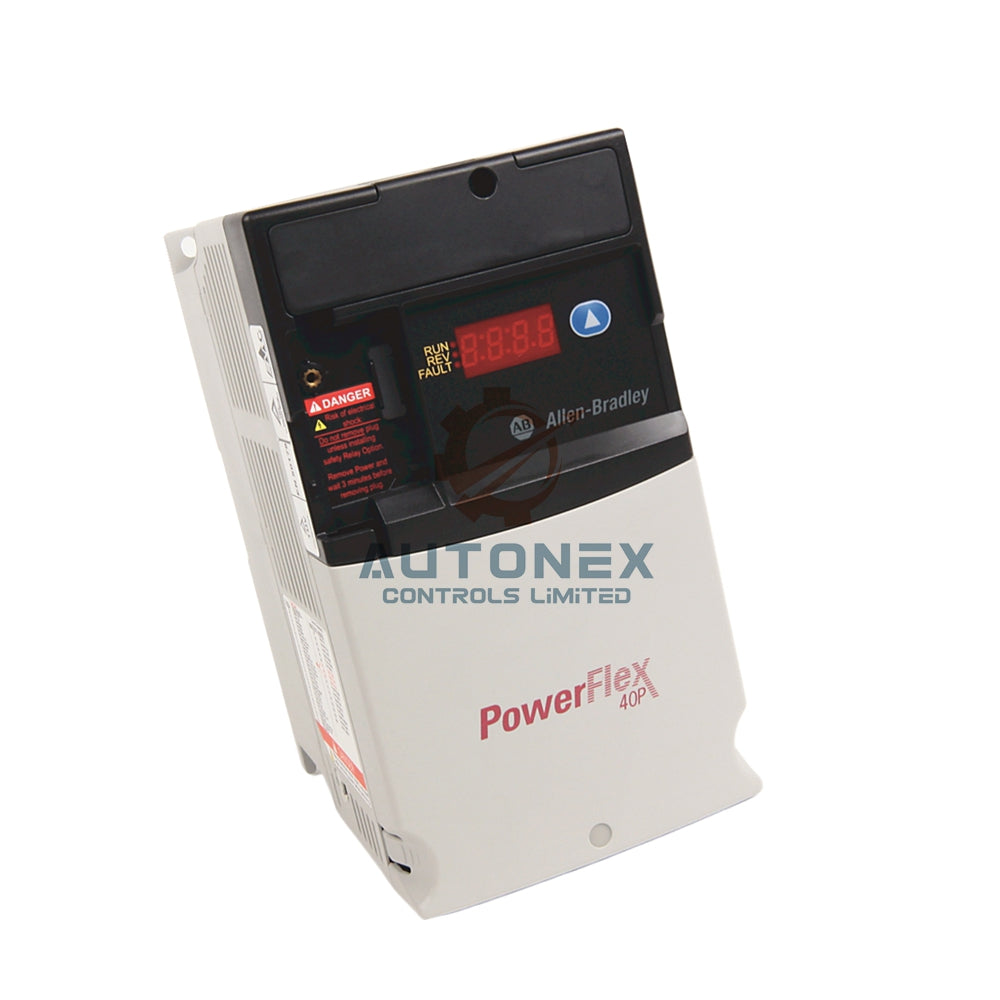

22D PowerFlex 40P Allen-Bradley - 22D-D010F104

PowerFlex 40P AC Drive: High-Performance Motor Control

Technical Specifications

• Brand: Allen-Bradley
• Model: 22D-D010F104
• Input Voltage: 480 VAC ±10%
• Line Frequency: 50-60 Hz
• Output Current: 10.5 A continuous
• Power Rating: 5 HP (4 kW)
• Speed Range: 0.5-400 Hz
• Switching Frequency: 2 kHz adjustable to 8 kHz
• Overload Capacity: 150% for 60 seconds
• Control Methods: Volts per Hz, sensorless vector
• Digital Inputs: 6 points
• Analog Input: 0-10 V or 4-20 mA
• Relay Output: 1 Form C contact
• Protection Features: Overvoltage, undervoltage, overload, overtemperature
• Operating Temperature: -10°C to 50°C
• Storage Temperature: -40°C to 70°C
• Maximum Altitude: 1000 meters
• Enclosure Rating: IP20 open flange mount

Frequently Asked Questions

• What is the power rating?
  This drive delivers 5 HP (4 kW) for medium-power applications
• What input voltage does it require?
  It operates on 480 VAC input with ±10% voltage tolerance
• How many digital inputs are available?
  The unit provides 6 digital input points for control signals
• What is the operating temperature range?
  It functions reliably from -10°C to 50°C ambient temperature
• What is your return policy?
  We offer a 30-day return policy for complete customer satisfaction

Download complete technical documentation: PowerFlex 4 and 40 AC Drives PDF
