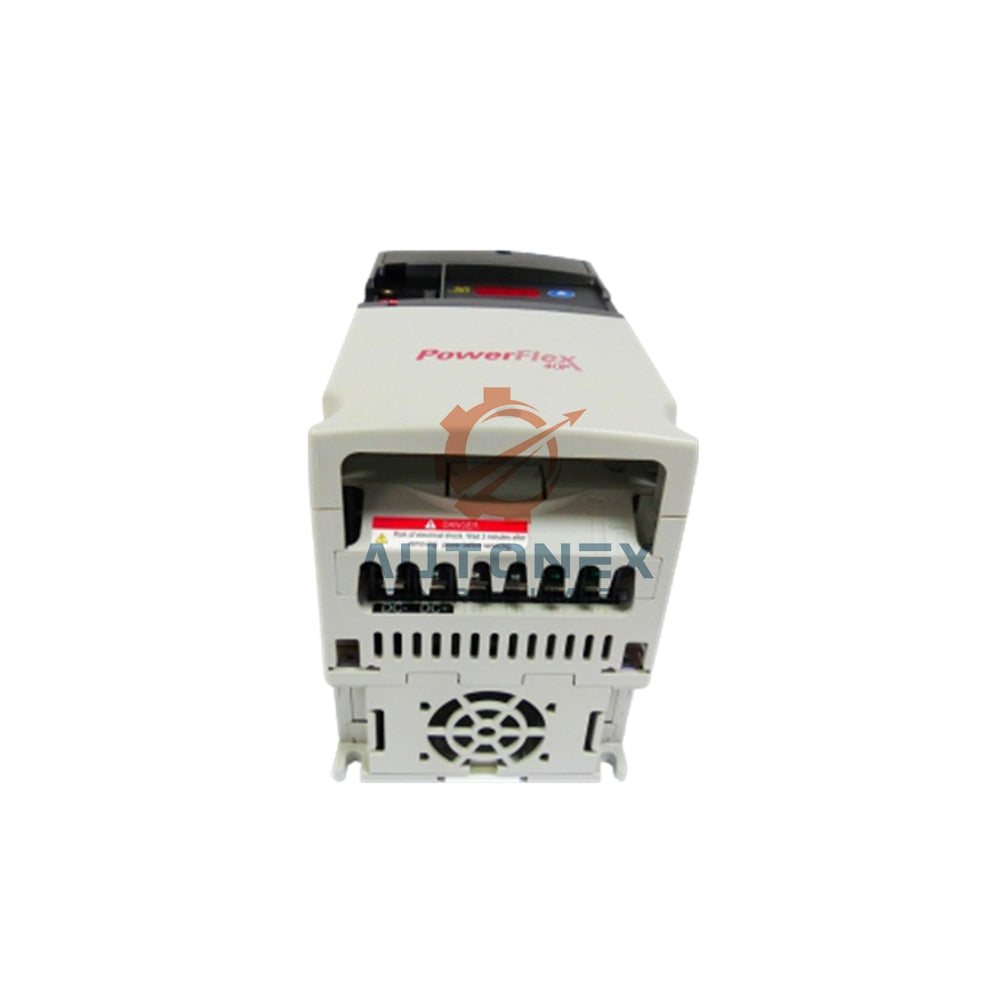

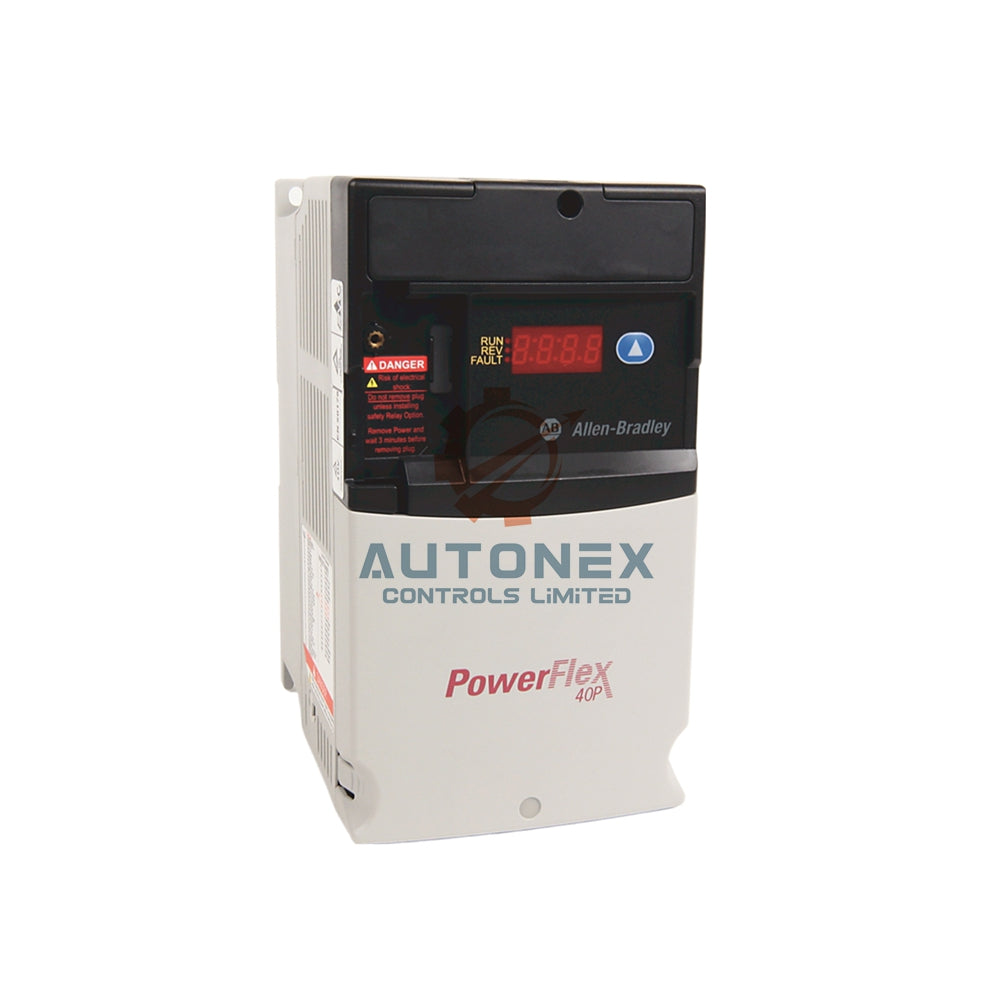

22D-E6P6H204 22D PowerFlex 40P Allen-Bradley

Allen-Bradley PowerFlex 40P Adjustable Frequency Drive

Power Specifications

• Model: 22D-E6P6H204 from Allen-Bradley PowerFlex 40P series
• Input: 460-600V AC, 8.3 A, 8.1 kVA three-phase power
• Output: 5 HP (4.0 kW) at 6.6 A with 0-574V AC range
• High efficiency: 97.5% with excellent 0.98 power factor

Mounting & Enclosure Details

• Plate mount format with IP20 Open NEMA enclosure rating
• Compact Frame Size B design for space-efficient installation
• Zero-stacking configuration maximizes panel space utilization
• Ideal for control cabinet applications and industrial environments

Control & Performance Features

• Dual control modes: V/Hz and Sensorless Vector Control
• Wide output frequency range: 0-500 Hz for precise speed regulation
• Advanced sine-coded PWM with up to 16 kHz carrier frequency
• Smooth motor operation across the entire speed range

Protection & Safety Systems

• Class 10 electronic motor overload protection
• MOV-based phase-to-ground and phase-to-phase protection
• Automatic BUS trips at 1005V DC overvoltage conditions
• Undervoltage protection triggers at 390V DC for system safety

Input/Output Configuration

• 7 digital inputs with 2 fixed for Start/Stop functions
• 2 analog inputs accepting ±10V or 4-20mA signals
• 1 analog output configurable for 0-10V or 4-20mA
• 1 relay output (Form C) rated for 3A at 125V AC

Communication & Display

• Clear 4-digit display with 10 status LEDs for monitoring
• RS-485 communication port enables PC programming
• Supports DSI protocol for enhanced connectivity options
• Compatible with DriveTools SP and DriveExplorer software

Environmental Specifications

• Operating temperature: 14-122°F (-10 to 50°C)
• Humidity range: 5-95% RH non-condensing
• Power ride-thru: 100 ms for brief power interruptions
• Logic ride-thru: 2 seconds maintains control during outages

Frequently Asked Questions

• Is this drive new and authentic Allen-Bradley?
  Yes, we supply only genuine new Allen-Bradley products.
• What is the maximum output current?
  This model delivers 6.6 A output current.
• Do you have this model in stock?
  Yes, we maintain ready stock for immediate shipment.
• What control methods are available?
  Both V/Hz and Sensorless Vector control modes.
• How soon will my order ship?
  We process and ship within five business days.
• What is your return policy?
  30-day returns for unused products in original packaging.

Complete technical manual: PowerFlex 4 and 40 AC Drives PDF
