22D-E4P2H204 - 22D PowerFlex 40P Allen-Bradley

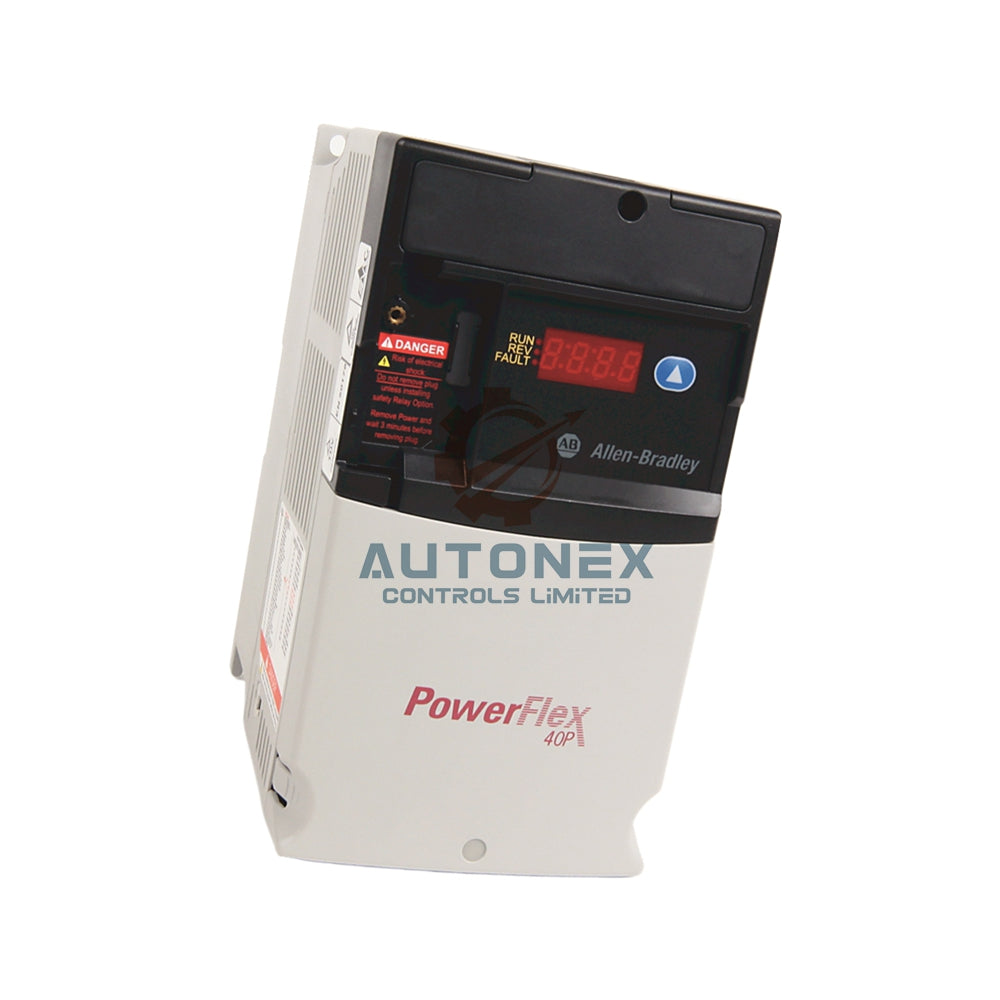

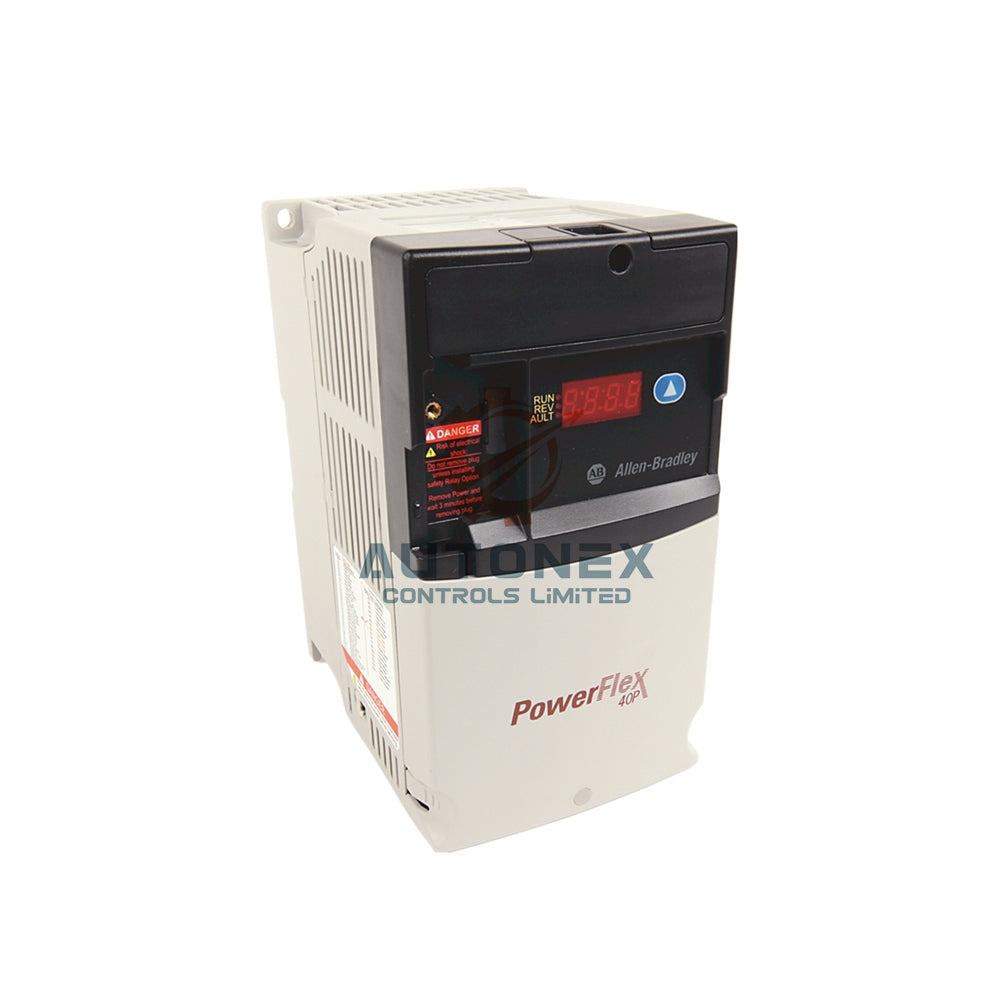

Allen-Bradley 22D-E4P2H204 PowerFlex 40P Drive Introduction

Key Technical Specifications

• Brand: Allen-Bradley
• Model: 22D-E4P2H204
• Series: PowerFlex 40P
• Input Voltage: 600 Volts AC
• Input Frequency: 50/60 Hz
• Input Phase: Three-Phase
• Output Current: 4.2 Amps
• Output Power: 3 HP (2.2 kW)
• Enclosure Type: Plate Mount, Open Type
• Protection Rating: IP20
• Frame Size: B
• CE Filter: Not Included

Installation & Environmental Details

• This drive suits panel or plate mounting setups.
• The open-type design requires a protective enclosure.
• It operates reliably in standard industrial environments.
• Ensure proper clearance for adequate airflow and cooling.
• Follow local electrical codes for safe installation.

Packaging & Shipping Information

• You receive one brand new, factory-sealed unit.
• Our warehouse stocks the 22D-E4P2H204 for quick dispatch.
• We ship all orders within five business days.
• We use reliable carriers like FedEx, UPS, and DHL.
• The package includes the drive and its user manual.

Frequently Asked Questions

What is the input voltage for this drive?

• The drive requires a 600V AC, three-phase power supply.

What motor power can it handle?

• It perfectly controls motors up to 3 HP (2.2 kW).

Is this unit brand new and in stock?

• Yes, we supply only brand new, original units from stock.

What is the output current rating?

• The maximum output current is 4.2 Amps.

Where can I find the installation manual?

• Download the full manual from the PDF link in our documentation section.

How soon do you ship orders?

• We process and ship all orders within five working days.

What is your returns policy?

• We accept returns for any reason within 30 days of purchase.

Product Documentation

• Download the complete product manual here: PowerFlex 4 and 40 AC Drives PDF

For further technical details or pricing, please contact our sales team.
