22D-E3P0F104 22D PowerFlex 40P Allen-Bradley

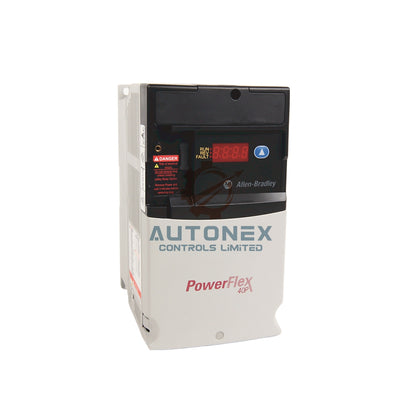

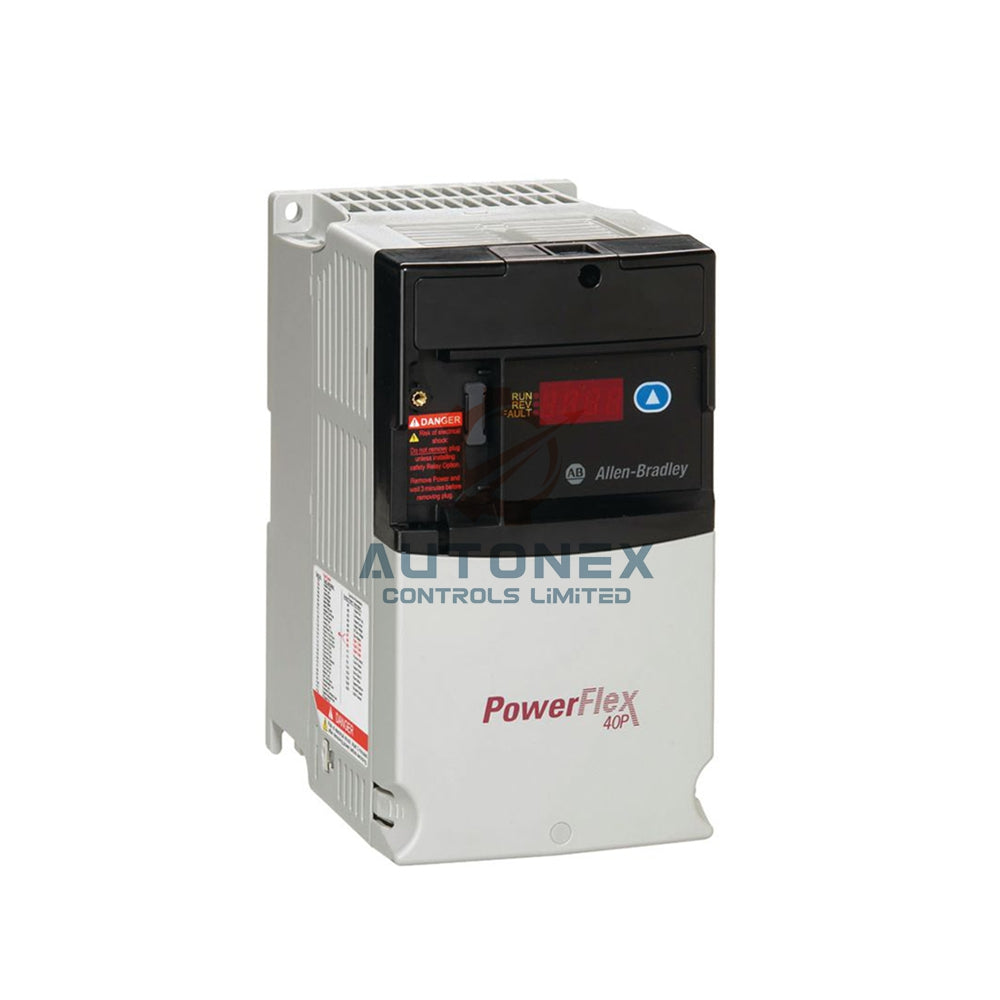

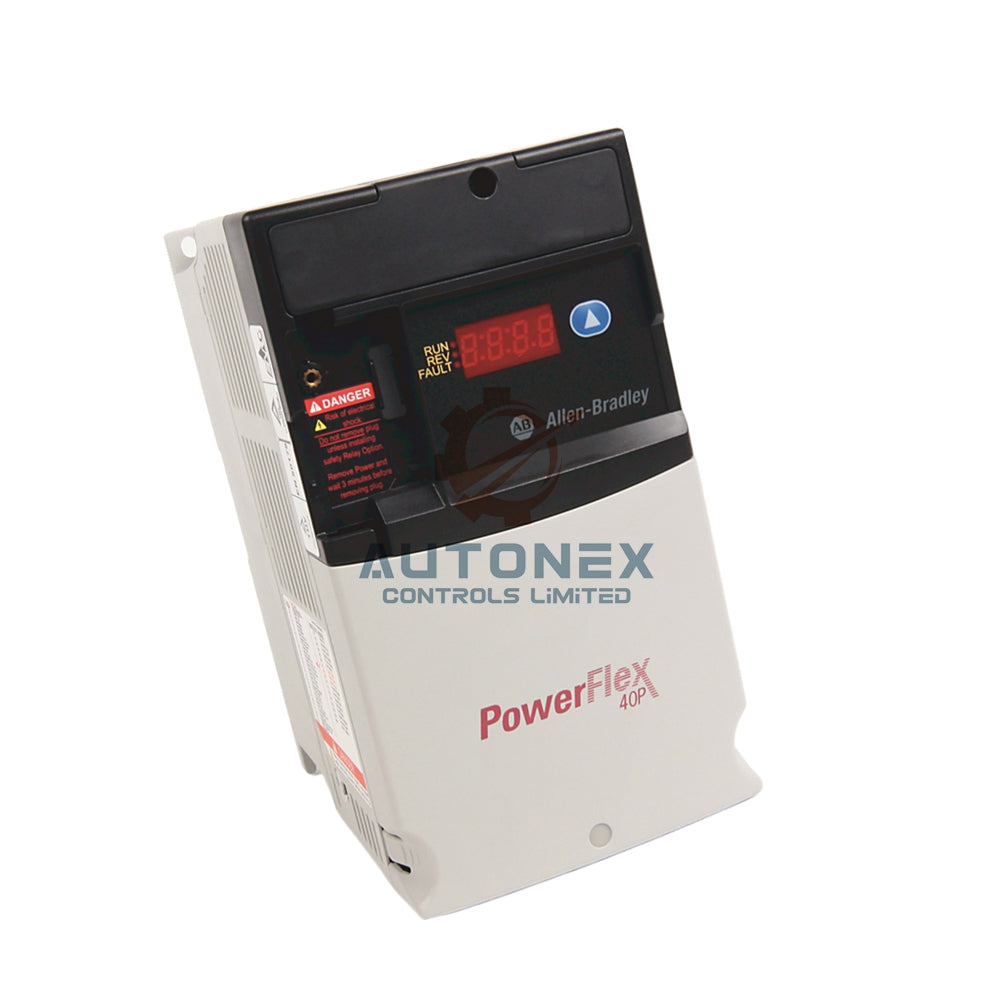

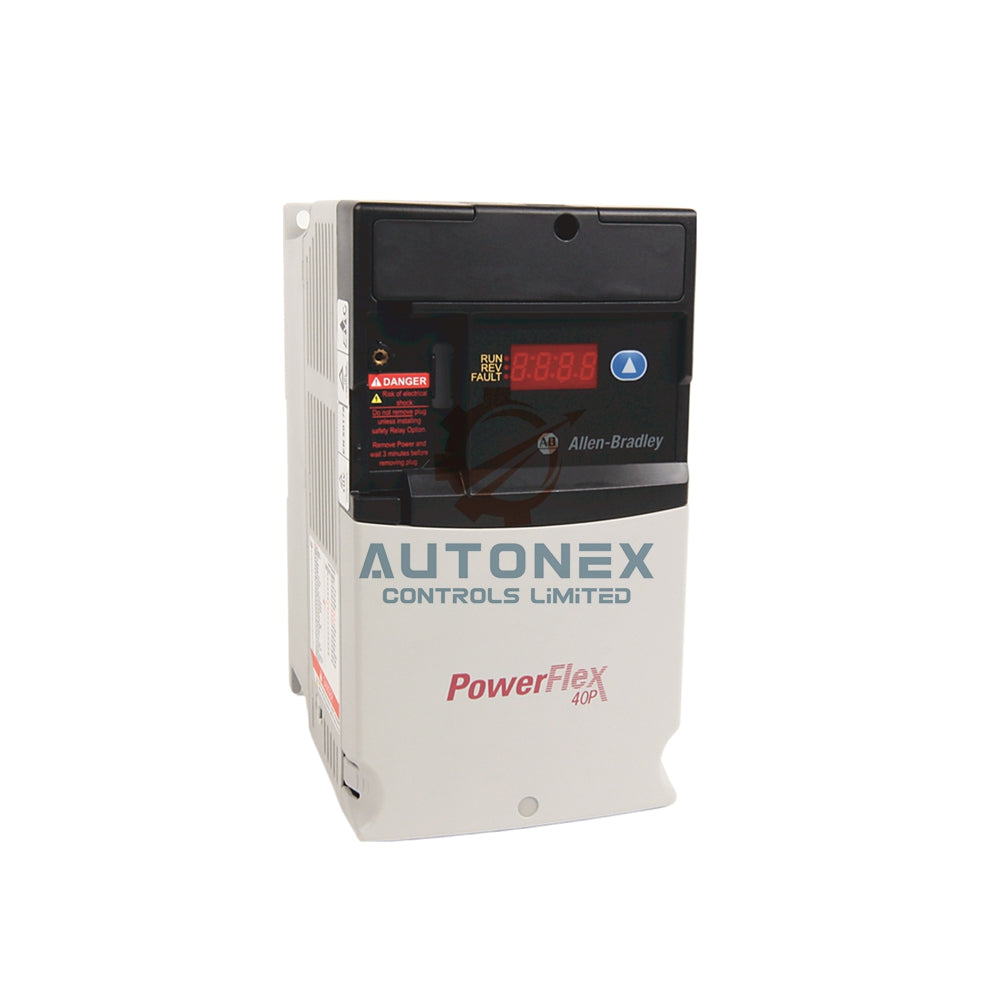

Allen-Bradley 22D-E3P0F104 PowerFlex 40P Drive

Core Specifications

• Brand: Allen-Bradley
• Series: PowerFlex 40P | Model: 22D-E3P0F104
• Input Voltage: 600 Volts AC, Three-Phase, 50-60 Hz
• Output Current: 3.0 Amps maximum capacity
• Motor Power: 2 HP (1.5 kW) rating
• Enclosure: Flange Mount, Open Type (IP20)
• Frame Size: Compact B Frame design
• Filter Status: No CE filter included

Detailed Electrical Performance

• Input Voltage Range: 414 to 660 Volts AC operational window
• Input Current Draw: 3.8 Amps at maximum load
• Input Power Consumption: 3.65 kVA typical requirement
• Output Voltage Range: 0 to 575 Volts AC variable output
• Wide input range ensures stable operation during voltage fluctuations
• Efficient power conversion for reduced energy consumption

User Interface & Control Features

• Display System: 4-digit display with keypad input
• Status Indicators: 10 LED lights for clear operational status
• Control Functions: Reset button for quick fault recovery
• Motor Control Methods: Sensorless vector and volts/hertz options
• Space Optimization: Zero stacking capability for multiple units
• Intuitive interface simplifies setup and operation

Shipping & Package Information

• Product Condition: New, original Allen-Bradley equipment
• Package Contents: Drive unit, user manual, documentation
• Stock Status: Available for immediate shipment
• Processing Time: Ships within 5 business days
• Shipping Methods: FedEx, UPS, DHL express available
• Return Policy: 30-day satisfaction guarantee

Frequently Asked Questions

What is the power rating of this drive?

• The 22D-E3P0F104 is rated for 2 HP (1.5 kW) motors.

What input voltage does it require?

• It operates on 600V AC three-phase power systems.

What control options are available?

• You can use sensorless vector control or traditional volts/hertz methods.

Can I mount multiple drives close together?

• Yes, zero stacking capability allows space-efficient multi-drive installations.

What type of display does it have?

• It features a 4-digit display with keypad and 10 status indicator LEDs.

Is this drive currently in stock?

• Yes, we have the 22D-E3P0F104 available for immediate shipment.

Download complete technical documentation: PowerFlex 4 and 40 AC Drives Manual
