22D-E019F104 22D PowerFlex 40P Allen-Bradley

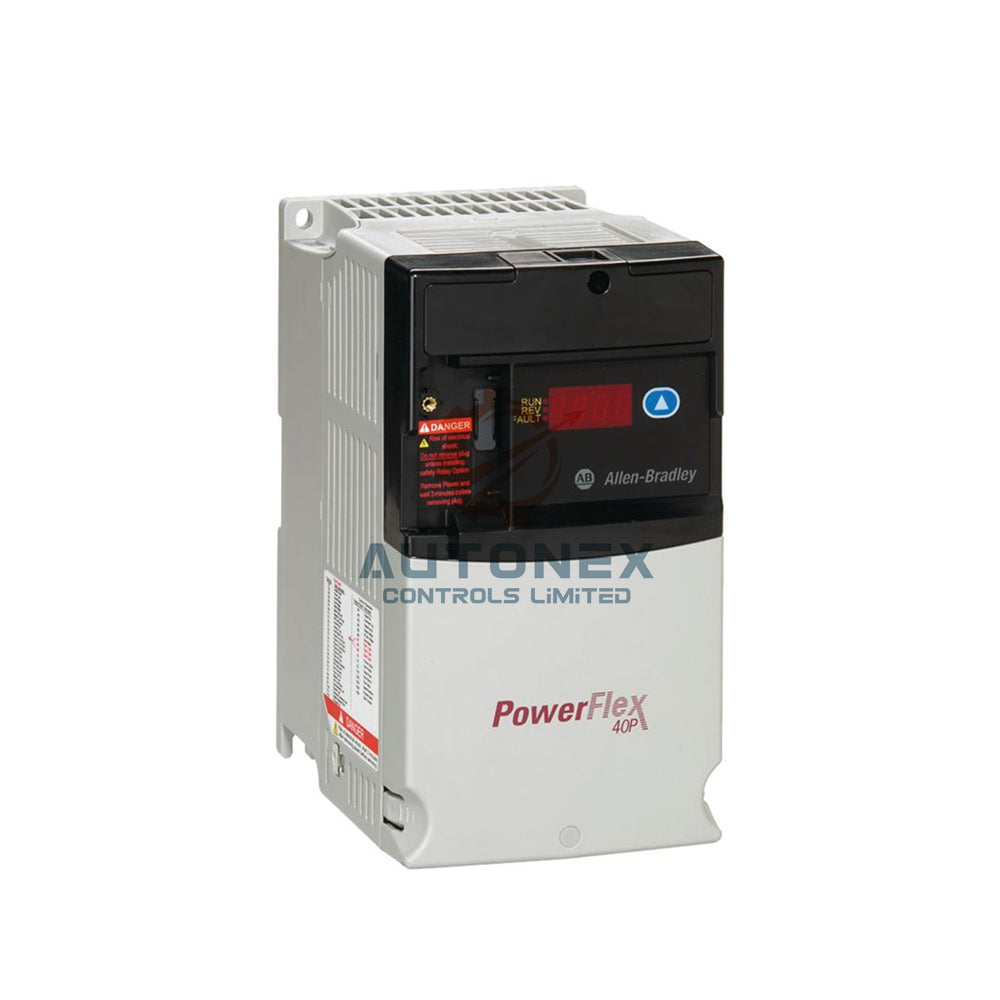

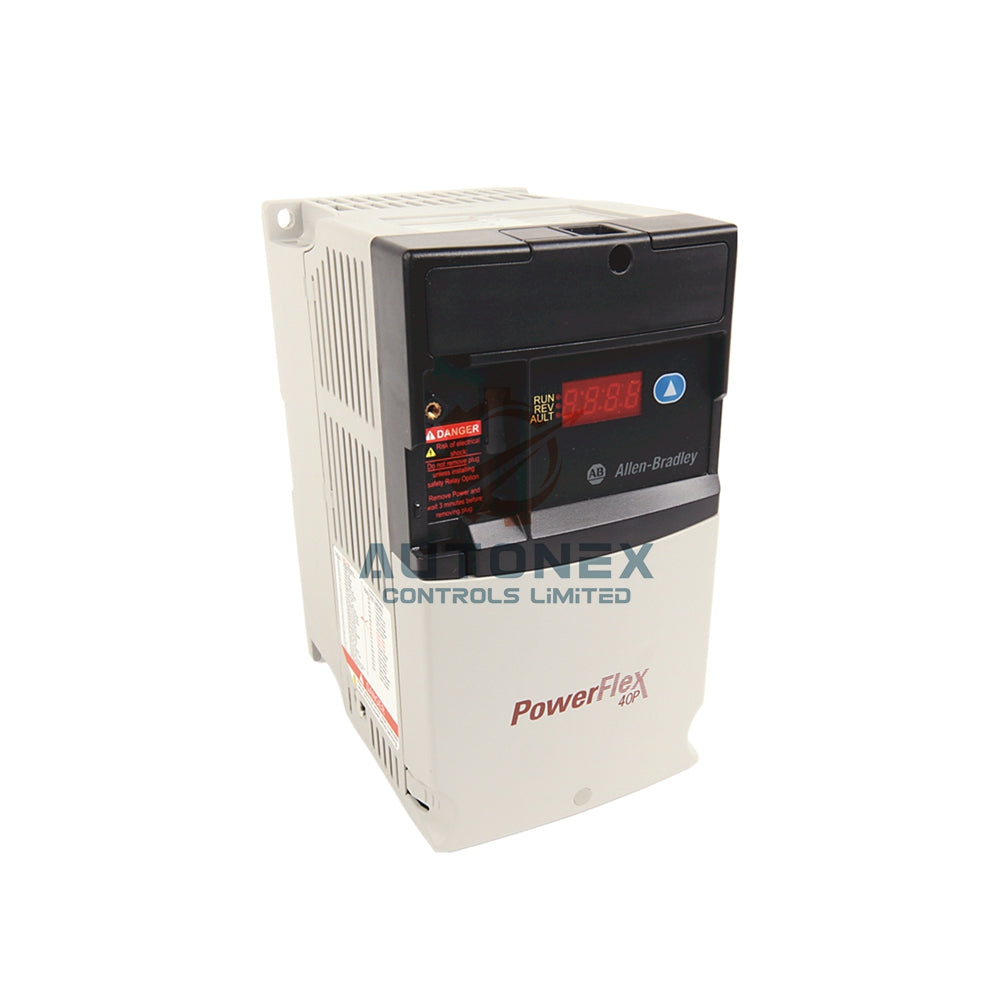

Allen-Bradley 22D-E019F104 PowerFlex 40P Drive

Electrical Specifications

• Brand: Allen-Bradley
• Series: PowerFlex 40P | Model: 22D-E019F104
• Input Voltage: 600V AC, 3-Phase
• Rated Current: 19.0 Amps
• Output Power: 15 HP (11 kW)
• Frame Size: Size C for higher power applications
• EMC Filter: No CE filter included

Control & Advanced Functions

• Advanced slip compensation for improved motor performance
• Dual encoder input capability for precise feedback
• Speed synchronization between multiple drives
• Adjustable acceleration and deceleration ramp times
• One-time position control for basic positioning applications
• Smooth motor control across the entire speed range

Physical & Environmental Specifications

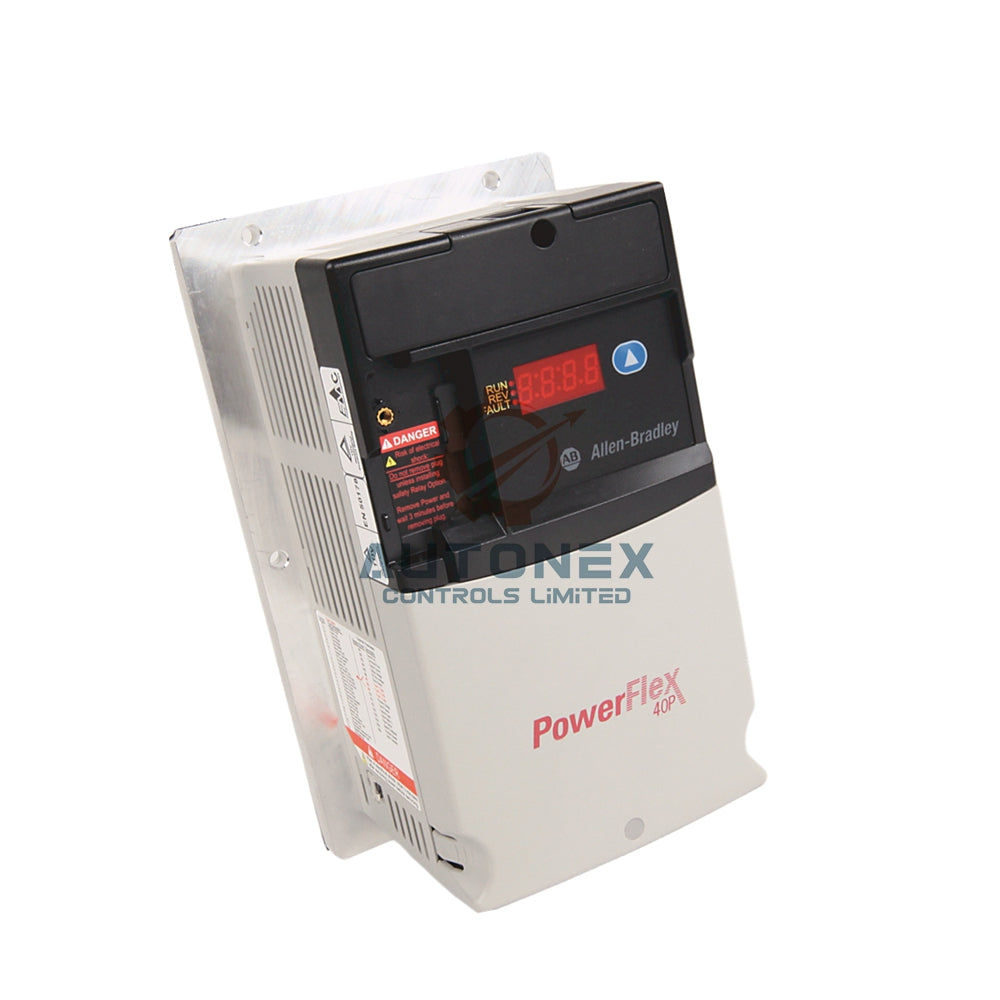

• Mounting Type: Flange mount, Open Type enclosure
• Enclosure Rating: IP20, NEMA 1 protection level
• Drive Type: Standard industrial drive configuration
• Shelf Life: 1 year from manufacturing date
• Storage Temperature: -40°C to 85°C wide range
• Humidity Tolerance: Up to 95% non-condensing
• Power Loss: Supports brief power interruptions

Shipping & Package Information

• Product Condition: New, original Allen-Bradley equipment
• Package Contents: Drive unit, installation manual
• Stock Status: Available from our current inventory
• Processing Time: Ships within 5 business days
• Shipping Carriers: FedEx, UPS, DHL express shipping
• Return Policy: 30-day return period guaranteed

Frequently Asked Questions

What is the power rating of this drive?

• The 22D-E019F104 is rated for 15 HP (11 kW) motors.

What input voltage does it require?

• It requires 600V AC, 3-phase power supply.

Does it support encoder feedback?

• Yes, it features dual encoder input for precise motor control.

What is the enclosure rating?

• It has IP20/NEMA 1 open type enclosure with flange mounting.

Is a CE filter included?

• No, this model does not include a built-in CE compliant filter.

Download the complete technical manual: PowerFlex 4 and 40 AC Drives PDF

Contact our team for application support and pricing details.
