22D-D6P0H204 22D PowerFlex 40P Allen-Bradley

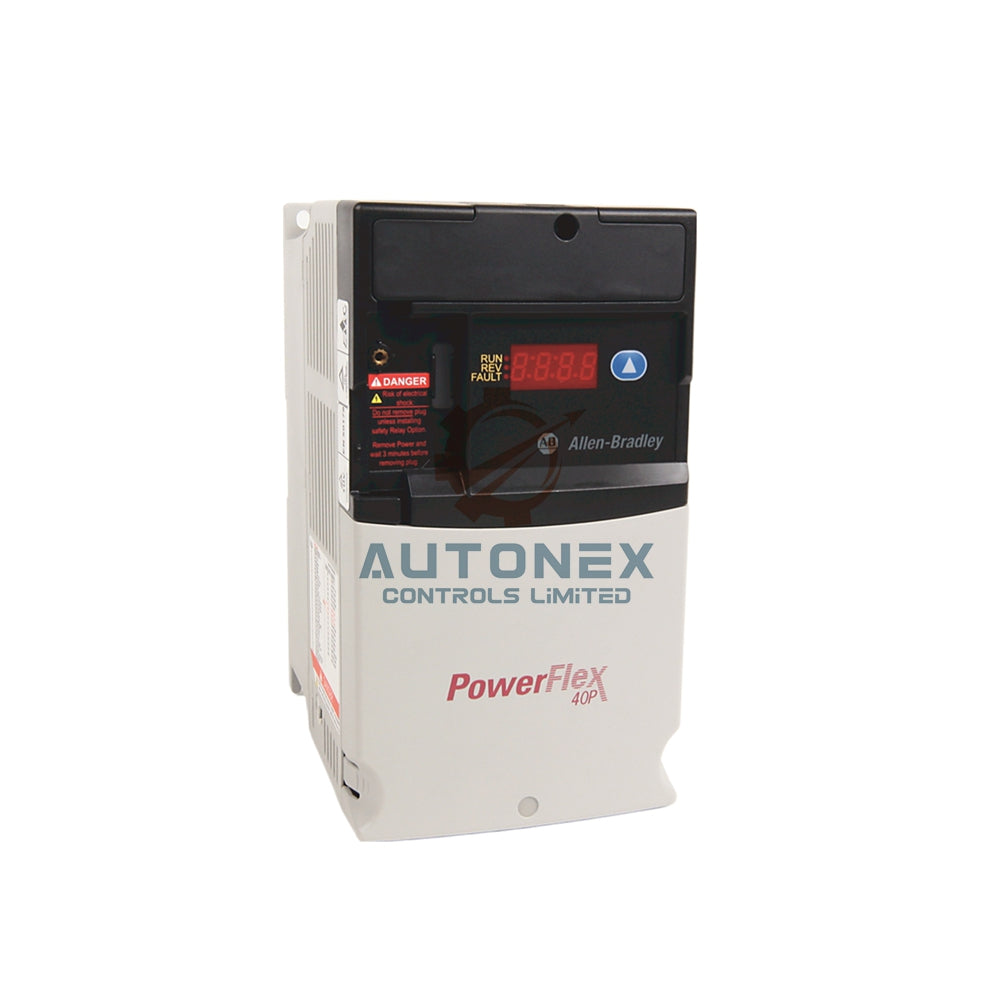

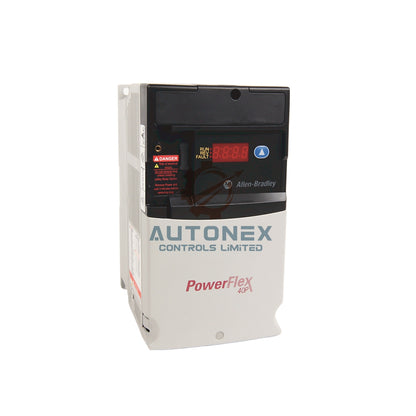

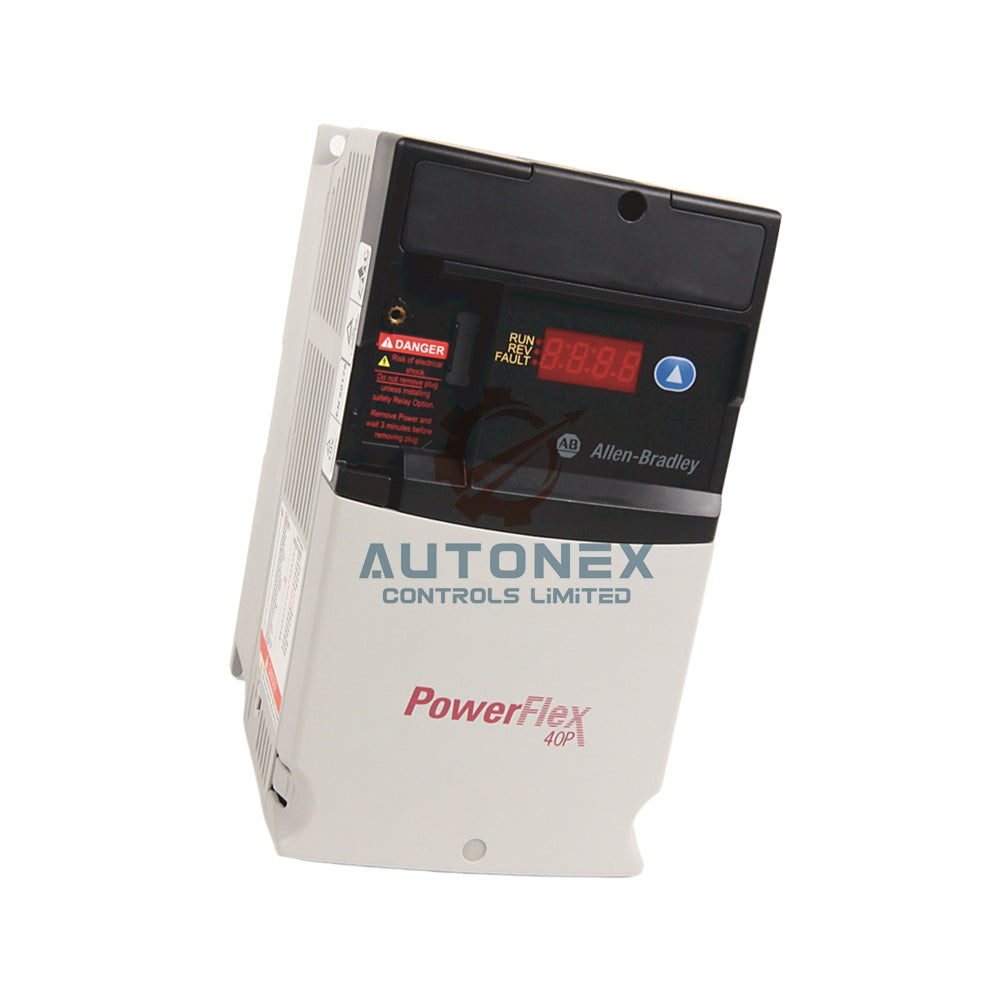

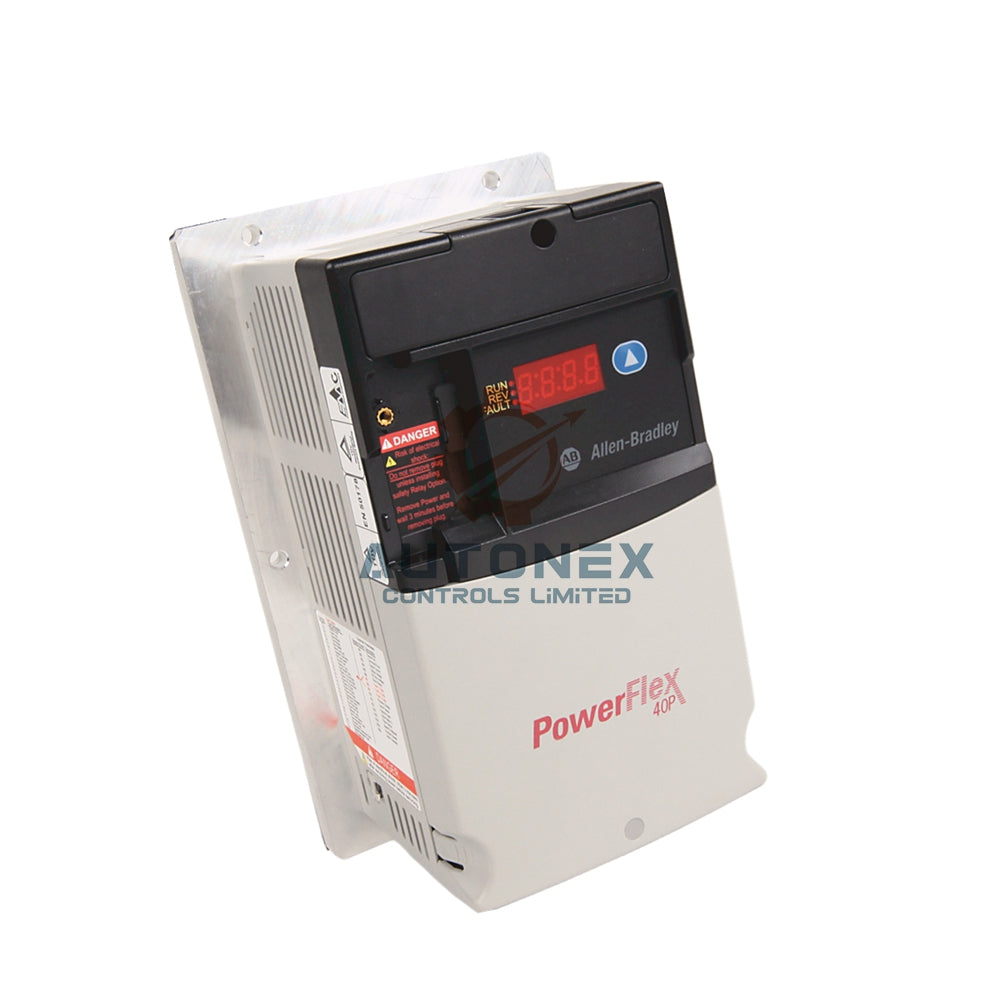

Allen-Bradley 22D-D6P0H204 PowerFlex 40P Drive

Electrical Specifications

• Input Power: 480 VAC, 3-phase, 50–60 Hz
• Output Power: 2.2 kW (3 HP) motor capacity
• Current Rating: 6 Amps output current
• Enclosure Type: Plate mount, IP20 protection rating
• Frame Size: B standard dimension
• EMC Filter: CE compliant electromagnetic filtering
• Storage Period: 1 year maximum shelf life

Advanced Control Features

• Sensorless Vector: Precise speed control without feedback devices
• Process Control: Built-in PID loop for automated regulation
• Positioning Capability: Step Logic function for basic position control
• Operator Interface: Clear 4-digit display with status LEDs
• Communication Port: Standard RS-485 for PC or DF1 protocol
• Remote Operation: Compatible with remote keypad or handheld LCD
• Programming Flexibility: Multiple parameter access methods

Frequently Asked Questions

What is the horsepower rating of this drive?

• The 22D-D6P0H204 delivers 3 HP (2.2 kW) output power

What control methods are available?

• It features sensorless vector control and built-in PID

Does it support position control?

• Yes, Step Logic provides basic positioning capability

What communication interface is included?

• Standard RS-485 supports PC or DF1 protocol communication

Can I use a remote keypad with this drive?

• Yes, it works with both remote keypad and handheld LCD devices

How quickly do you ship orders?

• We process and ship all products within 5 business days

Access complete technical documentation: PowerFlex 4 and 40 AC Drives Manual
