22D-D4P0H204 22D PowerFlex 40P Allen-Bradley

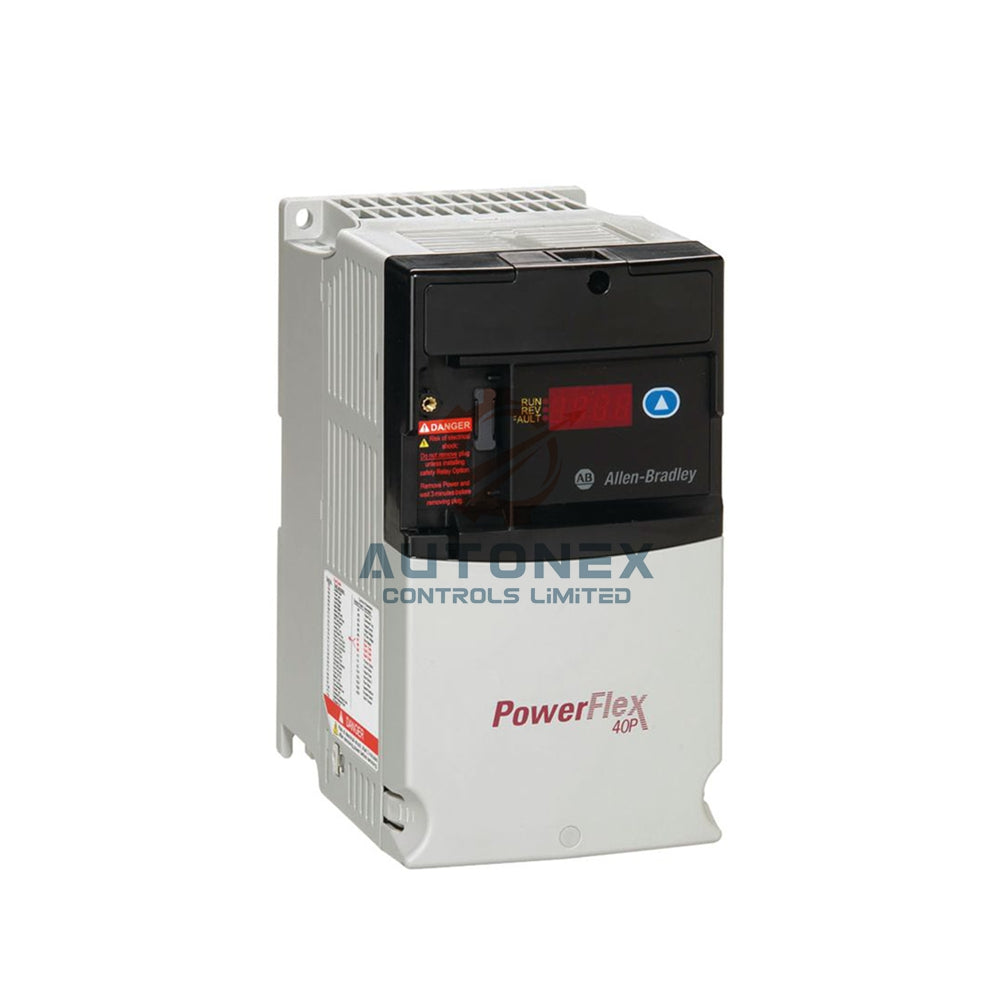

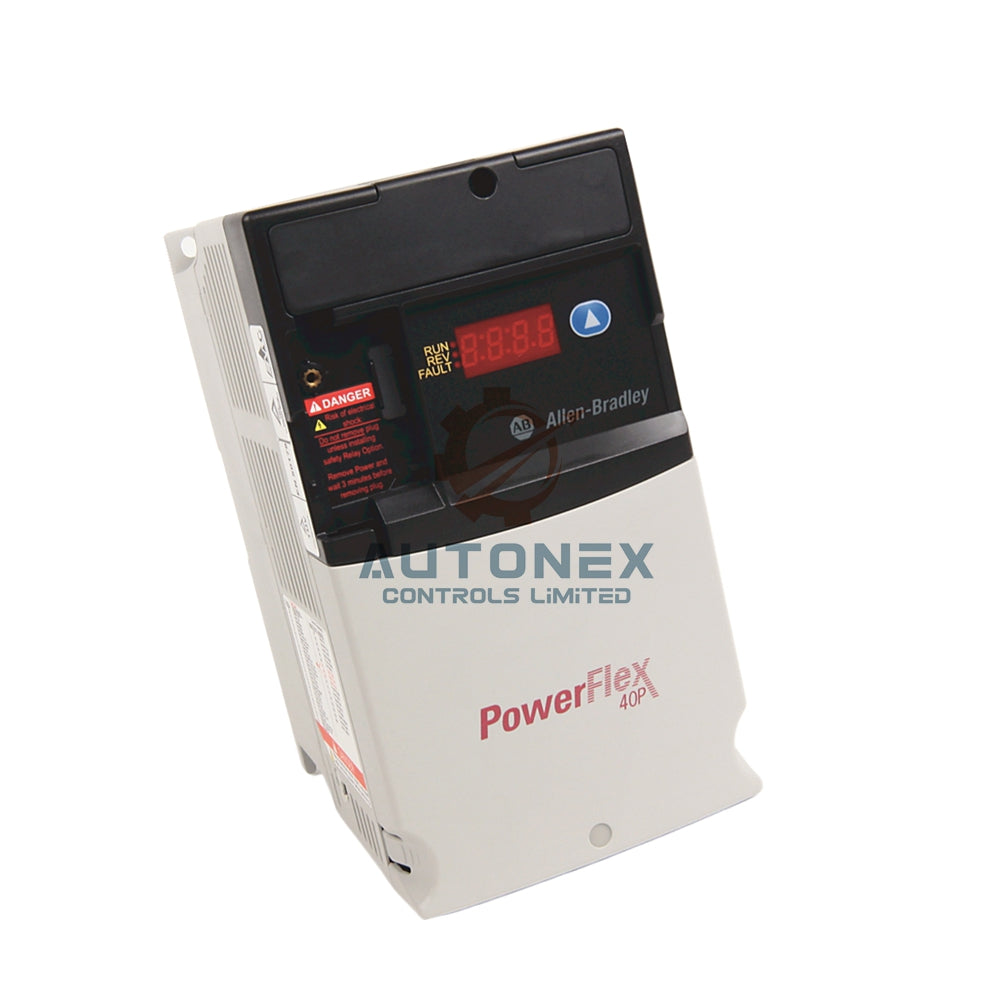

Allen-Bradley 22D-D4P0H204 PowerFlex 40P Drive Overview

Quick Specifications Guide

• Brand: Allen-Bradley
• Model Highlight: 22D-D4P0H204 PowerFlex 40P Series
• Input Power: 480V AC 3-Phase | Output Current: 4.0 Amps
• Motor Power: 2 HP (3-Phase) | Weight: 2 kg
• Communication: RS-485 Port | Control: Sensorless Vector
• Mounting: Flange or DIN Rail | Enclosure: IP20

Environmental Operating Conditions

• Temperature Range: -10°C to 50°C (14°F to 122°F) operational
• Storage Conditions: -40°C to 70°C temperature tolerance

Key Performance Features

• Advanced sensorless vector control for precise motor operation
• Built-in RS-485 communication for network connectivity
• Flexible mounting with flange or DIN rail options
• Open-type NEMA enclosure rated IP20 for protection
• User-friendly LED keypad for easy setup and monitoring
• Compact design saves valuable control panel space

Common Customer Questions

What motor size works with this drive?

• The 22D-D4P0H204 perfectly matches 2 HP three-phase motors.

What power supply does it need?

• This drive requires standard 480V AC three-phase input power.

How can I mount this unit?

• Choose between convenient flange mounting or DIN rail installation.

What communication capabilities are included?

• It features RS-485 port for basic networking and control integration.

Is the display included?

• Yes, an integrated LED keypad comes standard for easy operation.

Do you have this model in stock?

• Yes, we maintain stock of the 22D-D4P0H204 for immediate shipping.

Download complete technical manual: PowerFlex 4 and 40 AC Drives PDF
