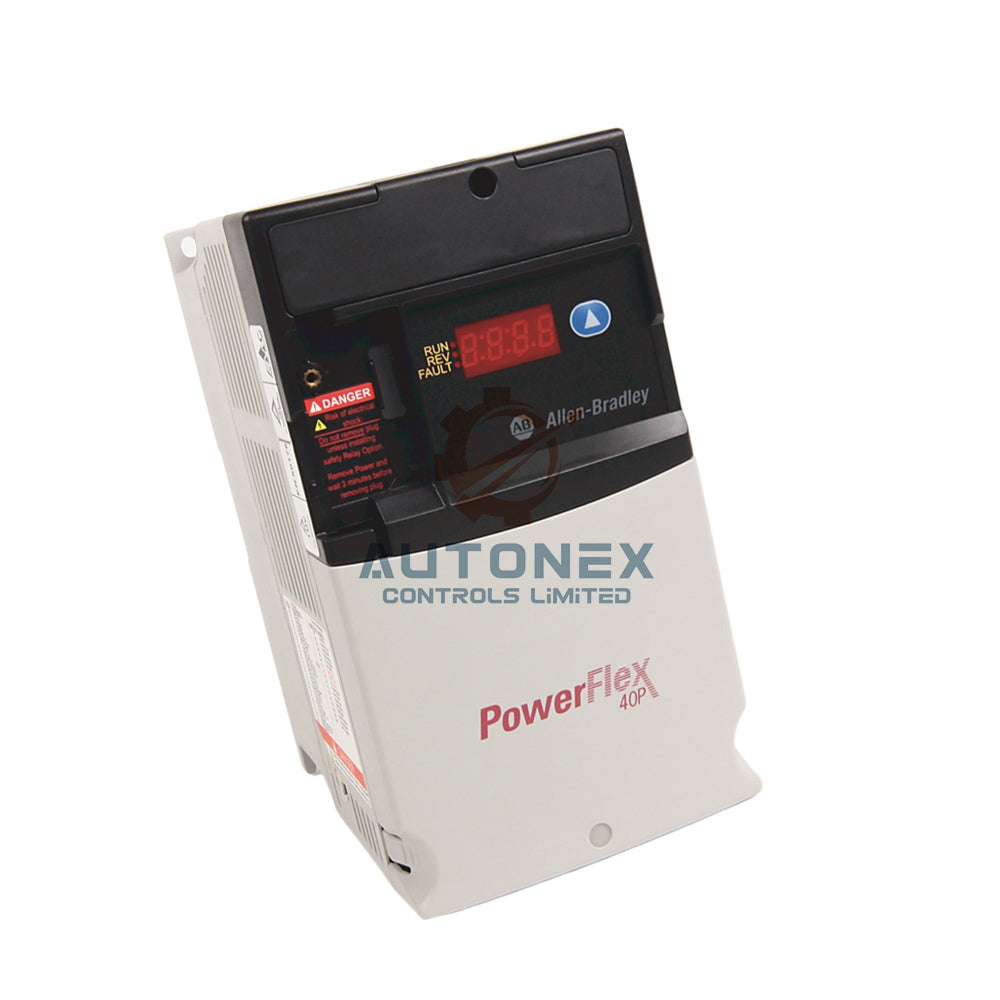

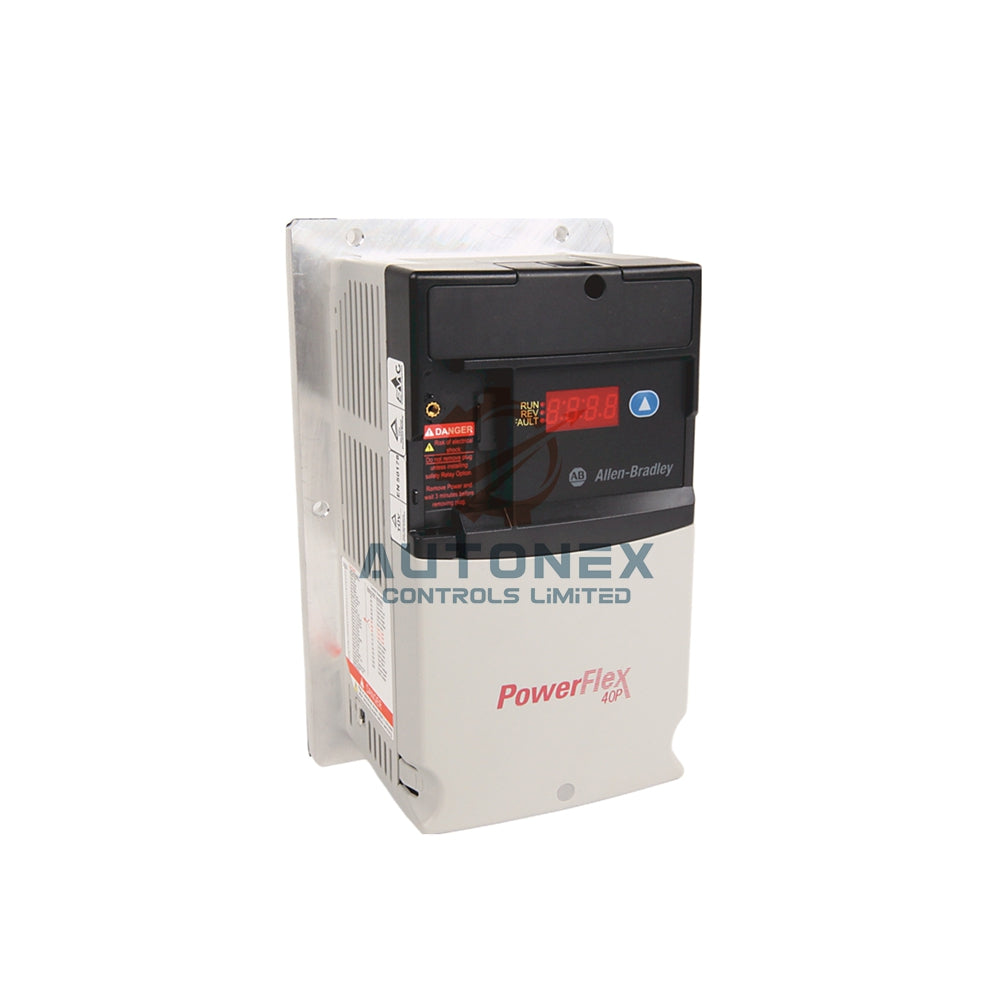

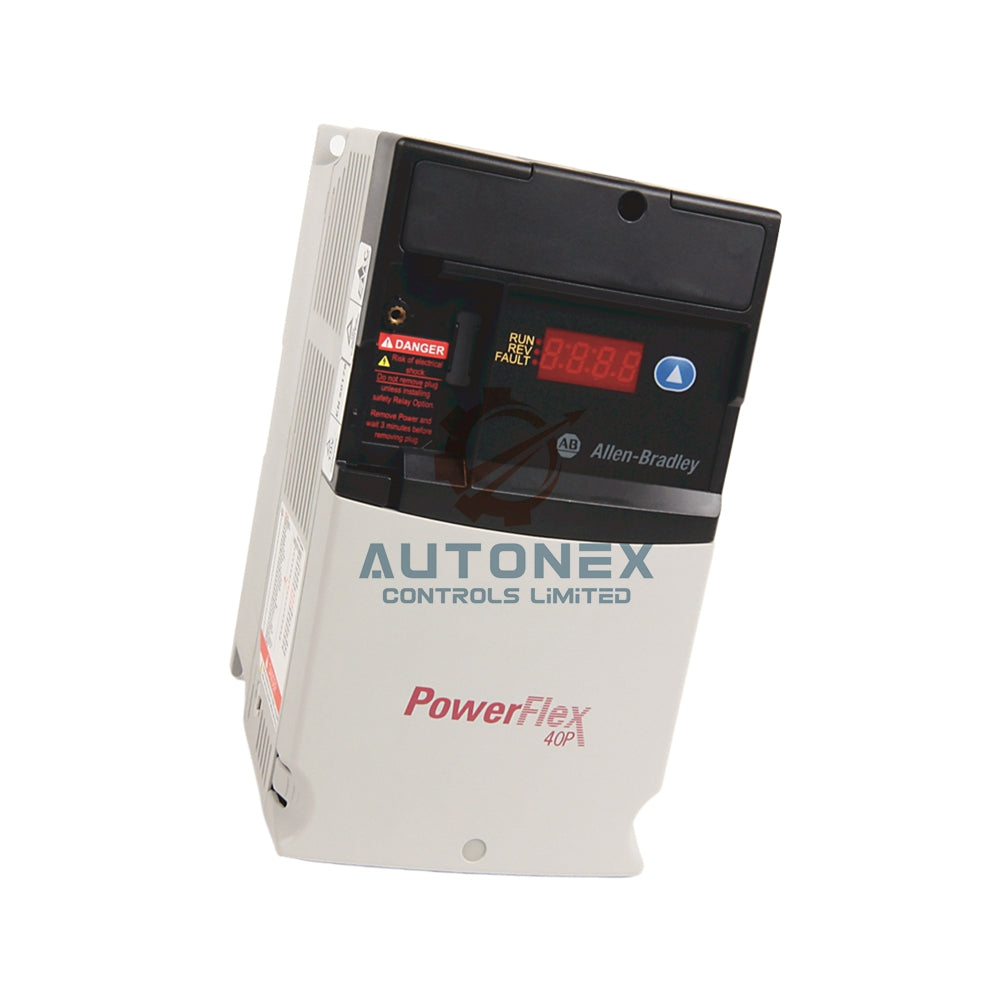

22D-D1P4H204 22D PowerFlex 40P Allen-Bradley

Allen-Bradley PowerFlex 40P Adjustable Frequency AC Drive

Core Technical Specifications

• Brand & Manufacturer: Allen-Bradley
• Product Model: 22D-D1P4H204
• Series Name: PowerFlex 40P
• Input Power: 480 Volts AC, 3-Phase
• Output Power: 0.5 Horsepower (0.4 kW)
• Output Current: 1.4 Amps
• Frame Size: Compact B Frame
• Enclosure Rating: Open Type (IP20) for Plate Mounting

Performance and Control Features

• The drive offers advanced V/Hz and Sensorless Vector control methods.
• It provides excellent speed regulation of ±1% over an 80:1 speed range.
• This unit features a high power factor of 0.98 across its entire speed range.
• Its overload protection handles 150% for 60 seconds and 200% for 3 seconds.
• The drive uses Sinusoidal PWM for a clean and efficient motor signal.

Environmental and Installation

• The open enclosure design ensures easy access for installation and wiring.
• This model operates within a standard industrial temperature range.
• It has a wide frequency tolerance of ±10% at 48–63 Hz for stability.
• The drive lacks a built-in CE filter, so check your local requirements.
• Its compact frame saves valuable panel space in your control system.

Packaging and Shipping

• You will receive one Allen-Bradley 22D-D1P4H204 drive unit.
• We include the user manual and any standard mounting hardware.
• Every item is brand new, original, and comes in its factory box.
• We ship all orders from our stock, ensuring a fast processing time.
• We typically ship within five business days after you place your order.
• We use reliable carriers like FedEx, UPS, and DHL for your shipments.

Frequently Asked Questions (FAQ)

What is the input voltage for this drive?

• The 22D-D1P4H204 requires a 480V AC, 3-phase power input for proper operation.

What motor horsepower does this drive support?

• This model is rated for motors up to 0.5 Horsepower (0.4 kW).

Is this drive in stock and ready to ship?

• Yes, we have this specific model in our inventory. It is ready for immediate shipment.

What is your return policy for this item?

• We support a 30-day return period for all our products from the delivery date.

Which control methods does this PowerFlex drive use?

• It uses both V/Hz and Sensorless Vector control for flexible performance.

For further technical details, please download the manual here: PowerFlex 4 and 40 AC Drives.

For pricing and orders, please contact our sales team.

Contact: sales@nex-auto.com
