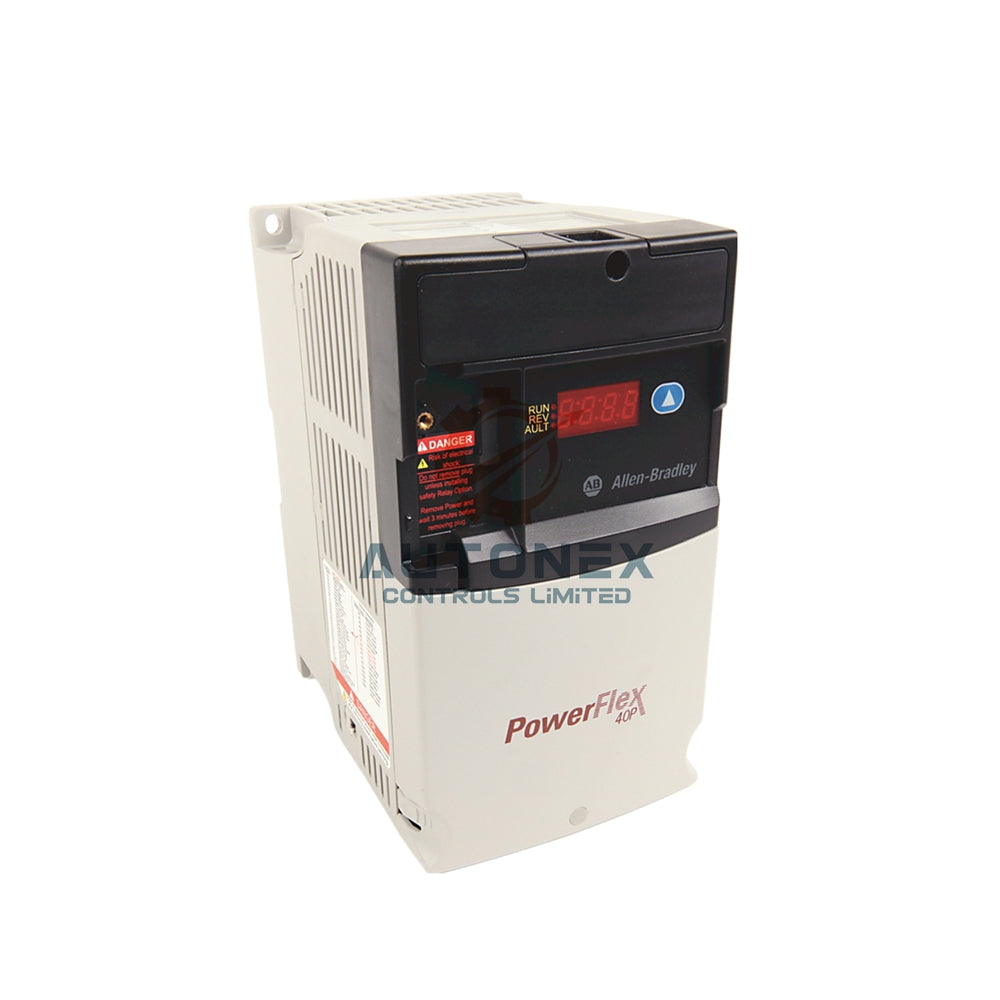

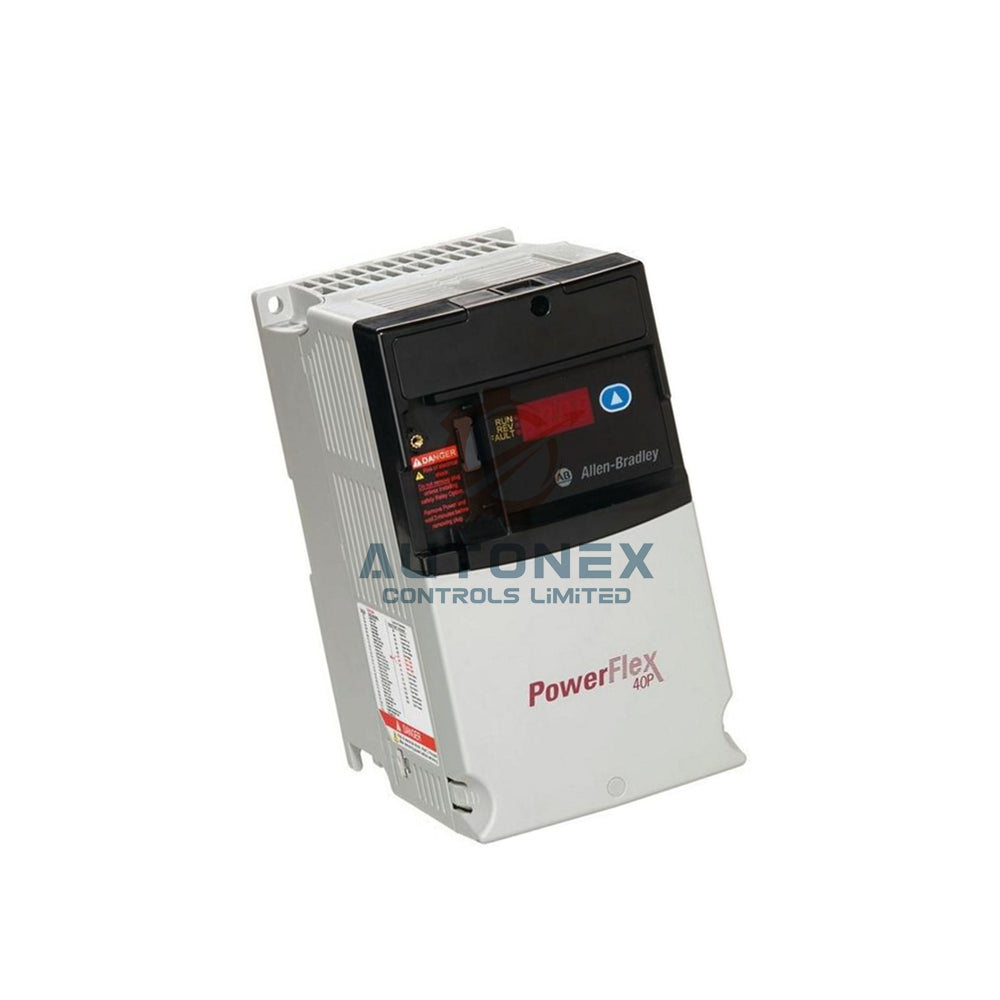

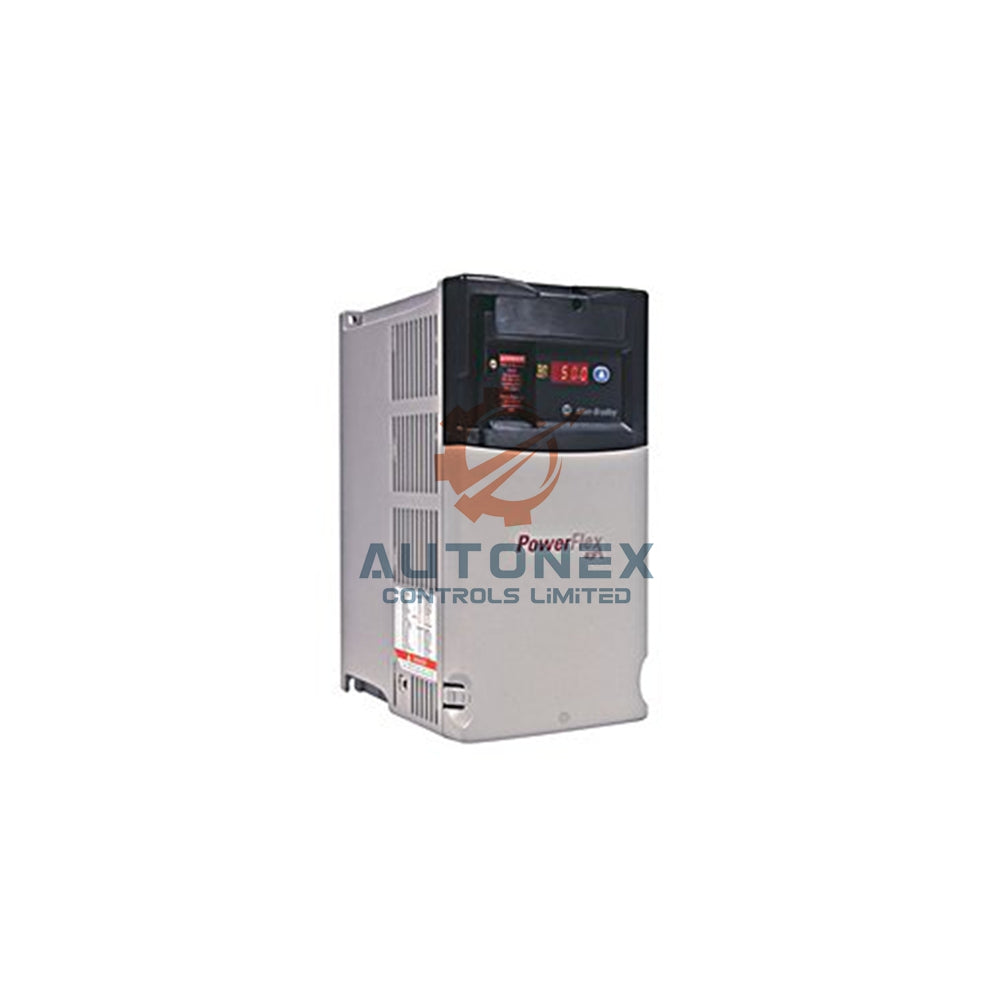

22D-B2P3N104 22D PowerFlex 40P Allen-Bradley

Allen-Bradley PowerFlex 4 AC Drive with Enhanced Connectivity

Model Configuration & Physical Dimensions

• Brand & Model: Allen-Bradley 22D-B2P3N104
• Enclosure Type: Open NEMA Type for flexible mounting

Electrical Specifications & Power Management

• Input Voltage: 200-240 VAC, 50-60 Hz range
• Rated Current: 2.3 amps continuous operation
• Output Power: 0.5 horsepower (0.4 kilowatts)
• Input Power: 1.15 kVA at 2.5 amps maximum
• Heat Dissipation: 40 watts total (22W external, 18W internal)
• Voltage Protection: Bus overvoltage trip at 405 V DC
• Undervoltage Safety: Bus trip at 210 V DC minimum

Control Capabilities & Protection Features

• Control Methods: Volts/Hz and sensorless vector modes
• Overload Capacity: 150% for 60 seconds, 200% for 3 seconds
• Switching Frequency: Adjustable PWM up to 16 kilohertz
• Surge Protection: 6000-volt transient voltage rating
• Safety Option: Available Category 3 Safe-Off function
• EMC Compliance: External filter for Class A EN55011

Environmental Specifications & Durability

• Operating Temperature: -10°C to +50°C range
• Storage Conditions: -40°C to +85°C temperature tolerance
• Humidity Rating: 0-95% non-condensing environment
• Maximum Altitude: 1000 meters above sea level
• Vibration Resistance: 5-2000 Hz at 1 G peak
• Shock Rating: 15 G for 11 milliseconds duration

Frequently Asked Questions

• What motor power does this drive support? It controls 0.5 HP (0.4 kW) motors.
• What communication protocol does it use? RS-485 Modbus RTU standard.
• How many digital inputs are available? Five programmable plus two semi-programmable.
• What safety features are included? Optional Category 3 Safe-Off capability.
• Is EMC compliance included? Requires external filter for Class A EN55011.
• Are these drives brand new? Yes, we supply only genuine new units.

Download complete technical manual: PowerFlex 4 and 40 AC Drives PDF
