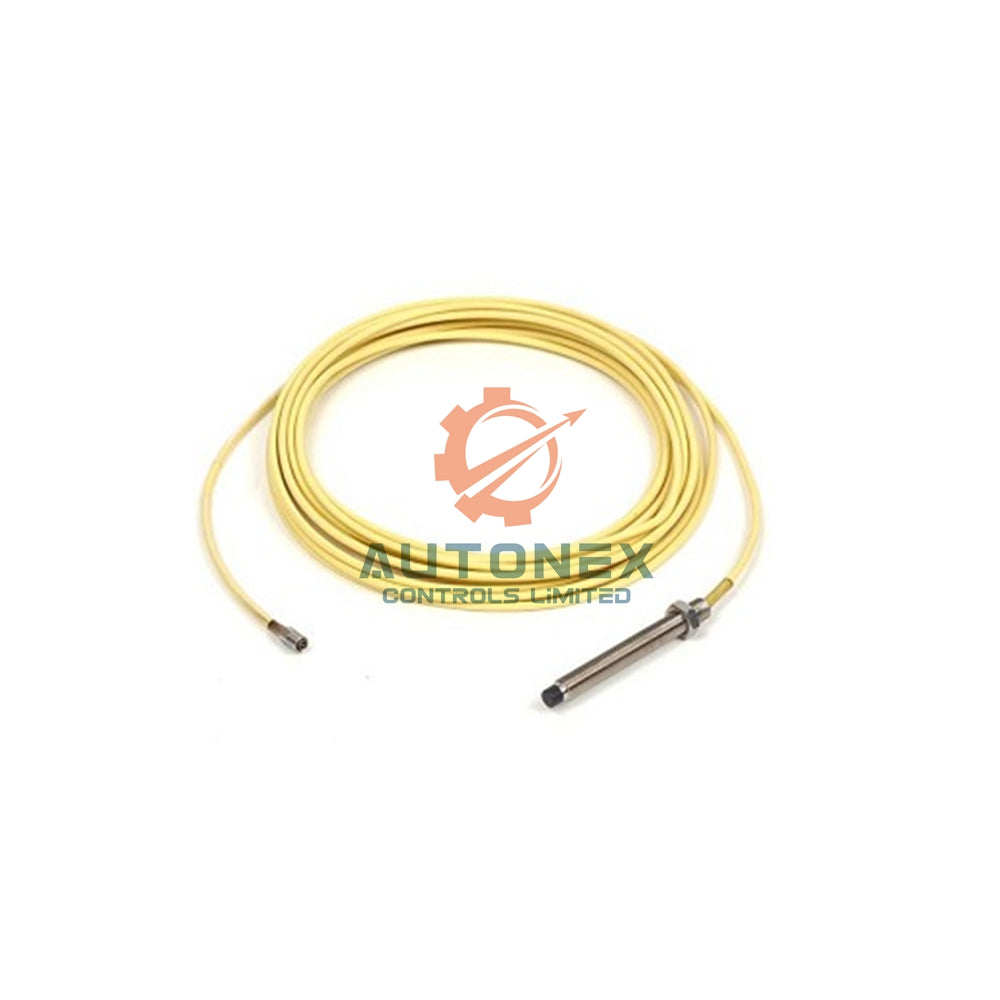

21504-08-32-10-02 Bently Nevada 7200 Series Proximity Probe

Bently Nevada 21504-08-32-10-02 7200 Series Proximity Transducer System Overview

Electrical Specifications for the 21504 Proximitor Sensor

• The system requires a supply voltage from -17.5 V to -26 V with maximum current draw of 12 mA for efficient operation.
• This Bently Nevada probe provides a linear measurement range of 2.0 mm starting 0.25 mm from the tip surface.
• Output sensitivity measures 200 mV/mil with linearity of ±0.02 mm for precise data collection.
• Frequency response covers 0 to 10 kHz for both static displacement and dynamic vibration measurements.
• Total system error remains within ±4% across the entire operating range for dependable results.

Mechanical and Environmental Resistance Features

• The proximitor operates reliably from -51°C to +100°C while the probe functions from -34°C to +177°C.
• This model withstands humidity up to 95% without performance degradation or signal drift.
• Corrosion-proof construction resists oil, 10% acid, water, MEK, and DMF exposure.
• The 21504 features an 8 mm diameter tip with 3/8-24 thread and no armor for easy installation.
• Suffix configuration includes 80 mm tip length, 3.2 inch case, 1.0 meter cable, and mini coax connector.

Technical Documentation and Resources

• Download complete technical specifications from the official 7200 Series manual.
• Access the detailed guide here: 7200 Proximity Transducer Systems PDF.
• This document contains installation instructions, application notes, and full specifications.
• Reviewing the manual ensures proper setup and maximum performance from your 21504.

Frequently Asked Questions

• Q: Is this Bently Nevada 21504 a brand new original product?
  A: Yes, we supply this item as brand new, factory-sealed original from the manufacturer.
• Q: What is the measurement range for this 21504 probe?
  A: The 21504 provides a linear measurement range of 2.0 mm starting 0.25 mm from tip.
• Q: Do you have the 21504 in stock for immediate shipment?
  A: Yes, we maintain stock for this model and can process orders quickly for shipping.
• Q: What temperature range can this proximity system handle?
  A: The probe operates from -34°C to +177°C, the proximitor from -51°C to +100°C.
• Q: How quickly do you ship and which carriers do you use?
  A: We ship within 5 days using FedEx, UPS, or DHL for fast international delivery.
• Q: Can I return this sensor if it does not meet my requirements?
  A: Yes, we support returns within 30 days of delivery for your complete satisfaction.
