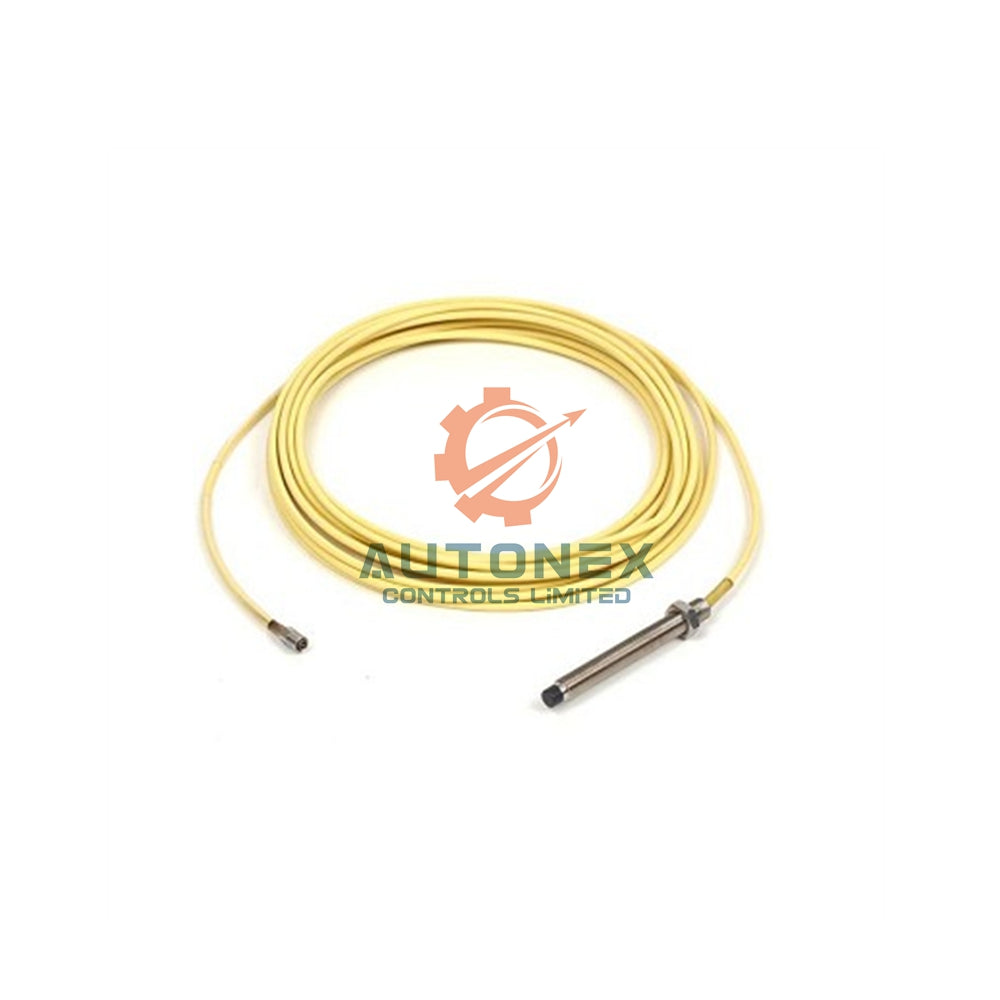

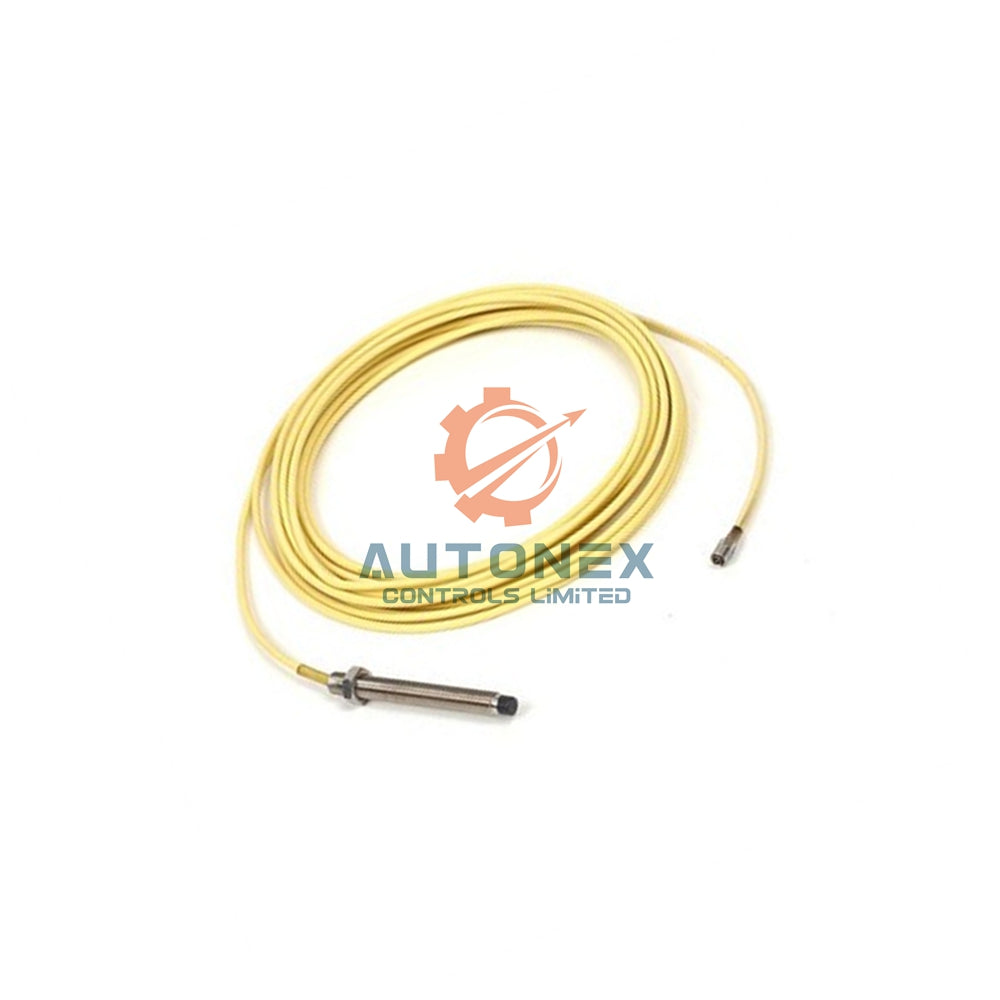

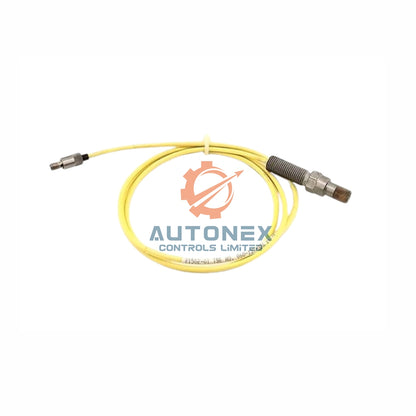

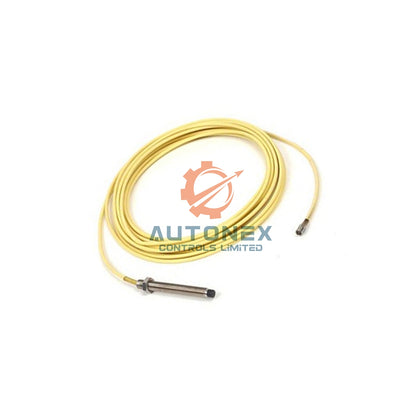

21504-02-12-05-02 Bently Nevada 7200 Proximity Probe

21504-02-12-05-02 Bently Nevada 7200 Series Proximity Vibration Probe

Complete System Model Configuration

• We base this transducer on the 7200 Series platform from Bently Nevada. The 21504-02-12-05-02 model features an unthreaded length of 20 mm before the threads begin.
• This specific configuration includes a 120 mm overall case length for installation flexibility. The attached cable measures exactly 0.5 meters (20 inches) from the probe case.
• It terminates with a miniature male coaxial connector for secure hookup to extension cables. Every component of the 21504-02-12-05-02 assembly ensures reliable signal transmission.

Core Technical Specifications

• Measurement Range: It delivers a linear 80 mils (2.0 mm) range starting precisely 0.25 mm from the probe face.
• Sensitivity and Accuracy: The scale factor provides 200 mV/mil (7.87 V/mm). System accuracy operates within ±4% for consistent monitoring applications.
• Linearity and Frequency: Linearity holds within ±0.8 mils with a frequency response from 0 to 10 kHz for dynamic measurements.
• Power Requirements: It operates on a -17.5 Vdc to -26 Vdc power supply with a maximum current draw of 12 mA.

Frequently Asked Questions

• What is the scale factor of the 21504-02-12-05-02 probe? The 21504-02-12-05-02 provides a scale factor of 200 mV/mil or 7.87 V/mm for accurate displacement readings.
• Is this item new and available for immediate shipment? Yes, we stock the Bently Nevada 21504-02-12-05-02 as a brand new, original item with availability for quick dispatch.
• How quickly can you ship this vibration probe? We process and dispatch orders within 5 days using reliable carriers like FedEx, UPS, or DHL worldwide.
• What is the thread size for this 8 mm probe? The 21504-02-12-05-02 uses a standard 3/8-24 UNF thread for mounting into machine casings and brackets.
• Can I return this item if it doesn't meet my needs? We accept returns within 30 days of receipt, provided the item remains in its original new condition.

For detailed technical data and installation guidelines, download the complete PDF manual here: 7200 Proximity Transducer Systems.
