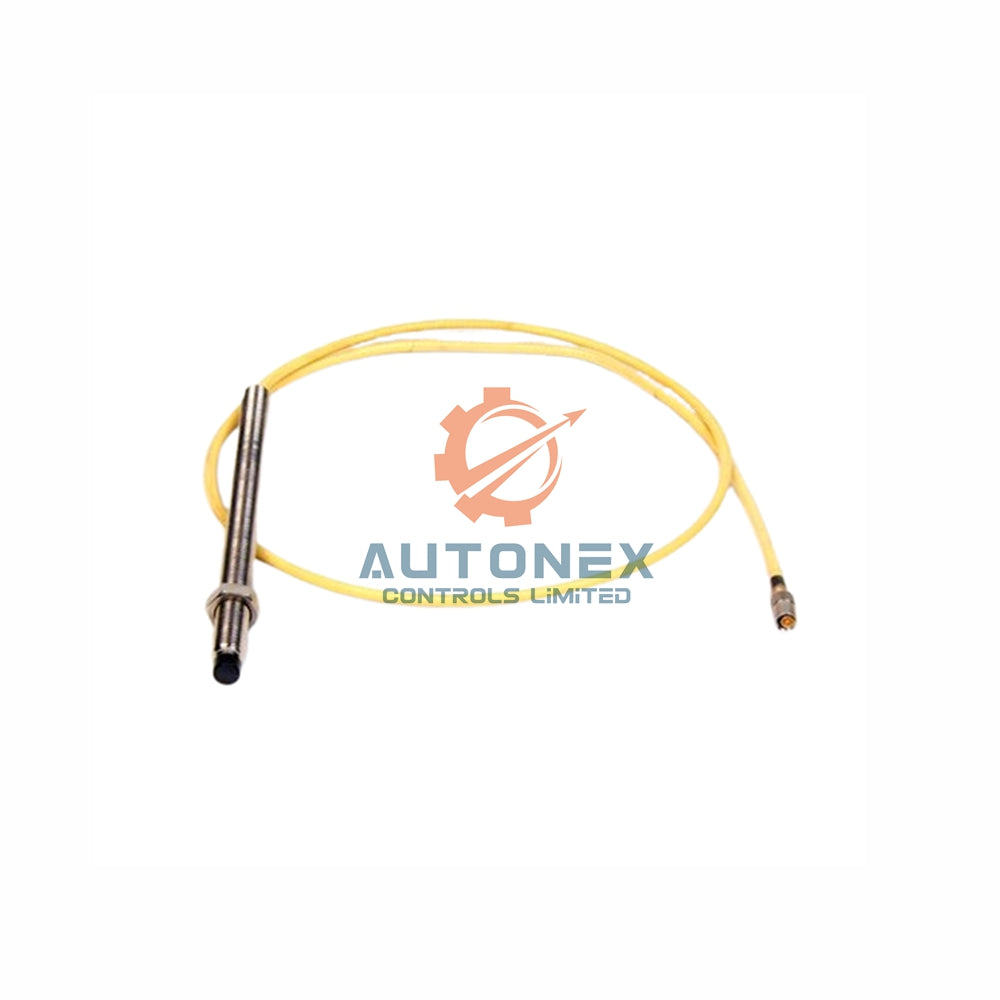

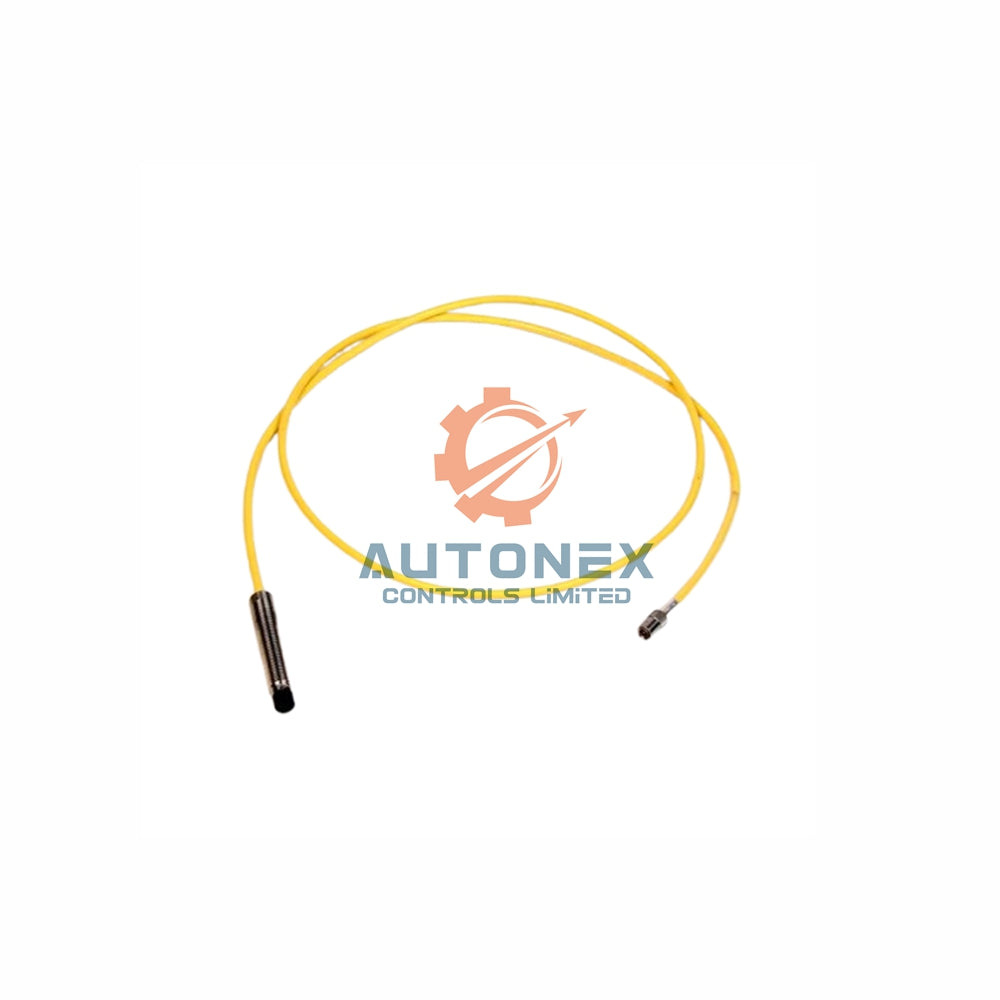

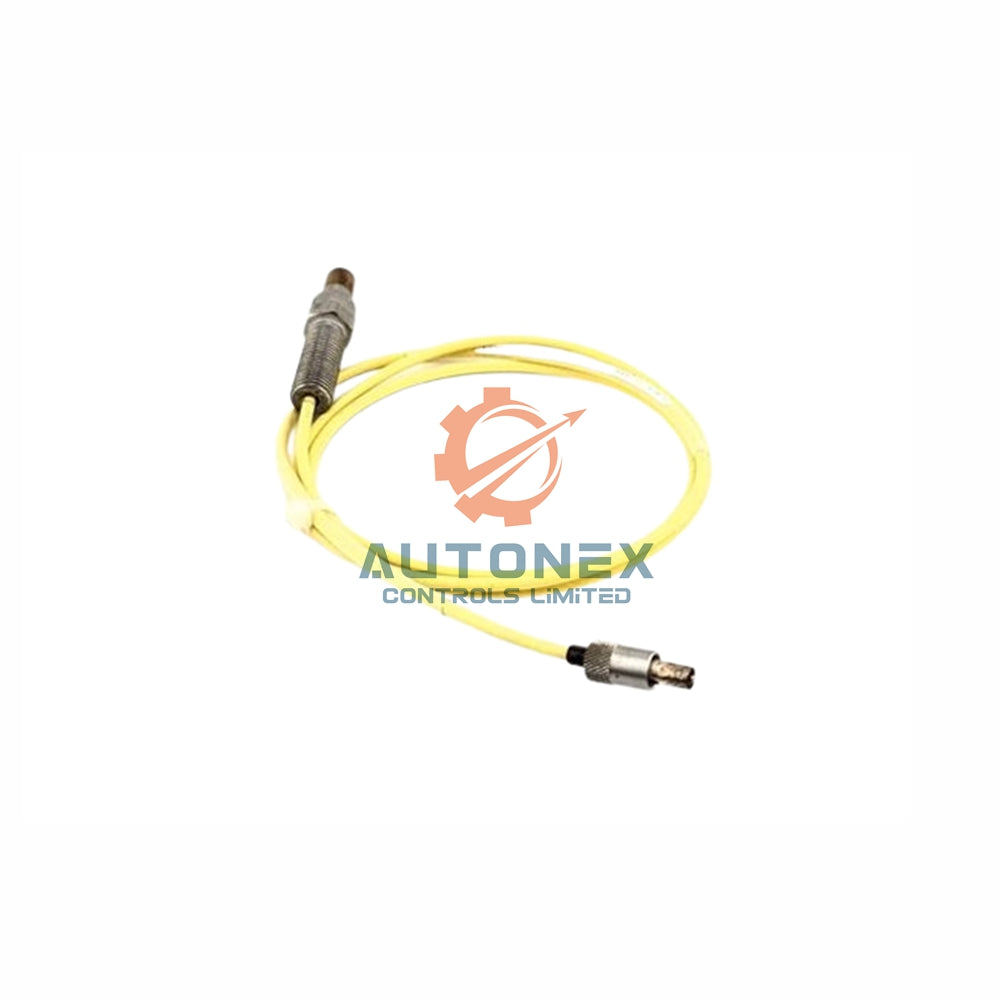

21504-000-032-05-02 8 mm Vibration Sensor Bently Nevada

21504-000-032-05-02 Bently Nevada 7200 Series Proximity Vibration Probe

Complete Model Configuration Breakdown

• This transducer belongs to the 21504 model series within the 7200 Series platform from Bently Nevada. The 21504-000-032-05-02 configuration features an unthreaded length of 0 mm meaning threads start immediately at the tip.
• It includes a case length of 3.2 inches for standard installation requirements. The attached cable measures exactly 0.5 meters (20 inches) from the probe case.
• It terminates with a miniature male coaxial connector for secure connection to extension cables. Every component of the 21504-000-032-05-02 assembly ensures reliable signal transmission.

Core Technical Specifications

• Measurement Range: It delivers a calibrated range of 2.0 mm (80 mils) for accurate displacement monitoring.
• Sensitivity and Accuracy: The scale factor provides 200 mV/mil (7.87 V/mm) with system accuracy within ±4%.
• Linearity Performance: Linearity holds within ±0.02 mm when you calibrate the probe as a complete system.
• Frequency Response: It maintains flat frequency response from 0 to 10 kHz for dynamic vibration measurements.
• Power Requirements: It operates on a -17.5 Vdc to -26 Vdc power supply with a maximum current draw of 12 mA.

Environmental and Physical Specifications

• Temperature Range: The probe withstands extreme temperatures from -34°C to +177°C for harsh applications.
• Proximitor Temperature: The proximitor electronics operate reliably from -51°C to +100°C.
• Humidity Resistance: It functions in environments with up to 95% humidity non-condensing conditions.
• Physical Weight: The complete assembly weighs approximately 0.59 kg for easy handling during installation.

Frequently Asked Questions

• What is the scale factor of the 21504-000-032-05-02 probe? The 21504-000-032-05-02 provides a scale factor of 200 mV/mil or 7.87 V/mm for accurate displacement readings.
• What temperature range can this probe withstand? The Bently Nevada 21504-000-032-05-02 probe operates from -34°C to +177°C making it suitable for turbine applications.
• Is this item new and available for immediate shipment? Yes, we stock the 21504-000-032-05-02 as a brand new original item with availability for quick dispatch.
• What is the thread size for this 8 mm probe? The 21504-000-032-05-02 uses a standard 3/8-24 UNF thread for mounting into machine casings and brackets.
• What type of connector does this probe use? This model terminates with a miniature male coaxial connector (option 02) for secure signal transmission.

For detailed technical data and installation guidelines, download the complete PDF manual here: 7200 Proximity Transducer Systems.
