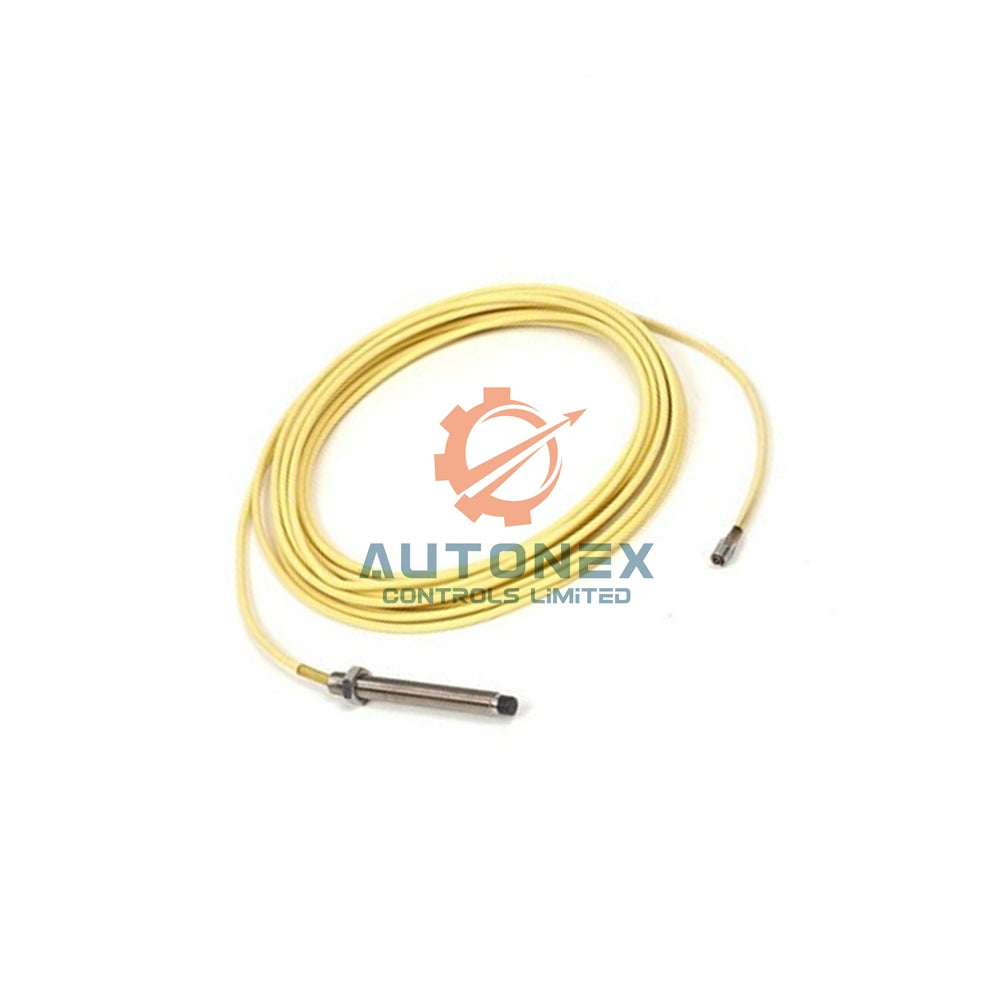

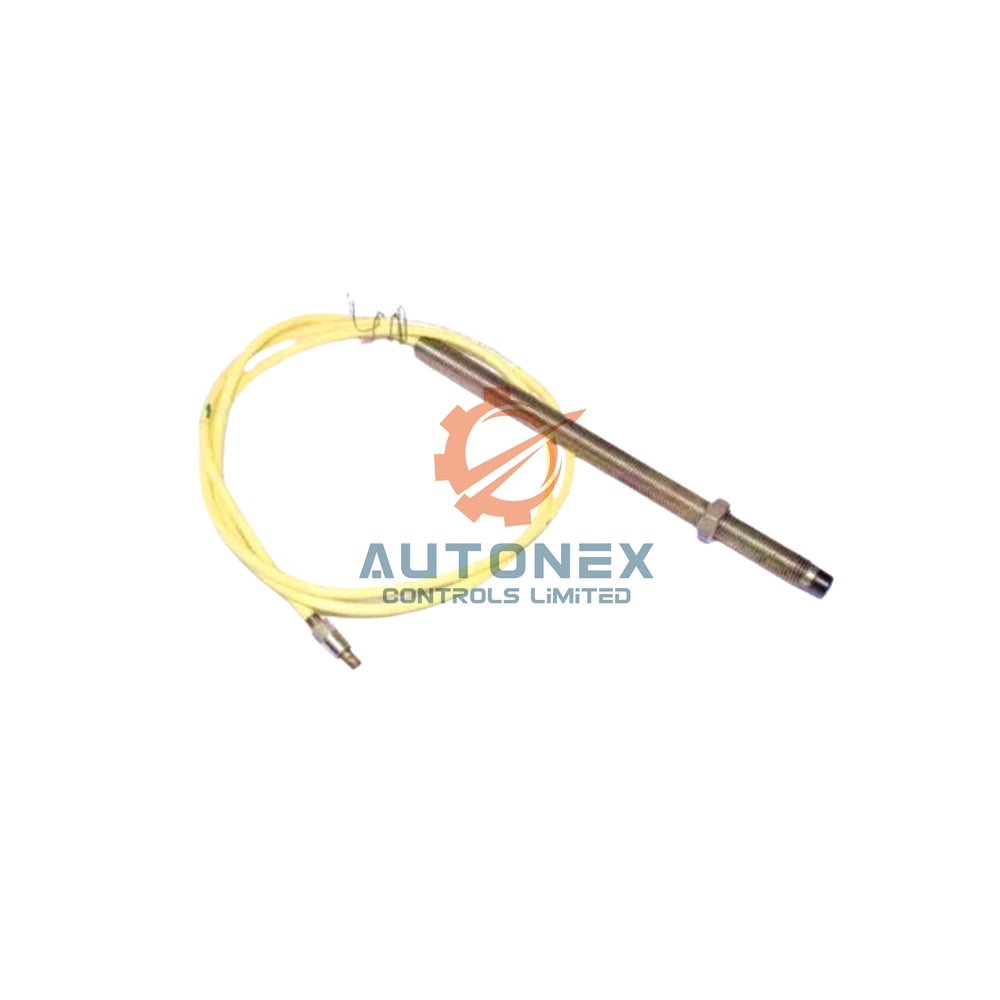

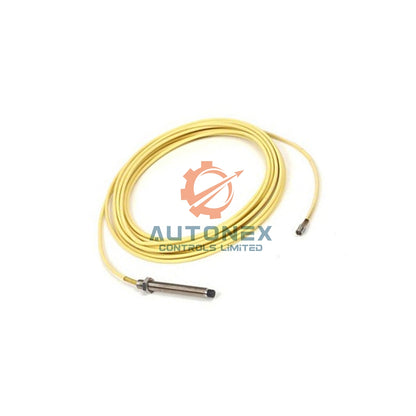

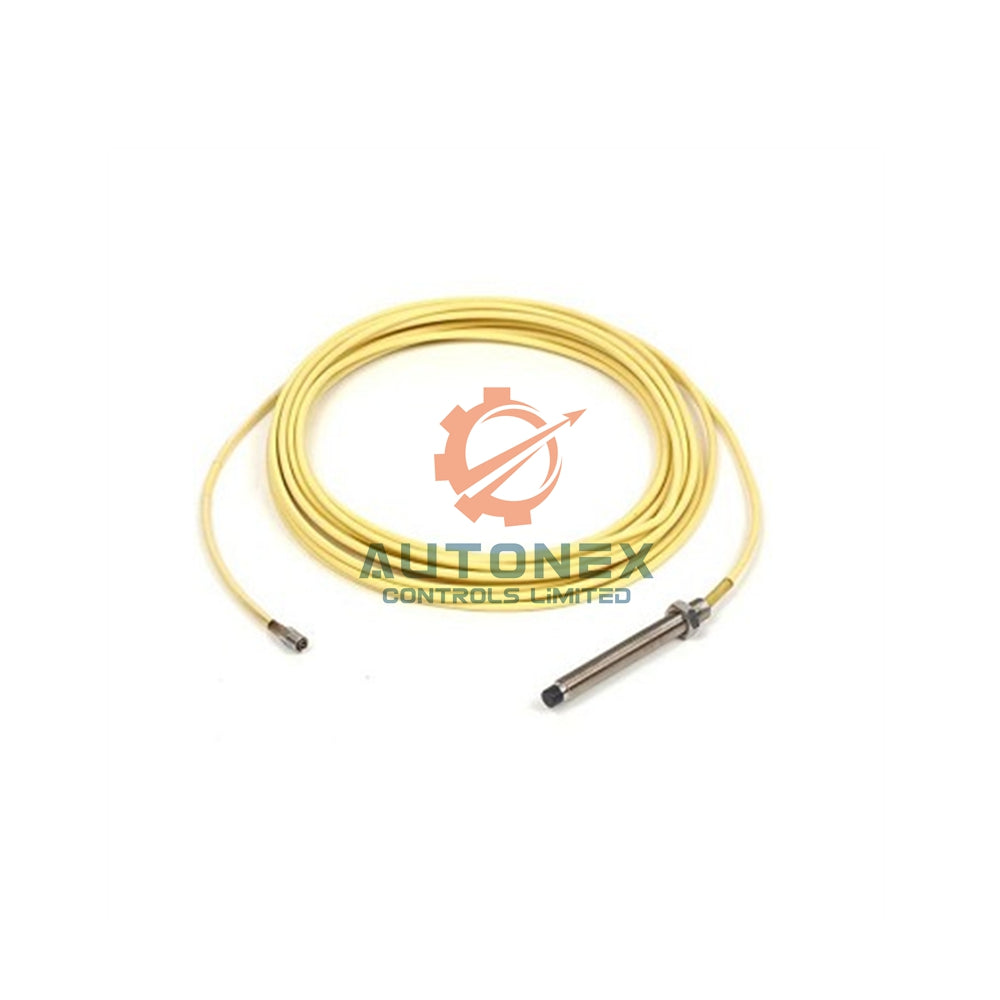

21504-000-016-10-02 Bently Nevada Proximity Probe

21504-000-016-10-02 Bently Nevada Miniature-Coaxial Proximity Probe

Key technical specifications

• Manufacturer: Bently Nevada
• Series: 7200 Series proximity transducer system
• Measurement range: 2.0 mm (80 mils) from the probe tip
• Scale factor (sensitivity): 200 mV/mil (7.87 V/mm), ±4% accuracy
• System linearity (calibrated): ±0.02 mm (0.8 mils)
• Frequency response: 0 to 10 kHz covers all common vibration modes
• Power requirement: –17.5 Vdc to –26 Vdc, maximum 12 mA current
• Connector type: Miniature male coaxial for space-saving installation

Environmental and chemical resistance

• Proximitor operating temperature: –51°C to +100°C
• Probe and cable: suitable for –34°C to +177°C environments
• Humidity tolerance: up to 95% non‑condensing conditions
• Chemical resistance: withstands air, water, oil, 10% sulfuric acid, MEK, and DMF

Model configuration breakdown

• Model: 21504 – 7200 Series proximity transducer
• Unthreaded length option: 000 = 0 mm (no unthreaded section)
• Case length option: 016 = 1.6 inches – compact for tight spaces
• Total cable length option: 10 = 1.0 metre (39 inches) tolerance +0.25 m / -0.10 m
• Connector option: 02 = miniature male coaxial for easy connection

Frequently asked questions

• What is the complete model number for this probe?
  It is 21504-000-016-10-02, a 7200 Series probe with 1.6-inch case, 1.0 m cable, and miniature coaxial connector.
• Why choose the 016 case length option?
  The 1.6-inch case fits machinery where standard 4.8-inch or 9.6-inch cases cannot.
• Can I use the 21504-000-016-10-02 with existing Bently Nevada monitors?
  Yes, it integrates directly with 7200 Series proximitors and miniature coaxial extension cables.
• What chemicals does the probe cable resist?
  The cable withstands air, water, lube oil, 10% sulfuric acid, MEK, and DMF.
• How fast can you ship this item?
  We keep it in stock and ship within five days via DHL, FedEx, or UPS.
• Is the 21504-000-016-10-02 brand new and original?
  Absolutely – we supply only authentic, factory-new Bently Nevada transducers.
