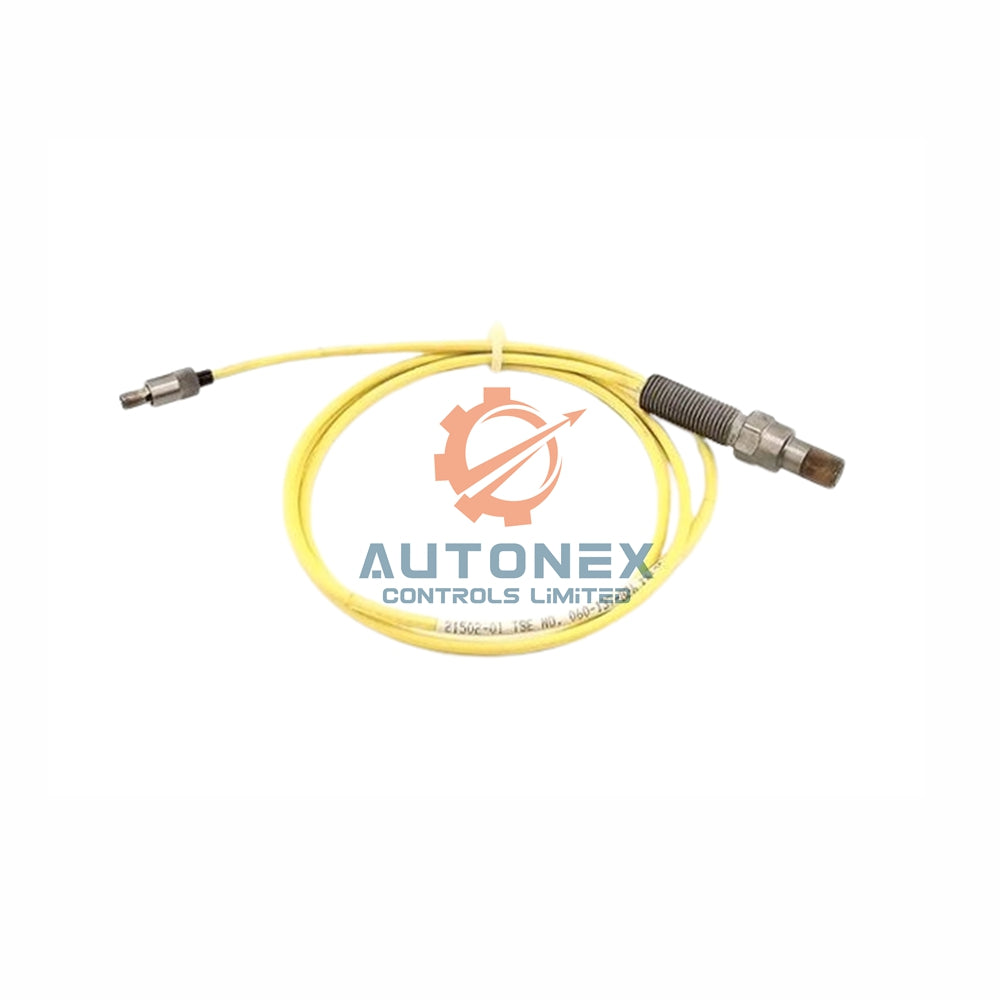

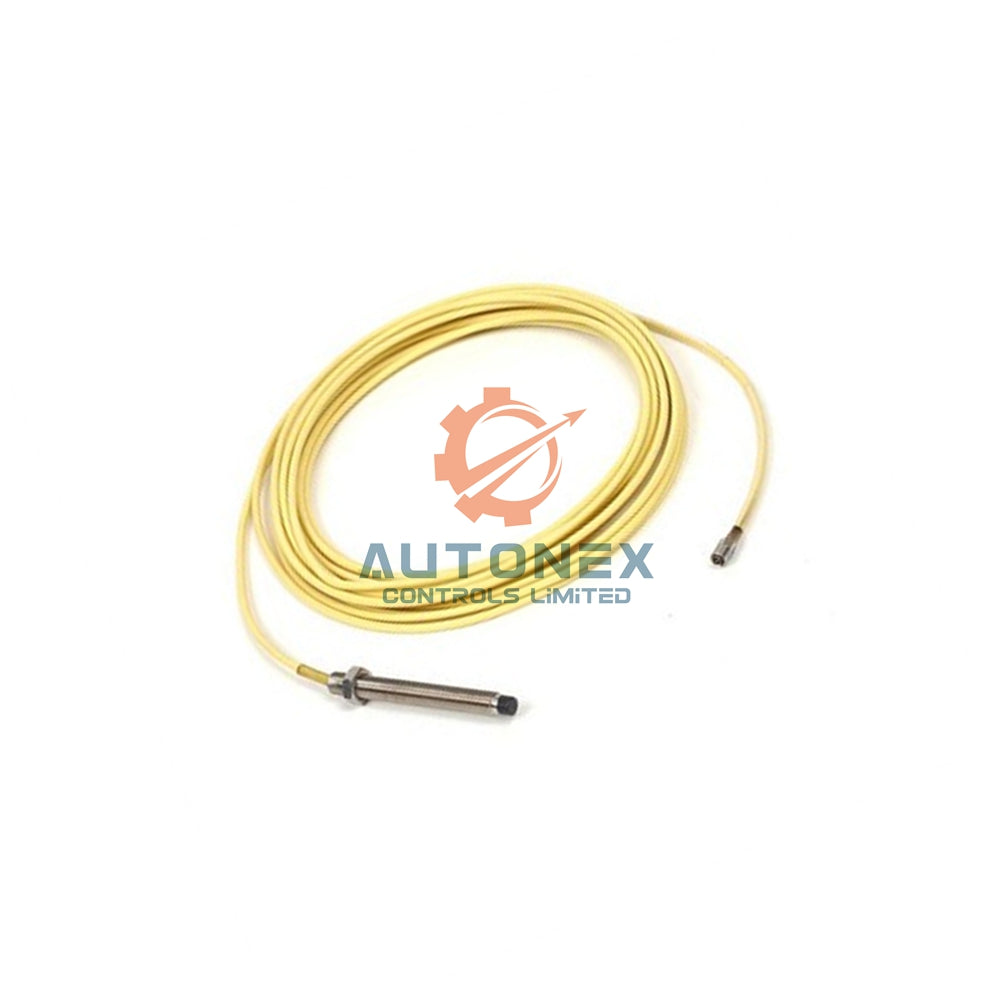

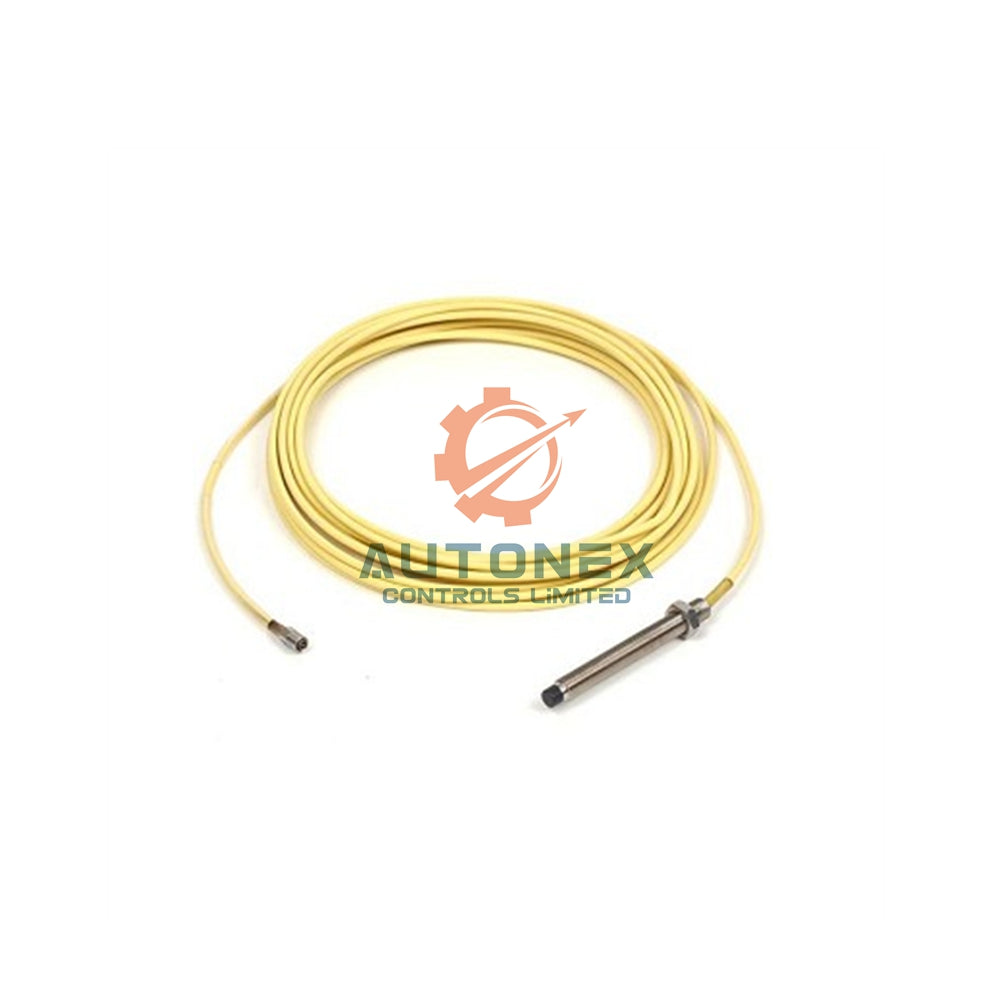

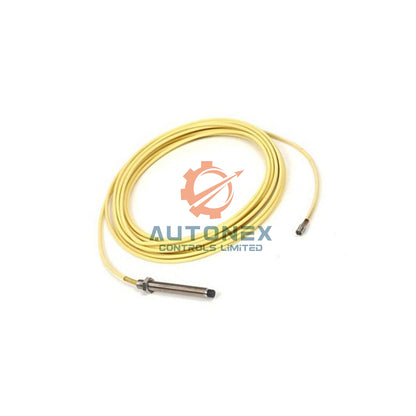

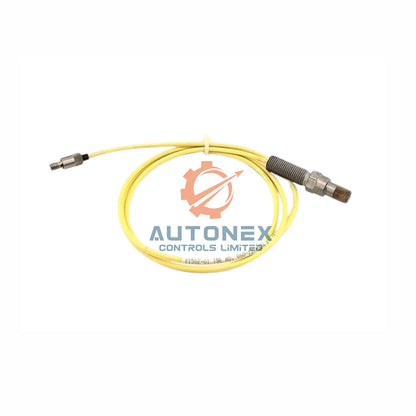

21504-00-72-10-02 Bently Nevada 7200 Series Proximity Probe Sensor

Bently Nevada 21504-00-72-10-02 7200 Series Proximity Transducer System

Technical Specifications and Performance Data

• Brand: Bently Nevada, part of the 7200 Series.
• Model Number: 21504-00-72-10-02.
• Measurement Range: Linear range of 2.0 mm (80 mils) from the target surface.
• Starting Gap: Calibrated to start at 0.25 mm from the probe tip.
• Sensitivity: Provides a standard output of 200 mV/mil with an error band of ±4%.
• Frequency Response: Capable of monitoring from static displacement (0 Hz) up to 10 kHz.
• Linearity: Excellent linearity deviation of ±0.02 mm across the full range.
• Power Requirements: Operates with a negative supply voltage between -17.5 Vdc and -26 Vdc, drawing a maximum current of 12 mA.
• Temperature Tolerance: Proximitor operates from -51°C to +100°C; the probe itself withstands -34°C to +177°C.
• Environmental Resistance: Rated for humidity up to 95% and resists corrosion from oil, 10% acid, water, MEK, and DMF.

Suffix Configuration and Mechanical Details

• 00 = Tip Style: 0.0 mm unthreaded length (flush mount) with an 8 mm diameter.
• 72 = Case Length: 7.2-inch overall case length for standard mounting.
• 10 = Cable Length: 1.0-meter integrated coaxial cable.
• 02 = Connector: Miniature male coaxial connector (mini coax) for secure termination.
• Mounting Thread: Features a standard 3/8-24 thread for easy and secure installation into machine casings.

Frequently Asked Questions (FAQ)

• What is the difference between the suffix codes on the 21504-00-72-10-02?
  The suffix defines the physical configuration. "00" means a 0mm tip (flush), "72" is a 7.2-inch case, "10" is a 1.0-meter cable, and "02" specifies the mini coax connector [citation:1][citation:10].
• Is this probe compatible with other metals besides AISI 4140 steel?
  Bently Nevada calibrates these for AISI 4140 steel. Different metals (like aluminum or brass) have different electrical properties and may require recalibration for accurate readings [citation:7].
• What is the maximum temperature the probe tip can withstand?
  The probe tip and cable assembly can tolerate extreme temperatures ranging from -34°C to +177°C, making it suitable for harsh turbine and compressor environments.
• Do you have the 21504-00-72-10-02 in stock, and how do you ship?
  Yes, we have this model in stock as a new, factory-sealed unit. We process orders within 5 days and ship globally via FedEx, UPS, or DHL.
• What is your return policy on this item?
  We offer a 30-day return window for items in their original, unopened condition.
• Can I download the manual for the 7200 Series system?
  Absolutely. You can download the comprehensive PDF manual for the 7200 Proximity Transducer Systems using the link provided below.

Download the complete specifications: 7200 Proximity Transducer Systems PDF
