21504-00-24-05-02 Bently Nevada 7200 Series Probe 0.5m Cable

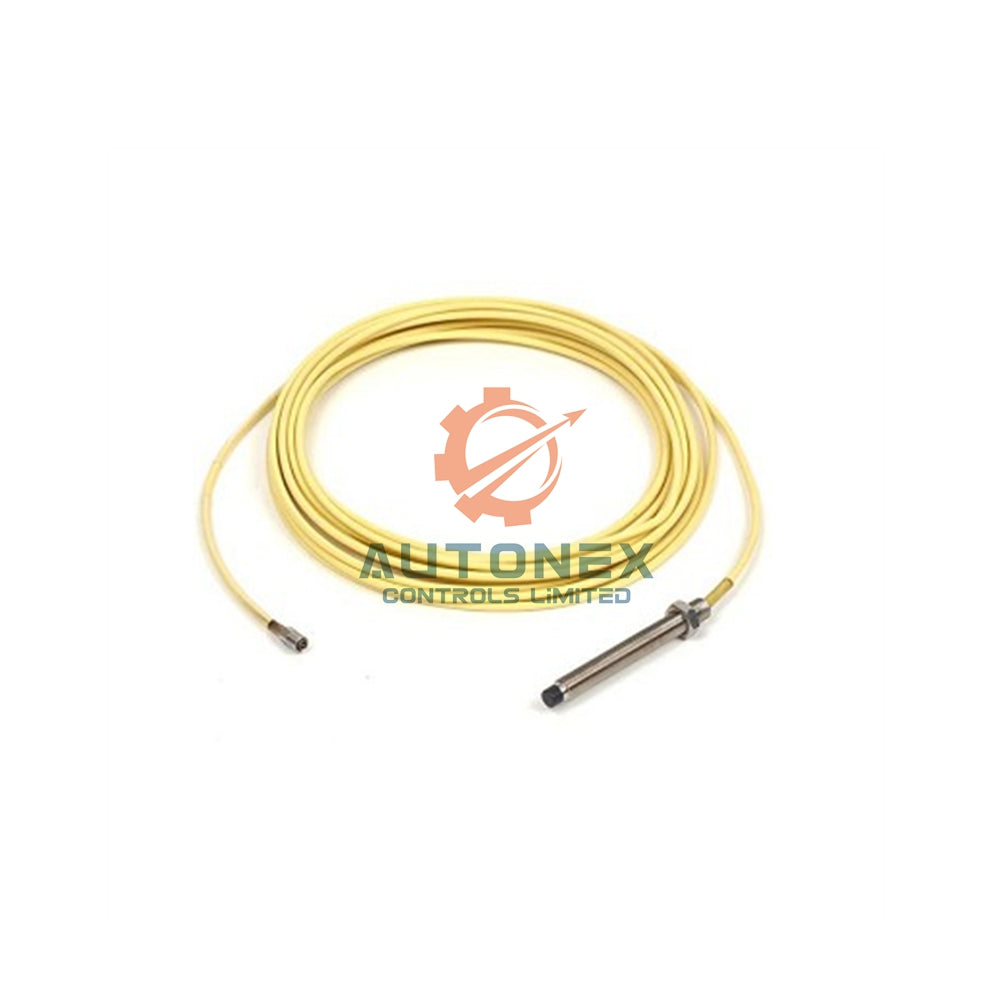

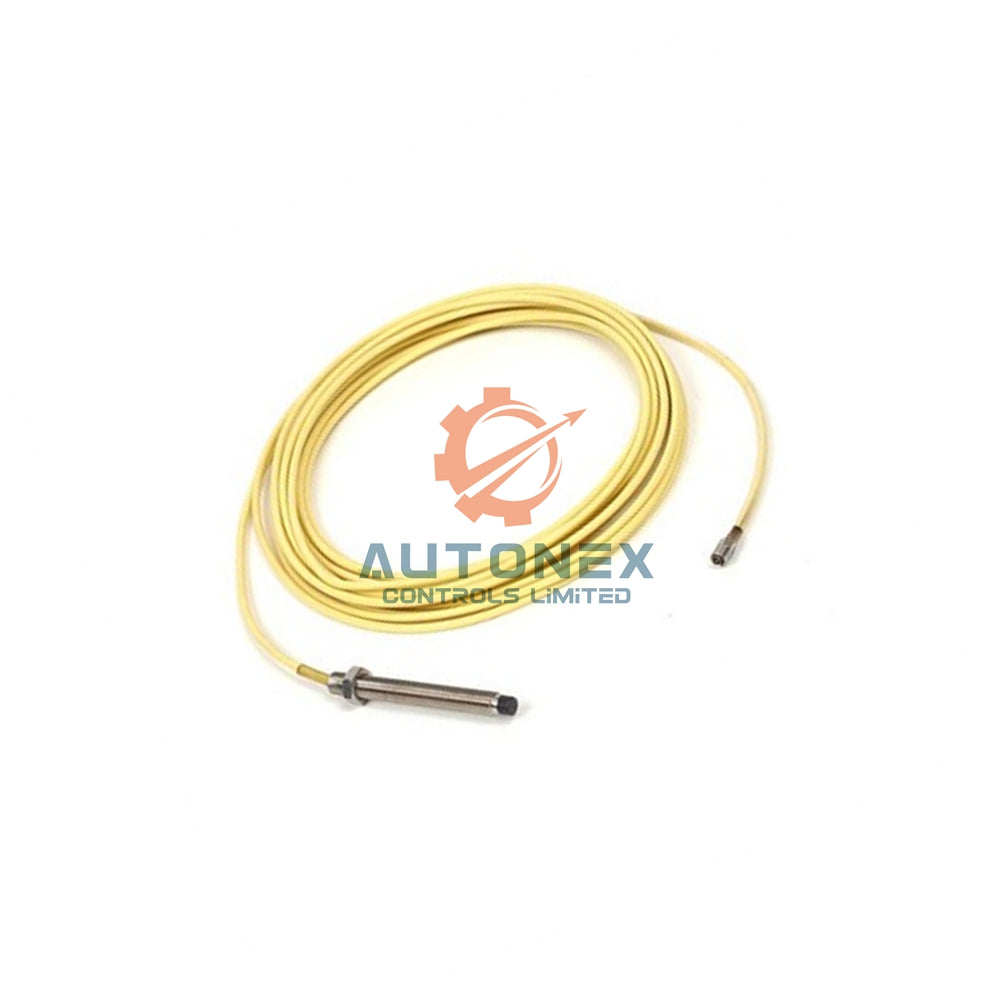

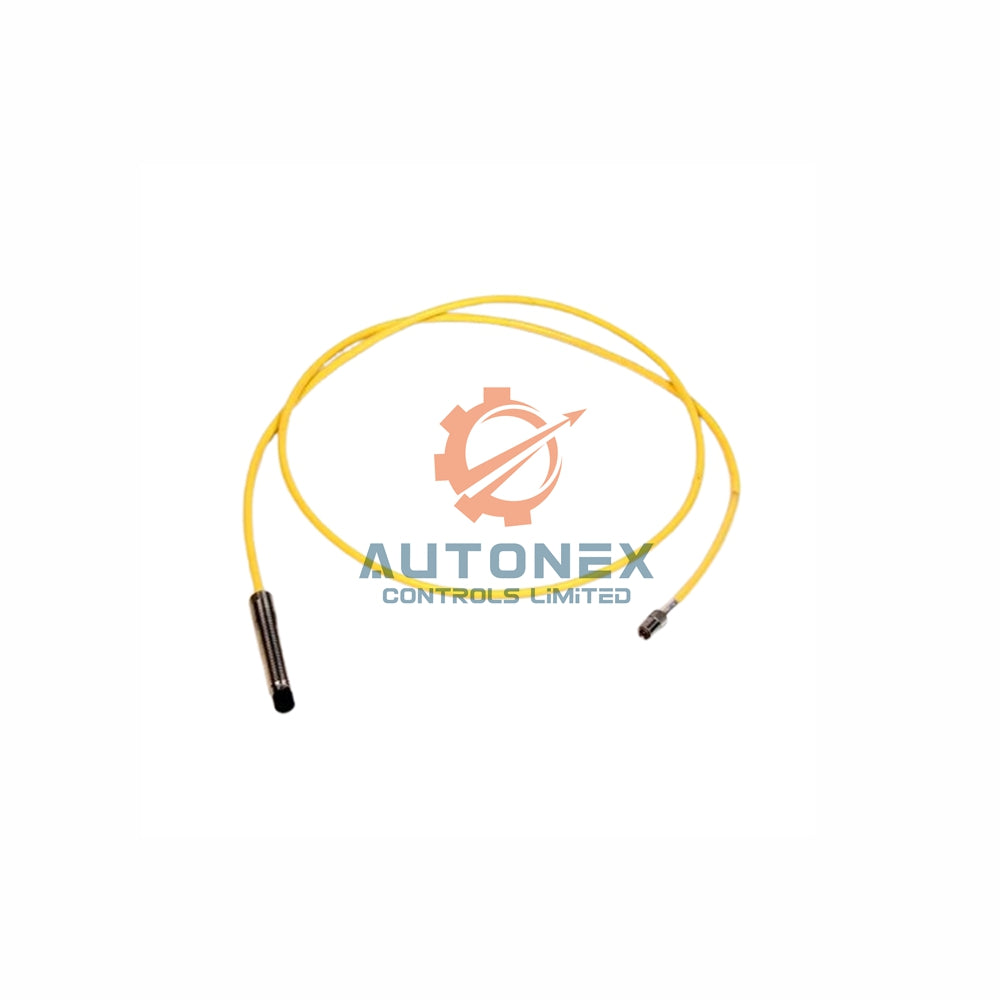

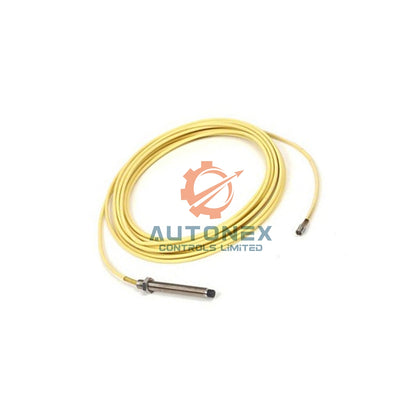

Bently Nevada 21504-00-24-05-02 8mm Proximity Probe Overview

Precision Engineering and Technical Specifications

• Brand & Model: This Bently Nevada 21504-00-24-05-02 includes a 0.5 m cable with a miniature coaxial male connector. The 8 mm tip diameter provides reliable eddy current sensing.
• Suffix Configuration: The 00 specifies 0 mm unthreaded length. The 24 provides a 60.96 mm case, 05 indicates 0.5 m cable, and 02 is the miniature coaxial male connector.
• Measurement Range: This probe offers a calibrated range of 2.0 mm (80 mils). Sensing starts at 0.25 mm from the probe face for accurate proximity detection.
• Scale Factor & Linearity: It delivers a scale factor of 200 mV/mil (7.87 V/mm) ±4% system-calibrated. Linearity is ±0.02 mm system-calibrated and ±0.06 mm with interchangeability errors.
• Frequency Response: The sensor operates from 0 to 10 kHz (up to 600,000 cpm). It maintains only -5% attenuation at 10 kHz for high-speed monitoring.
• Mechanical Construction: This standard case type includes no lead armor for flexible routing. The 3/8-24 thread ensures compatibility with standard mounting hardware.

Frequently Asked Questions (FAQ)

• Q: What is the thread size on the Bently Nevada 21504-00-24-05-02?
  A: This probe features a 3/8-24 thread size. The 8 mm tip diameter provides reliable eddy current sensing for vibration monitoring.
• Q: What is the sensing range of this 7200 series probe?
  A: The Bently Nevada 21504-00-24-05-02 offers a calibrated range of 2.0 mm (80 mils). Sensing begins at 0.25 mm from the probe face.
• Q: What cable length does this configuration include?
  A: This specific model includes a 0.5 m (20 in) cable. The 05 suffix in the part number specifies this standard length.
• Q: What is the frequency response of this proximity probe?
  A: The sensor operates from 0 to 10 kHz (600,000 cpm). It provides reliable performance with only -5% attenuation at 10 kHz.
• Q: Is the technical datasheet available for download?
  A: Yes, we encourage you to download the full 7200 Proximity Transducer Systems datasheet. Find the link in the description above.

Download the official PDF datasheet here: 7200 Proximity Transducer Systems (PDF).
