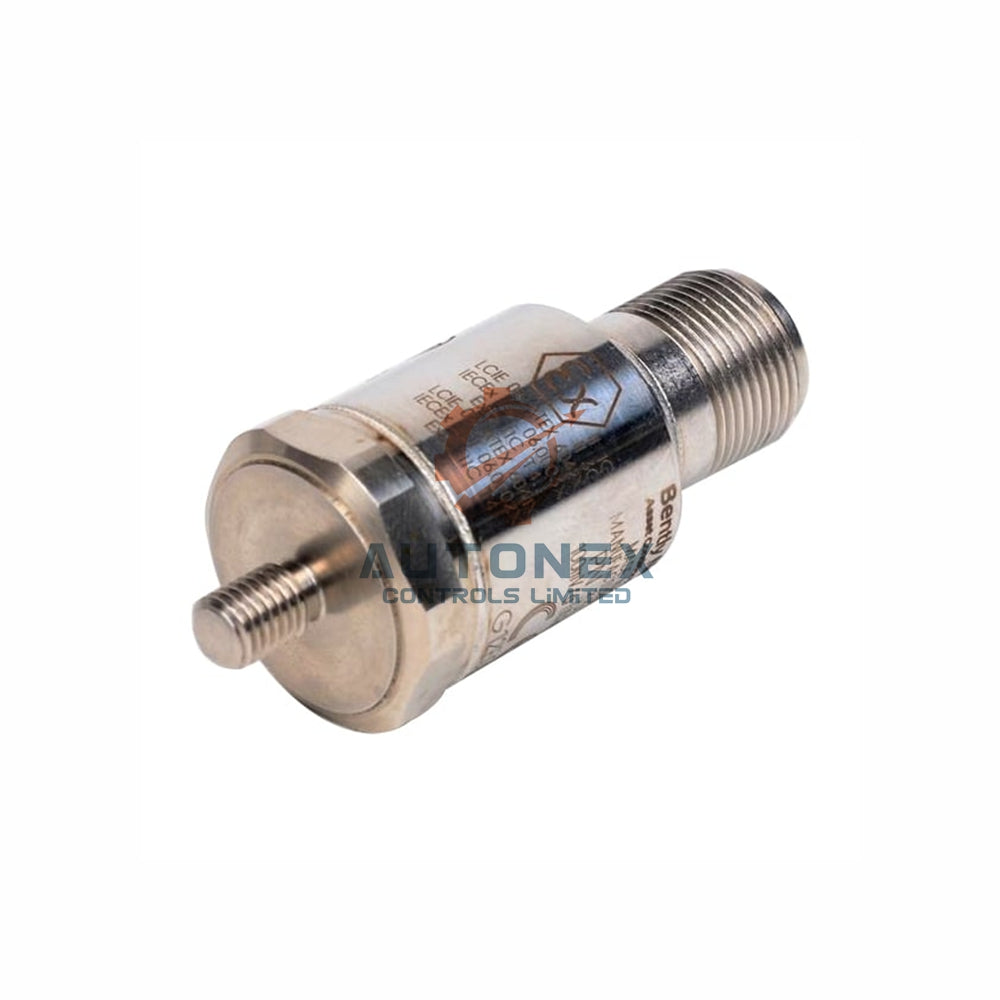

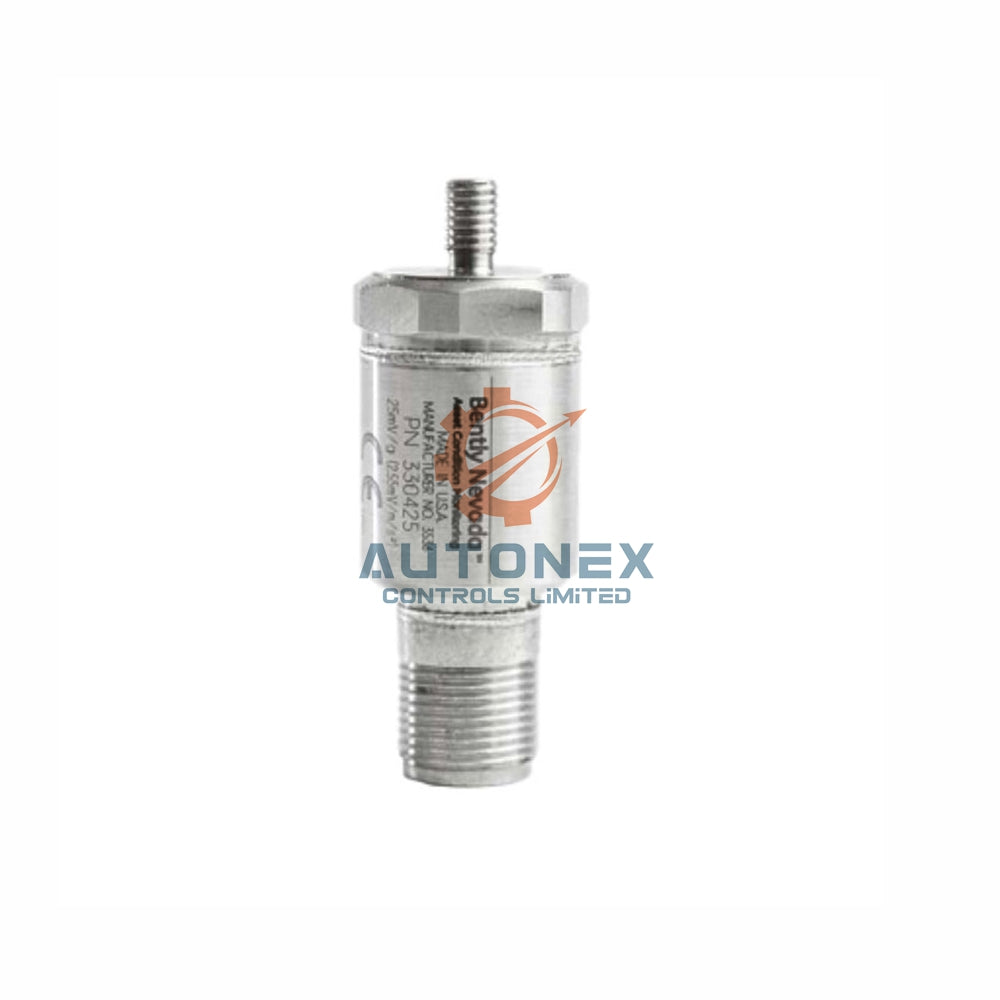

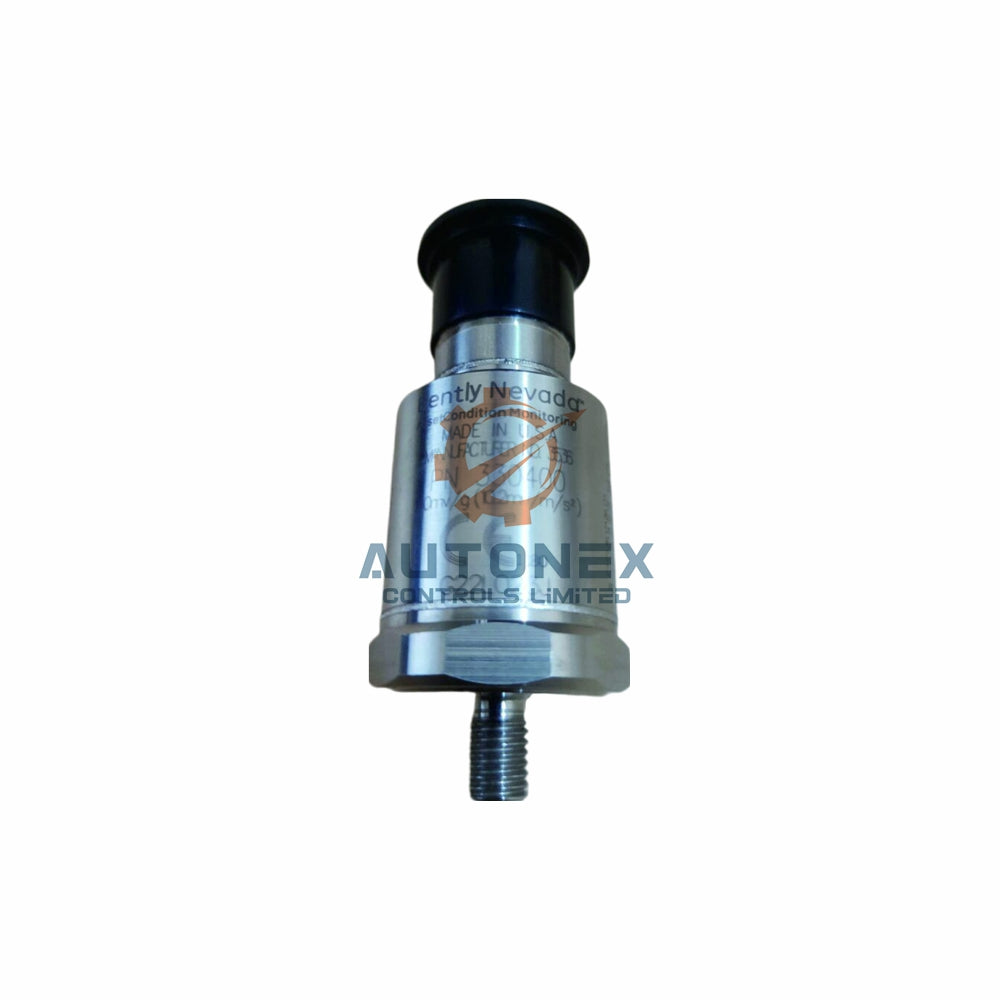

200355-10-00-00 Bently Nevada 200350 Series Accelerometer

Bently Nevada 200355-10-00-00 Accelerometer – Industrial Vibration Sensor

Key Technical Specifications

• Measurement Range: ±50 g peak – captures a full spectrum of vibration amplitudes.
• Frequency Response (±3 dB): 30–600,000 cpm (0.5–10,000 Hz) for comprehensive monitoring.
• Sensitivity: 100 mV/g ±20% (10.2 mV/m/s² ±20%) – delivers accurate signal output.
• Amplitude Linearity: ±1% – ensures consistent measurement fidelity.
• Mounted Resonant Frequency: 1500 kcpm (25 kHz) – extends usable bandwidth.
• Broadband Electrical Noise (1–10 kHz): 350 μg (3,434 μm/s²) – enables clear low-level signal detection.
• Output Bias Voltage: 8 to 12 VDC – provides a stable baseline output.
• Excitation Voltage: 18 to 28 VDC – works with standard industrial power supplies.
• Constant Current Excitation: 2 to 20 mA – accommodates loop-powered systems.
• Settling Time (within 1% of bias): 2.0 sec – enables rapid readiness after power-up.
• Output Impedance: <150 ohms – drives long cables without signal degradation.
• Discharge Time Constant: ≥0.3 sec – maintains low-frequency response stability.
• Electrical Isolation (Case): >10⁸ ohms – prevents ground loop interference.
• Transverse Sensitivity: ≤7% – minimizes off-axis measurement errors.

Environmental & Physical Attributes

• Operating Temperature: -65°F to +250°F (-54°C to +121°C) – withstands extreme thermal conditions.
• Shock Survivability: 5,000 g peak – resists sudden mechanical impacts.
• Relative Humidity: 100% condensing, non-submerged – performs reliably in humid environments.
• Enclosure Rating: IP68 – dust-tight and waterproof for outdoor or wash-down areas.
• Housing Material: Stainless Steel – offers superior corrosion resistance.
• Sealing: Welded Hermetic – ensures long-term internal component protection.
• Mounting Thread: 1/4-28 Female – compatible with standard studs or adapters.
• Mounting Torque (Max): 2 to 5 ft-lb (2.7 to 6.8 N-m) – prevents over-tightening damage.
• Sensing Element: Ceramic, Shear Geometry – delivers excellent stability and wide bandwidth.
• Electrical Connector: 2-Pin Mil-C-5015 (Top position) – enables secure, military-grade connections.
• Dimensions: Height 1.65” (4.24 cm), Hex Size 11/16” (1.8 cm).
• Weight: 0.051 Kg – lightweight design reduces stress on mounting points.
• Agency Approvals Option: 00 = No Approvals – suitable for non-hazardous areas.
• Mounting Stud: 10 = 1/4-28 Adhesive Stud Mount – included for easy installation.

Installation Guidelines

• Use the included 1/4-28 adhesive stud for secure mounting on clean surfaces.
• Apply torque between 2 and 5 ft-lb (2.7–6.8 N-m) to fasten the sensor properly.
• Connect the 2-pin Mil-C-5015 connector to your data acquisition system.
• Ensure the excitation supply provides 18–28 VDC at 2–20 mA constant current.
• Allow 2.0 seconds settling time after power-on before recording data.
• Mount on a flat, debris-free surface for optimal frequency response and linearity.

Package Contents

• One 200355-10-00-00 accelerometer unit (Bently Nevada).
• One 1/4-28 adhesive stud mount (option 10).
• No agency approval documents included (option 00).
• Product is shipped in protective anti-static packaging.

Shipping & Logistics

• We ship via FedEx, UPS, or DHL – choose your preferred carrier at checkout.
• All orders dispatch within 5 business days from our warehouse.
• Tracking numbers are provided upon shipment.

Frequently Asked Questions (FAQ)

• Is this sensor brand new and original? – Yes, we supply only 100% brand new genuine Bently Nevada units.
• Do you have the 200355-10-00-00 in stock? – Yes, we maintain ready stock for immediate orders.
• What is the typical shipping time? – We dispatch within 5 days; delivery time depends on your location and carrier.
• Can I return this product? – Yes, we accept returns within 30 days of receipt.
• Does this model include a mounting stud? – Yes, option 10 provides a 1/4-28 adhesive stud for convenience.
• What is the maximum cable length I can use? – The low output impedance (<150 ohms) allows long cable runs without signal loss.
• Is the sensor suitable for outdoor use? – Yes, the IP68 rating and stainless steel housing make it ideal for harsh outdoor environments.
