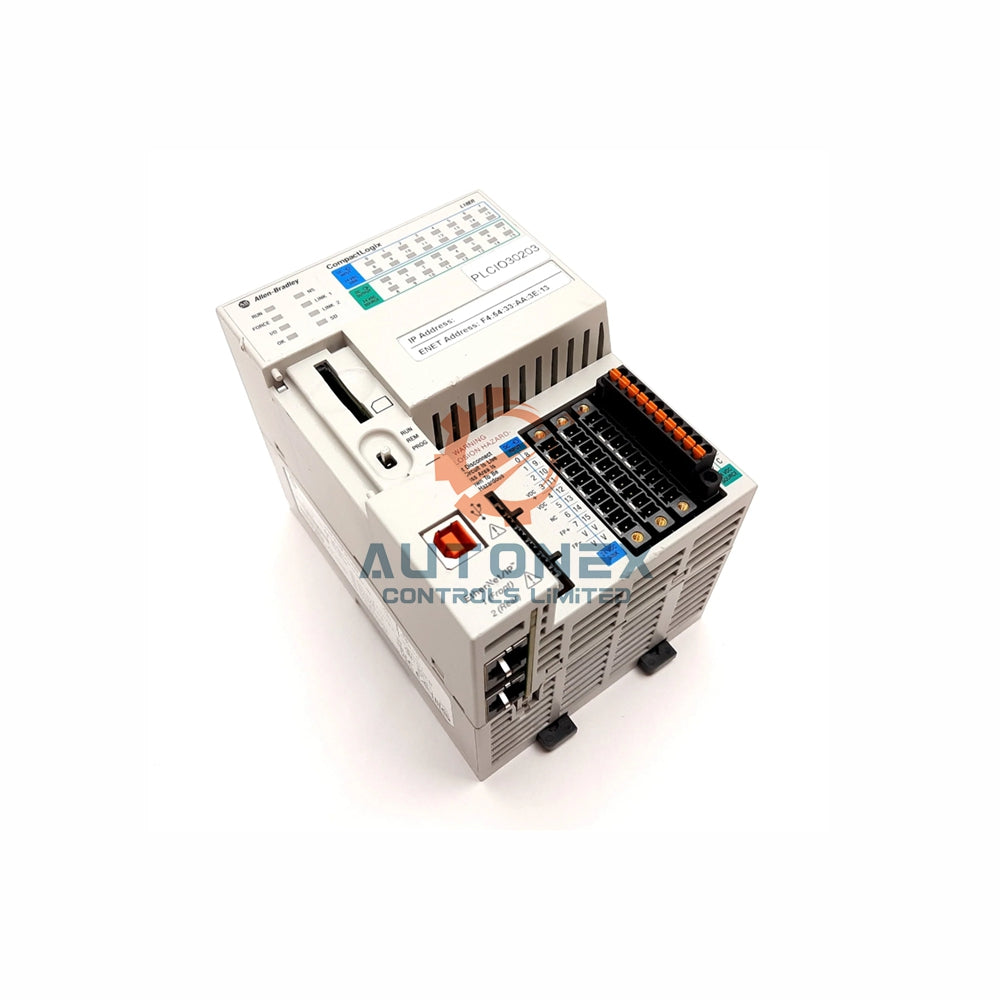

1769-L18ER-BB1B CompactLogix Controller Allen-Bradley

Technical Specifications of 1769-L18ER-BB1B

• Brand: Allen-Bradley
• Model: 1769-L18ER-BB1B
• Product Family: CompactLogix 5370 L1
• Product Type: CompactLogix Controller
• Communication Ports: (1) USB, (2) Ethernet/IP
• Ethernet Topologies: Linear, Star, Device Level Ring (DLR)
• Ethernet Nodes: 8 Nodes
• Max I/O Modules: 8 modules (1734 POINT I/O)
• Number of Tasks: 32 Tasks
• Programs per Task: 100 Programs
• Embedded Inputs: (16) 24 VDC
• Embedded Outputs: (16) 24 VDC
• Memory: 512KB user memory
• Non-Volatile Memory: 1GB SD card (1784-SD1 included)
• Programming Languages: Relay Ladder, Structured Text, Function Block, SFC
• Mounting: DIN Rail
• Input Power: 24 Volts DC
• Current Draw @ 5V DC: 1A
• Operating Temperature: -20°C to 60°C (-4°F to 140°F)
• Relative Humidity: 5% to 95% (non-condensing)
• Shipping Weight: 3 pounds
• Shipping Dimensions: 11 x 8 x 6 inches
• Wire Size: 22 to 14 AWG (solid or stranded copper)
• Replacement Terminal Block: 1769-RTBN18

Communication and Network Capabilities

• The 1769-L18ER-BB1B includes two Ethernet ports that act as an embedded switch with a single IP address.
• These ports support Linear, Star, and Device Level Ring (DLR) topologies for flexible networking.
• DLR provides fault-tolerant communication by automatically switching to a secondary path if a line fails.
• Linear topology offers a simple non-fault tolerant single line of devices.
• Star topology connects devices to a central hub or switch for easy expansion.
• The controller supports up to 32 sockets and 256 controller connections for complex communication tasks.
• A USB port allows temporary connections for programming and configuration.

Embedded I/O and Memory Features

• The 1769-L18ER-BB1B provides 16 sinking 24VDC digital inputs for connecting switches and sensors.
• It also includes 16 sourcing 24VDC digital outputs for driving relays and solenoids.
• You can expand I/O capability with up to eight 1734 POINT I/O modules using the 1734 backplane.
• The controller features 512KB of battery-free user memory thanks to an internal energy storage solution.
• A pre-installed 1784-SD1 Secure Digital card provides 1GB of non-volatile memory for program storage.
• You may upgrade the SD card to 2GB using the 1784-SD2 for additional storage capacity.
• The SD card includes a notch to lock or unlock write access to protect your data.

Frequently Asked Questions (FAQ)

• How much user memory does this controller have?
  The 1769-L18ER-BB1B provides 512KB of embedded user memory with battery-free retention.
• Does the controller include an SD card?
  Yes, it ships with a pre-installed 1784-SD1 1GB Secure Digital card for non-volatile storage.
• How many POINT I/O modules can I connect?
  You can install up to eight 1734 POINT I/O modules to expand I/O capability.
• What Ethernet topologies does the 1769-L18ER-BB1B support?
  It supports Linear, Star, and Device Level Ring (DLR) topologies for flexible networking.
• Does this controller require a battery?
  No, the controller uses internal energy storage instead of a battery for memory retention.
• What is the operating temperature range?
  The controller operates between -20°C and 60°C (-4°F to 140°F) for industrial applications.
• Do you have the 1769-L18ER-BB1B in stock?
  Yes, we have plenty of inventory available for immediate orders.
• How long does delivery take?
  We dispatch within 5 business days via FedEx, UPS, or DHL.
• Can I return the controller if it doesn't meet my needs?
  Yes, we offer 30-day returns for a full refund.
