1769-IF16V | Allen-Bradley Analog Input Module

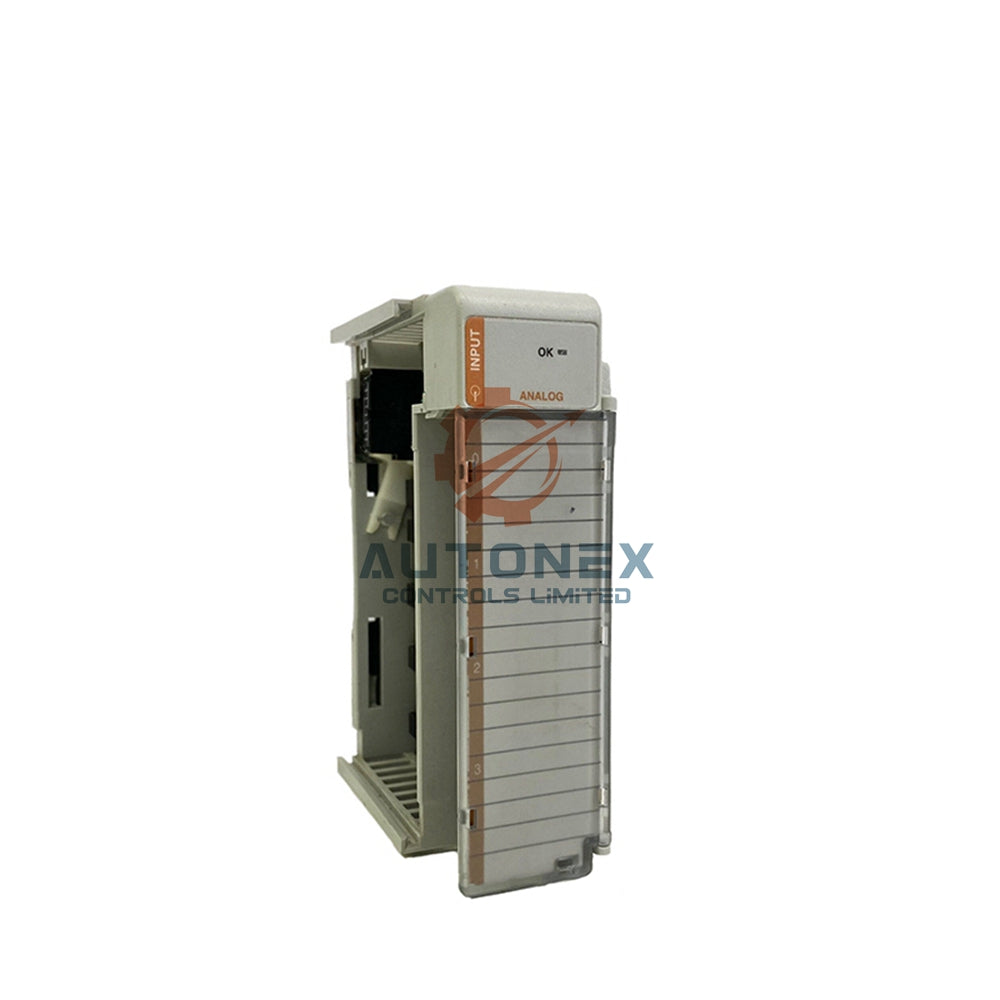

Allen-Bradley 1769-IF16V Analog Input Module - Compact I/O Series

Key Technical Specifications

• Brand & Model: Allen-Bradley, 1769-IF16V.
• Number of Inputs: 16 single-ended analog voltage channels.
• Input Signal Ranges (Normal): ±10V DC, 0-10V DC, 0-5V DC, and 1-5V DC.
• Full Voltage Ranges (Absolute): ±10.5V DC, -0.5 to 10.5V DC, -0.5 to 5.25V DC, 0.5 to 5.25V DC.
• Resolution: 16 bits for unipolar signals, 15 bits plus sign for bipolar signals.
• Analog-to-Digital Converter (ADC): Sigma-Delta type for accurate conversion.
• Accuracy: ±0.35% full scale at 25°C (77°F).
• Accuracy Drift: ±0.003% per °C across the temperature range.
• Nonlinearity: ±0.03% of full scale.
• Repeatability: ±0.06% for a 16 Hz filter setting.
• Module Error: 1.0% for 16 Hz, 50 Hz, and 60 Hz filters (0-60°C).
• Input Impedance: 1 MΩ (typical).
• Common Mode Rejection Ratio (CMRR): 60 dB at 50 to 60 Hz.
• Isolation Voltage: 30V DC continuous, reinforced insulation. Tested at 710V DC for 1 minute.
• Operating Temperature: 0 to 60°C (32 to 140°F).
• Relative Humidity: 5% to 95% non-condensing.
• Altitude Rating: 2000 meters (6561 feet) without derating.
• Power Consumption: 33.6 Watts.
• Power Dissipation: 7.5 Watts (module heat).
• Current Draw: 190 mA at 5.1V DC, 70 mA at 24V DC.
• Backplane Current: 1.4 Amps at 24V DC.
• Power Supply Distance Rating: 8 modules from the power supply.
• Compatible Power Supplies: 1769-PA2, 1769-PB2, 1769-PA4, and 1769-PB4.
• Recommended Cable: Belden™ 8761 (shielded cable for noise immunity).
• Enclosure Type: Open-style enclosure with fault status LED.
• Dimensions (H x D x W): 118 x 87 x 35 mm (4.65 x 3.43 x 1.38 inches). Height with tabs: 138 mm (5.43 inches).

Frequently Asked Questions (FAQ)

• Is the 1769-IF16V brand new and original?
  Yes, we only supply brand new, original Allen-Bradley modules. No used or refurbished items.
• Do you have the 1769-IF16V in stock?
  Yes, we have ample stock available. You can order immediately for fast shipment.
• What is the typical shipping time?
  We ship within 5 days after order. Delivery takes 3-7 business days with DHL/FedEx/UPS.
• Can I return this module?
  Yes, we support 30-day returns. The product must be in original condition and packaging.
• Does this module include a terminal block?
  No, you need to order the removable terminal block separately (1756-TBCH or 1756-TBSH).
• What controllers work with the 1769-IF16V?
  It works with CompactLogix and MicroLogix 1500 controllers.
• What is the resolution of this analog input module?
  It provides 16-bit resolution for unipolar ranges and 15-bit plus sign for bipolar ranges.
• What type of cable should I use?
  Use Belden 8761 shielded cable for best signal integrity and noise rejection.
