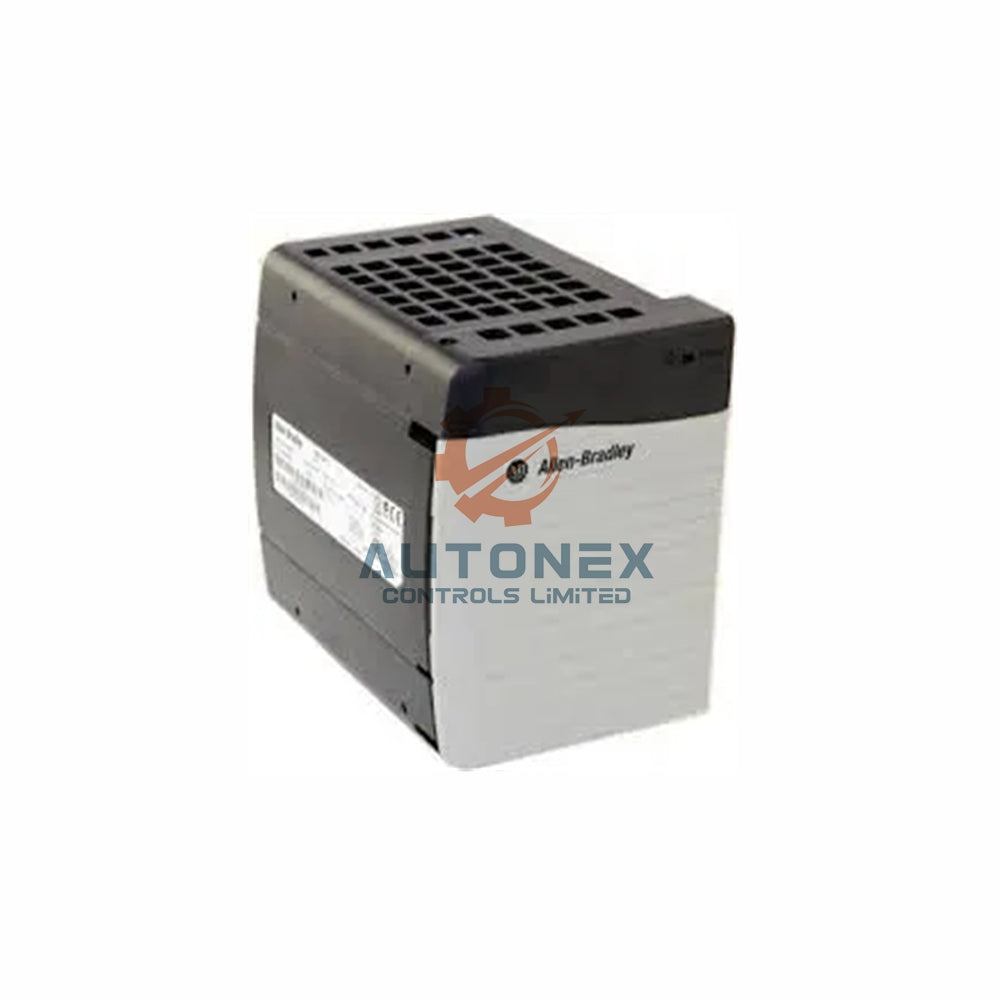

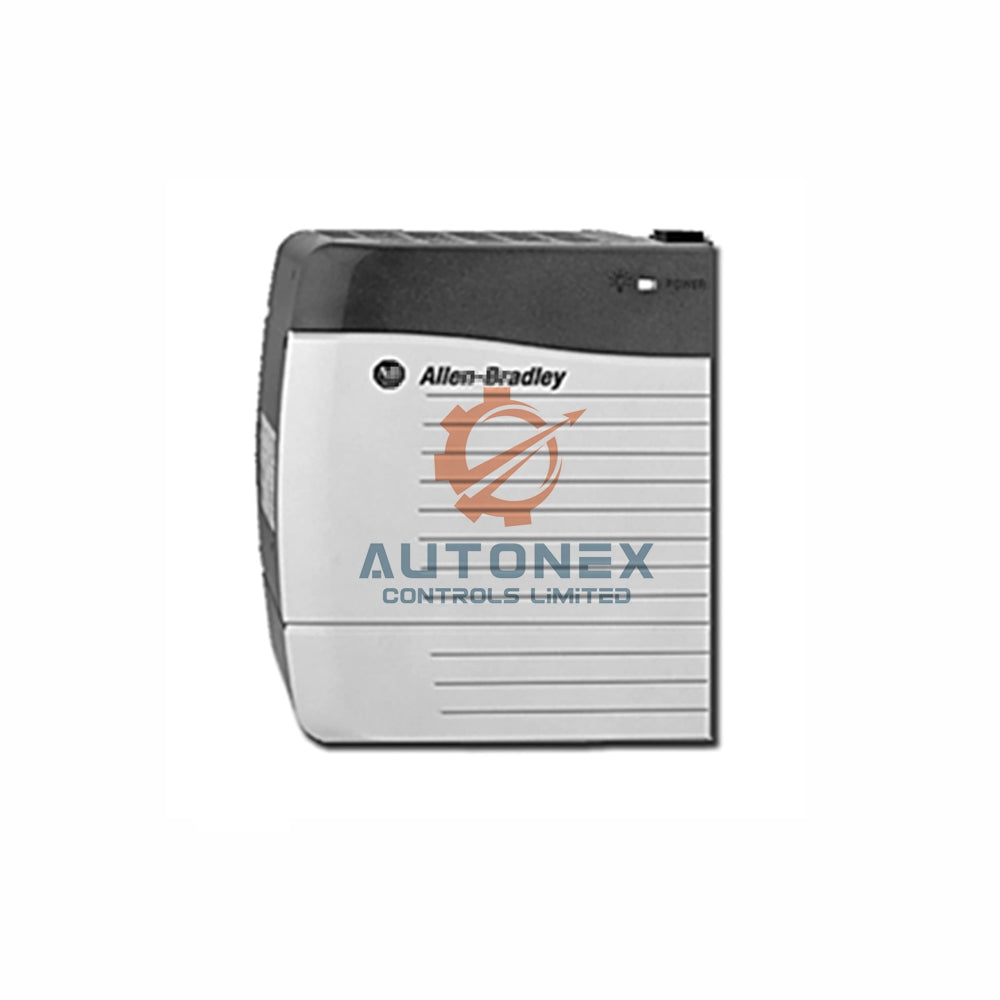

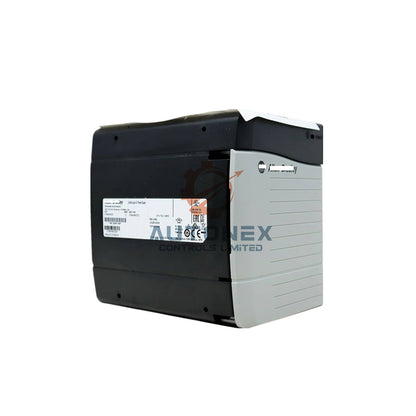

1756-PB30XT Allen-Bradley ControlLogix-XT Power Supply

1756-PB30XT Allen-Bradley ControlLogix-XT Power Supply Overview

Key Technical Specifications

• Part Number: 1756-PB30XT serves as the unique catalog number for this module.
• Series: The ControlLogix-XT family handles harsh conditions with a temperature range of -13°F to 158°F.
• Nominal Input Voltage: 24 Volts DC provides the standard operating level.
• Input Voltage Range: 18-32 Volts DC allows flexible DC source connections.
• Isolation Voltage: 250 Volts continuous protects against electrical faults.
• Max Inrush Current: 20 Amperes occurs during the initial power-on sequence.
• Current Capacity: The unit supplies 1.5A at 1.2V, 4A at 3.3V, 8A at 5.1V, and 1.75A at 24V.
• Dimensions: 5.51 x 4.41 x 5.71 inches (14.0 x 11.2 x 14.5 cm) fit standard chassis slots.
• Weight: 2.10 lbs (0.95 kg) makes the 1756-PB30XT easy to handle.

Environmental and Mechanical Features

• Operating Temperature: The power supply works from -13°F to 158°F (-25°C to 70°C).
• Relative Humidity: 5% to 95% noncondensing allows use in humid industrial settings.
• Operating Shock: 30g withstands mechanical vibrations and sudden impacts.
• Enclosure Type: Open-style chassis mounting provides direct cooling and easy access.
• Compatible Chassis: Use the 1756-PB30XT with 1756-A4LXT/B, 1756-A5XT/B, 1756-A7LXT/B, 1756-A7XT/B, 1756-A7XT/C, and 1756-A10XT/C models.

Frequently Asked Questions (FAQ)

• Is the 1756-PB30XT brand new and original?
  Yes, we supply only brand new and original Allen-Bradley products.
• Do you have the 1756-PB30XT in stock?
  Yes, we keep the 1756-PB30XT in our warehouse for immediate shipment.
• What is your shipping time for this power supply?
  We dispatch all orders within 5 business days after payment confirmation.
• Which carriers do you use for delivery?
  We ship via FedEx, UPS, and DHL for fast and trackable global delivery.
• Can I return the 1756-PB30XT after purchase?
  Yes, we support returns within 30 days from the delivery date.
• Does the 1756-PB30XT work with standard 1756 chassis?
  Yes, but verify compatibility with XT-rated chassis for extreme temperature performance.
• What happens if the inrush current exceeds 20 Amperes?
  The 1756-PB30XT limits inrush to 20A maximum to protect your system.
