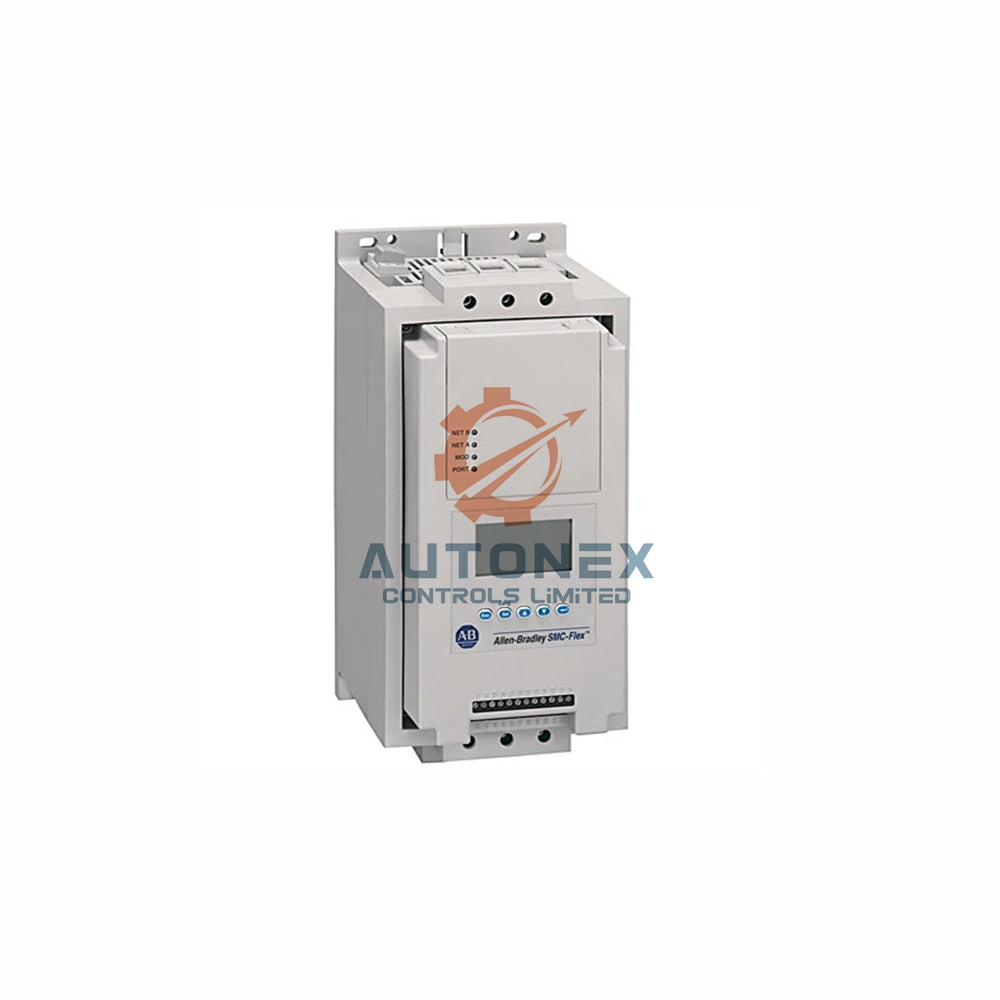

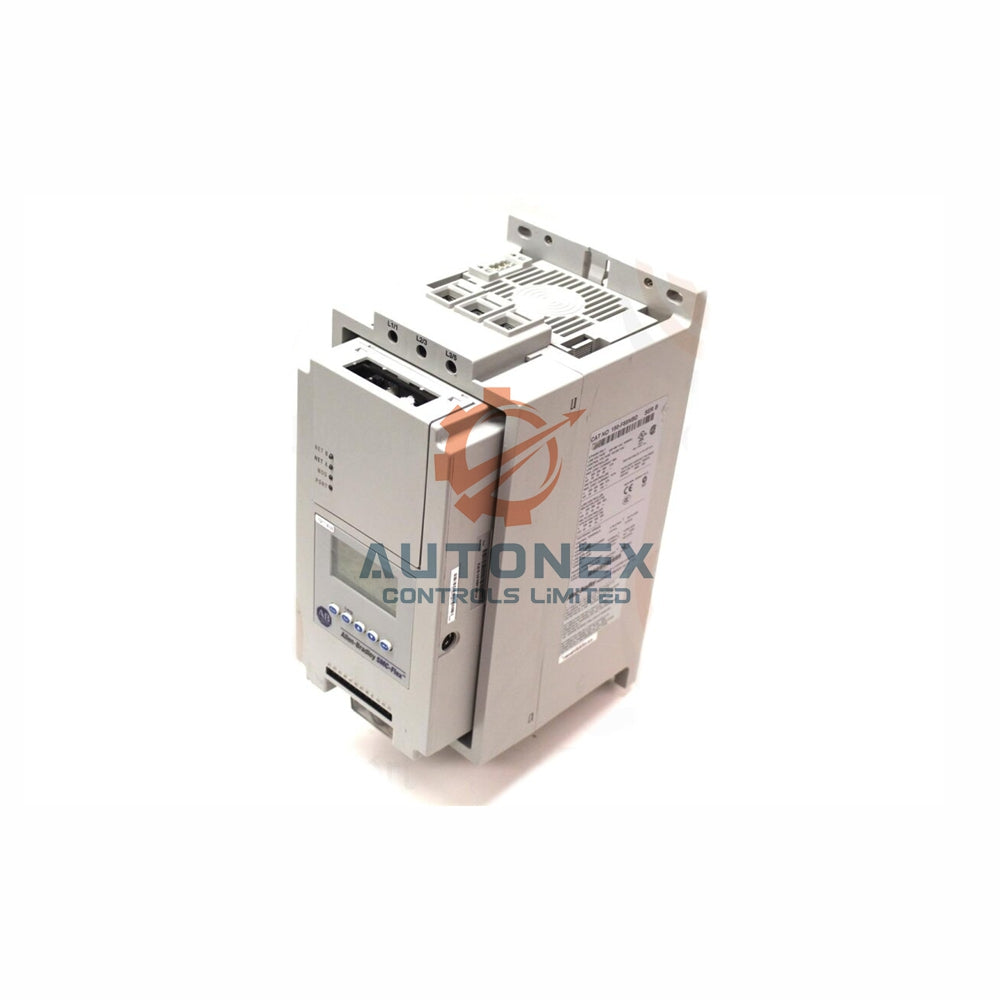

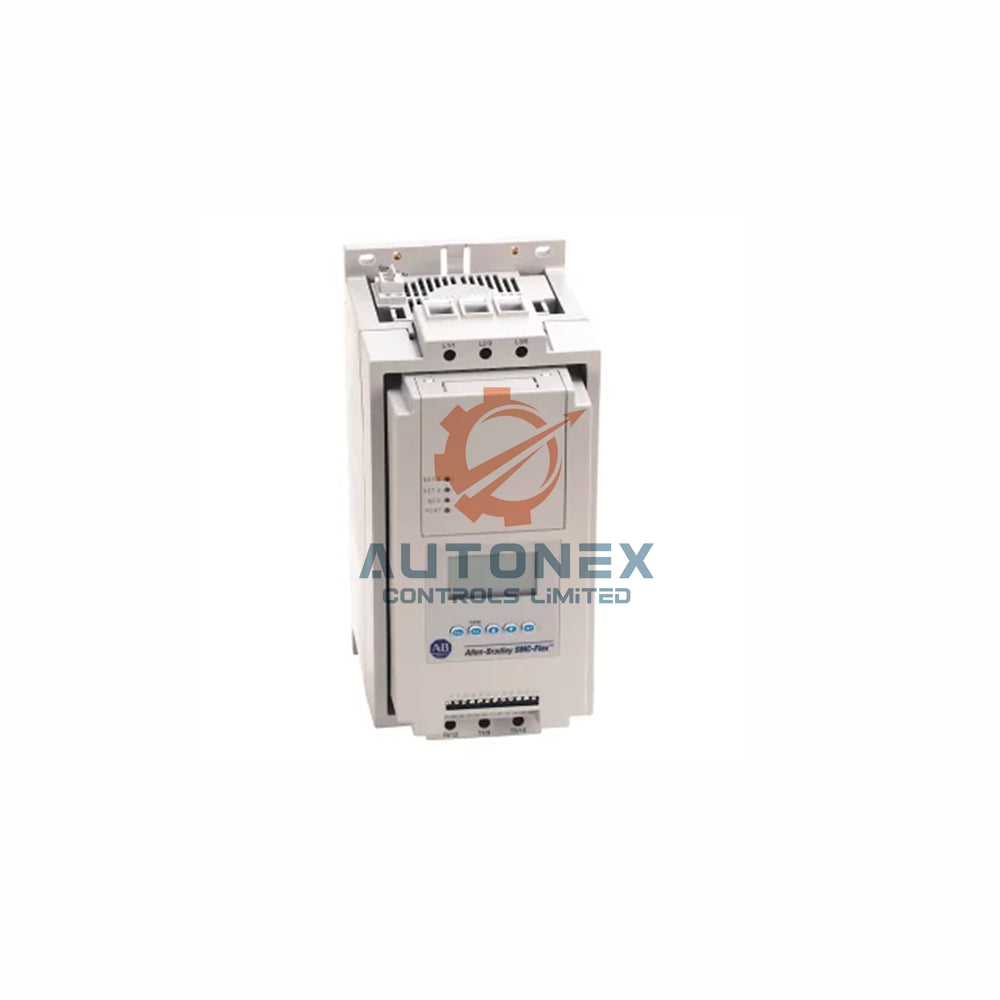

150-F135NBD Allen-Bradley SMC-Flex Solid State Starter 135A

Allen-Bradley 150-F135NBD SMC Flex Smart Motor Controller

Key Technical Specifications

• Brand & Series: Allen-Bradley 150-F135NBD from the SMC-Flex product line (Bulletin 150).
• Power & Current Rating: Supports up to 100 HP at 460V AC with a continuous output rating of 135 Amps.
• Electrical Input: Operates on 200 to 460V AC, 3-phase, 50/60 Hz with a control voltage of 100 to 240V AC.
• Configuration Flexibility: May be used as a line controller or delta controller, with output characteristics varying by mode.
• Integrated Protection: Includes diagnostics for power loss, voltage unbalance, phase reversal, stall, jam, overload, underload, and communication faults.

Operational Modes and Features

• Comprehensive Starting Methods: Supports Soft Start, Current Limit Start, Dual Ramp Start, Full Voltage Start, and Linear Speed Acceleration (requires tachometer).
• Advanced Stopping Control: Includes Soft Stop, Pump Stop, Accu-Stop, and Smart Motor Braking for precise deceleration.
• Slow Speed Capabilities: Offers Preset Slow Speed and Slow Speed with Braking for setup or positioning tasks.
• Metering Functions: Monitors and totalizes Amps, Volts, kW, kWh, Power Factor, and Motor Thermal Capacity usage.
• Programmable Auxiliary Contacts: Four fully programmable contacts for normal, up-to-speed, fault, alarm, or external bypass signaling.
• External Alarm Output: Signals conditions including overload, underload, undervoltage, overvoltage, unbalance, jam, stall, and ground faults.

Frequently Asked Questions (FAQ)

• Is the Allen-Bradley 150-F135NBD a new unit?
  Yes, we supply only brand new, factory-sealed Allen-Bradley units. This is a 100% genuine product.
• What is the difference between line and delta configuration for the 150-F135NBD?
  Delta configuration allows for different starting characteristics and torque control. The 150-F135NBD supports both, giving you flexibility based on motor wiring.
• Do you have this controller in stock?
  Yes, we typically have the 150-F135NBD available. We ship all orders within 5 business days.
• Can I use this controller for pump applications?
  Yes. The pump start and pump stop modes are specifically designed to minimize fluid surges in pumping systems.
• What metering data can I access from the 150-F135NBD?
  You can monitor Amps, Volts, kW, kWh, MW, MWH, elapsed time, power factor, and motor thermal capacity usage.
• Does this controller provide external fault signaling?
  Yes, it includes an alarm contact that signals overload, underload, undervoltage, overvoltage, unbalance, jam, stall, and ground fault conditions.
