146054-08-50-00-00 Bently Nevada 3300 Ceramic Probe Sensor

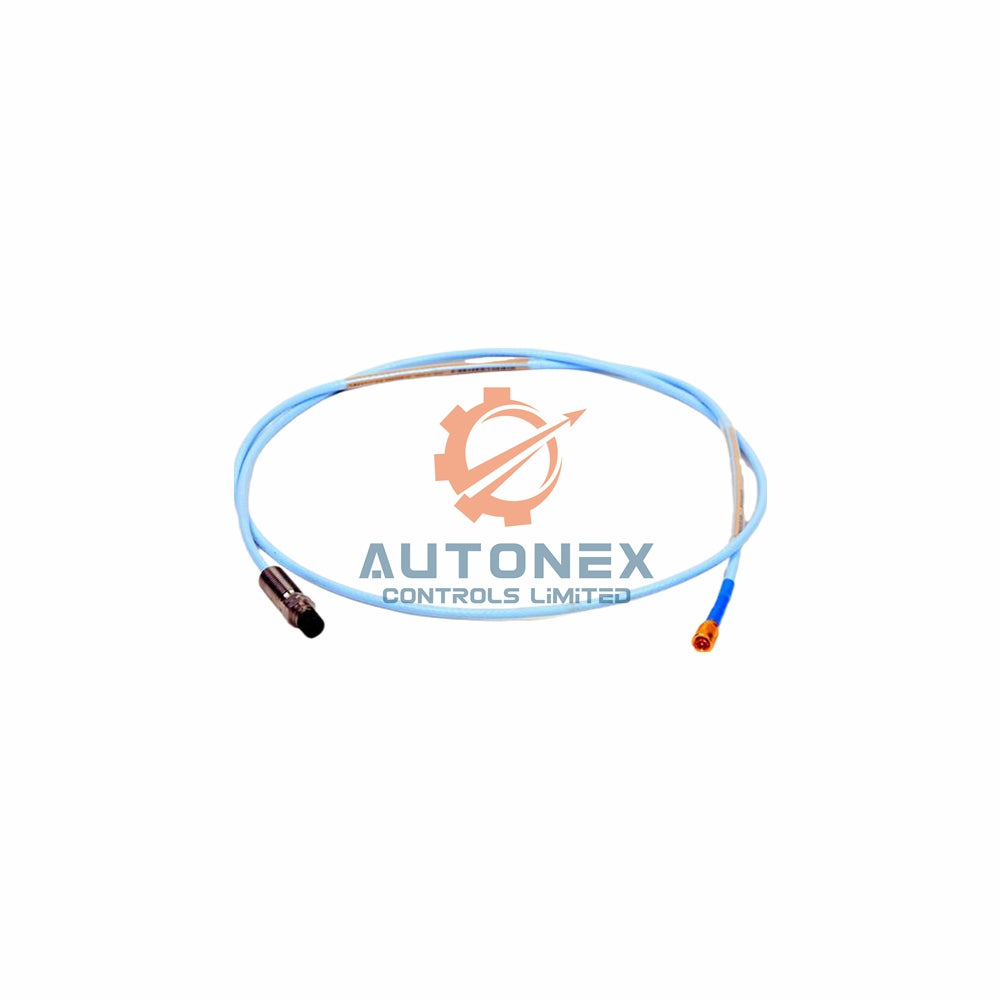

Bently Nevada 3300 Ceramic Capped Proximity Probes - 146054-08-50-00-00

• Manufacturer: Bently Nevada – a trusted name in vibration and position sensing.
• Model Series: 3300 Ceramic Capped Probe, part number 146054-08-50-00-00.
• Case Length Option: -08 equals 0.8 inches (overall case length).
• Total Length: -50 specifies 5.0 meters (16.4 feet) – designed exclusively for 5 m Proximitor Sensors.
• Connector Type: 00 means no connector; bare cable termination.
• Agency Approval: -00 indicates standard version without special approvals.

Key Technical Specifications

• Linear Range: 1.52 mm (60 mils) starting at 0.25 mm (10 mils) up to 1.78 mm (70 mils), corresponding to -4 to -16 Vdc output.
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±6.5% including interchangeability error over 0°C to +45°C.
• Nominal DC Resistance (5 m probe): 8.73 ± 0.70 ohms between center and outer conductors.
• Probe Tip Material: High-grade alumina ceramic (Al₂O₃) for wear and corrosion resistance.
• Probe Case Material: AISI 304 stainless steel provides durability in industrial environments.
• Probe Cable: 75 Ω coaxial FEP insulated cable, total length 5.0 meters.
• Temperature Range (Operating & Storage): -51°C to +177°C (-60°F to +351°F).
• Pressure Rating: Seals to 34 Bar (500 psi) nitrogen; higher-pressure options available on request.
• Temperature Classification (EPL Ga/Gc): T1 to T5 depending on ambient temperature limits.

Installation and Mechanical Details

• Thread Size: 3/8-24 UNF, maximum thread engagement length 0.563 inches.
• Probe Tip Material: Alumina ceramic offers excellent wear resistance and target response.
• System Accuracy: Specifications valid for 3300 XL systems with AISI 4140 steel target at 18-27°C.
• Use the specified 5 m Proximitor Sensor to ensure correct system linearity and scale factor.

Environmental Tolerance & Performance

• Wide temperature range: -51°C to +177°C for both operation and storage.
• Pressure capability: standard rating 34 Bar (500 psi) nitrogen – suitable for many turbine and compressor applications.
• Interchangeability: The ISF includes interchangeability error, simplifying field replacements.
• EMC immunity: Coaxial FEP cable design reduces signal interference in noisy plant environments.

Package Contents

• One 3300 Ceramic Capped Probe (model 146054-08-50-00-00) with 5 m FEP cable, no connector.
• Factory packing with original Bently Nevada labeling and anti-static protection.
• Installation guide sheet (generic for 3300 series probes).

Shipping & Returns

• Stock availability: We keep this model in stock for immediate dispatch.
• Shipping carriers: FedEx, UPS, or DHL – tracking number provided within 24 hours.
• Dispatch time: Ships within 5 business days after order confirmation.
• Return policy: 30-day return window for unused items in original packaging.

Frequently Asked Questions (FAQ)

• Is the 146054-08-50-00-00 brand new and original? Yes, we supply only new and original Bently Nevada products in factory packaging.
• Can I use this 5 m probe with a 9 m Proximitor? No, the 5 m probe is designed specifically for the 5 m Proximitor Sensor to maintain correct calibration.
• What target material does the system calibrate to? Bently Nevada calibrates this system to AISI 4140 steel; using other targets may affect accuracy.
• Does the probe withstand high pressure? Standard rating is 34 Bar (500 psi) nitrogen; contact us for higher-pressure modifications.
• What is the temperature class for this probe? Temperature class depends on ambient limits – see table in specification sheet (e.g., T1 to T5 for EPL Ga/Gc).
• How soon can you ship? We ship within 5 days via FedEx, UPS, or DHL, with tracking.
• Can I return this probe? Yes, we accept returns within 30 days for unused product in original condition.
