146054-08-05-01-05 Bently Nevada 3300 Ceramic Probe

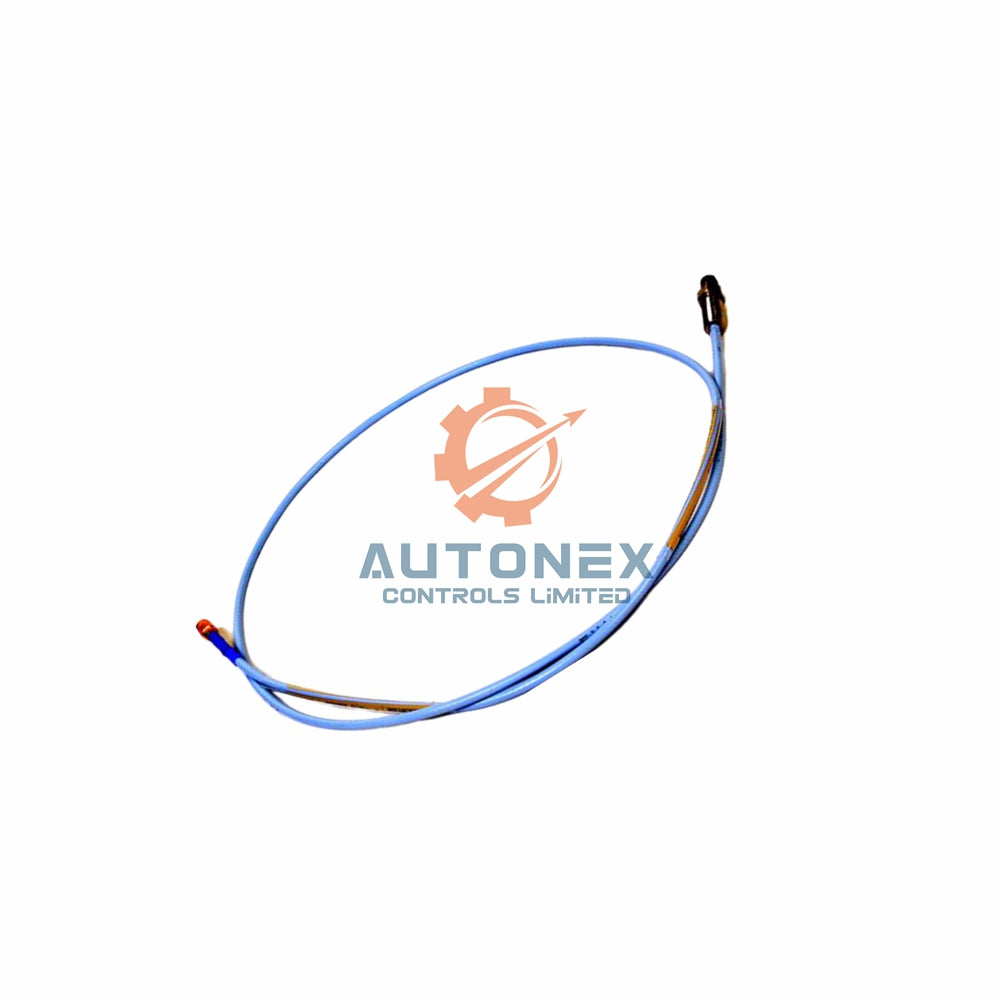

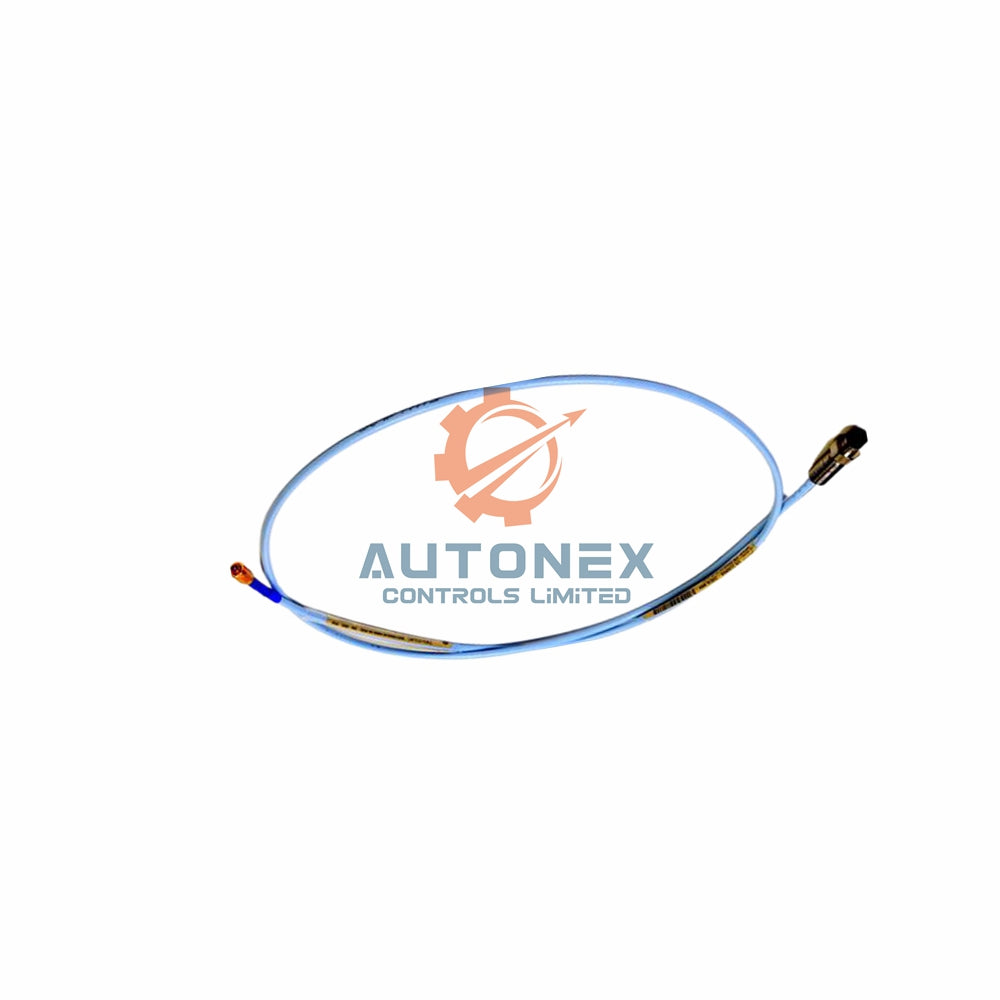

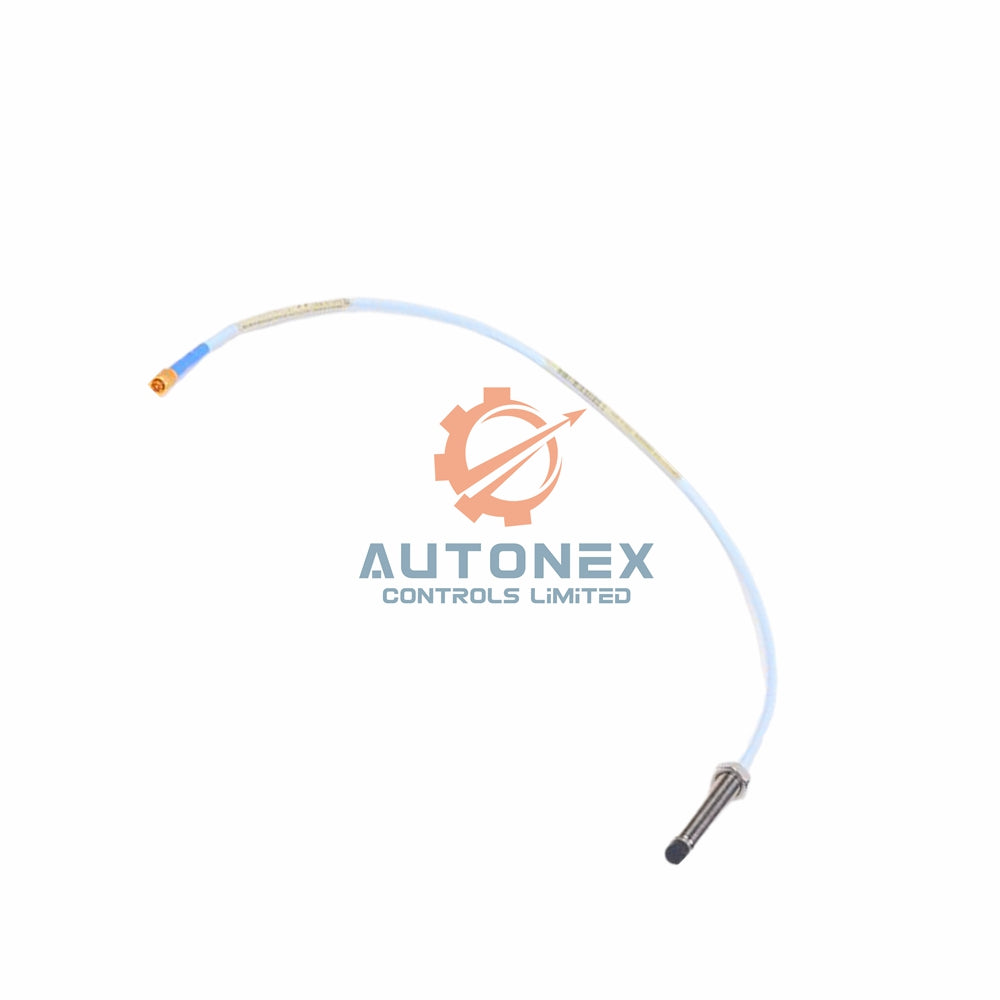

146054-08-05-01-05 Bently Nevada 3300 Ceramic Capped Proximity Probe

• Brand & Model: Bently Nevada 3300 series, model 146054-08-05-01-05.
• Case Length: 0.8 inches (option -08) overall case length.
• Total Length: 0.5 meter (1.6 feet) standard cable length.
• Connector Type: Miniature coaxial ClickLoc connector with protector.
• Agency Approval: CSA, ATEX, IECEx (-05 option).
• Probe Thread: 3/8-24 UNF with 0.563 inch maximum engagement.

Technical Specifications

• Linear Range: 1.52 mm (60 mils) starting at 0.25 mm from target.
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±6.5%.
• DC Resistance: 7.45 ± 0.50 ohms (center to outer conductor).
• Probe Tip Material: Alumina ceramic (Al2O3).
• Probe Case Material: AISI 304 stainless steel.
• Cable Type: 75 ohm coaxial, FEP insulated, standard cable.
• Temperature Range: -51°C to +177°C (-60°F to +351°F).
• Pressure Rating: 34 Bar (500 psi) nitrogen seal.
• Temperature Class (EPL Ga/Gc): T1 to T5 depending on ambient.

Frequently Asked Questions (FAQ)

• Is this probe new and original?
  Yes, it is brand new and in original factory packaging.
• What is the stock status?
  We have ample stock ready for shipment.
• How soon will you ship?
  We dispatch within 5 working days.
• Which carriers do you use?
  We ship with DHL, FedEx, or UPS.
• Can I return the product?
  We accept returns within 30 days of delivery.
• What is the linear range of this probe?
  The linear range is 1.52 mm (60 mils) from 0.25 mm.
• What is the temperature limit?
  Operating temperature is -51°C to +177°C.
