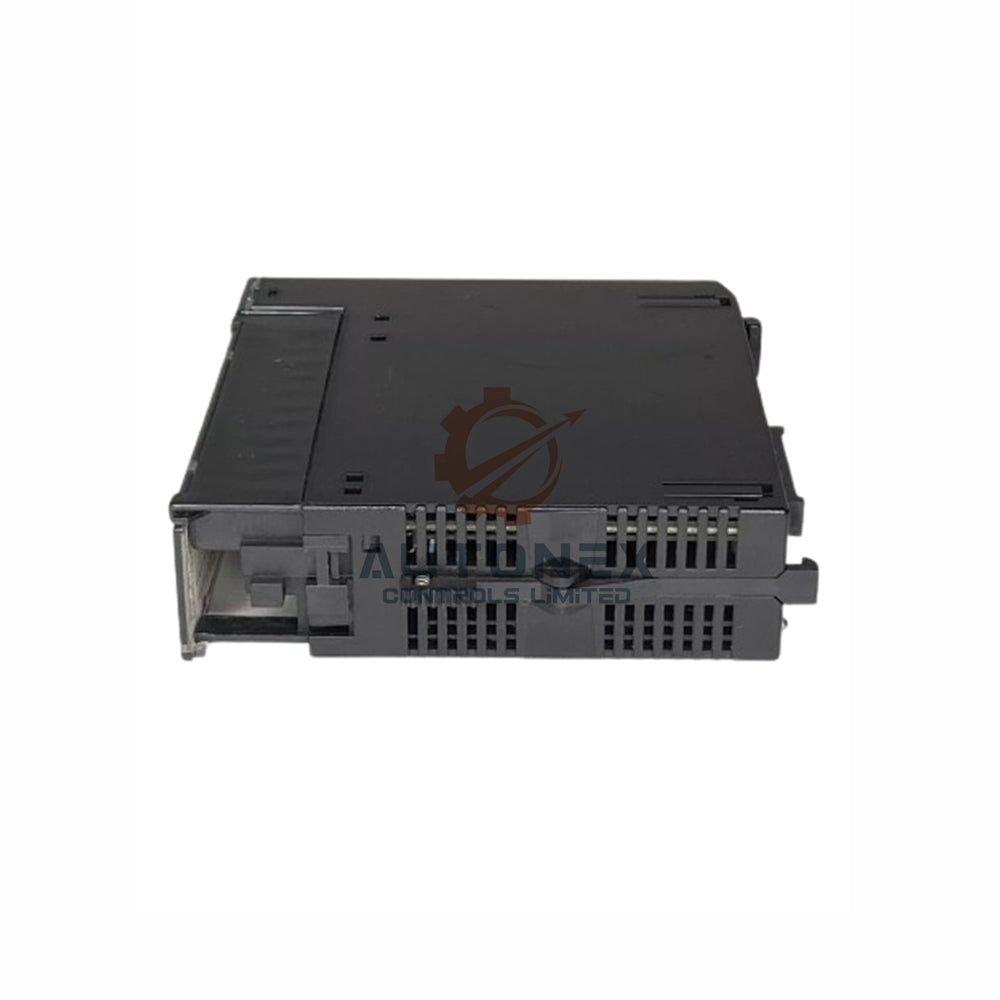

120 Volt Output Module - GE Fanuc IC693MDL310

GE Fanuc IC693MDL310 12-Point AC Output Module

Key Product Features

• The module offers 12 output points arranged in two groups of six.
• It operates at 120V AC with a 85-132 VAC output range.
• Each output point handles 0.5A continuous current for various loads.
• Built-in 3A fuses protect each output group from overloads.
• Six LED indicators (B1-B6) show the status for each output group.

Detailed Technical Specifications

• Brand: GE Fanuc
• Model: IC693MDL310
• Series: Series 90-30
• Product Type: Output Module
• Output Points: 12 (2 groups of 6)
• Voltage Rating: 120 V AC
• Output Voltage Range: 85-132 V AC
• Output Current: 0.5 A per point
• Inrush Current: 5 A for one cycle
• Current Leakage: 3 mA @ 120 V AC
• Frequency: 50/60 Hz
• Protection: 3 A fuse per group, RC snubber
• Power Type: AC Only

Installation & Protection

• The module installs directly into Series 90-30 PLC racks without tools.
• Two separate fuse groups provide independent circuit protection.
• RC snubber networks suppress voltage transients for longer life.
• Group status LEDs help identify active outputs during operation.
• The module handles high inrush currents for motor starting applications.

Frequently Asked Questions

How are the output points organized on this module?

The IC693MDL310 has 12 points divided into two separately fused groups of six points each.

What is the maximum current each output can handle?

Each output point supports 0.5A continuous current with 5A inrush capability.

What protection features does this module include?

It features 3A fuses for each output group and RC snubbers for transient protection.

How many status indicators does the module have?

There are six LED indicators (B1-B6) that show the status of each output group.

Is this module suitable for motor loads?

Yes, the 5A inrush current rating makes it suitable for motor starting applications.

Do you guarantee product authenticity?

We supply only brand new, original GE Fanuc products with full documentation.
