3500/94M-02-00-02 VGA Display Module | Bently Nevada

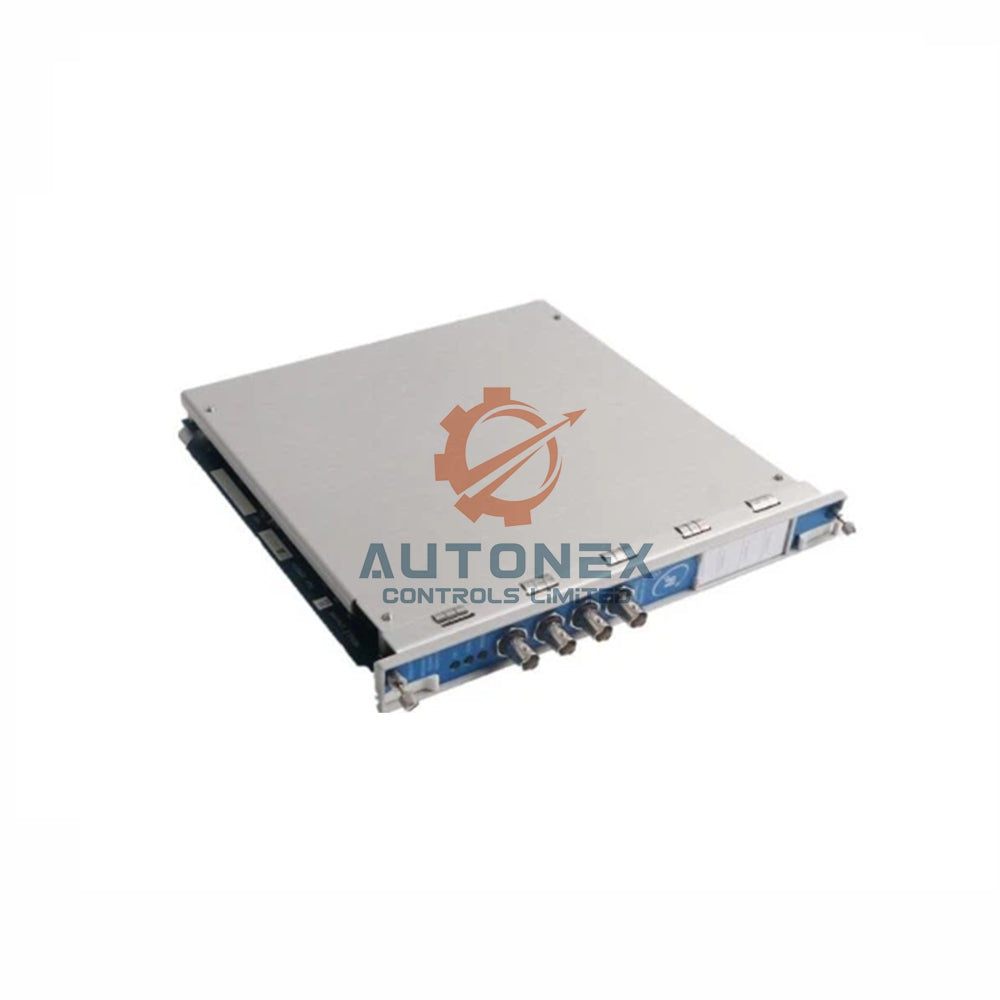

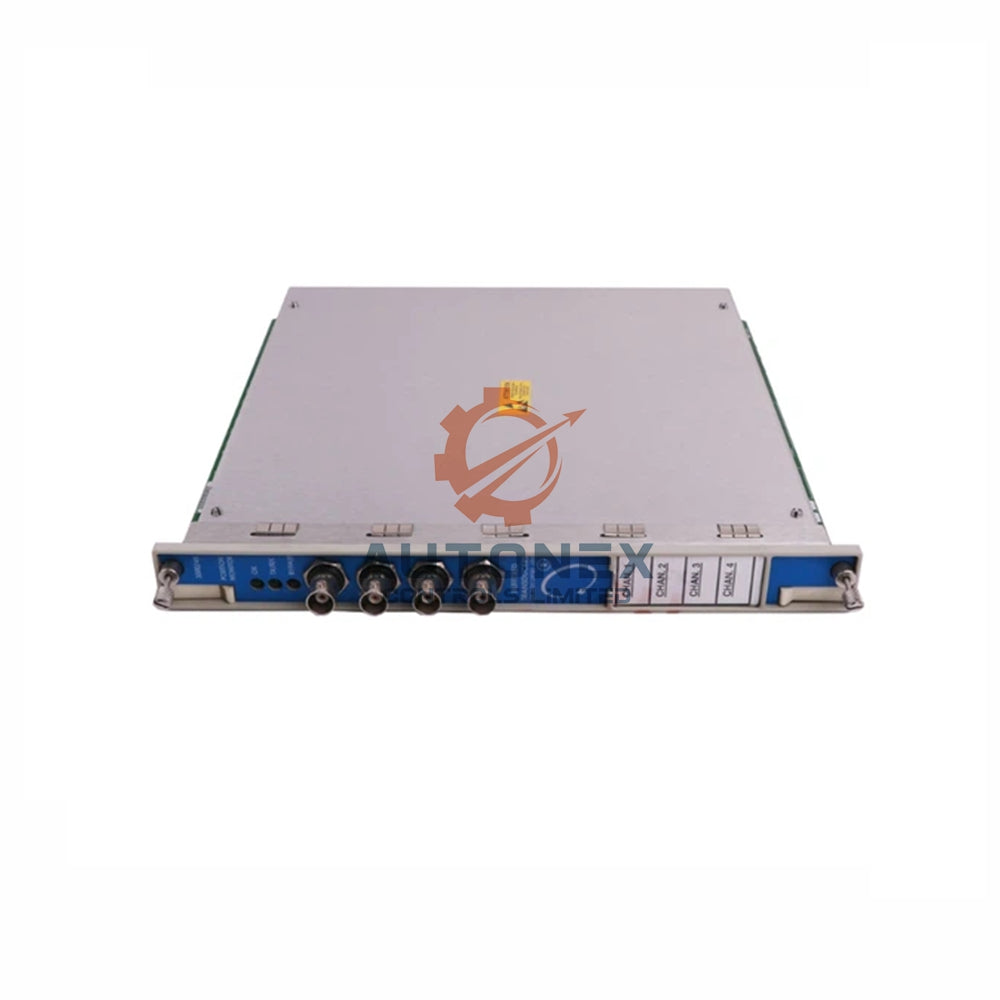

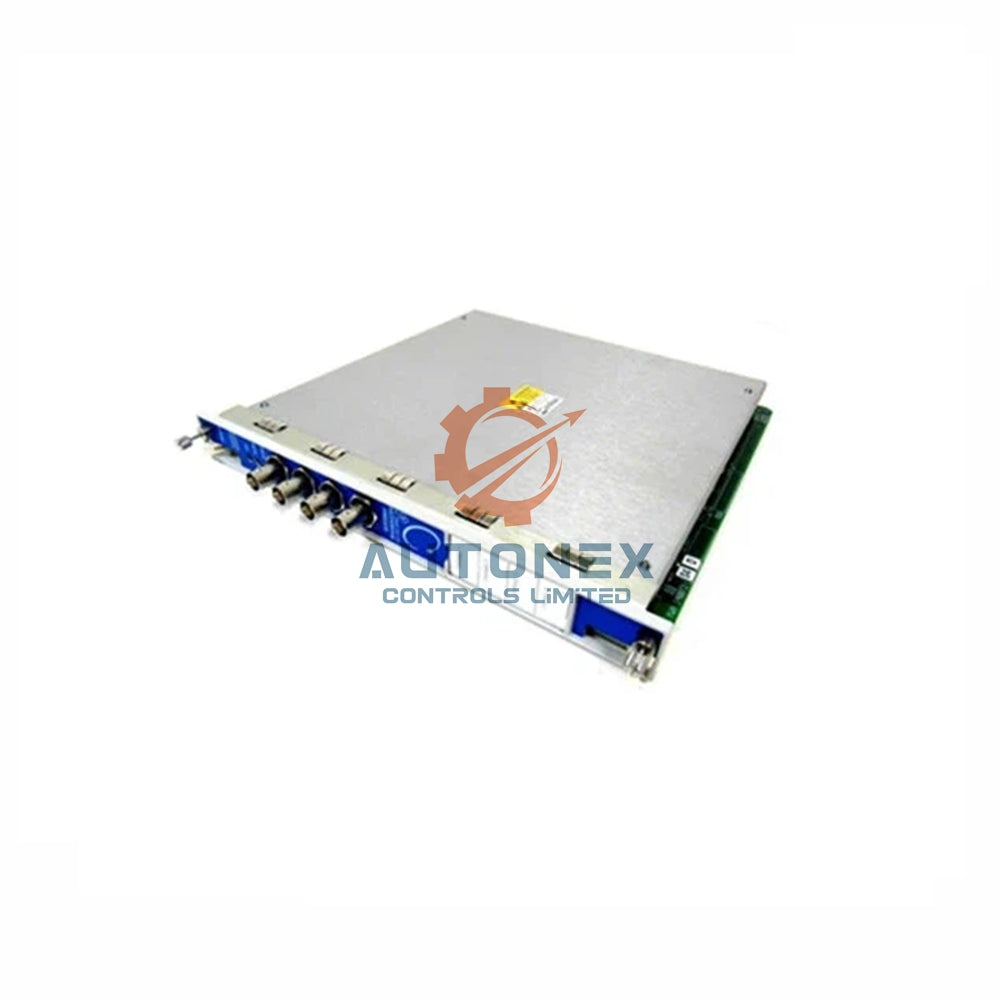

Bently Nevada 3500/94M-02-00-02 VGA Display Module – Hazardous Area Compatible Visual Interface

• Manufacturer: Bently Nevada – proudly made in U.S.A. Product number: 3500/94M-02-00-02.
• Display size: 10 inches with 19-inch rack mount design (perfect for standard industrial racks).
• KVM extender and display router box cables: none (option code 00). Agency approval: multi (CSA/ATEX/IECEx) – option 02.
• Total weight for main VGA module: 0.73 kg (1.6 lb). I/O module weight: 0.34 kg (0.75 lb).
• System weight with 15" Advantech display: 8.5 kg (18.75 lb).

Key Technical Specifications – Power and Inputs/Outputs

• Power consumption: 4.6 watts max – very efficient for 24/7 continuous operation.
• High-speed network connection for monitoring status, live data, and measured values.
• RS232 port (I/O) handles all touch controller data communication reliably.
• OK LED indicates proper module operation; TX/RX LED shows active communication between system modules.
• VGA port (I/O) transmits analog red, green, blue, and sync signals directly to your display.
• Front port provides 24 Vdc power output, VGA signal output, and touch command inputs.

Environmental Limits & Physical Dimensions

• Operating temperature range: -20°C to 65°C (-22°F to 149°F) for extreme conditions.
• Storage temperature: -40°C to 85°C (-40°F to 185°F) for safe long-term keeping.
• Humidity tolerance: 95% non-condensing – perfect for tough industrial sites.
• Dimensions (height x width x depth) of 3500/94M-02-00-02 main module: 241.3 mm x 24.4 mm x 241.8 mm (9.5 in x 0.96 in x 9.52 in).
• I/O module dimensions: 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in).
• Rack space needed: one full-height front slot for the monitor module and one full-height rear slot for the I/O module.

Multi-Agency Approvals (CSA/ATEX/IECEx)

• The 3500/94M-02-00-02 includes option 02 – multi-agency approval for hazardous locations.
• CSA certification for North American hazardous areas – Class I, Division 2 groups.
• ATEX certification for European explosive atmospheres – complies with Directive 2014/34/EU.
• IECEx approval for international use in flammable gas and dust environments.
• This approval only applies when using the 10" Advantech display (ANA-D3510-100-A1).
• FCC Part 15 compliance: no harmful interference and accepts any received interference.
• EMC standards: EN 61000-6-2 and EN 61000-6-4 (Directive 2014/30/EU).
• Electrical safety: CSA C22.2 61010-1, UL EN 61010-1 (Directive 2014/35/EU).
• RoHS compliant with Directive 2011/65/EU – environmentally friendly construction.

Display Options – Advantech 10” and 15” Monitors

• Advantech 10” display (ANA-D3510-100-A1): diagonal 10” LCD with LED backlight, industrial hardened.
• 10” display mounting styles: face mount, 19” rack mount, panel mount, or independent mount.
• Power for 10” display: 24 Vdc (range 10-28 Vdc); inrush current 3.5A @24V (<500µs); operating current <500mA.
• 10” display operating temperature: -20°C to 65°C (-4°F to 149°F). Humidity: 10% to 85% RH non-condensing.
• Touch interface: GFG resistive touch screen; agencies: CE, UL, CUL. Rated IP54, Class I Div 2, ATEX/IECEx.
• Advantech 15” display (FPM-8151): 15” diagonal, LCD with LED backlight, industrial hardened.
• 15” display mounting: 19” rack mount or panel mount. Includes 24 Vdc supply (12-24 Vdc permissible).
• 15” display operating current <500 mA; inrush current 2.62A @24V (<500 µs).
• Temperature range for 15” display: 0 to 60°C (32°F to 140°F). Humidity: 95% RH, IP65 rated.
• Touch interface: resistive; agencies CE, UL; Class 1 Div 2 approved.
• Note: For below 0°C operation, a heated enclosure is required for the 15” screen.
• Important: Multi-agency approval (option 02) only applies with the 10” Advantech display.

KVM Extender Specifications (Optional Accessory)

• KVM extender mounts on shelf top; power input requires 12 Vdc and 5 Vdc.
• UL certification for North America only. Temperature range: 0ºC to 45ºC (32ºF to 113ºF).
• Humidity limit: 80% non-condensing. KVM receiver is Class I Division 2 approved for hazardous areas.
• Transmitter does not have hazardous location certification – install in safe area or approved enclosure.
• KVM extender is not NEMA 4X approved.

Frequently Asked Questions (FAQ)

• Q: Is this 3500/94M-02-00-02 module brand new?
  A: Yes, we supply only brand new and original units directly from authorized sources.
• Q: What hazardous area approvals does this module carry?
  A: Option 02 provides multi-agency approval: CSA (North America Class I Div 2), ATEX (Europe), and IECEx (international).
• Q: Do I need a specific display to keep the hazardous area approval?
  A: Yes, you must use the Advantech 10” display (ANA-D3510-100-A1) to maintain CSA/ATEX/IECEx certification.
• Q: What is the operating temperature range for the main VGA module?
  A: The module operates from -20°C to 65°C (-22°F to 149°F) without any heating enclosure.
• Q: Do you have this item in stock?
  A: Yes, we have 3500/94M-02-00-02 available in our warehouse ready to ship.
• Q: How long does delivery take after placing an order?
  A: We ship within 5 days via FedEx, UPS or DHL. Transit time depends on your location.
• Q: Can I return the module if it does not fit my system?
  A: Yes, we support 30-day returns. Please contact us for return instructions.
• Q: Which display works best with this VGA module for non-hazardous sites?
  A: Advantech 10” (ANA-D3510-100-A1) or 15” (FPM-8151) – both industrial hardened with touch interface.
• Q: Does this module require special firmware?
  A: Yes, it needs 3500/94M firmware 4.06 Rev. C and a 3500/22 TDI module with Rev 1.71 firmware.
• Q: Is the KVM extender included?
  A: No, option code 00 means none included. Order separately if needed.
• Q: What is the power consumption of the VGA module alone?
  A: The module draws 4.6 watts maximum – very low for continuous monitoring.
