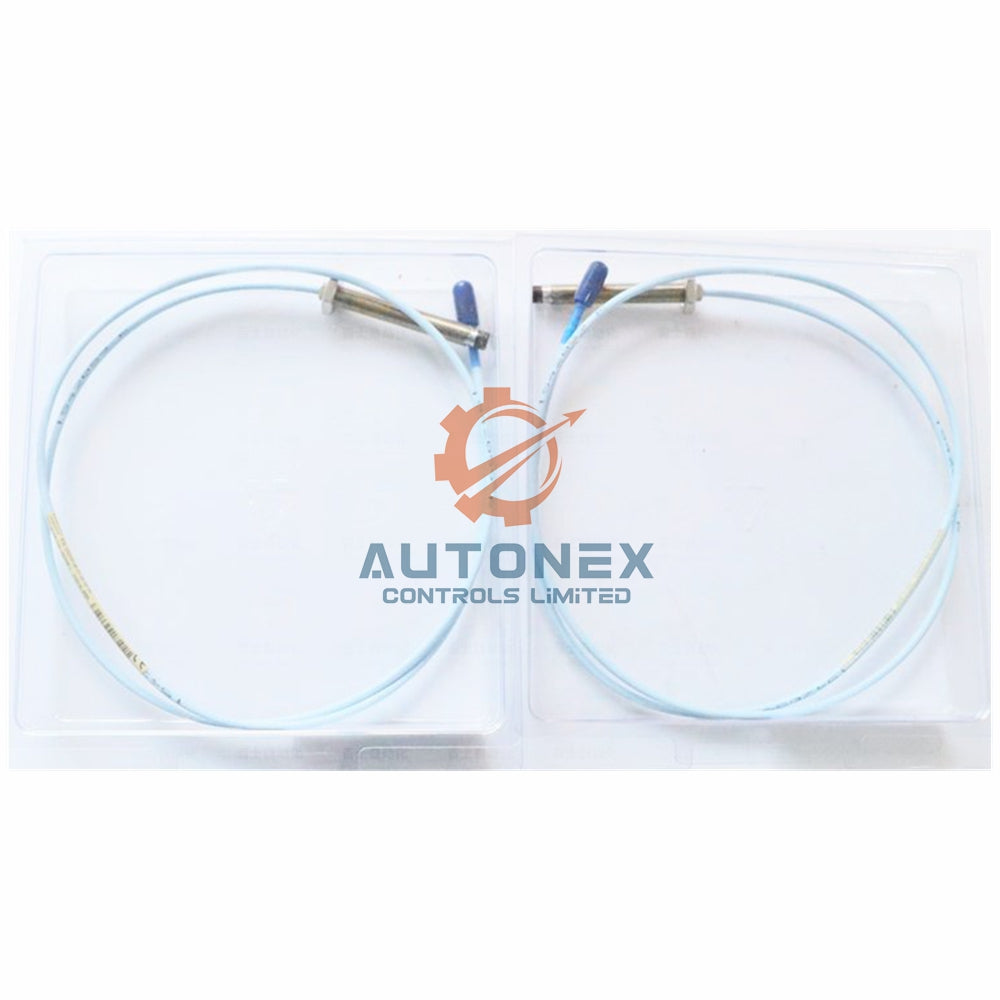

330173-00-03-10-02-00 Bently Nevada 3300 5mm Probe

Bently Nevada 330173-00-03-10-02-00 – 3300 5mm Probe Overview

Key Technical Specifications

• Brand: Bently Nevada (Made in U.S.A).
• Model number: 330173-00-03-10-02-00 – part of the 3300 5mm Probe family.
• Unthreaded length option: 00 = 0 mm.
• Overall case length option: 03 = 30 mm.
• Total length option: 10 = 1.0 metre (3.3 feet).
• Connector option: 02 = Miniature coaxial ClickLoc connector with standard cable.
• Agency approval option: 00 = Not required.
• Probe tip material: Polyphenylene sulfide (PPS).
• Probe case material: AISI 304 stainless steel (SST).
• Probe DC resistance (1.0m length): 7.59 ± 0.50 Ω (center to outer conductor).
• Power requirement: -17.5 Vdc to -26 Vdc at 12 mA maximum. Using voltages above -23.5 Vdc reduces linear range.
• Output resistance: 50 W (ohms).
• Supply sensitivity: Less than 2 mV change per volt change in input.
• Probe temperature range: -35°C to +177°C (-31°F to +351°F). Temperatures below -34°C (-30°F) may damage the pressure seal.
• Minimum cable bend radius: 25.4 mm (1.0 inch).
• Probe case torque: 5.1 N·m (45 in·lb) recommended; 7.3 N·m (65 in·lb) maximum.
• Connector-to-connector torque: 0.565 N·m (0.42 ft·lbf) maximum.
• Tensile strength: 222 N (50 lbf) for probe case to lead, and for lead to extension cable connectors.
• Thread engagement limit (M8x1): 12 mm maximum length.
• Weight: 0.323 Kg.

Frequently Asked Questions (FAQ)

• Is this probe new or used?
  We supply only brand new and original Bently Nevada 330173-00-03-10-02-00 units.
• What is the thread size of this 3300 5mm Probe?
  It uses M8 x 1 thread without armor (unthreaded length 0 mm).
• Can I use this probe below -35°C?
  No. The safe range stops at -35°C. Below -34°C (-30°F) the pressure seal may fail early.
• Does the 1.0m cable include a connector?
  Yes. The 02 option means a miniature coaxial ClickLoc connector with standard cable.
• What power supply do I need for the Bently Nevada 3300 probe?
  You need -17.5 Vdc to -26 Vdc at 12 mA maximum. We recommend -24 Vdc for best linear range.
• Do you have this 330173-00-03-10-02-00 in stock?
  Yes, we keep this model in stock as a regular inventory item.
• How long until you ship?
  We ship within 5 days using FedEx, UPS, or DHL.
• Can I return the probe if it does not fit my machine?
  Yes. You have 30 days to return the probe in new condition.
