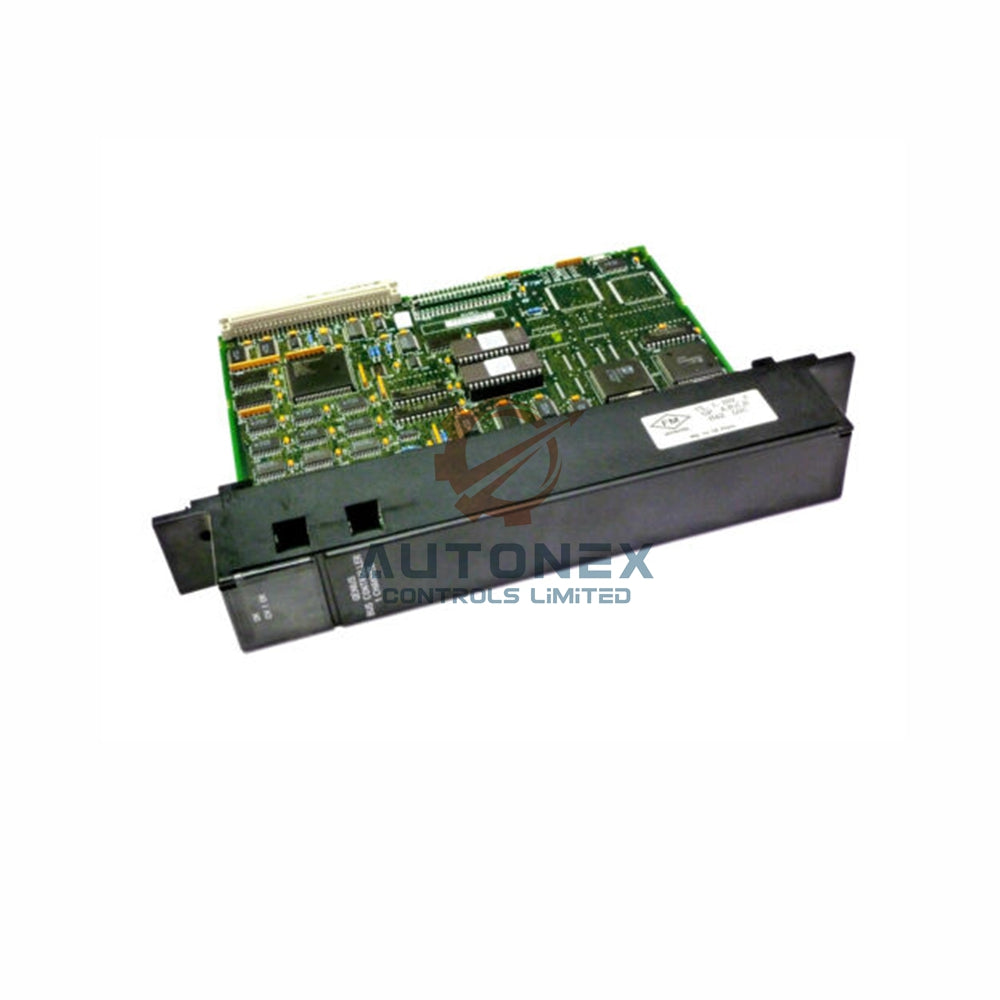

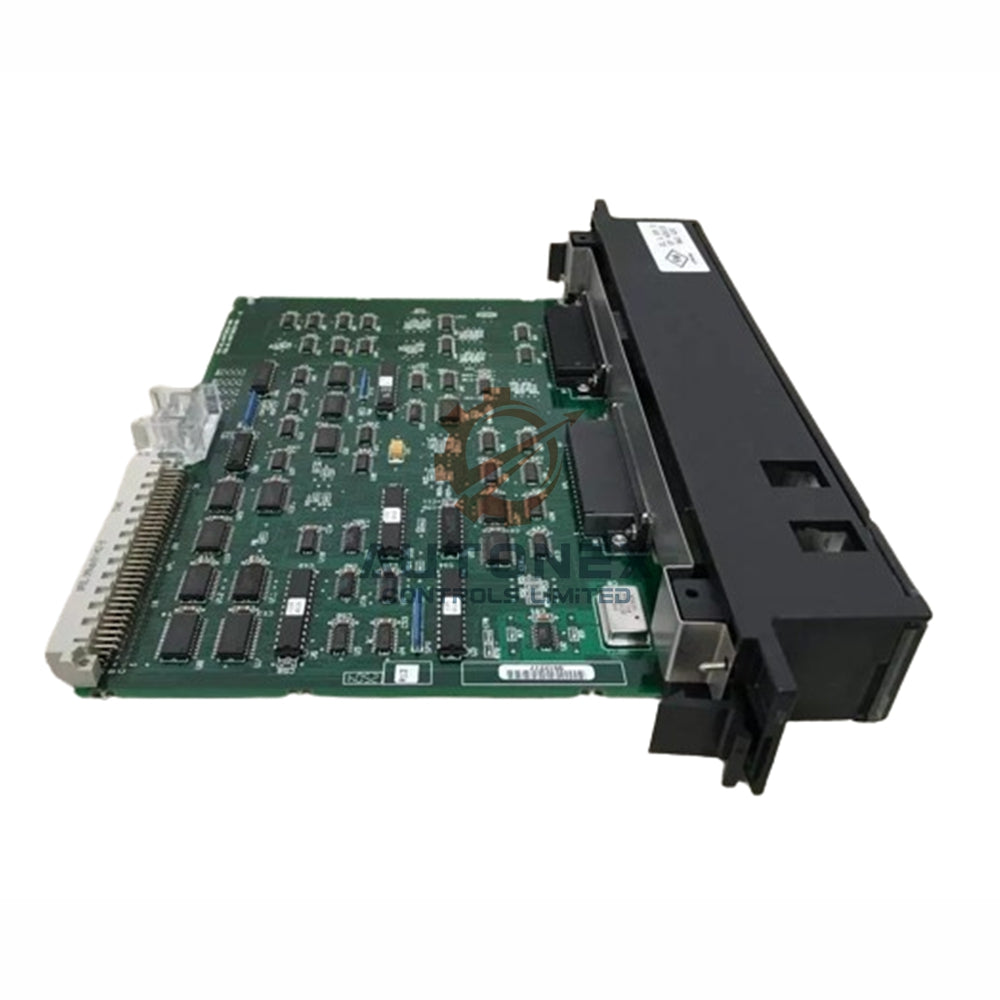

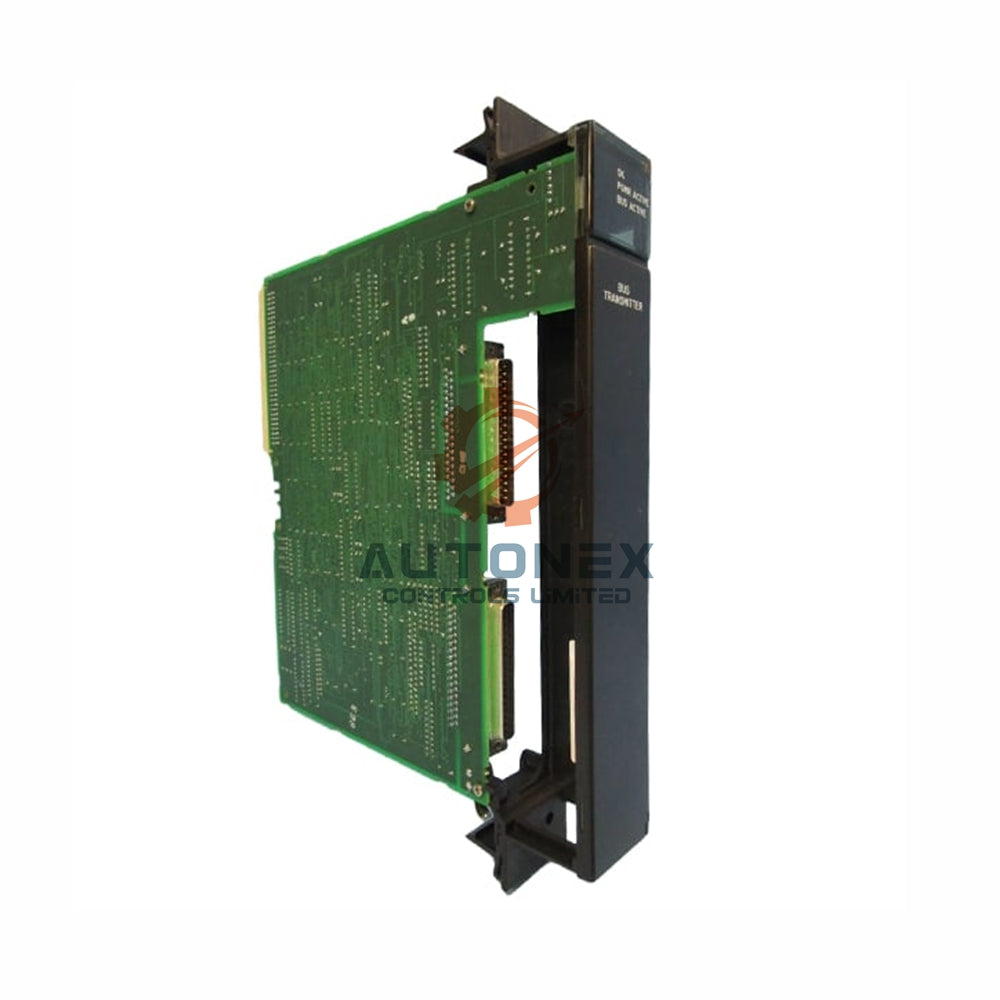

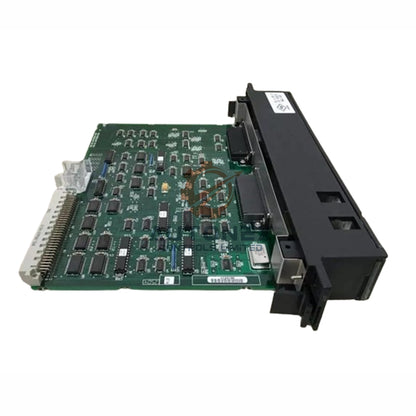

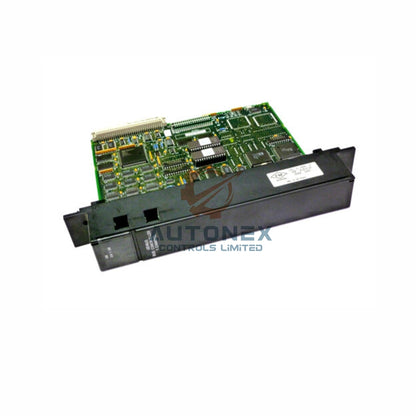

PLC Module IC697BEM764 | GE Fanuc Emerson

В наличии (18 единиц), готово к отправке
  • Продавец:

    General Electric

  • Тип:

    PLC Module

  • Country of Origin:

    USA

  • Dimensions:

    21*2*17cm

  • Weight:

    1200 g

  • Теги: I/o module

GE Fanuc IC697BEM764 VME DLAN Interface Module

Bus Architecture

  • Address Bus: 16/24/32-bit programmable
  • Data Bus: 8/16/32-bit configurable
  • Configuration: Backplane jumpers J1, J2
  • Interface Type: VME DLAN standard

Power & Environmental

  • Operating Voltage: 5V/12V DC dual supply
  • Temperature Range: 0°C to 60°C operating
  • Storage Temperature: -40°C to +85°C
  • Humidity: 5% to 95% non-condensing

Physical Specifications

  • Dimensions: 213mm × 22mm × 175mm
  • Weight: 3.8 lbs (1.7 kg)
  • Vibration: 1g @ 40-150 Hz
  • Shock Resistance: 15g, 11ms half-sine

Performance Characteristics

  • Multiple bus width configurations for system flexibility
  • Dual voltage operation enhances compatibility
  • Industrial-grade environmental specifications
  • High mechanical durability for harsh environments
  • Extended MTBF exceeding 90,000 hours
  • One-year minimum shelf life guarantee

Installation Procedure

  • Ensure proper VME rack mounting alignment
  • Configure J1 and J2 jumpers according to bus requirements
  • Select appropriate address and data bus widths
  • Verify dual voltage supply connections
  • Perform comprehensive communication testing
  • Validate all interface connections

Configuration Flexibility

  • Programmable address bus: 16-bit, 24-bit, or 32-bit modes
  • Configurable data bus: 8-bit, 16-bit, or 32-bit operation
  • Backplane jumper settings for custom configurations
  • Automatic bus recognition with manual override capability
  • Voltage selection for diverse system requirements

Industrial Applications

  • VME bus system integration and expansion
  • Industrial network communication bridging
  • Factory automation control systems
  • Process monitoring and data acquisition
  • Equipment interface and control applications
  • Legacy system modernization projects

Technical Questions & Answers

What bus configuration options are available?

  • The IC697BEM764 supports multiple configurations including 16/24/32-bit address buses and 8/16/32-bit data buses for maximum system compatibility.

How is the module powered?

  • This interface module operates using both 5V and 12V DC power supplies, providing flexibility for different system requirements.

What configuration methods are supported?

  • Configuration is achieved through backplane jumpers J1 and J2, allowing precise control over bus width and operational parameters.

What environmental conditions can it withstand?

  • Designed for industrial use, it operates from 0°C to 60°C and withstands 1g vibration and 15g shock conditions.

What is the module's reliability rating?

  • The module demonstrates exceptional reliability with a MTBF exceeding 90,000 hours, ensuring long-term operational stability.

For detailed technical specifications and purchasing information, contact our sales team: sales@nex-auto.com
