CC-PAOH01 Honeywell Analog Output Module

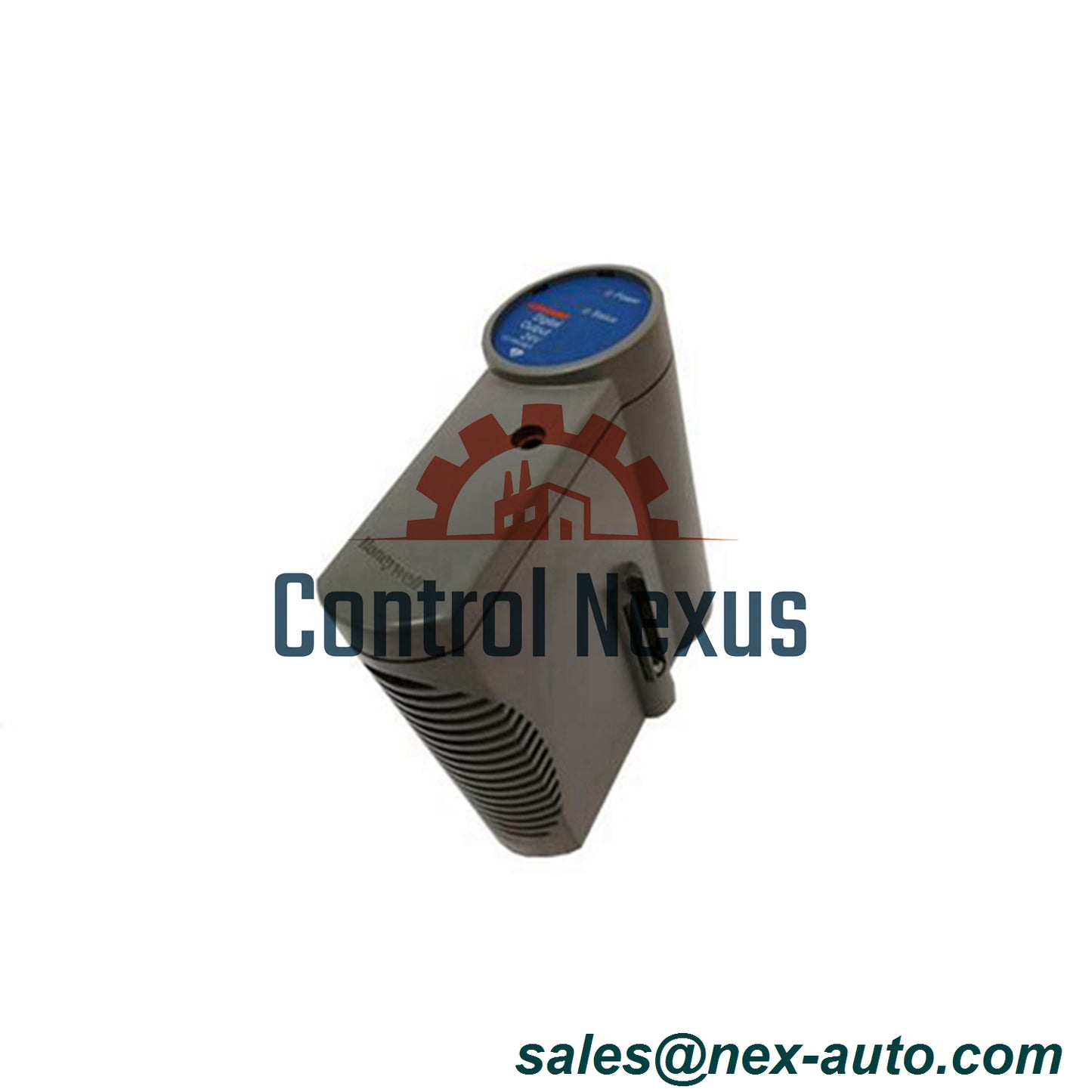

Honeywell CC-PAOH01 Analog Output with HART Module

Key Features and Benefits

• Extensive self-diagnostics for continuous performance monitoring
• Optional redundancy configurations available for critical applications
• HART-capable design supports multivariable instruments
• Multiple modems enable fast control variable collection
• Configurable Safe-state (FAILOPT) behaviors per channel
• Output read-back with alarm on discrepancy detection
• Non-incendive output for safe operation in hazardous areas
• Open-wire detection with Channel Soft Failure indication

Technical Specifications

• Brand: Honeywell
• Model: CC-PAOH01
• Output Type: 4-20 mA
• Output Channels: 16
• Output Ripple: < 100 mV peak-to-peak
• Output Temperature Drift: 0.005% of Full Scale/°C
• Output Readback Accuracy: ±4% of Full Scale
• Output Current Linearity: ± 0.05% of Full Scale
• Resolution: ± 0.05% of Full Scale
• Calibrated Accuracy: ± 0.35% of Full Scale at 25°C
• Settable Output Range: 0 mA, 2.9 mA to 21.1 mA
• Maximum Resistive Load: 800 ohms
• Maximum Output Compliant Voltage: 16 V
• Maximum Open Circuit Voltage: 22 V
• Response Time: Within 80 ms to 1% of final value

FAILOPT Configuration Options

• HOLD LAST VALUE mode maintains current output during faults
• SHED to SAFE VALUE mode defaults to zero output for safety
• Per-channel configuration flexibility
• Automatic safe state activation during electronics failure

Compatible IOTA Models

• CC-TAOX01 - Non-Redundant 6” configuration
• CC-TAOX11 - Redundant 12” configuration
• CC-GAOX11 - Redundant 12” configuration
• CC-GAOX21 - Non-Redundant 6” configuration

Installation and Operation

• Simple integration with existing control systems
• Clear channel status indicators for easy monitoring
• Straightforward wiring connections
• Comprehensive documentation provided

Packaging and Shipping

• Factory sealed original packaging
• Complete with all necessary components
• Protected with anti-static materials
• Shipped via FedEx, UPS, or DHL carriers
• Fast dispatch from our available stock

Frequently Asked Questions

What is the output current range of the CC-PAOH01?

• The module supports direct setting from 0 mA to 21.1 mA
• Normal operating range is 4-20 mA with extended capability

How many channels does this analog output module provide?

• The CC-PAOH01 offers 16 independent output channels
• Each channel can be configured individually

What is the maximum load resistance supported?

• Maximum resistive load is 800 ohms
• This ensures compatibility with most field devices

Does the module support redundant configurations?

• Yes, optional redundancy is available
• Switchover gap is maximum 10 ms for seamless operation

What is the response time of the output?

• Output settles within 1% of final value in 80 ms
• Fast response ensures precise control performance

Is this product brand new and original?

• Yes, we supply only brand new and original units
• All items come in factory sealed packaging

How quickly can you ship the CC-PAOH01?

• We ship within 5 business days from order confirmation
• Express shipping options available for urgent requirements

Which shipping carriers do you use?

• We ship internationally using DHL, FedEx, and UPS
• Tracking information provided for all shipments

Do you offer return policy?

• We support 30-day returns from delivery date
• Items must be in original condition with packaging

Contact: sales@nex-auto.com
