330101-55-75-10-02-00 Bently Nevada - 3300 XL 8mm Probes

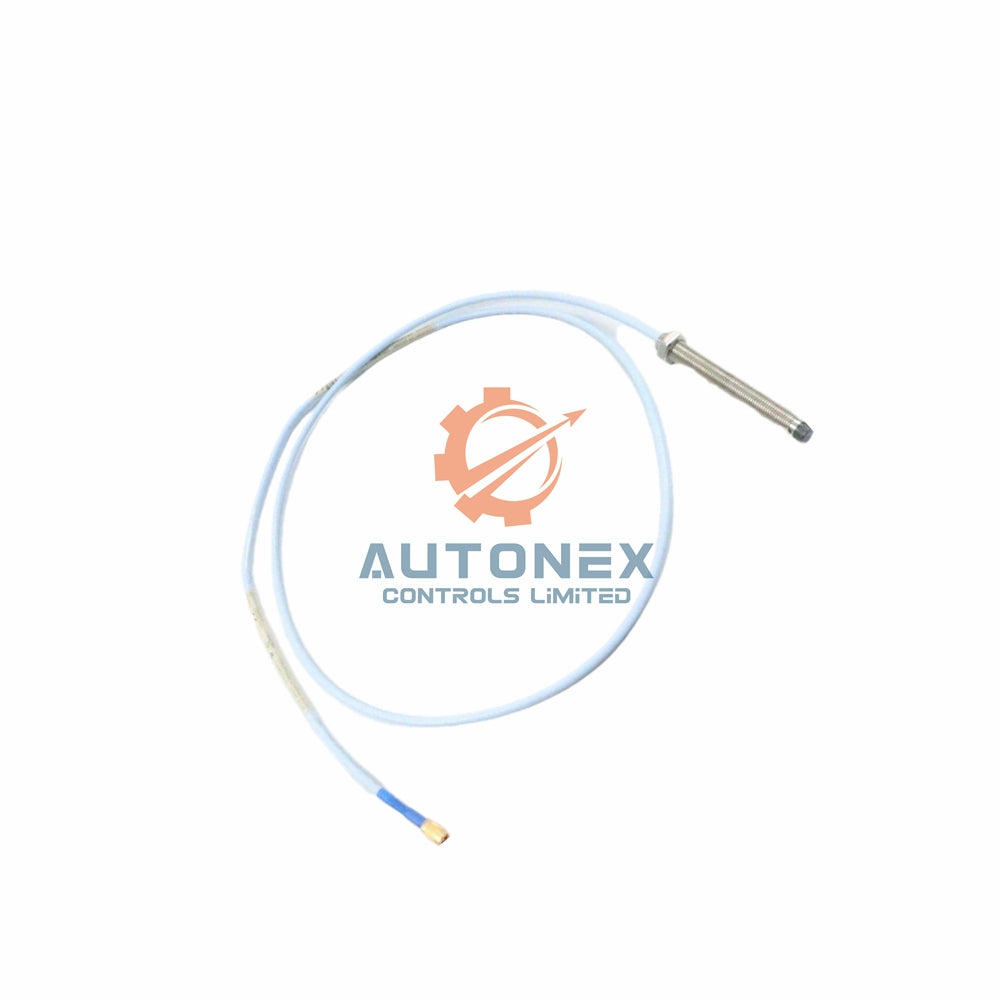

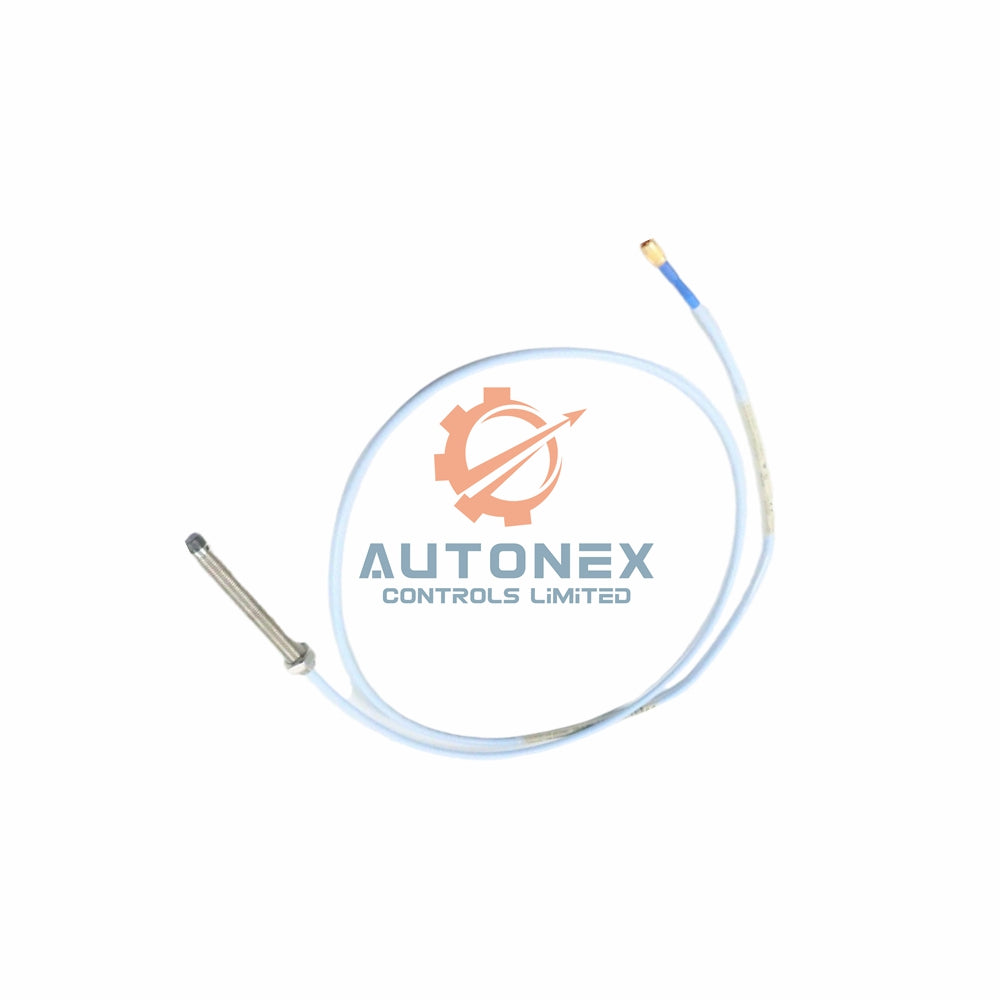

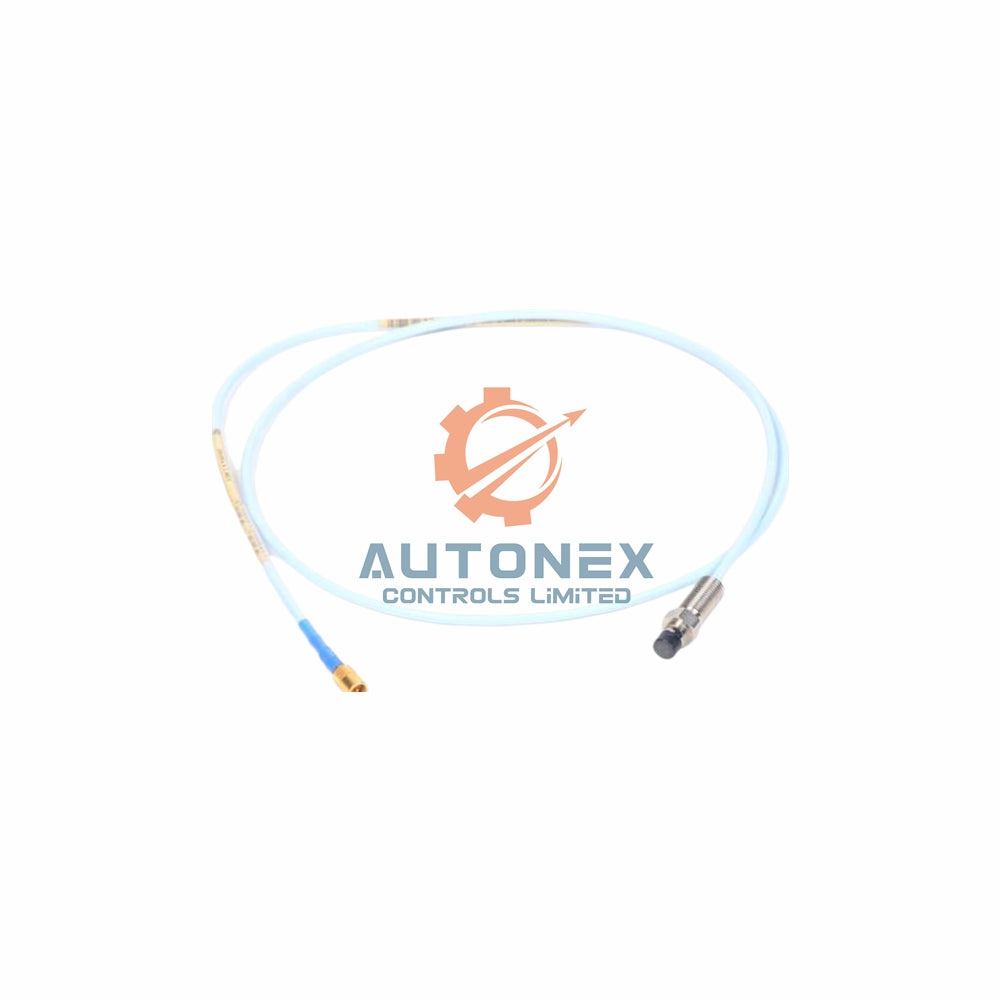

Bently Nevada 330101-55-75-10-02-00 3300 XL 8 mm Probe

Key Technical Specifications

• Manufacturer: Bently Nevada (Made in U.S.A).
• Model Number: 330101-55-75-10-02-00.
• Unthreaded Length Option: 55 = 5.5 inches.
• Overall Case Length Option: 75 = 7.5 inches.
• Total Length Option: 10 = 1.0 meter (3.3 feet).
• Connector Type: Miniature coaxial ClickLoc connector with standard cable.
• Agency Approval Option: 00 = Not required.
• Linear Range: 2 mm (80 mils) from 0.25 mm to 2.3 mm (10 to 90 mils).
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5% for a 1 or 5 meter system.
• Recommended Radial Vibration Gap: -9 Vdc, approximately 1.27 mm (50 mils).
• Probe Tip Material: Polyphenylene sulfide (PPS).
• Probe Case Material: AISI 303 or 304 stainless steel (SST).
• Probe DC Resistance (RPROBE): 7.59 ± 0.50 Ω for a 1.0 meter length.
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical.
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG), 3-conductor shielded triad.
• Maximum Field Wiring Length: 305 meters (1,000 feet) to the 3300 XL Proximitor Sensor.

Environmental and Mechanical Ratings

• Standard Probe Temperature Range: -52°C to +177°C (-62°F to +350°F).
• Extended Temperature Range Probe Tip: -52°C to +218°C (-62°F to +425°F).
• Probe Relative Humidity: Less than 3% ASF change at 93% humidity for up to 56 days (IEC 68-2-3).
• Maximum Thread Engagement: 0.563 inch for the 3/8-24 case thread.
• Recommended Probe Case Torque: 11.2 N•m (100 in•lbf) for standard forward mounted probes.
• Probe Pull Strength: 330 N (75 lbf) from the patented CableLoc design.
• Optional FluidLoc Cable: Prevents oil or liquid leakage through the cable interior.
• Probe Weight: 323 g/m (11.4 oz).

Frequently Asked Questions (FAQ)

• Q: Is the 330101-55-75-10-02-00 probe brand new?
  A: Yes, we supply only brand new and original Bently Nevada units.
• Q: Do you have this probe in stock?
  A: Yes, we have the 330101-55-75-10-02-00 in stock and ready to ship.
• Q: How long does delivery take?
  A: We ship within 5 days after order confirmation. Delivery time depends on your location.
• Q: Which carriers do you use?
  A: We use FedEx, UPS, and DHL for all shipments.
• Q: Can I return this probe if it doesn't fit?
  A: Yes, we accept returns within 30 days from the delivery date.
• Q: What is the standard probe temperature range?
  A: The standard probe operates from -52°C to +177°C (-62°F to +350°F).
• Q: Does this probe have agency approvals?
  A: No, option 00 means no agency approvals are required for this model.
• Q: What is the unthreaded length for this model?
  A: The unthreaded length option 55 gives you 5.5 inches.
