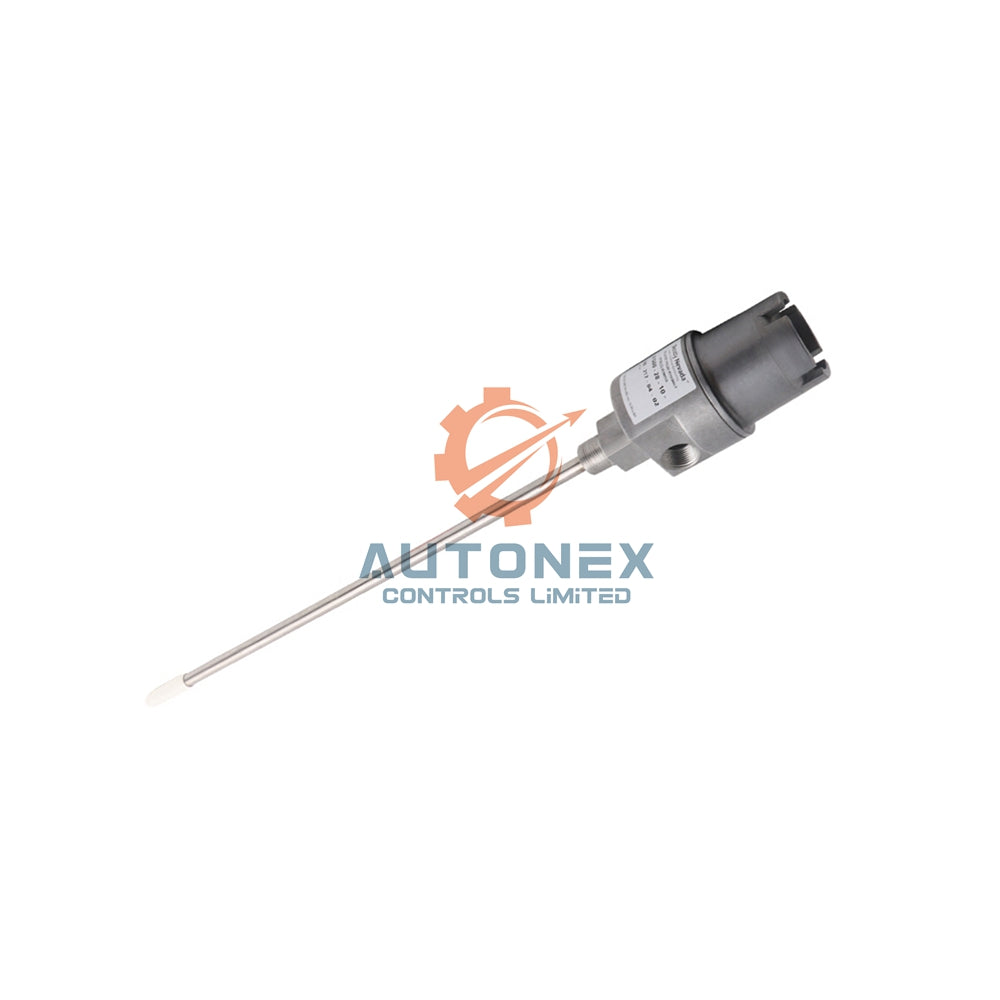

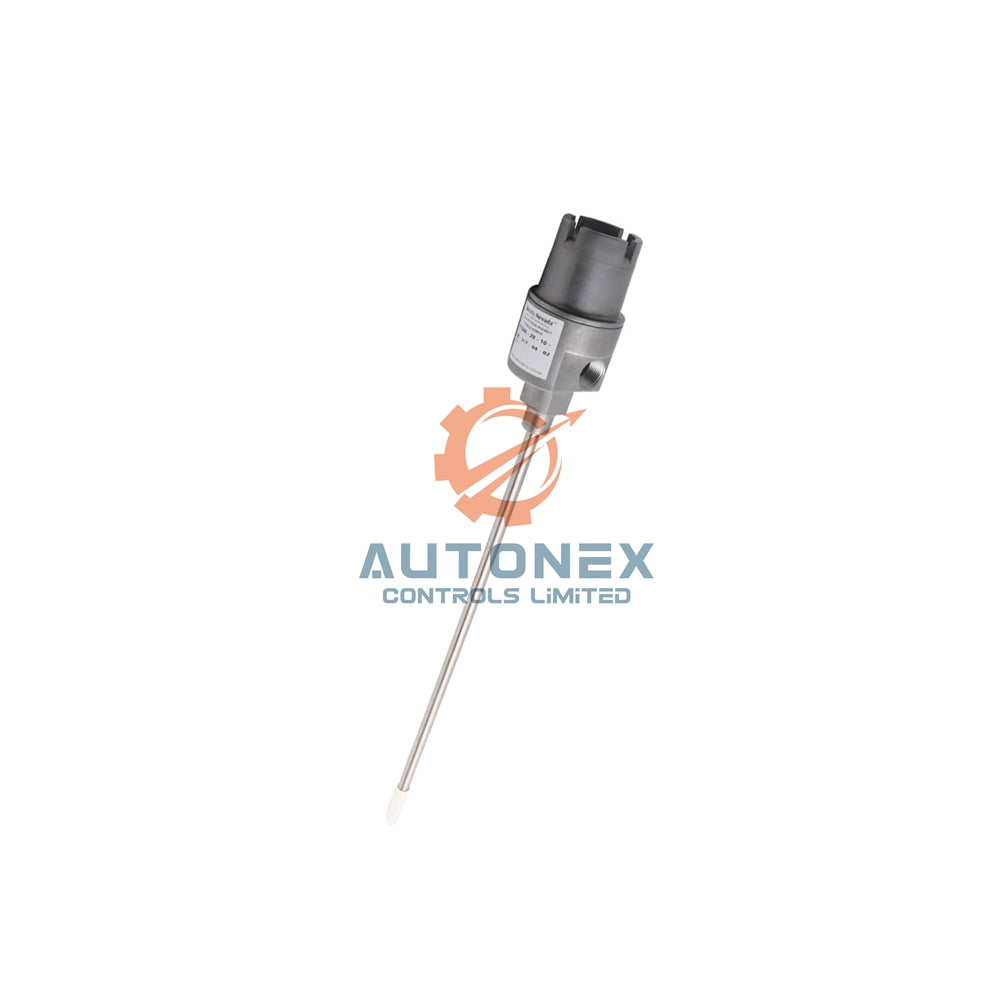

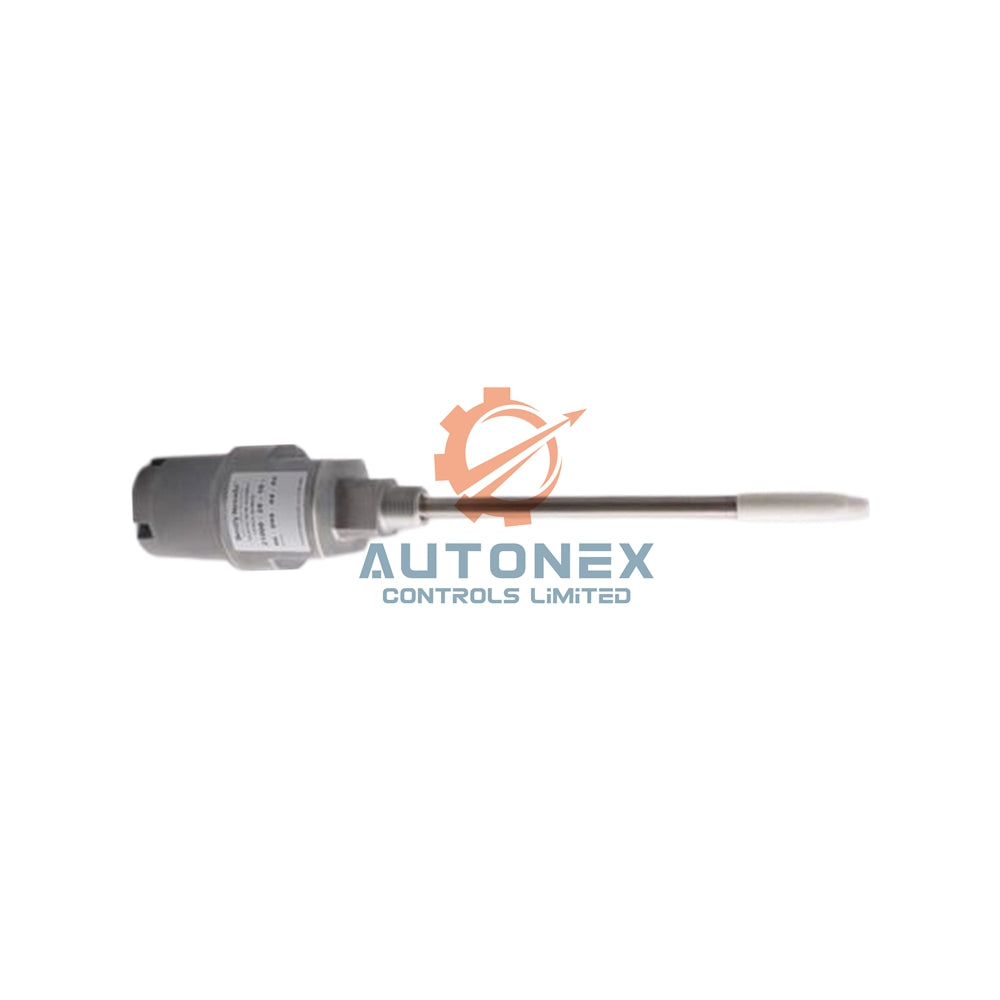

21000-34-05-30-050-03-02 Bently Nevada Proximity Probe Housing Assembly

• Full Model Number: 21000-34-05-30-050-03-02 – Complete proximity probe housing assembly from Bently Nevada.
• Probe Option: 34 – Includes a 3300 XL 8 mm probe with connector protector and selectable hazardous area approvals.
• Probe Cable Length: 05 = 0.5 meters (20 inches) – Short cable for direct connection to monitoring systems.
• Standoff Adapter: 30 = 3.0 inches – Provides precise positioning of the probe tip.
• Probe Penetration: 050 = 5.0 inches – Defines how far the probe extends inside the housing.
• Fitting Option: 03 – One 3/4-14 NPT plug, one 3/4-14 to 1/2-14 NPT reducer, and a cable seal grip with three grommets (for 1/8-3/16", 1/4-5/16", and 5/16-3/8" cables).
• Mounting Thread Option: -02 = 3/4-14 NPT – Required when standoff adapter length is not -00.
• Housing Material: Aluminum body with 304 stainless steel sleeve – Combines light weight with excellent corrosion resistance.
• Typical Weight: 1.1 kg (2.4 lb) – Excludes fittings for installation flexibility.
• Maximum (C) + (D) Dimension: 13.5 inches (34.3 cm) – Total assembly length with probe (P/N and S/N not visible).
• CSA Type 4 Enclosure Rating – Fully meets API 670 Standard for externally mounted probe housings.
• Explosion-proof Note – Only CA housing versions with E:00, E:01, E:02, or E:04 carry CSA explosion-proof rating. 21000-34-05-30-050-03-02 accepts explosion-proof fittings but requires those suffix options for full certification.

Frequently Asked Questions (FAQ)

• Is 21000-34-05-30-050-03-02 brand new and original? – Yes, we supply only new and original factory-packed units.
• Do you have this model in stock? – Yes, we keep 21000-34-05-30-050-03-02 in stock for immediate orders.
• How soon will you ship after I order? – We ship within 5 business days after payment confirmation.
• What shipping carriers do you use? – We use DHL, FedEx, and UPS for fast and reliable delivery.
• Can I return this product? – Yes, we accept returns within 30 days of delivery.
• What is the maximum (C)+(D) dimension? – It measures 13.5 inches (34.3 cm) with the visible probe (P/N and S/N not visible).
• Is this housing explosion-proof? – Only CA versions with E:00/E:01/E:02/E:04 carry CSA explosion-proof rating. This 21000-34-05-30-050-03-02 accepts explosion-proof fittings but needs those suffix options for full rating.
• What approvals does this housing have? – It carries CSA Type 4 enclosure rating and meets API 670 Standard.
