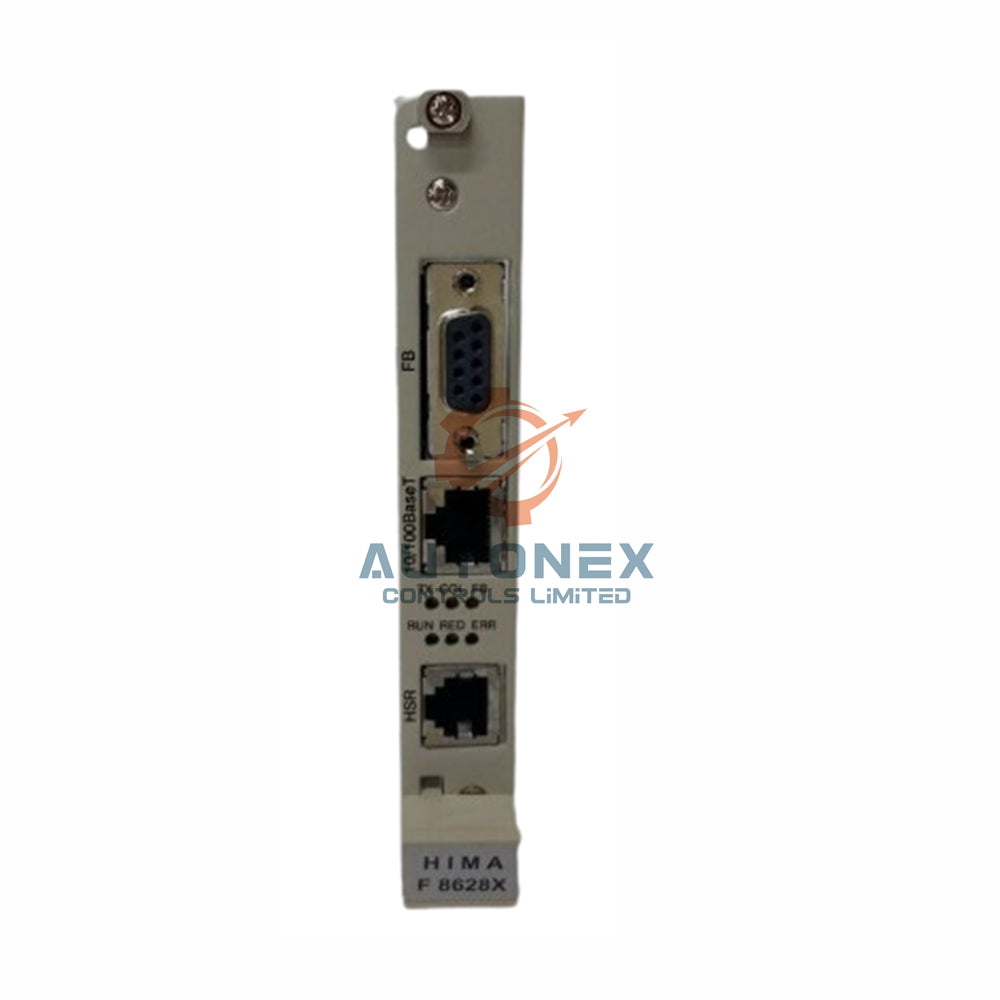

HIMA F8628X Communication Module – Profibus DP Slave

HIMA F8628X Communication Module – Profibus DP Slave with Ethernet Programming

Key Technical Specifications

• Brand: HIMA
• Model: F8628X
• Category: Profibus DP Slave Communication Module
• Fieldbus Interface: 9-pole SUB-D connector for Profibus DP slave
• Ethernet Interface: 100 Base-T, RJ45 for ELOP II programming
• Form Factor: 19-inch module, 3 height units (3 x 44.45 mm), 4 width units (4 x 5.08 mm)
• Programming: ELOP II via Ethernet from V4.1 and later
• Dual-Port Design: Operates Profibus DP slave and Ethernet programming simultaneously
• Certification Standards: IEC 61131-2, EN 61000-6, EN 50081-2, EN 50082-2, IEEE 802.3, EN 50170
• Environmental Tolerance: Meets EN 61000-6 for industrial EMC and immunity
• Direct CPU Access: Enables Ethernet-based engineering without removing the fieldbus connection

Frequently Asked Questions

• What fieldbus protocol does the F8628X support?
  It supports Profibus DP slave via the 9-pin SUB-D interface.
• Can I program the CPU through this F8628X module?
  Yes, ELOP II V4.1 and newer versions support Ethernet programming through the RJ45 port.
• Does the F8628X work with older HIMA CPUs?
  It is designed for F8650X, F8652X, F8651X, and F8653X CPUs. Existing F8627 and F8628 modules remain available.
• What are the physical dimensions of the F8628X?
  It uses a 19-inch form factor with 3 height units and 4 width units.
• Can I use Profibus and Ethernet at the same time?
  Yes, the module operates both interfaces independently and simultaneously.
• Is the F8628X new and original?
  Yes, every F8628X is brand new and factory-sealed original HIMA product.
• What shipping methods do you offer?
  We ship via FedEx, UPS, and DHL with tracking provided.
