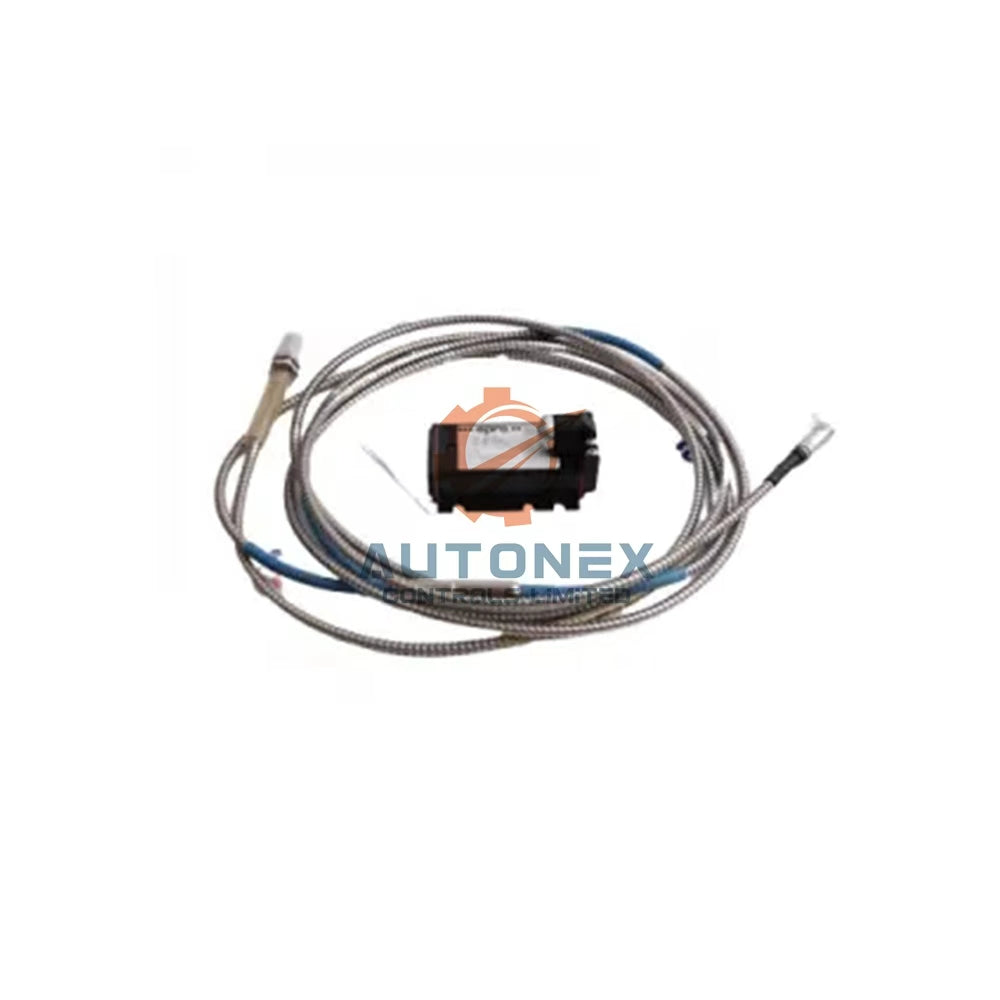

Vibration Transducer - Horizontal Mount Sensor Emerson PR9268/30

Emerson PR 9268/30: Advanced Vibration Sensing for Horizontal Applications

The Emerson PR 9268/30 series represents precision engineering for industrial vibration monitoring. Designed specifically for horizontal mounting, this transducer delivers reliable performance in challenging environments. Its robust construction and splash-proof housing ensure consistent operation where temperatures reach 100°C. The PR 9268/30 provides accurate data collection for critical machinery protection systems.

Critical Performance Specifications

• Frequency range covers 4 Hz to 1000 Hz for comprehensive vibration analysis
• Experience consistent sensitivity of 28.5 mV/(mm/s) with ±5% tolerance
• Maintain accuracy with linearity error consistently below 2% across full range
• Operate effectively in temperatures from -20°C to +100°C continuous duty
• Handle short-term exposure to 120°C for emergency operating conditions
• Measure vibration amplitudes up to 3000 µm peak-peak at rated position
• Natural frequency maintains 4.5 Hz ±0.75 Hz under standard load conditions

Environmental Resilience & Protection

• Splash-proof enclosure protects against water ingress and environmental contaminants
• IP55 rating ensures reliable operation in dusty or wet industrial conditions
• Aluminum alloy housing provides excellent corrosion resistance and durability
• Optional OPR versions include oil-proof PTFE metal hose protection systems
• RAD configured units withstand radioactive environment exposure challenges
• Armored cable construction available for mechanically demanding installations

Mounting & Installation Specifications

• Horizontal mounting orientation optimized for PR 9268/30x series applications
• Maximum angular deviation of ±10° without lifting or sinking current applied
• Increased angular tolerance of ±30° with proper lifting/sinking current implementation
• Rigid mounting brackets recommended to prevent vibration-induced measurement errors
• EMC-compliant installation practices ensure electromagnetic interference protection
• Verify full system functionality before placing into continuous production service

Electrical Performance Characteristics

• Transverse sensitivity measures 0.27 at 110 Hz for horizontal measurement orientation
• Measurement circuit resistance provides stable 1875 Ω ±10% performance
• Insulation resistance exceeds 1 MΩ when tested at 500 V AC potential
• Circuit inductance remains below 90 mH for consistent signal integrity
• Capacitance against housing measures under 1.2 nF without additional protection
• Damping characteristics range from 0.56 at 20°C to 0.42 at elevated temperatures

Configuration & Model Options

• PR 9268/30 series specifically engineered for horizontal vibration measurement
• Standard 5-meter armored cable provides durability in demanding applications
• HARTING connector interface ensures secure electrical connections
• Multiple cable termination options available for different installation requirements
• Each unit undergoes comprehensive testing to validate performance specifications
• Custom configuration options available for specialized application requirements

Shipping & Package Information

• Complete transducer assembly includes pre-installed cable and connector system
• Net weight approximately 930 grams for straightforward handling and installation
• Protective packaging maintains integrity during transit with 1200 gram total weight
• Express shipping available through FedEx, UPS, and DHL global networks
• Comprehensive installation documentation and technical specifications included
• All products include 12-month coverage for materials and manufacturing quality

Expert Technical Support

• What mounting considerations are unique to horizontal vibration sensors?
• Horizontal installations require careful attention to gravitational effects on measurements. Ensure mounting surface flatness and use recommended torque specifications for accurate data collection in this orientation.
• How does temperature variation affect transducer performance over time?
• Temperature changes cause minor sensitivity shifts, typically within the specified ±5% tolerance. For critical applications, consider temperature compensation based on your specific operating environment requirements.
• What maintenance procedures ensure long-term measurement accuracy?
• Perform regular visual inspections for physical damage and verify electrical connections. Check baseline readings quarterly and compare against initial installation values to detect any performance degradation.
• Can this transducer withstand high-pressure washdown environments?
• The IP55 rating provides protection against water jets from any direction, making it suitable for most washdown applications. For continuous high-pressure exposure, additional protective measures may be necessary.
• What signal conditioning requirements does this transducer have?
• The voltage output signal works with most standard data acquisition systems. For long cable runs or electrically noisy environments, we recommend using signal conditioners with appropriate filtering capabilities.
