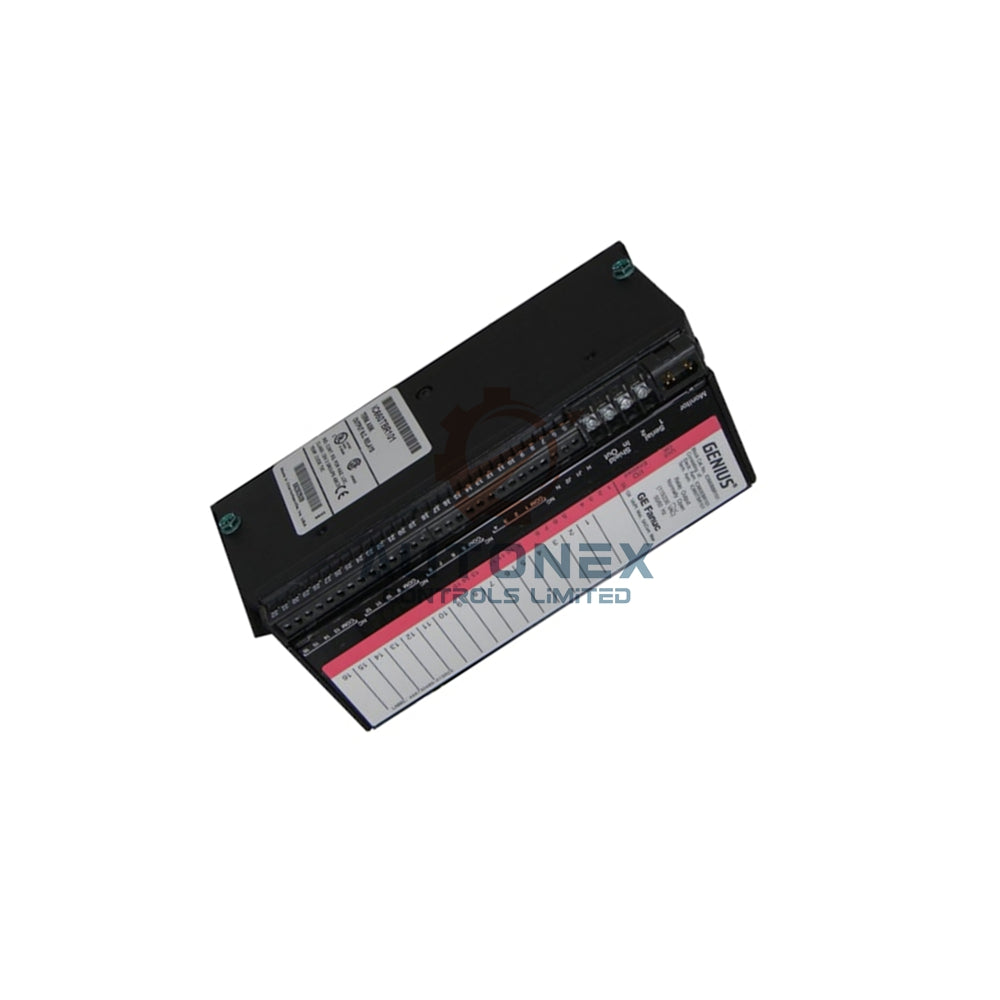

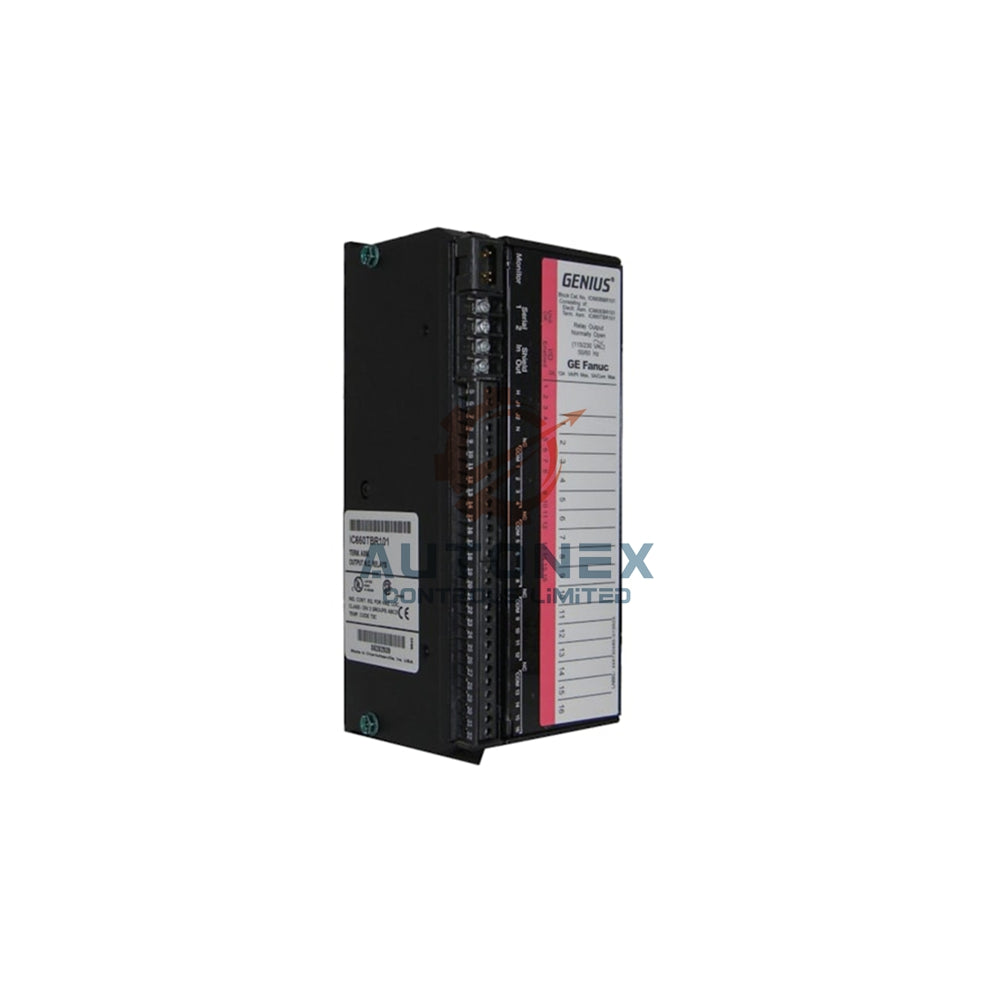

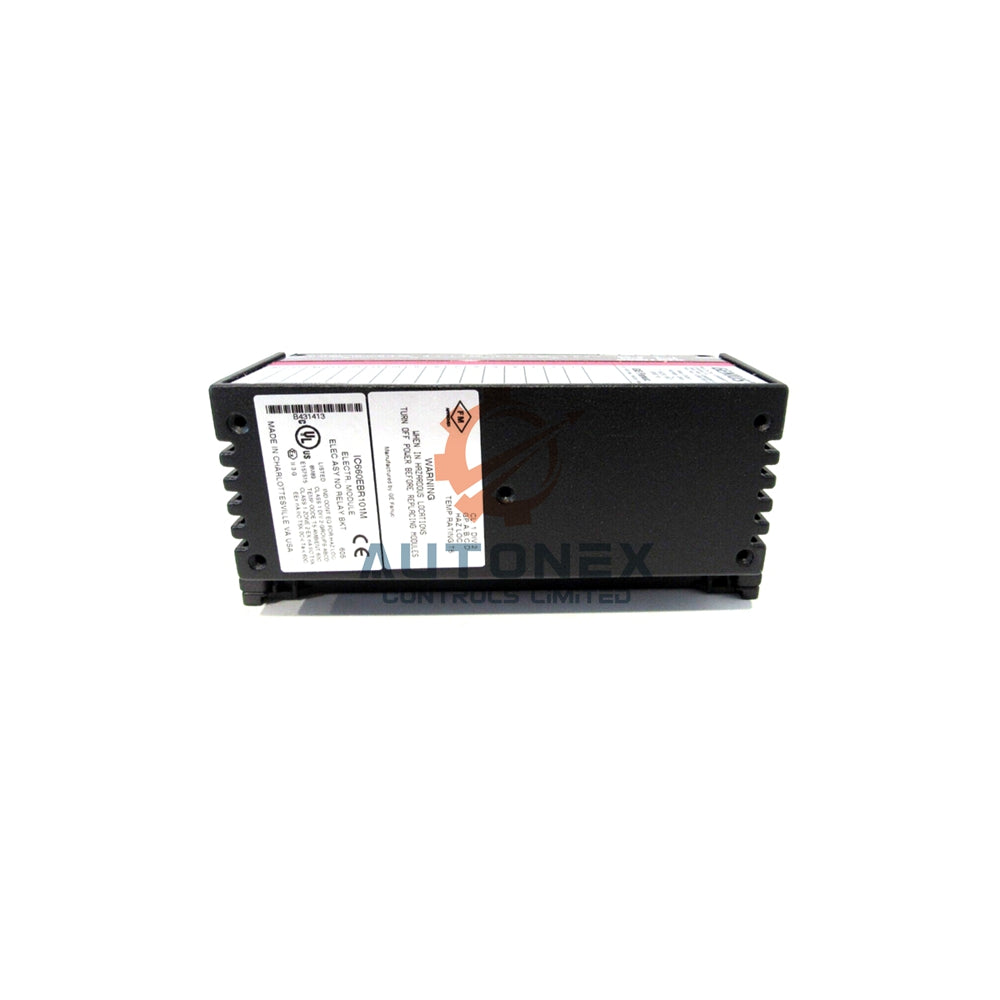

Terminal Assembly - GE Fanuc IC660TBR100

GE Fanuc Genius I/O Series Terminal Assembly

Technical Specifications

• Brand: GE Fanuc
• Model: IC660TBR100
• Series: Genius I/O
• Product Type: Terminal Assembly
• Compatible Block: IC660BBR100 (Normally-Closed Relay Output)
• Voltage Rating: 115/230 Volts AC (selected via jumper)
• Operating Temperature: 0 to 60 degrees Celsius
• Storage Temperature: -40 to 100 degrees Celsius
• Relative Humidity: 5 to 95% (non-condensing)
• Vibration Rating: 10 to 200 Hertz
• Wire Size: Accepts AWG #22 through AWG #12 wires
• Weight: Approximately 2 pounds

Design and Connection Features

• The assembly has 32 screw-clamp terminals for easy wiring.
• Terminals 5 to 32 connect field devices like relays and contactors.
• Terminals 1 and 2 are for serial connections.
• Terminals 4 and 5 manage shield-in and shield-out connections.
• Use spaghetti tubing to insulate shield drain wires properly.
• You can insert or remove the I/O block without disturbing field wiring.
• A slotted or Phillips screwdriver works for all bus connections.

Frequently Asked Questions (FAQ)

• Q: What is the IC660TBR100 compatible with?
  A: It is designed for the Genius I/O Series and is specifically compatible with the IC660BBR100 relay output block and the IC660EBR100 electronics assembly.
• Q: What is the operating voltage range?
  A: The assembly supports both 115V and 230V AC power sources. You must select the correct voltage using the jumpers on the terminal assembly.
• Q: What wire sizes can I use?
  A: The screw clamp terminals accept wires from AWG #12 to AWG #22.
• Q: What is your shipping and return policy?
  A: We have stock available and typically ship within 5 business days via DHL, FedEx, or UPS. We offer a 30-day return policy for unopened items.
• Q: Is this a complete I/O block?
  A: No, the IC660TBR100 is a terminal assembly. You need to pair it with an electronics assembly (like IC660EBR100) and the appropriate I/O block (like IC660BBR100) to form a complete module.
