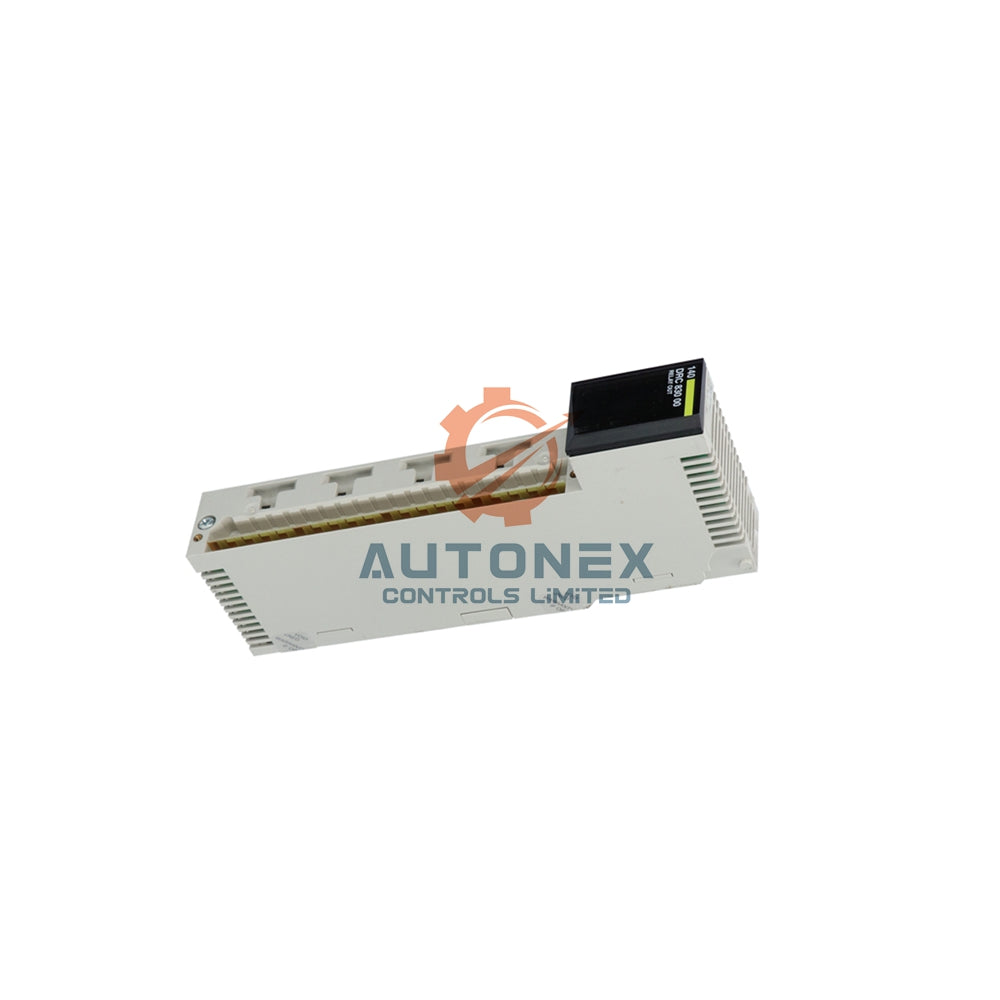

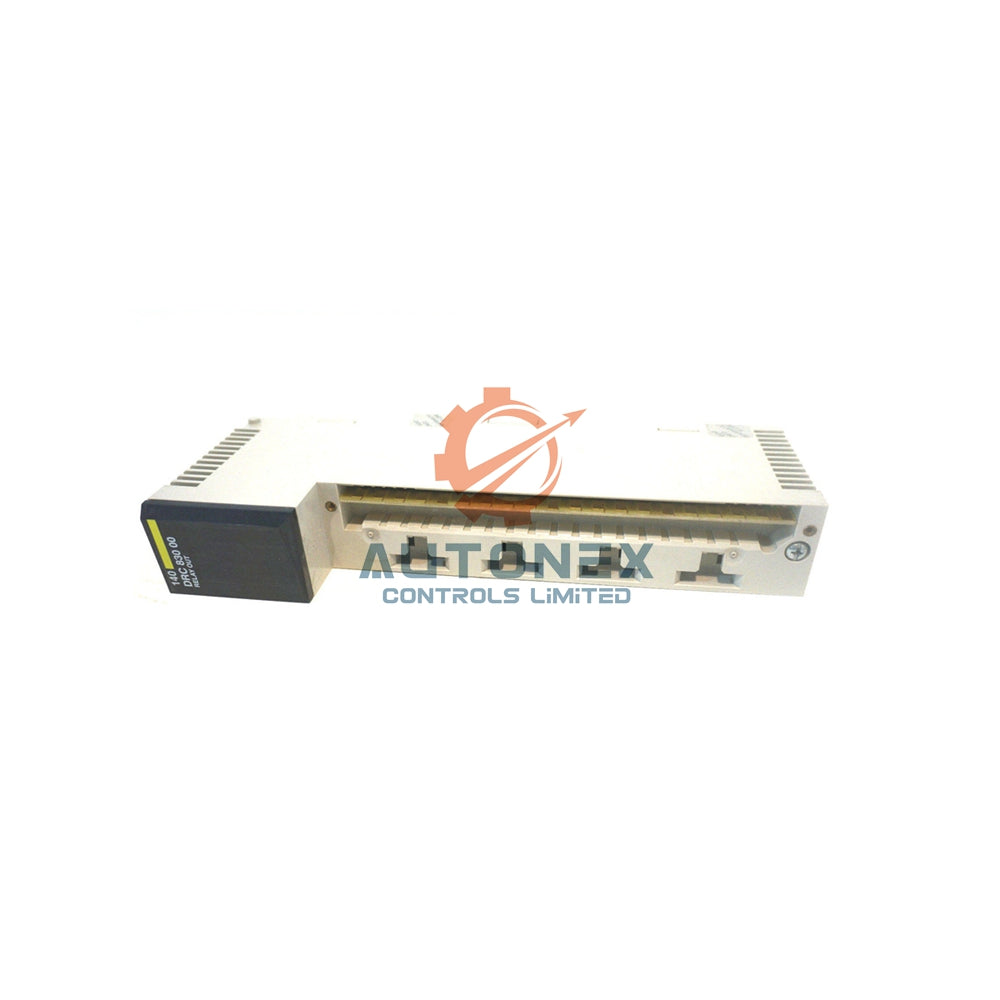

Schneider Electric 140DRA84000 Relay Output Module 16-Point

Schneider Electric Modicon Quantum Relay Output Module 140DRA84000

Core Technical Specifications

• Brand: Schneider Electric
• Model & Series: 140DRA84000, part of the Modicon Quantum automation platform.
• Output Type: 16-point relay output module with Form A (1 NO) contacts.
• Output Voltage: Wide range: 20-250V AC, 30-150V DC, or 5-30V DC.
• Current Rating: Handles up to 2A resistive at 250V AC/30V DC and 1A for tungsten/inductive loads.
• Switching Capacity: Rated for 500 VA resistive loads.
• Response Time: Maximum response is 10ms (ON) and 20ms (OFF).
• Durability: Exceptional 10 million mechanical cycles and up to 200,000 electrical cycles.
• Protection: Includes internal varistor protection (275V) against overvoltage transients.

Isolation & Environmental Ratings

• Isolation: Provides 1780Vrms isolation between channels and from channels to the system bus.
• Operating Temperature: Reliable operation from 0 to 60°C (32 to 140°F).
• Certifications: Holds FM Class 1 Division 2, c-tick, GOST, and ABS approvals.
• Robustness: Resists electrostatic discharge (4kV contact) and electromagnetic interference.

Installation & Integration Details

• Addressing: Requires 1 output word in the PLC configuration.
• Bus Current: Draws 1100 mA from the Quantum backplane.
• Diagnostic LEDs: Features a green ACT LED, a red FAULT LED, and 16 green LEDs for individual output status.
• Power Dissipation: 5.5W + (0.5W x number of active outputs).
• Net Weight: Module weighs 0.41 kg (0.90 lb).

Packaging & Shipping Information

• Package Contents: One brand new, factory-sealed 140DRA84000 module.
• Unit Weight: Total shipping weight is approximately 545g.
• Shipping: We ship globally, typically within 5 business days, using FedEx, DHL, or UPS.

Frequently Asked Questions (FAQ)

• Q: Is this a genuine Schneider Electric module in stock?
  A: Yes, we supply 100% new, original Schneider Electric products from available stock.
• Q: What types of loads can the 140DRA84000 control?
  A: It can control AC/DC resistive, inductive (motors), and tungsten (lamp) loads within its rated voltage and current limits.
• Q: What is the relay contact configuration?
  A: Each of the 16 channels has one normally open (Form A) contact.
• Q: How durable are the relay contacts?
  A: Extremely durable, rated for 10 million mechanical operations and up to 200,000 electrical operations at full load.
• Q: What is your shipping and return policy?
  A: We ship quickly and offer a 30-day return policy for unused items in original packaging.
