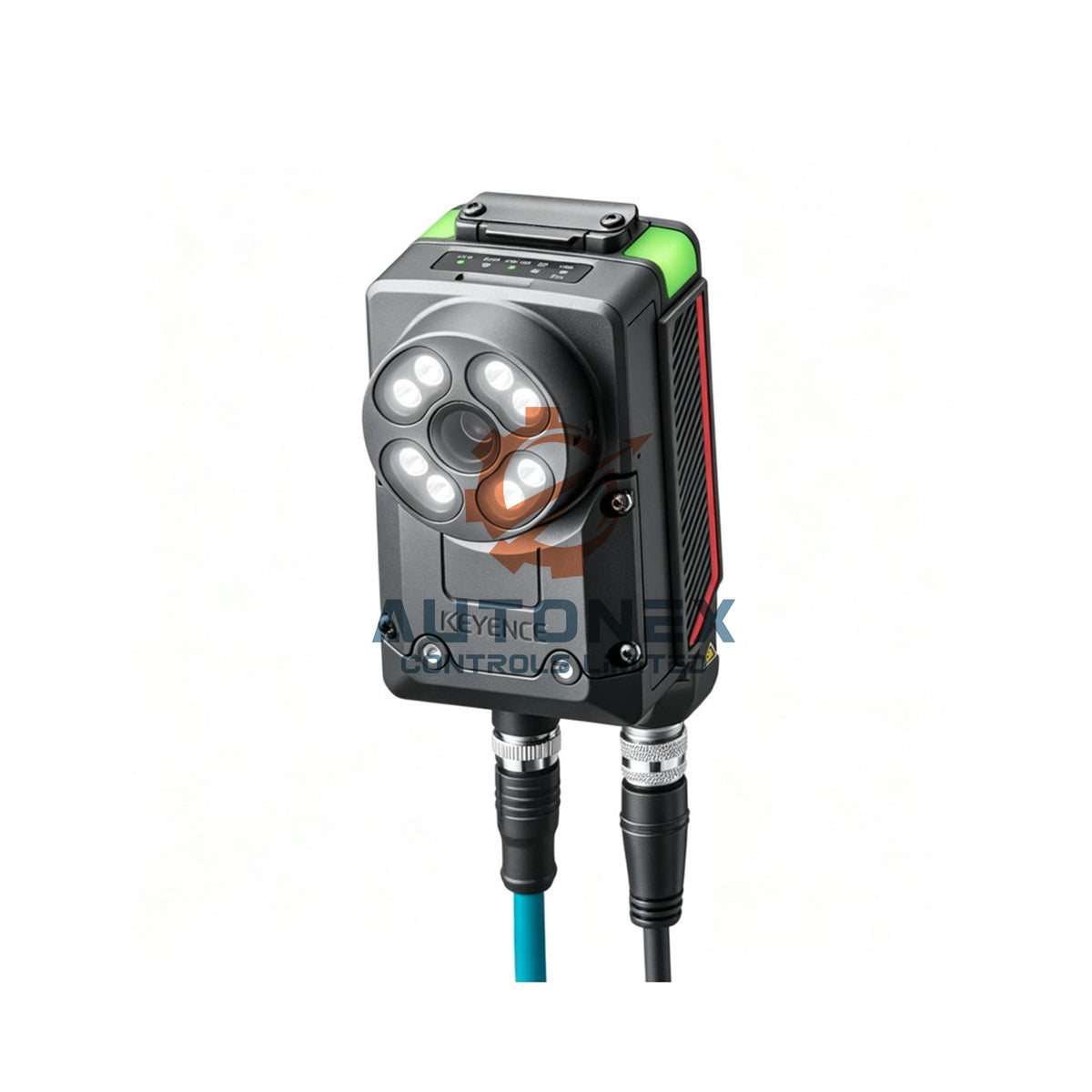

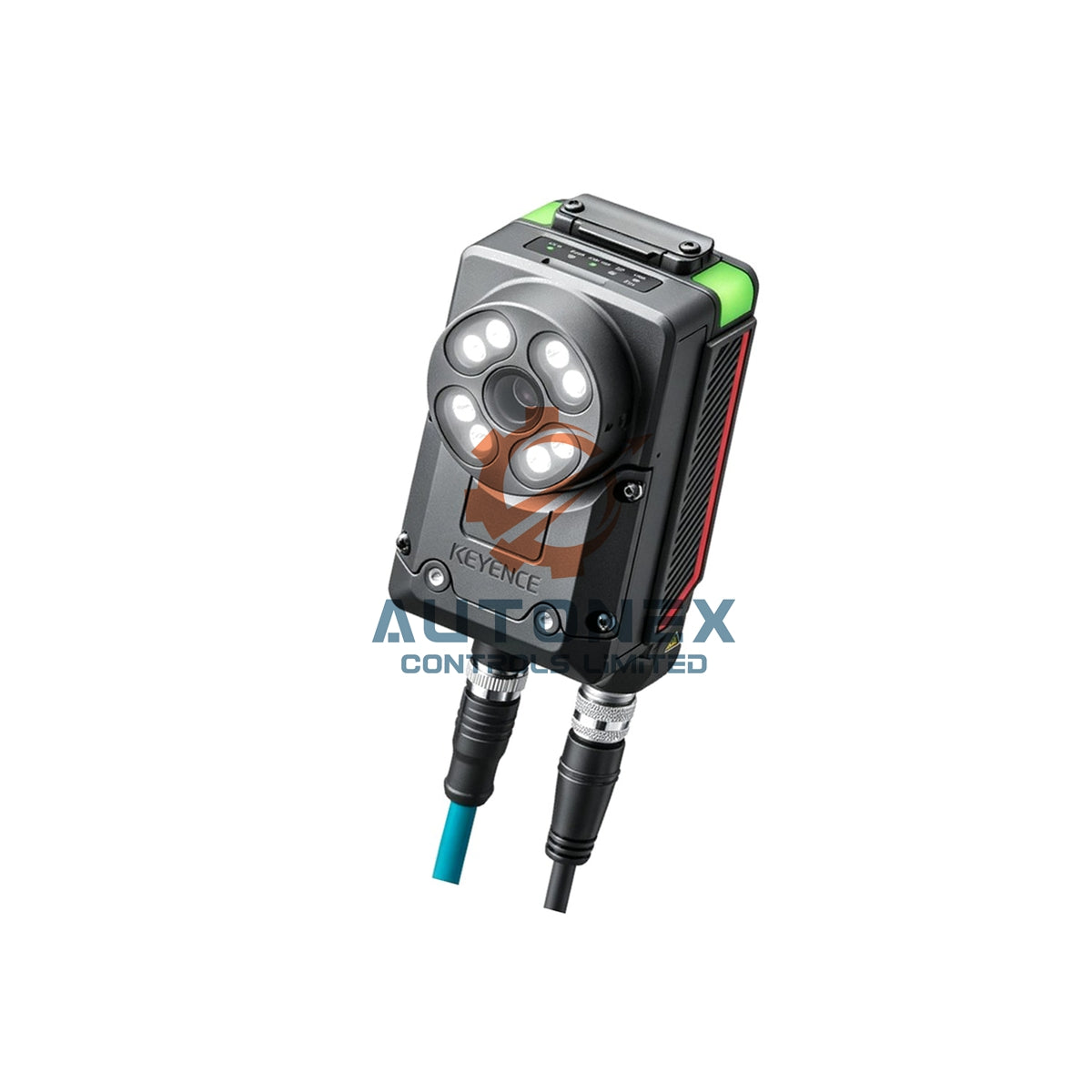

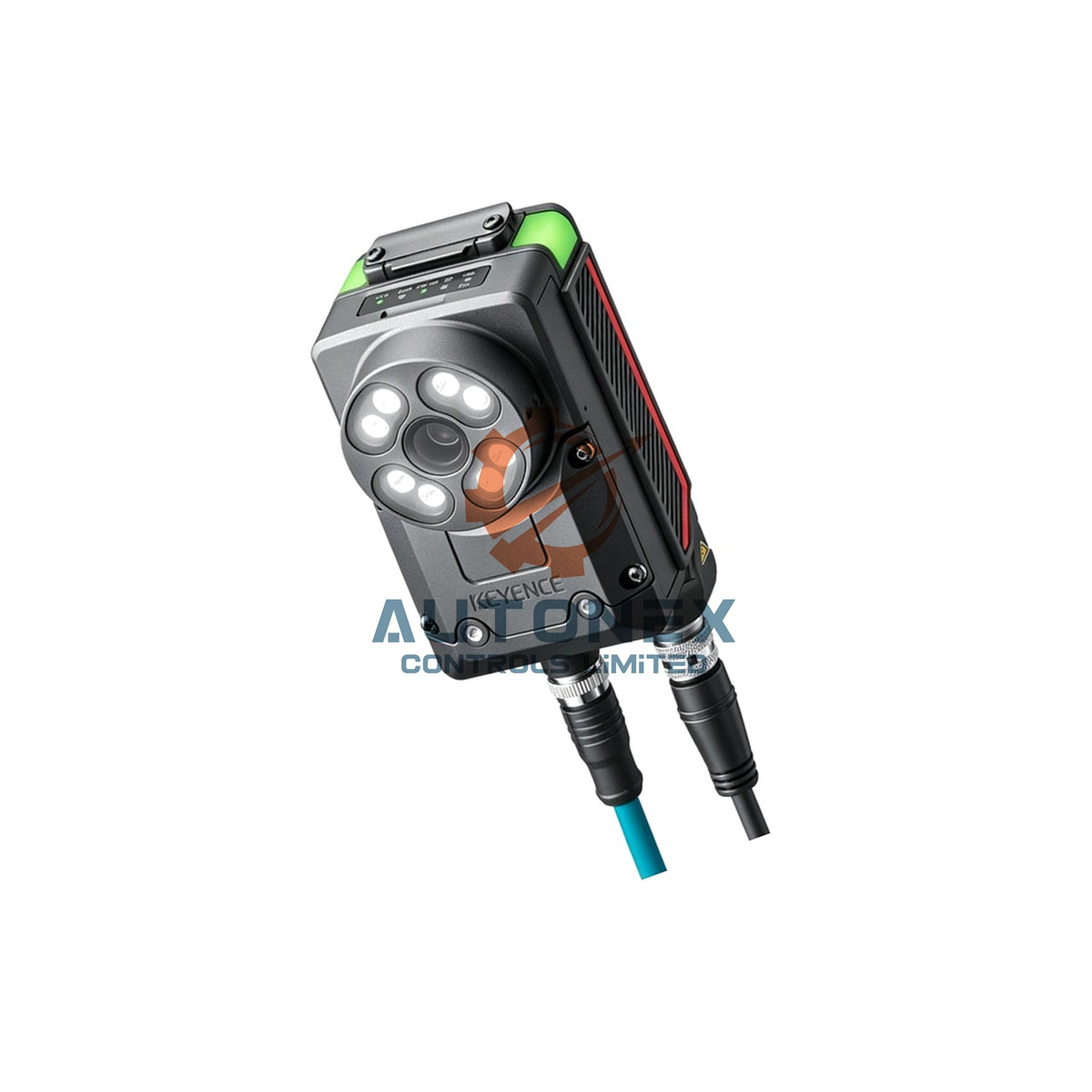

Keyence IV4-600CA Wide View AI Color Vision Sensor

Keyence IV4-600CA AI Vision Sensor – Wide Field of View Color Smart Camera

Core Technical Specifications

• Brand: Keyence
• Model: IV4-600CA
• Series: IV4 Series
• Type: Smart camera with wide field of view
• Image sensor: 1/2.9 inch color CMOS, 1280 x 960 pixels
• Field of view: 51 x 38 mm at 50 mm distance, up to 2730 x 2044 mm at 3000 mm distance
• Focus: Auto focus
• Exposure time: 12 µs to 10 ms
• Lighting: White LED with switchable pulse and continuous lighting
• Tool count: 65 tools
• Available modes: Standard Mode, Sorting Mode, AI Through Count Mode

Communication and Electrical Data

• Built-in port: M12 8-pin X-code female Ethernet connector for 1000BASE-T/100BASE-TX
• Protocols: EtherNet/IP, PROFINET CC-B, TCP/IP non-procedural comm (x2), FTP client, SFTP client, SNTP client, OPC UA server, MQTT client
• Communication expansion: IV4-CU1 unit supports PROFINET CC-C and EtherCAT; DL Series units add EtherCAT, CC-Link, DeviceNet, and RS-232C
• Supply voltage: 24 VDC +25%, -20% including ripple
• Power consumption: 3.4 A or less at 19.2 V; 2.7 A or less at 24.0 V
• Average power: 9.3 W without AI imaging illumination unit; 12.8 W with AI imaging illumination unit
• Output type: Open collector, NPN/PNP switchable, N.O./N.C. switchable, maximum 30 V 50 mA
• PoE: Power Class 4/6
• Inputs: 6 total, with 3 selectable IN/OUT
• Outputs: 6 total, with 3 selectable IN/OUT

Environmental Durability and Physical Build

• Operating temperature: 0 to +50°C without freezing
• Relative humidity: 85% RH or less without condensation
• Protection rating: IP67, except when polarizing filters OP-88640/OP-88641/OP-88644/OP-88645 are installed
• Vibration resistance: 10 to 500 Hz, 0.816 G²/Hz, X/Y/Z directions
• Shock resistance: 500 m/s², 3 times in each of 6 directions
• Material: Aluminum die-casting main case, acrylic front cover with hard coating, PBT back cover and lid, TPU indicator cover, PA/POM power connector, copper alloy Ethernet connector with nickel plating
• Weight: Approx. 370 g without AI imaging illumination unit; approx. 560 g with AI imaging illumination unit
• ESD safe: IEC61340-5-1 compliant

Installation Guide

• Mount the IV4-600CA at a distance of 50 mm or more from the target.
• Use the auto focus function to adjust image sharpness quickly.
• Connect the M12 8-pin X-code Ethernet cable for network communication.
• Provide a stable 24 VDC power supply within the specified tolerance range.
• Keep the device within 0 to +50°C and below 85% RH during operation.
• Install polarizing filters only if the IP67 rating is not required for your environment.
• Switch between pulse and continuous lighting to match your inspection needs.

Package List

• 1 x Keyence IV4-600CA vision sensor
• 1 x Power supply connector
• 1 x Ethernet connector waterproof cap
• 1 x Power supply connector waterproof cap
• 1 x Operation indicator cover

Shipping and Support

• We keep this model in stock for fast order processing.
• We ship within 5 days using FedEx, UPS, or DHL.
• We offer a 30-day return policy for your peace of mind.
• All units are brand new and original.

FAQ

• What is the field of view range of the IV4-600CA? It covers 51 x 38 mm at 50 mm distance up to 2730 x 2044 mm at 3000 mm distance.
• Does this vision sensor support color imaging? Yes, it uses a 1/2.9 inch color CMOS sensor with 1280 x 960 pixels.
• What communication protocols does the IV4-600CA support? It supports EtherNet/IP, PROFINET CC-B, TCP/IP, FTP, SFTP, SNTP, OPC UA, and MQTT.
• What is the power consumption of this model? It uses 9.3 W without the AI imaging illumination unit and 12.8 W with it.
• Can I use this camera in a washdown environment? Yes, it carries an IP67 rating except when polarizing filters are installed.
• How many tools does the IV4-600CA offer? It provides 65 tools for flexible inspection tasks.
• What lighting method does this model use? It uses a white LED with switchable pulse and continuous lighting.
• What is the operating temperature range? It works from 0 to +50°C without freezing.
